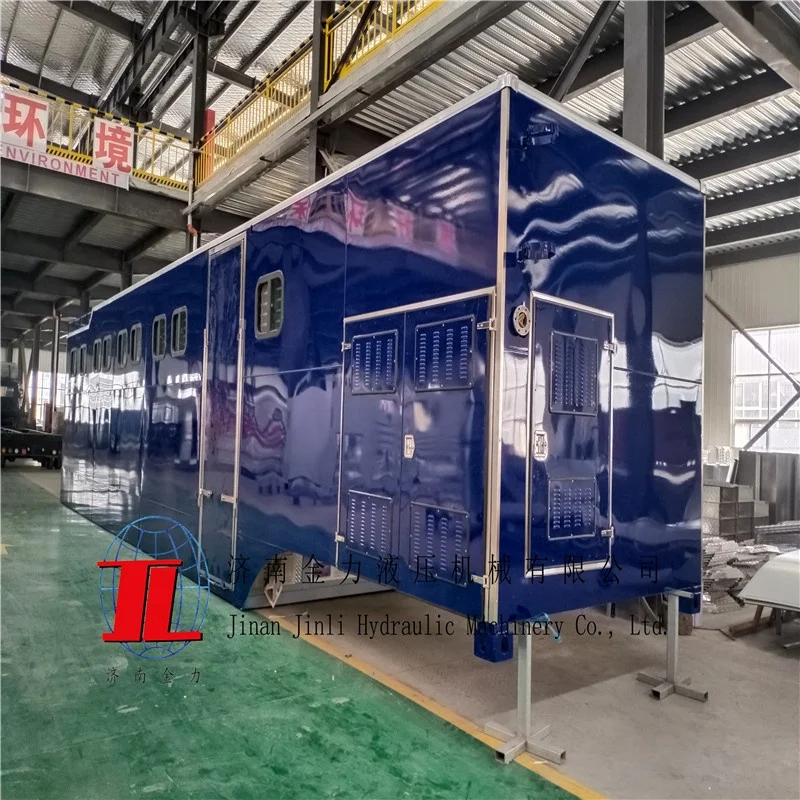

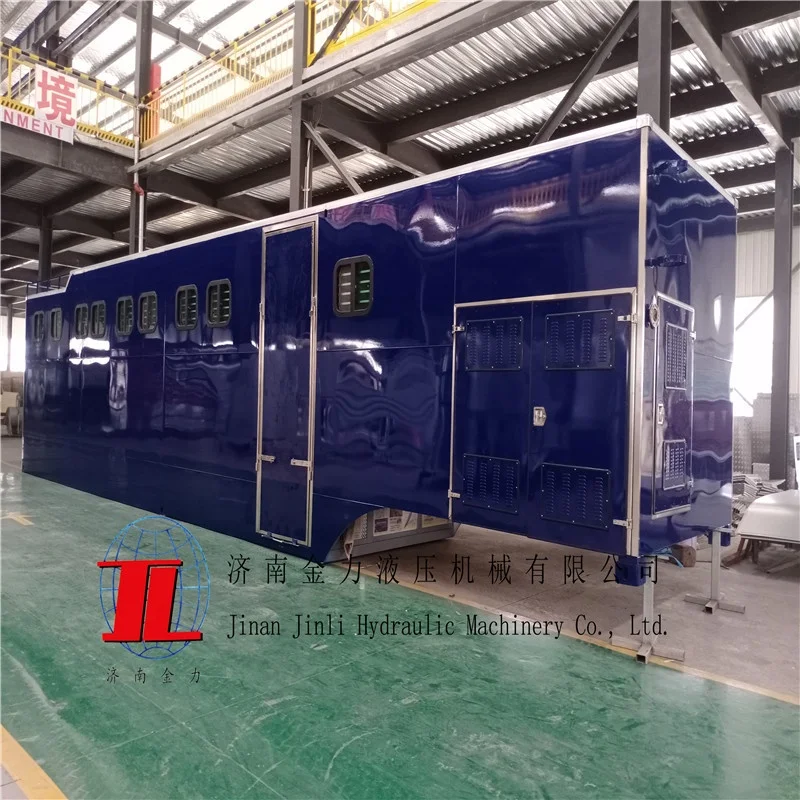

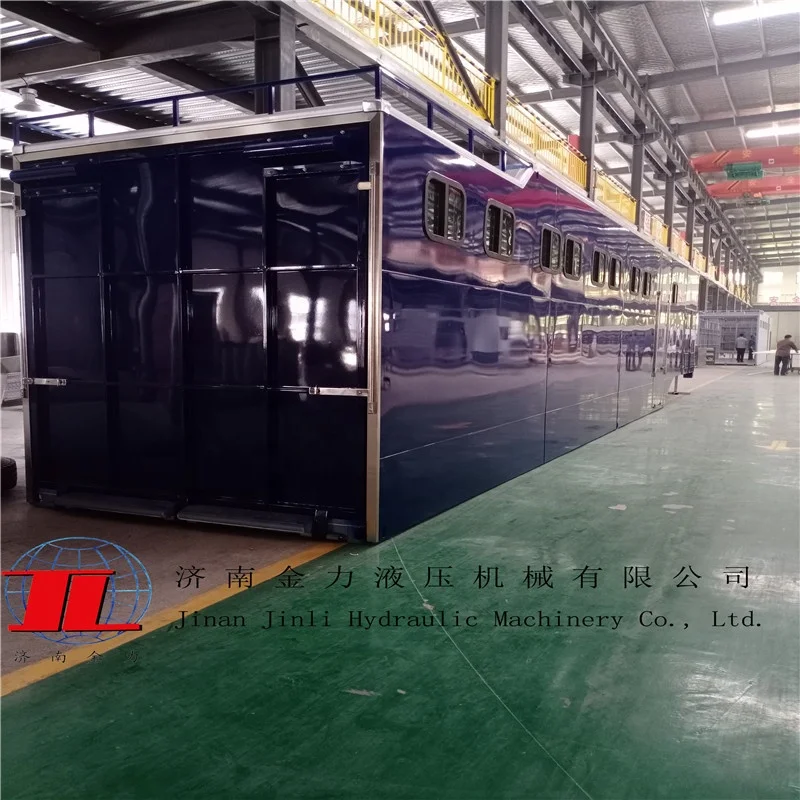

9 horses truck trailer 9 horse trailer popular sale



1. total dimension: 13000*2500*3900mm

the float body materail:  hot dip galvanized tube 50*100*5mm/ 50*70*5mm/ 25*25*2mm/ 20*20*1.5mm



hot dip galvanized chassis Flat open board 2400*1200*1.5mm / 2400*1200*1.2mm



galvanized angle iron 40*40*3mm



2. back door dimension 2400*2400mm   material   firberglass reinforced floor 20mm + 10mm rubber matting ; gas struct 4 -8 units



3, the relex area : plywood hardwood 18mm + The soft package 50mm for 4 beds 2900*2500mm



4. all the LED lights, water system(water sink, water pump, water tank(100 liter), water tap)



5. front door/ side door hot dip galvanized tube 25*25*2mm/ 20*20*1.5mm;



6. the below panel and side panel : fiberglass material below panel20mm;  rubber matting10mm/8mm/5mm     13000*2500mm



7 paint : all the horse trailer with White car paint : total 3 times of paint



8 Silent generator / Silent gasoline generator :EL6500CXS power; 5KW



9  Rear guard rail hot dip galvanized tube 50*70*5mm/ 25*25*2mm/20*20*1.5mm



10   tool box /saddle box   hot dip galvanized panel 8- 10 units 2400*1200*1.5mm/ 2400*1200*1.2mm ( build accoding to chassis)

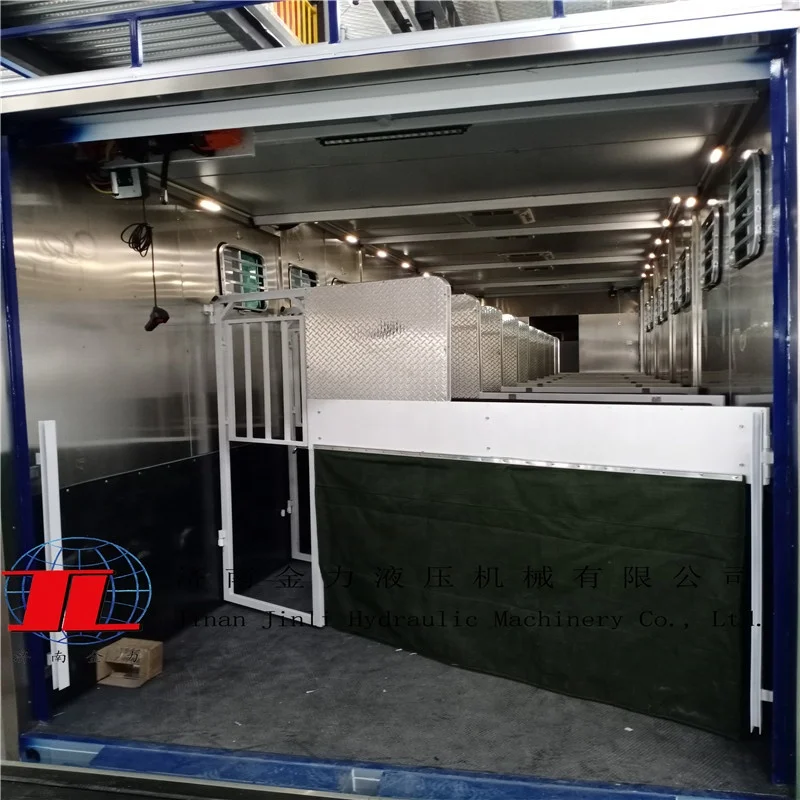

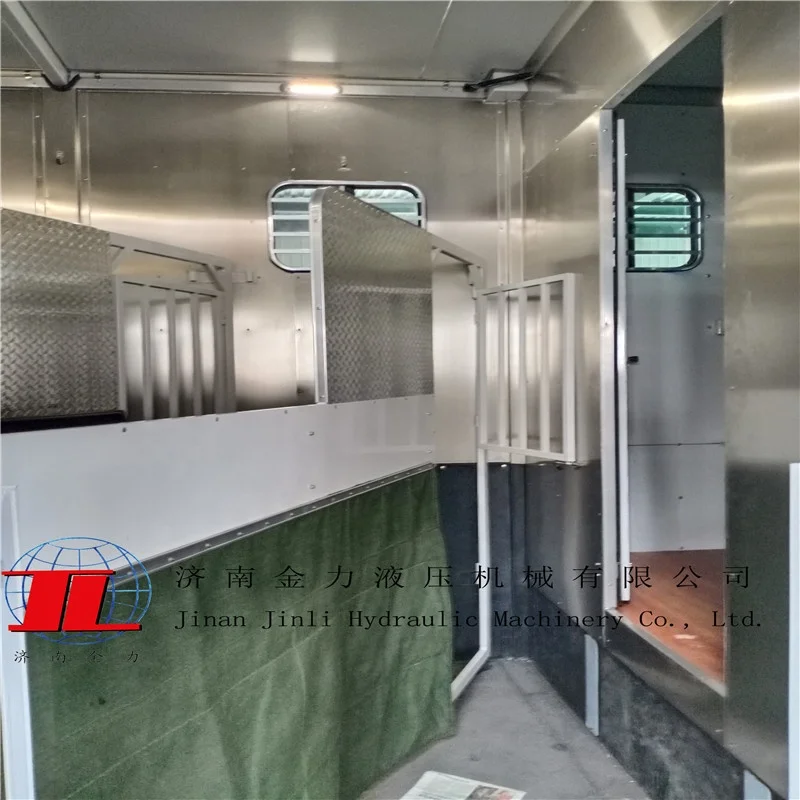

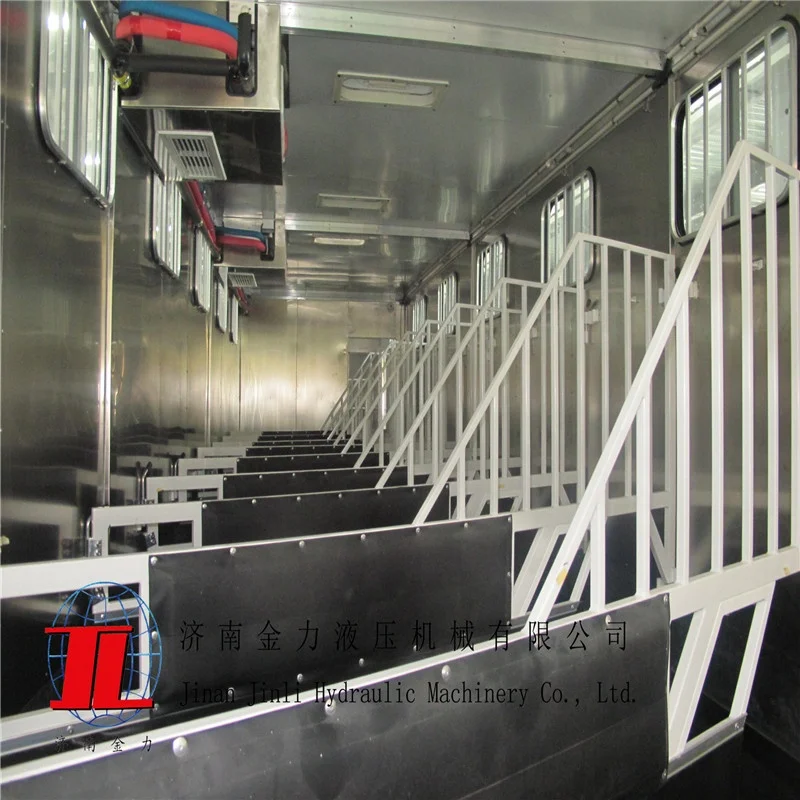

11  horse divider : hot dip galvanized tube 50*70*5mm/ 25*25*2mm/20*20*1.5mm; rubber matting 8mm/5mm    hot dip galvanized chassis flat open board 2400*1200*1.2mm   ; 10 or 11 horse dividers



12 standard parts: aluminium alloy, stainless steel material; roof vents : inside horse rings, door hinges etc
