Блок питания для светодиодного драйвера 120 В 277 тонкий класс 2 24 в 4a 75 Вт

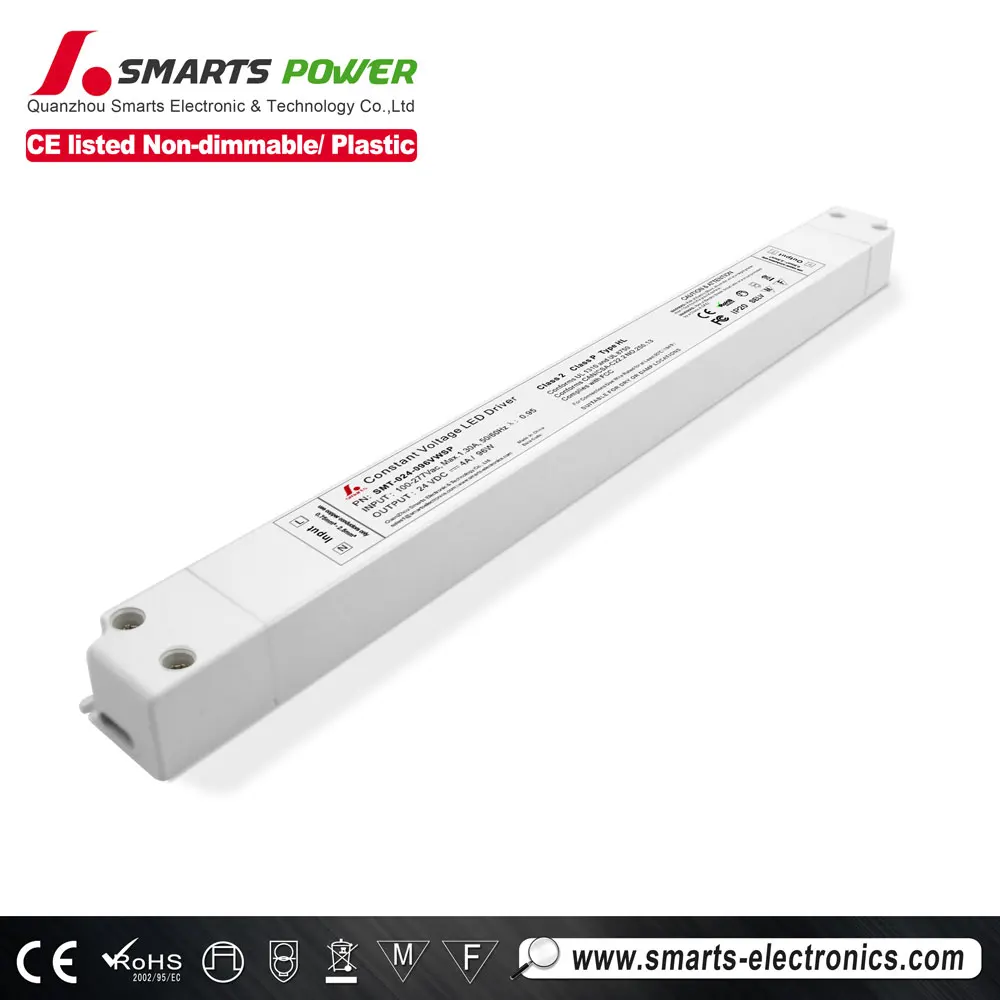

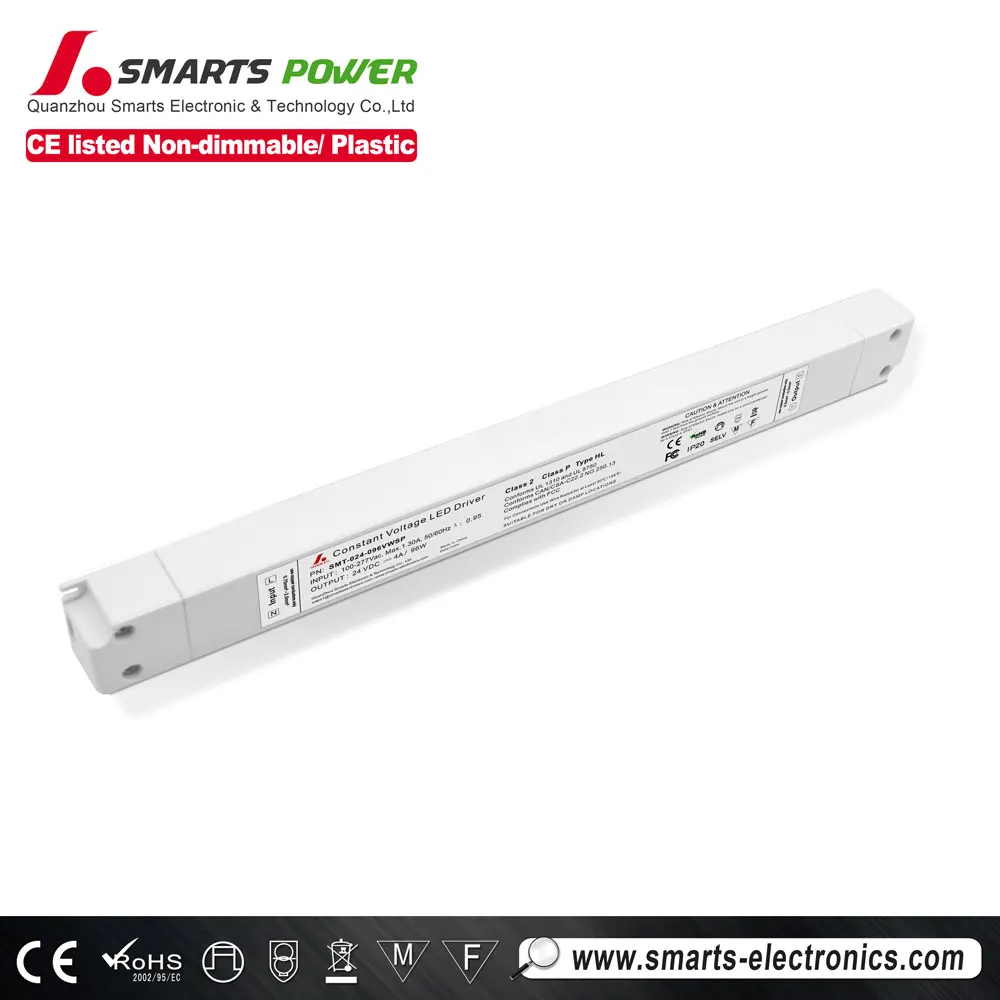

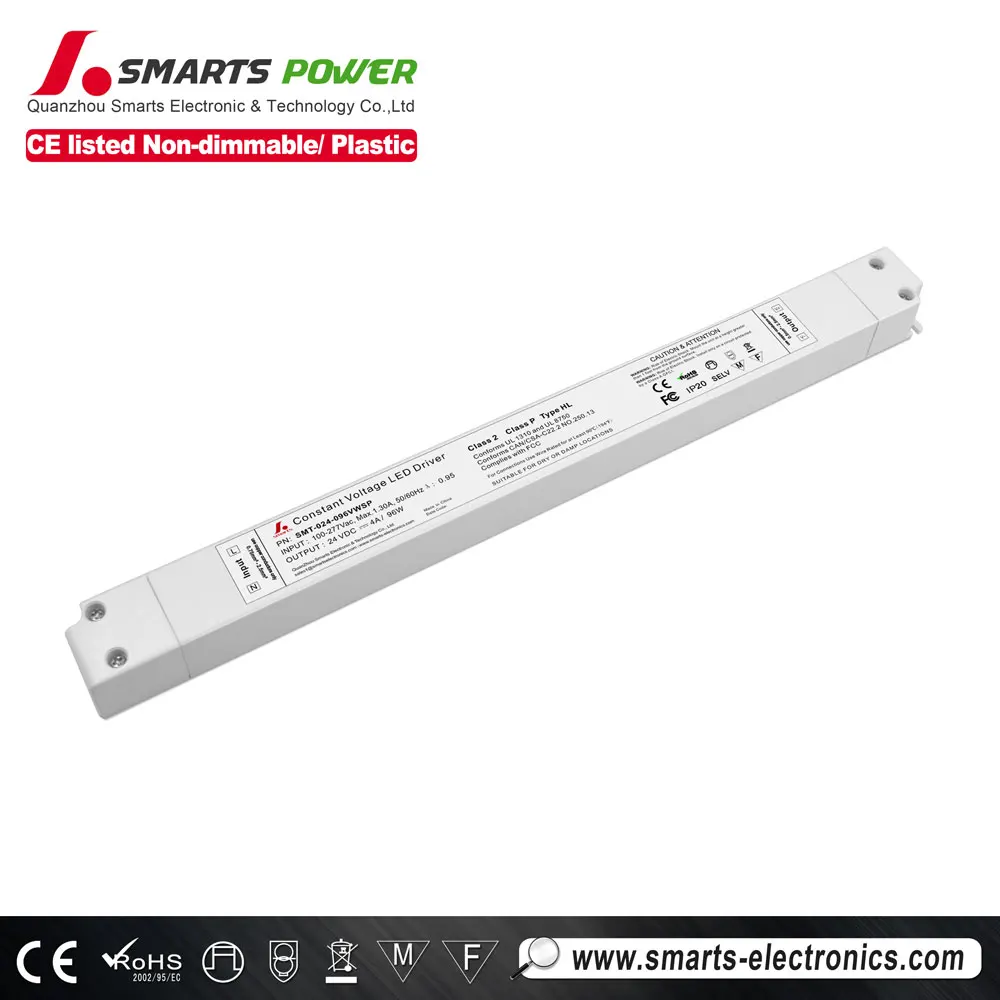

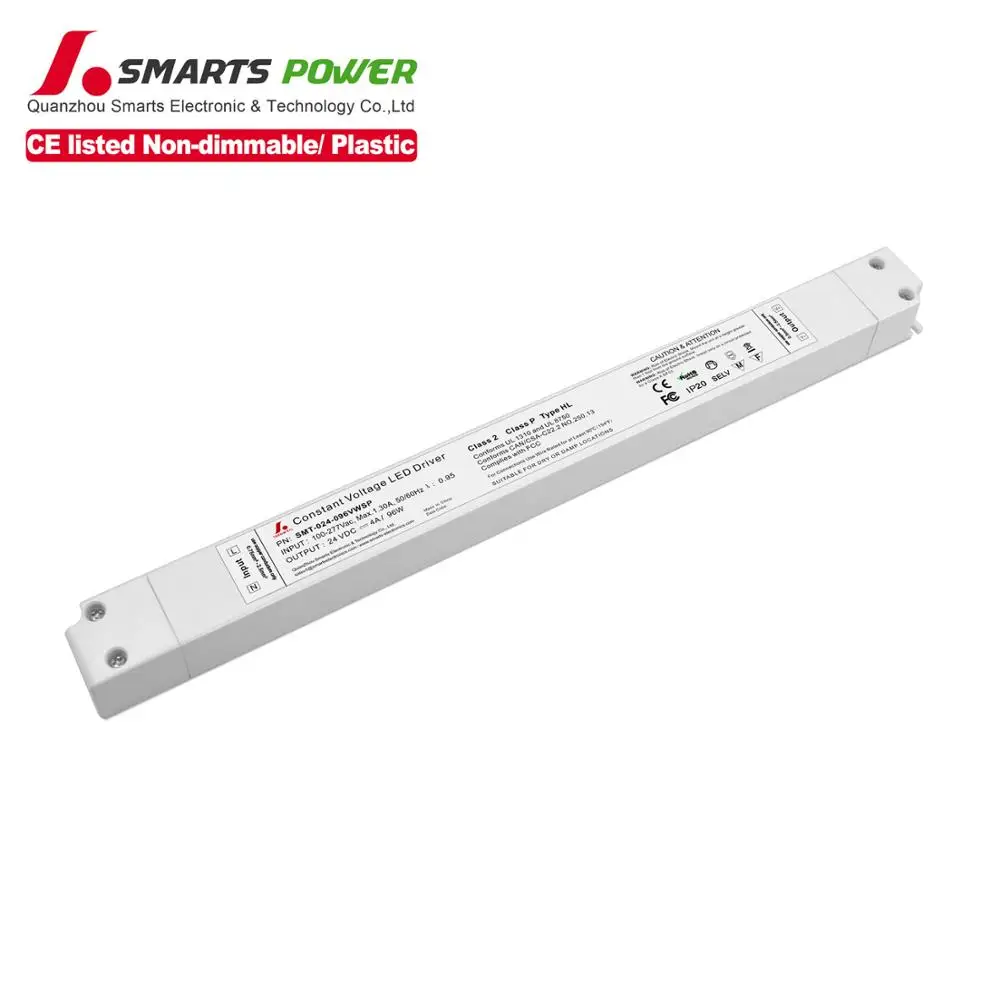

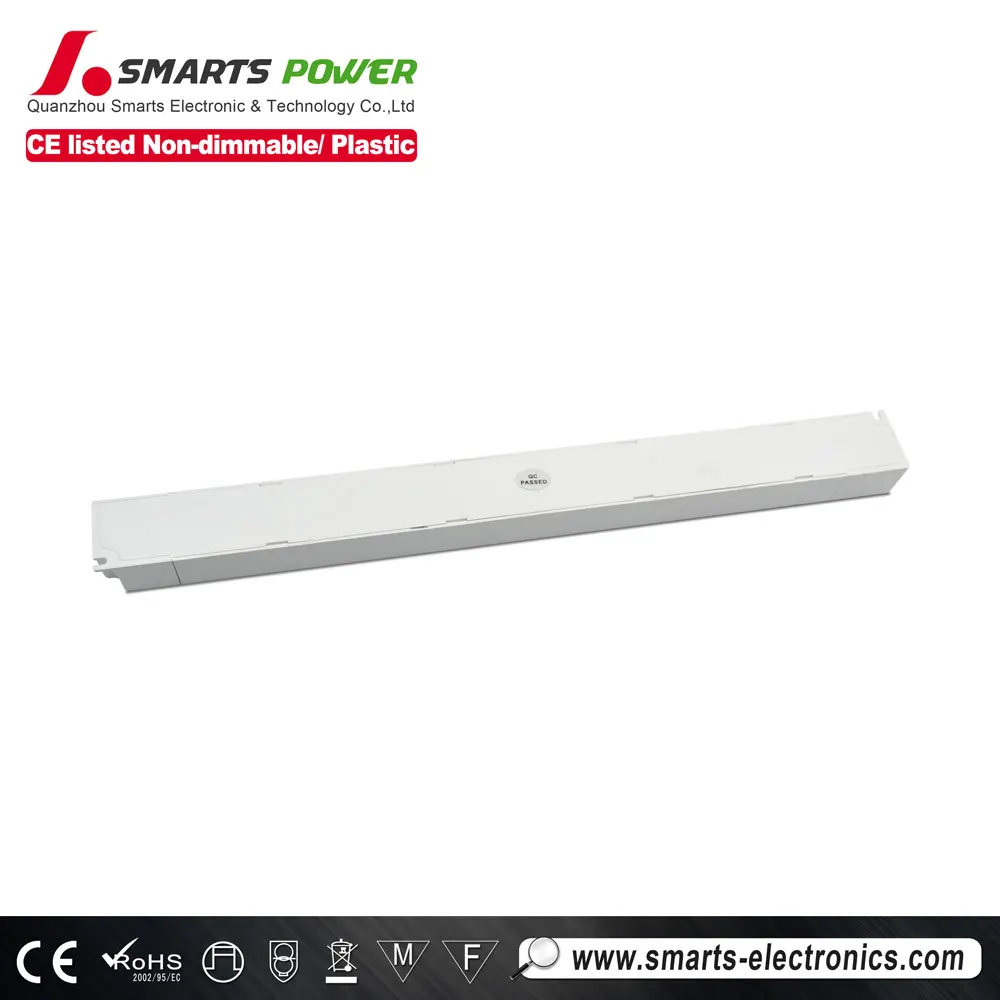

The Ultra slim series electronic led 24v class 2 power supply 96w is  CE listed. These slim led drivers are a compact solution for powering LED tape light, led display, Typically smaller, lighter and less expensive than magnetic drivers, its plastic IP20 for use in dry or damp locations.

 Features

·Output constant voltage
·Input voltage range 100-277VAC
·Class 2, Class P, CE, ROHS approval
·Built-in PFC function / E fficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty

 Specifications

model		SMT-012-100VWSP	SMT-024-096VWSP
Output	DC Voltage	12VDC	24VDC
	Voltage Accuracy	±5%	±5%
	Rated current	8.33Amp	4Amp
	Rated power	100W	96W (class 2)
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Load Regulation	±1% ±1%
Input	Voltage Range	100-277 VAC
	Frequency Range	47~63HZ
	Power Factor ( Typ.)	0.99@120VAC; 0.98@230VAC; 0.95@277VAC
	THD(Typ.)@ full load	<15%@120VAC  <20%@230VAC  <20%@277VAC
	Full Load Efficiency(Typ.)	83%@120VAC; 85%@230VAC; 85%@ 277VAC
	AC Current(Typ.)	1.4A/100VAC  / 0.82A/230VAC  / 0.43A/277VAC
	Inrush Current(Typ.)	7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC
	Leakage current	<0.50mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over Loading	≤120% shut down o/p voltage, re-power on to recover
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z  axes
Safety&EMC	Safety standards	EN61347-1  EN61347-2-13
	Withstand voltage	I/P-O/P: 3.75KVAC
	Isolation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥60%load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others	Weight	0.40Kg
	Size	330*30*22mm (L*W*H)
	packing	50PCS/CTN
Notes	1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
100-277VAC\\CE\\FCC\\IP20
100-277Vac\\UL(E507826)\\IP20

 Can your 24v 96w slim led driver work as flicker free?

Yes. our non dimmable constant volatge led driver can work as flicker free.

And actually, all of the dimmable led drivers  are all flicker free too, its PWM output frequency 20000HZ for triac dimmable led driver, 0-10v dimmable led driver.

 Mechanical Specification

 Derating Curve
