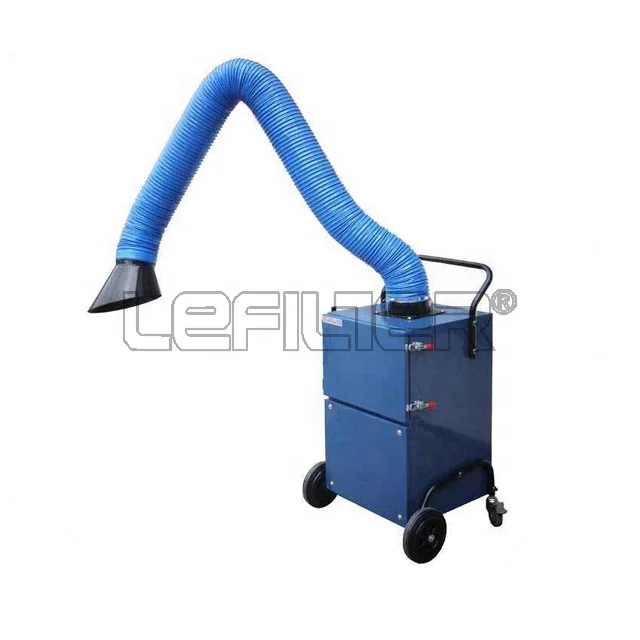

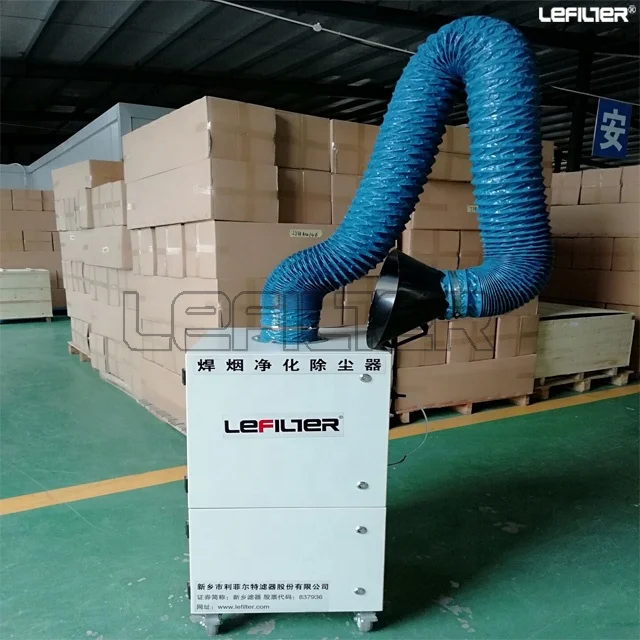

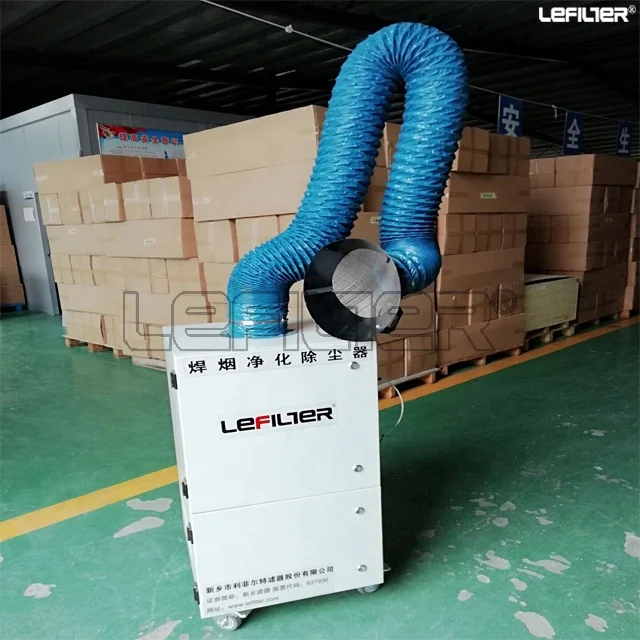

Mobile weld smoke absorb suction systems welding fume extractor dust collector



Introduction:

This machine will be generated by the welding of dust collection and filtration standards discharge, greatly reducing the heat generated by welding (including co, co2, so2, etc.) on people's health hazards.



Component Parts:

Universal suction arm, high temperature suction hose, suction hood (with volume damper), resistance warfare, flame retardant high efficiency filter element (cartridge type), pulse blowback device, pulse electromagnetic valve, pressure gage, cleaning room, activated carbon filter (plate-type), sinking dust drawer, flame retardant sound-absorbing cotton, universal caster (with brake), fan, motor, electronic control, machine body.



Technical data:

Model	LFHY-2000J	LFHY-2000G	LFHY-3000	LFHY-4000	LFHY-5000
Power (KW)	0.75	1.1	1.5	2.2	3
Voltage (V)	220/380	220/380	220/380	220/380	380
Frequency (Hz)	50	50	50	50	50
Rotate speed (r/min)	2840	2840	2840	2840	2840
Air volume (m³/h)	1900-2400	1900-2400	2500-3100	3400-4100	3800-4600
Wind pressure (Pa)	1350-1240	1350-1240	1510-1390	1720-1580	1900-1740
Noise (<dB)	80	80	80	85	85
Installation mode of filter element	Buckle type rotary mounting
P/N of filter element	LFHY-3540	LFHY-3550	LFHY-3550	LFHY-3560	LFHY-3560
Qty of filter element	1	1	2	2	4
Filtration area (m²)	7	7	14	18	36
Control mode of ash cleaning	No	Impulse control
Mode of deashing	No	Automatic dedusting
Air supply	No	Equipped by user
Exhaust arm's diameter*length(mm)	160*2000	160*2000	160*2000	160*3000	160*3000
Qty of exhaust arm	1	1	1	2	2
L*W*H (mm)	500*500*1100	650*650*1300	650*850*1300	800*850*1400	900*850*1500
Weight (kg)	60	75	85	110	130





Advantages:

1).Flexible mobile around the plant, will not limited by unstable fume.

2).Equipped with casters, convenient positioning device lock;

3).High processing efficiency, under the rated air flow, dust removal rate can reach more than 99%, the clean air can be discharged after the treatment, recycling directly in the workshop.

4).Adopt cartridge type purification method and high efficiency import PTFE material,can achieve high purification efficiency, cost of consumables is low, no frequent replacement is required, economical and environmental protection.

5).Equipment can keep constant air suction quantity and purification capacity.

(According to the requirements choose automatic or manual cleaning).

6).The special design of the equipment is safe and stable, with high voltage leakage protection

7).With universal suction arm, it can easily hover in any position of the 3D space,360°easy and flexible to reach any dirty position , so welders can work more efficiently.

8).For special working condition we provide different suction hood.

9).Through shock-absorbing and noise reduction treatment ensured equipment noise environmental protection.

10).Equipment is easy to operate, clean and maintain.

11).Equipment can deal with the pollution source by mobile stand-processing or multi station centralized processing.

12).Equipment can be customized according to the special requirements.



Main Application Fields:

It is widely used for the purification treatment of welding soot, grinding dust caused by all kinds of welding, polishing, cutting, grinding, sand blast and other processes in automobile, metallurgy, electronics, shipbuilding, heavy industry, machinery, sheet metal, plastic, rubber, steel, medicine, military industry, paper making, ceramics, chemical industry, railways, glass and other industries.



Scope of Application:

Application places: the purification treatment of gas caused by arc welding, CO2 protection welding, MAG welding (rich ar mixed gas) welding, argon arc welding, soldering, special welding and gas welding cut on carbon steel, stainless steel, aluminum and other metal welding. It also has very god use effect for manual welding and hand welding machine, robot welding.
