Автоматический Вакуумный лосьон с высоким сдвигом эмульгирующий косметический крем гомогенизатор смесительный
- Категория: Mixing Equipment >>>
- Поставщик: Zhangjiagang,Mic,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 25585.95 $* | 26864.40 $* |
| Aug-19-2025 | 25370.85 $* | 26639.63 $* |
| Jul-19-2025 | 21285.35 $* | 22349.61 $* |
| Jun-19-2025 | 24940.31 $* | 26187.47 $* |
| May-19-2025 | 21715.64 $* | 22801.65 $* |
| Apr-19-2025 | 24510.99 $* | 25736.40 $* |
| Mar-19-2025 | 24295.74 $* | 25510.94 $* |
| Feb-19-2025 | 24080.46 $* | 25284.28 $* |
| Jan-19-2025 | 23865.43 $* | 25058.45 $* |
Характеристики
Product Description
Vacuum emulsifying machine consists of vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system(oil tank).
It is the most suitable equipment to produce high-grade skin care creams and other cream products.
It is the most suitable equipment to produce high-grade skin care creams and other cream products.
Related Products
Storage Tank Vacuum Emulsification Tank Planetary Mixer
300L Storage Tank: Φ700×1110mm; SUS316L 3mm thickness（not include jacket）
Vacuum Emulsification Tank:Compared with the emulsifier, the emulsification tank cannot raise the lid
Specification
Model | Capacity | Weight | Dimension | Homogeneous motor power | Rotating speed | Homogeneous method |
MIC-50L | 50L | 650kg | 1600*650*1600-2500mm | 2.2KW | 2800 | Upper homogenization |
MIC-100L | 100L | 1100kg | 2000*1540*2200 | 3kw | 2900 | Upper homogenization |
MIC-250L | 200L | 1500kg | 2600*1900*2500-3500mm | 4kw | 2800 | Down-homogenization |
MIC-500L | 500L | 2500kg | 3000*2500*3200-4500mm | 7.5kw | 3000 | Upper homogenization |
MIC-1000L | 1000L | / | 3500*2800*3285-4700mm | 15kw | 2960 | Upper homogenization |
Detailed Images

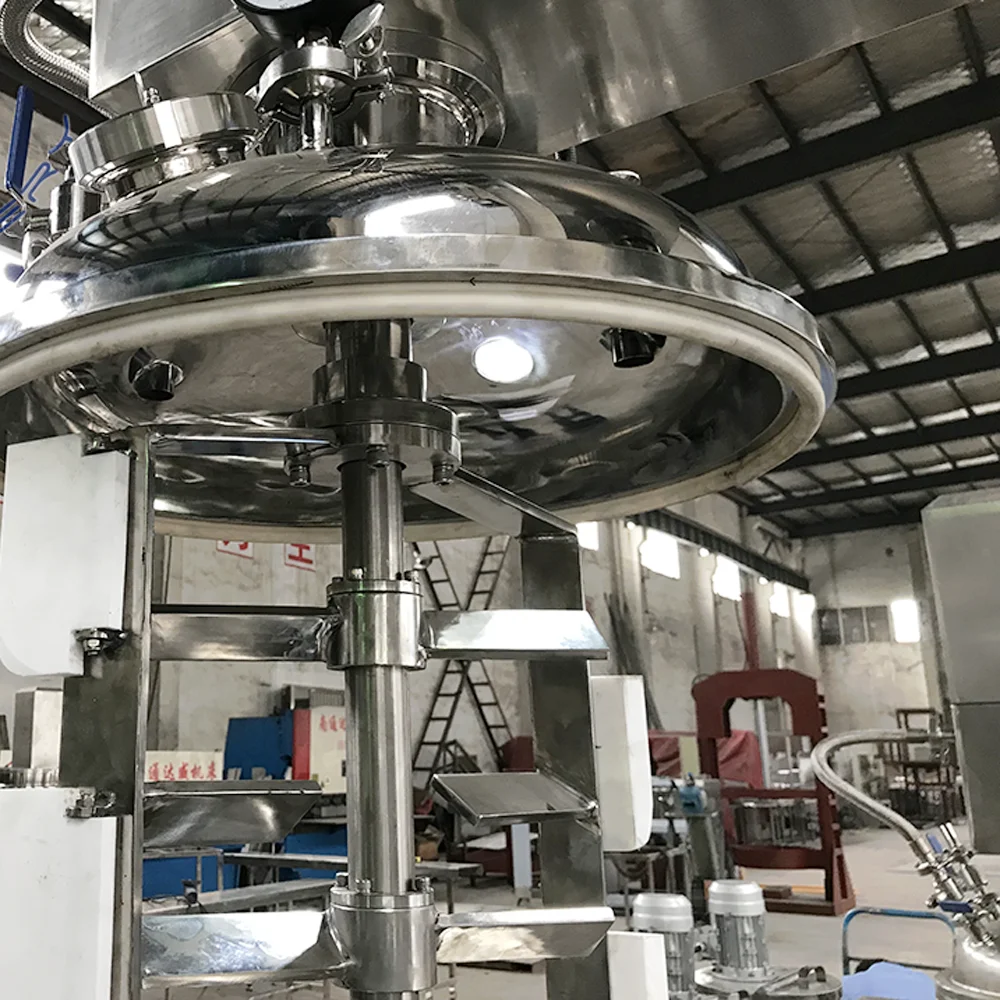

Machine Introduction
Vacuum Emulsifying machine consists of vacuum homogeneous,emulsifying machine, heating system, mixing system, vacuum system, Hydralic lifting system, operation control cabinet,piping system(oil tank and water tank optional).It is the most suitable equipment to produce high-grade skin care creams and other cream products.
Water and Oil Pot:
Top eccentric installation, the disperion motor power is 1.1KW,
The dispersion variable is 1450rpm.
The dispersion variable is 1450rpm.

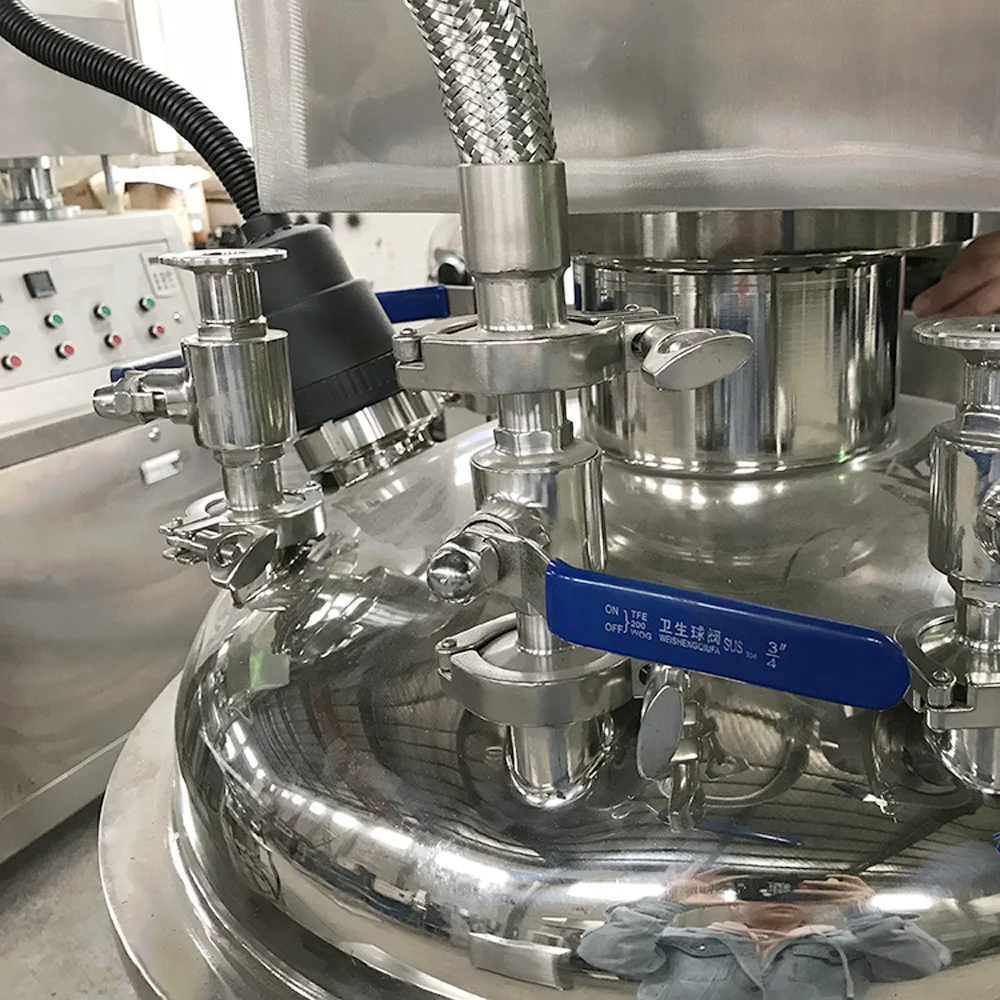

Pot Lid Process

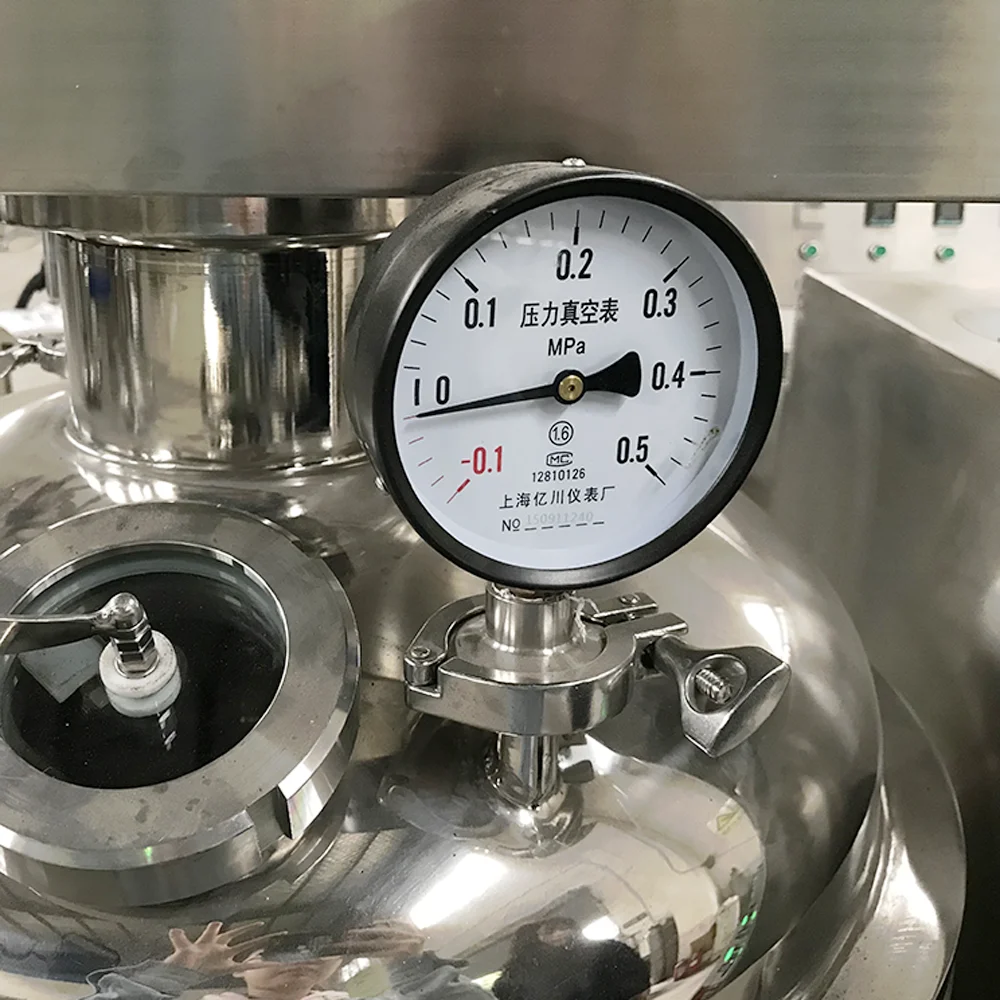

Electronic vacuum pressure gauge, vacuum exhaust valve,
vacuum port, positive pressure air inlet, cleaning ball, sight
glass, window, manhole, spice bucket; No dead ends, Sanitary
pipe fitting valve.
vacuum port, positive pressure air inlet, cleaning ball, sight
glass, window, manhole, spice bucket; No dead ends, Sanitary
pipe fitting valve.
Feeding Pipe
Sucking the water/oil from pot to main mixer or could use Pnuematic valve to operation.
Button Controlled
Each button has it own function, adjust mixing speed, etc/or could choose Siemens Touch Screen.

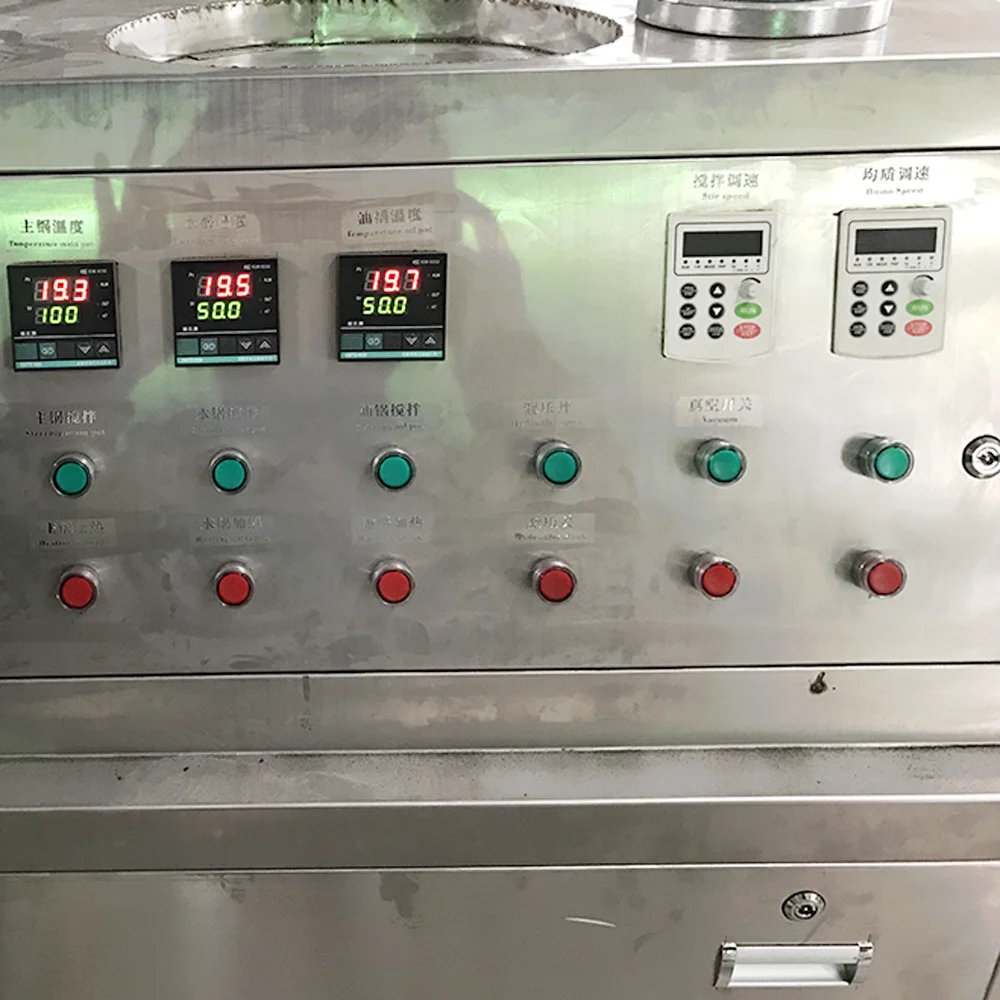

Electric Box
Dashboard:Temperature meter, time digital display meter, current volometer.
Button: Control buttons for each function,power indicator,
emergency stop,etc.
Electrical components:including control relays
Button: Control buttons for each function,power indicator,
emergency stop,etc.
Electrical components:including control relays
Shape of the Blender Blades
Two -way mixing with frame scraping wall;SUS316L
Cap Lift Type
Driving Force:Hydralic Pressure
Vacuum Pressure
-0.09Mpa
Material checking
Electric heating in the jacket SUS304 Products contact place
SUS316 With automatic hydralic lifting pouring Bosch
Pump(China copy). Homogenier motor Siemens.Mixer motor
Reducer. China made AC contactor Schneider(Electronial parts
are Schneider),PLC and Touch Screen Siemens water and oil
pump China made.Flow meter China brand 200L per hour error is 500g.
SUS316 With automatic hydralic lifting pouring Bosch
Pump(China copy). Homogenier motor Siemens.Mixer motor
Reducer. China made AC contactor Schneider(Electronial parts
are Schneider),PLC and Touch Screen Siemens water and oil
pump China made.Flow meter China brand 200L per hour error is 500g.
Steam Heating Method
We have two heating method,
Steam heating method, using steam generator,
Electrical heating method, made machine customized by client request.

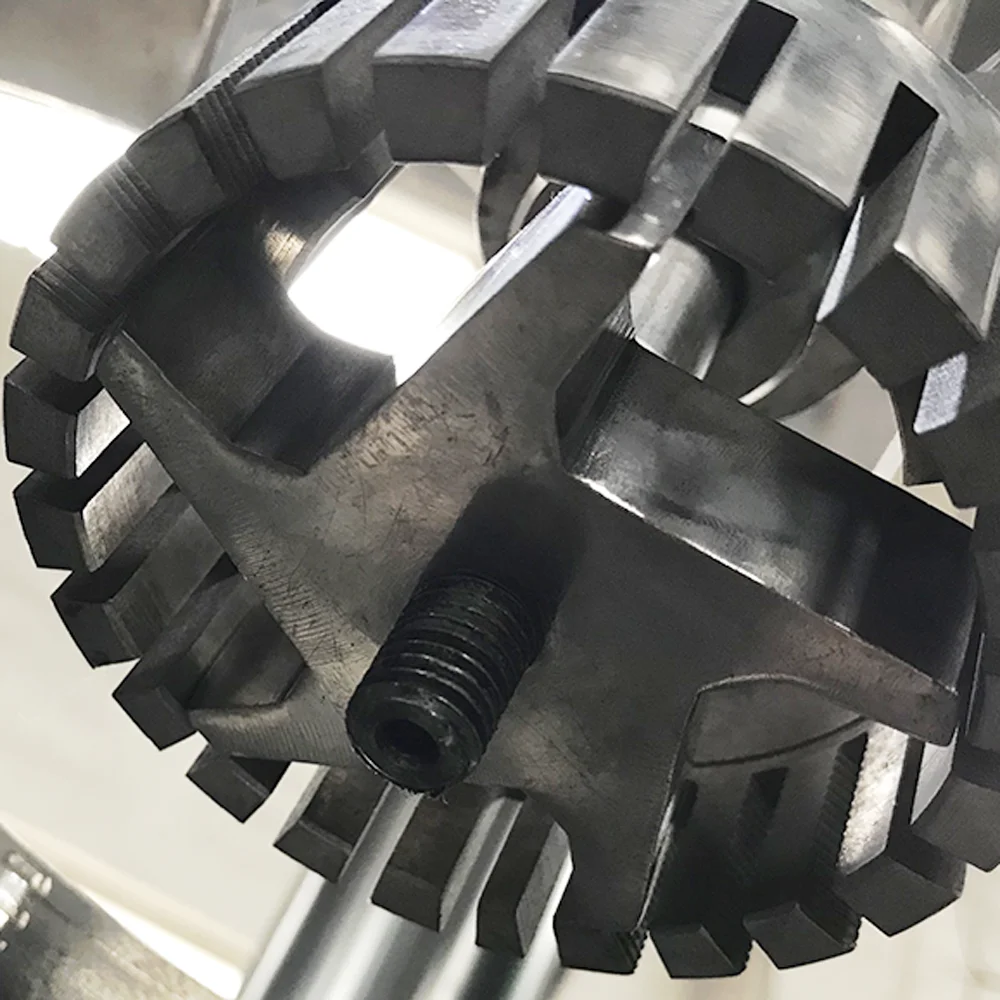

Homogenizing head
Down-homogenization, standard type, material SUS304 fixed, solid rotor solid laser cutting.
FAQ
Packing & Delivery
