60 кВА 100 200 чистая Синусоидальная волна промышленный онлайн ИБП модульный
- Категория: Uninterrupted Power Supply (UPS) >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4992.41 $* | 5092.20 $* |
| Jul-19-2025 | 4049.22 $* | 4130.9 $* |
| Jun-19-2025 | 4914.82 $* | 5012.18 $* |
| May-19-2025 | 4874.24 $* | 4971.79 $* |
| Apr-19-2025 | 3892.53 $* | 3970.10 $* |
| Mar-19-2025 | 4796.6 $* | 4892.38 $* |
| Feb-19-2025 | 4757.63 $* | 4852.38 $* |
| Jan-19-2025 | 4717.59 $* | 4811.92 $* |
Характеристики
Product Description

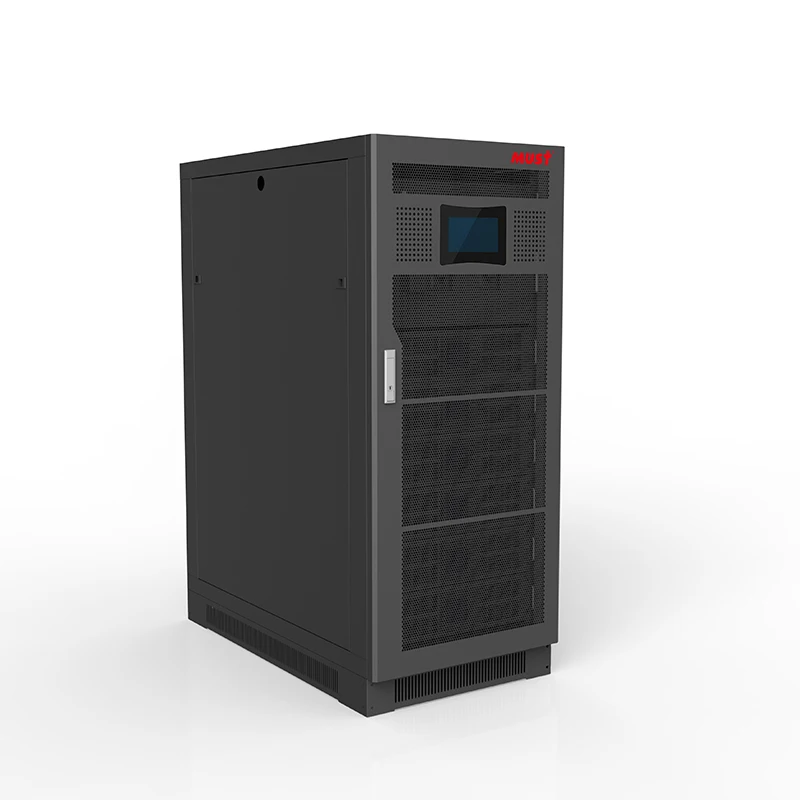

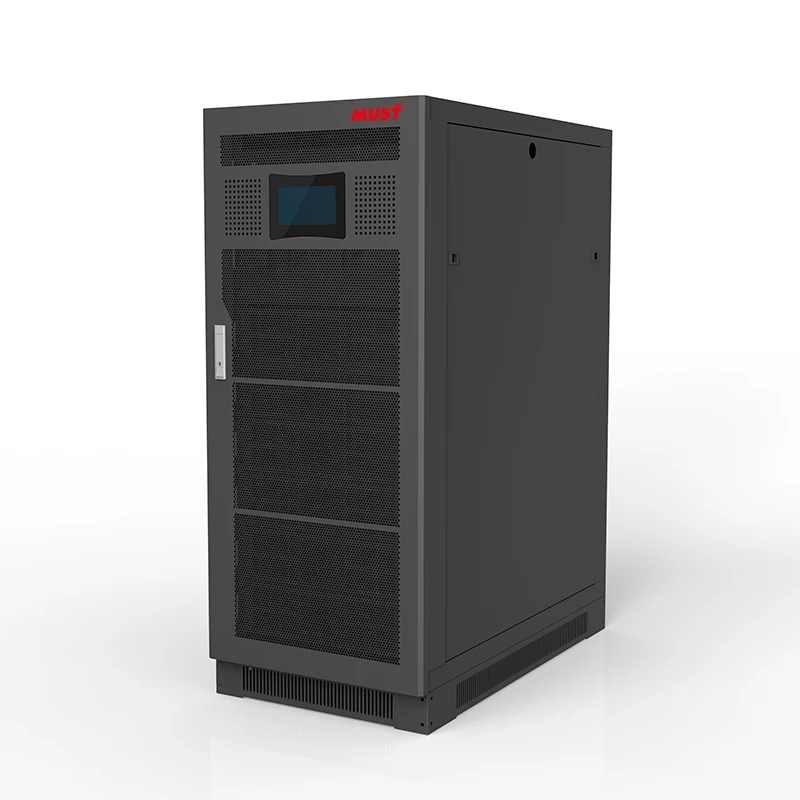

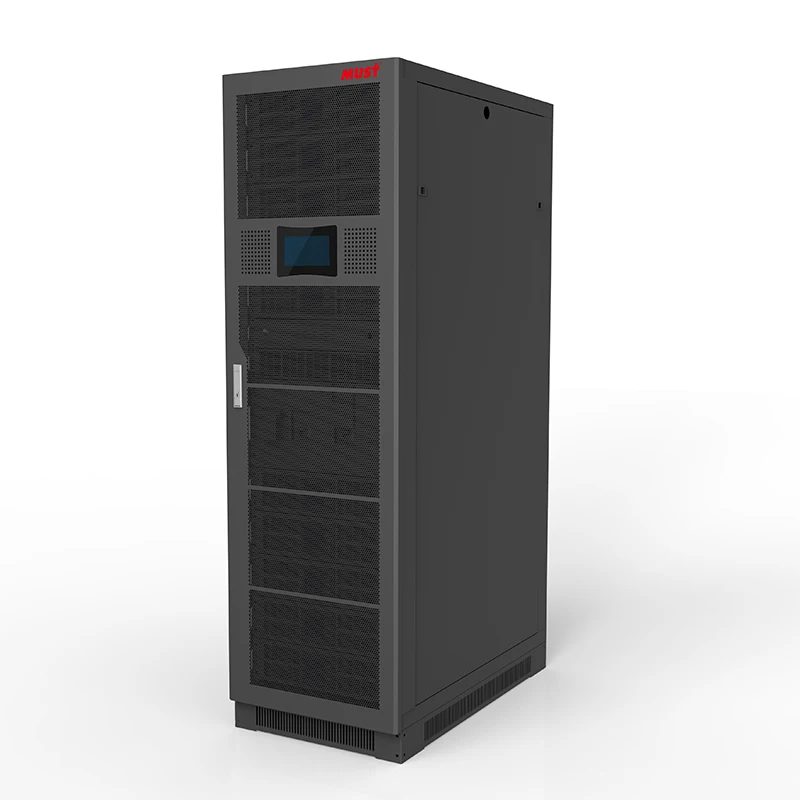

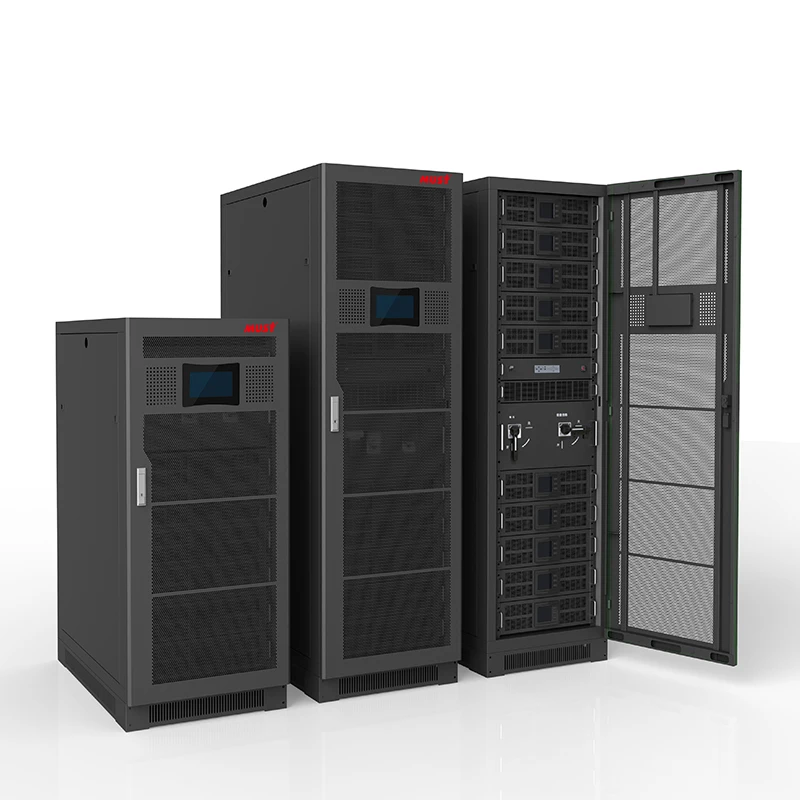

60kva 100kva 200kva pure sine wave industrial online ups modular 100kva
60kva 100kva 200kva pure sine wave industrial online ups modular 100kva
60kva 100kva 200kva pure sine wave industrial online ups modular 100kva
| Product Performance |
| * DSP full digital control technology, pure online double conversion architecture, with strong carrying capacity; |
| * Adopt standard cabinet,and the power distribution system is integrated inside the cabinet, which is convenient to install and saves user’s investment; |
| * Wide input voltage range, 50Hz/60Hz grid system adaptive, suitable for various environmental grids; |
| * “N+X” wireless parallel redundancy technology, it is easy to set the number of redundant parallel units through the LCD screen; all modules support hot swap operation for easy maintenance; |
| * Advanced battery intelligent management technology (automatic floating charge switching, battery pack temperature compensation, etc.) to effectively extend battery life; |
| * Parallel modules share the same battery pack, saving user battery investment; |
| * With emergency shutdown (EPO) switch and remote emergency shutdown (REPO) function; |
| * Large LCD touch widescreen display for a friendly human- machine interface; |
| * Rich communication interface, including RS232, RS485, USB, dry contact, and SNMP (optional) card; |
| * Different external batteries can be selected according to user needs (32/34/36/38/40 pcs); |
| * Support battery cold start and city power self-start function to meet user needs With maintenance bypass, when there is an emergency, you can switch to the maintenance bypass power supply, and the maintenance personnel can safely perform online maintenance; |
| * Each module adopts an independent control system. The UPS module is independently controlled according to the shared information. After the faulty module fails, it can be disconnected from the parallel system immediately, which does not cause harm to the parallel system. |
Tech Specs
100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price
| Model | EH9500-60KVA/20 EH9500-90KVA/30 EH9500-120KVA/40 | EH9500-100KVA/20 EH9500-150KVA/30 EH9500-200KVA/40 | EH9500-200KVA/20 EH9500-300KVA/30 EH9500-400KVA/40 | |
| Capacity | ||||
| Module No. | RU-20 (18KW) | |||
| Maximum Number of Modules | 3 | 5 | 10 | |
| Input | ||||
| Input | 3Ph+N+PE | |||
| Rated Voltage | 380/400V/415Vac | |||
| Voltage Range | 208~478Vac | |||
| Frequency Range | 40~70Hz | |||
| Power Factor | ≥0.99 | |||
| Bypass Range | 80 upper limit:25%( +10% ; +15% ; +20% optional) | |||
| 400 upper limit(20% ; +10% ; +15% optional) | ||||
| 415 upper limit(15% ; +10% optional) lower limit : -45% | ||||
| (-20%;-30% optional) Bypass frequency protection range: ±10% | ||||
| Harmonic distortion(THDi) | ≤ 3% (100% non-linear load) | |||
| Generator access | Support | |||
| Output | ||||
| Output | 3Ph+N+PE | |||
| Rated Voltage | 380/400V/415Vac | |||
| Voltage Regulation | ±1% | |||
| Output Frequency | AC Mode | Synchronous with input; | ||
| when the mains frequency exceeds the maximum ±10% (±1%, ±2%, ±4%, ±5% can be set), | ||||
| the output frequency is 50×(±0.2%)Hz | ||||
| Battery Mode | (50/60±0.2%)Hz | |||
| Crest Factor | 3:01 | |||
| Transfer Time | AC mode to bypass mode: 0ms (tracking); AC mode to battery mode: 0ms | |||
| Overload Capability | Load≤ 110% for 10min, ≤ 125% for 1min, ≥ 150% turn to bypass mode immediately | |||
| Harmonic distortion(THDi) | ≤ 2%(100% Linear load) | |||
| Others | ||||
| Efficiency | Normal Mode 95% | |||
| CommunicationInterface | RS232 RS485 2 Intelligent Slot (Smart card slot) dry connect | |||
| Executive Standard | CE,EN/IEC 62040-2, EN/IEC 62040-1-1, YD/T1095-2008 | |||
| Battery | ||||
| Battery Voltage | ±192V±204V±216V±228V±240V DC; | |||
| (32 pcs;34 pcs;36 pcs;38 pcs;40 pcs optional) | ||||
| Charging Current | UPS Cabine | 30A Max. | 50A Max. | 100A Max. |
| Power Module | 10A Max. | |||
| Working Environment | ||||
| Operating Temperature | 0℃ ~ 40℃ | |||
| Relative Humidity | 0 ~ 95% non condensing | |||
| Stored Temperature | -25℃ ~ 55℃ | |||
| Altitude | < 1500m | |||
| Physical Characteristics | ||||
| Physical Dimension (D*W*H)mm | Cabinet | 600 * 840 * 1400 | 600 * 1100 * 2000 | |
| Module | 580 * 443 *131 (3U) | |||
| Net Weight (kg) | Cabinet | 157 | 169 | 306 |
| Module | 33 | |||
Packaging & Shipping
1. Package: Carton Box for packaging or Wooden Box advised for samples to protect in transportations.
Package designed by clients is welcomed.
2. Shipping: DHL, FEDEX, UPS, EMS, Air Way and By Sea.
3. Payment: T/T and Western Union
4. Sample order: Welcome to place your Sample Order to test first.
Company Information
MUST adhere people-oriented , products positioning high-end. To meet the need of customers is our direction, take innovation of technology as our basis, Good quality of customer service is our brand image. More than 30 senior engineers from the world famous industrial automation and new energy enterprises with rich experience, to provide you one-stop solutions.
MUST products possess certification of CE, SAA, SONCAP, SGS, TLC, etc. And have passed the standard of quality management system of ISO:9001, ISO:14000. It also get national awards such as green environmental protection promotion products, energy-saving products, etc. Moreover, it has obtained many national patents in inventions, appearance design, utility models and computer software copyrights.
MUST products exported to different parts of the world such as Spain, Italy, Russia, Australia, the Middle East, Ukraine, South Africa, Nigeria, Pakistan, etc. To provide high quality and efficient service, we set up many service center directly in overseas and domestic such as Guangzhou, Shenzhen, Shanghai, Suzhou, Beijing, Chengdu, etc.
Our Services
Warranty: 1 Year
Lead time:
a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days
b) Bulk orders will be delivered from our factory within 35 working days
After-sale Service: 24-Hour Hot Line for Consultancy and Technical Support
Certifications
FAQ
Q1: How to choose a right UPS?
A1:Tell us your demand, then our sales will recommend a suitable UPS to you.
Q2: What's the different between offline ups and line interactive ups?
A2: The true LINE INTERACTIVE design is in fact a combination of OFFLINE & ONLINE, in which the inverter plays a dual role of charging the battery when mains supply is present as well as regulating the output voltage and working as a normal inverter in absence of mains supply, so to the user it appears like an ONLINE System. Line Interactive UPS offers enhanced power protection over the basic Offline designs by providing additional line conditioning.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of UPS?
A4: One year warranty on Must-UPS product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price 100kva ups price
