Products Description


UC100
VOIP PBX FOR SME
UC100 is an all-in-one Universal Gateway with built-in IP PBX features, designed for SOHO and small businesses that can increase
communication efficiency, reduce telephony costs and provide easy management features. It integrates LTE/GSM, FXO, FXS interfaces
and VoIP features, as well as data features like Wi-Fi hotspot, VPN. With 32 SIP users and 8 concurrent calls, UC100 is a perfect
choice for small businesses.



IPPBX Series
Model Options
Description
UC100
UC100-1V1S1O
UC100-1G1S1O
UC100-1S1O
UC100-2O
1LTE, 1FXS,1FXO, 1WAN, 3LAN, WIFI
1GSM, 1FXS,1FXO, 1WAN, 3LAN, WIFI
1FXS,1FXO, 1WAN, 3LAN, WIFI
2FXO, 1WAN, 3LAN, WIFI
UC120
UC120-1V1S1O
UC120-1G1S1O
UC120-2O
1LTE, 1FXS,1FXO, 1WAN, 1LAN, SD Slots, WIFI
1GSM, 1FXS,1FXO, 1WAN, 1LAN, SD Slots, WIFI
2FXO, 1WAN, 1LAN, SD Slots, WIFI
UC200
UC200-2S2O
1FXS,1FXO, 1WAN, 1LAN, SD Slots


Details Images

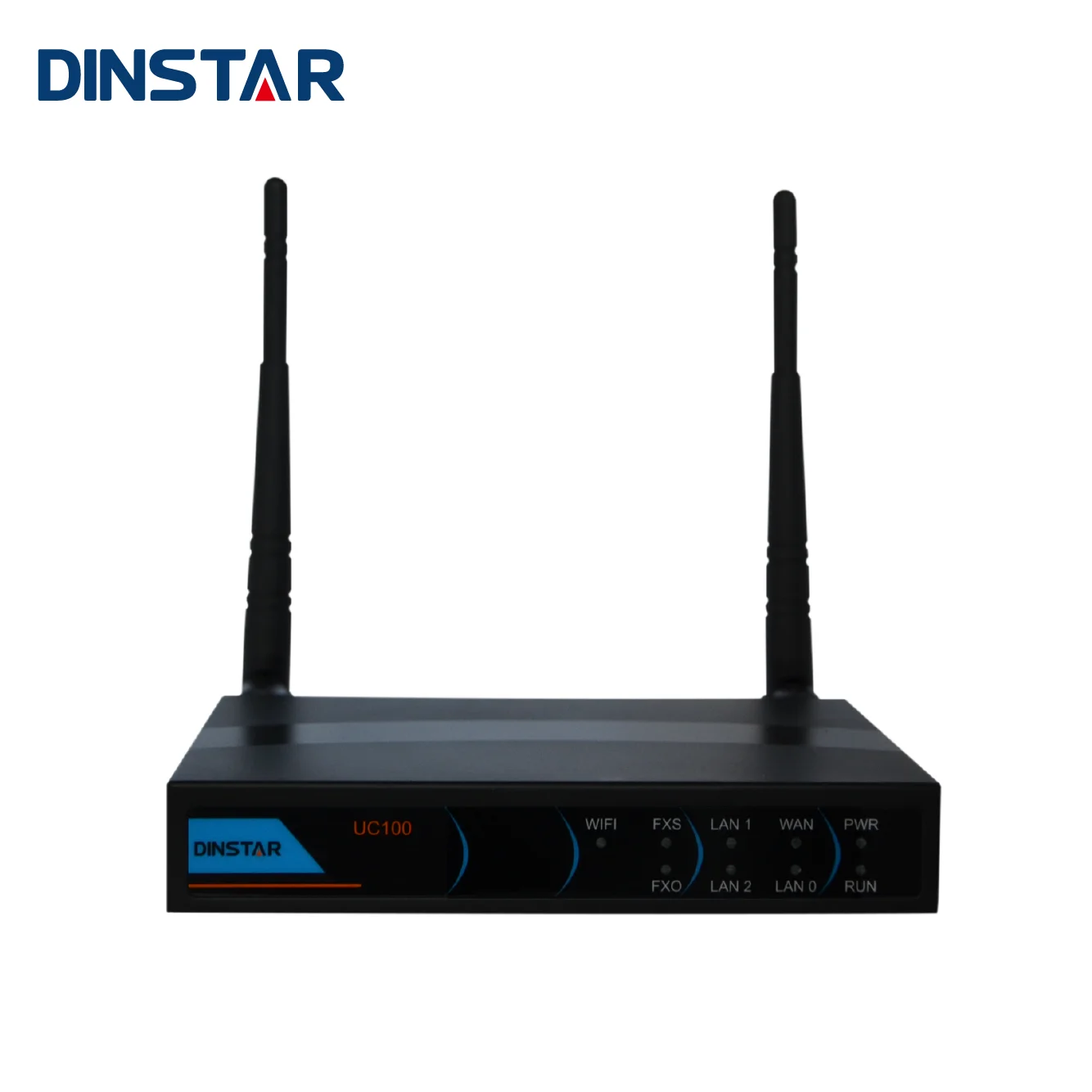

                         Front

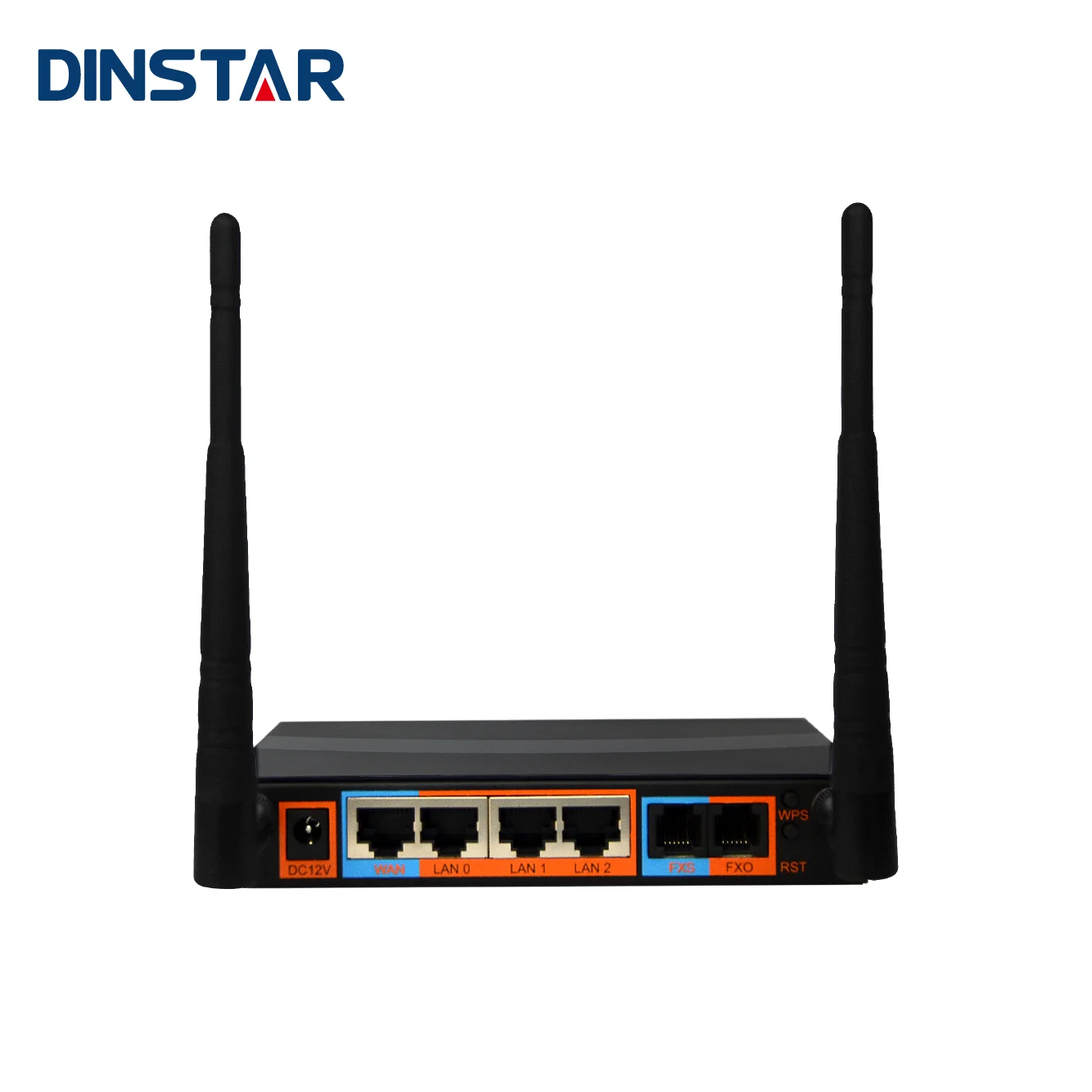

                            Back


\t\t\t\t\t\t\t\t\tkey features \t\t\t\t\t\t\t


2 Port FXO interface on a single device/gateway
Send/receive calls from PSTN/PLMN via FXO
Flexible dial plan, via time, numbers, source IP etc.
IVR customization
High speed NAT forwarding, support WIFI hotspot
Built-in SIP server, support up to 32 SIP Extensions
User-friendly web interface, multiple management ways






Project Scenario




Product Paramenters


Physical Interfaces
* FXO Port: 2
* Ethernet Interfaces
1WAN&3LAN 10/100 Base-T RJ45
* WIFI: 2.4GHz 802.11n
* LED Indicators: PSTN Line, FXS, USB,SD,PWR/RUN
* Power Supply: 12VDC, 1A
* Power Consumption: 10W
* Operating Temperature. 0 ℃ ~ 45 ℃
 Storage Temperature: -20 ℃ ~80 ℃
* Humidity: 10%-90% Non-Condensing
* Dimensions (W/D/H): 126×75×25mm
* Unit Weight: 0.7kg
Voice Capabilities
* VoIP Protocols: SIP over UDP/TCP/TLS,RTP/SRTP
* Codecs: G.711a/μ law,G.723.1, G.729A/B
* Silence Suppression
* Comfort Noise Generator(CNG)
* Voice Activity Detection(VAD)
* Echo Cancellation: G.168 with up to 128ms
* Dynamic Jitter Buffer
* Adjustable Gain Control
* Automatic Gain Control (AGC)
* Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
* FAX: T.38 and Pass-through
* NAT: STUN/UPnP
* DTMF: RFC2833/Signal/Inband
* VPN Server/Client


FXS
* Connector: RJ11
* Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
* Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone
* Polarity Reversal
* Hook Flash
FXO
* Connector: RJ11
* Caller ID: FSK, DTMF
* Polarity Reversal
* Answer Delay
* Detection of Busy Tone
* Detection of No Current
* Auto Match of FXO Impedance


PBX Services
* Call Forward (Unconditional/No Answer/Busy)
* Call Waiting
* Call Holding
* Call Transfer
* Hotline
* Do-not-disturb
* 3-Way Conference
* Ring Group
* Call Queue
* Routing Groups
* Caller/Called Number Manipulation
* Routing Based on Time Period
* Routing Based on Caller/Called Prefixes
* Routing Based on Source Trunks
* Dial Rules
* Failover Routing
* Multi-level IVR
* Auto-attendant Function
* CDRs
* Paging
* Event Report
* Email Client

Maintenance
* Web GUI Configuration
* Telnet Management
* Configuration Restore/Backup
* Multiple Languages Supported
* HTTP/TFTP/FTP Firmware Upgrade
* Auto Provision
* Syslog
* Ping and Tracert
* Traffic Statistics: TCP,UDP,RTP
* Network Capture
* NTP
* Classification of Web Users’ Rights
* HTTP&HTTPS/NATS API
