Характеристики


Product Description

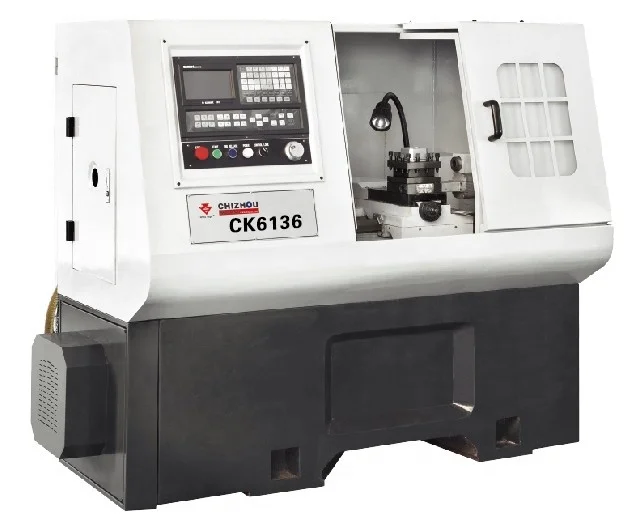

Precision Metal Mini Lathe Machine Price Working Made In China Factory Ck6136


Model and specification (mm)

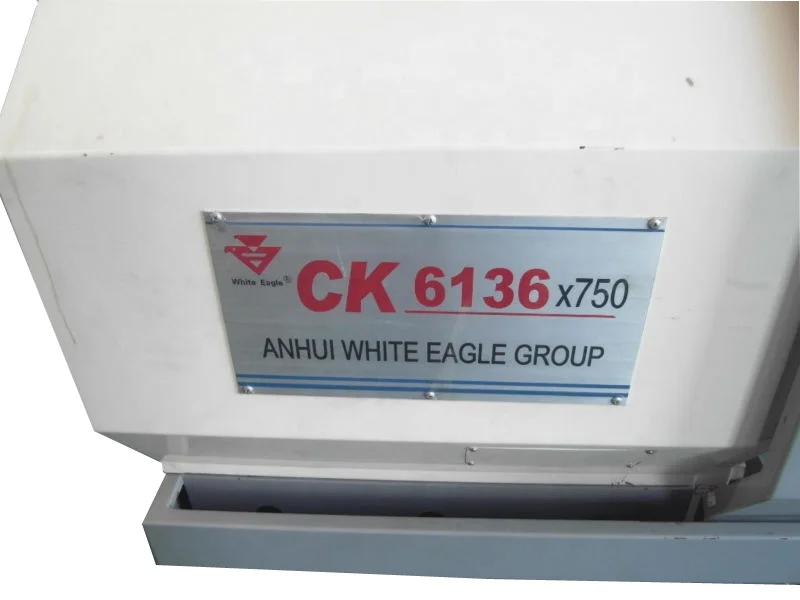

CK6136*500/750/1000
Swing over bed(mm)
φ360mm
Swing over TOOLPOST(mm)
φ150mm
Distance between centers(mm)
500/750/1000mm
Max.machining length(mm)
500/750/1000mm
Chuck size(mm)
φ160mm
Spindle nose and taper stype
A2-5
Spindle speed range(r.p.m)
60-2500
Spindle bore dia.(mm)
φ51
Spindle power(Kw)
3
Max.bar feeding dia(mm)
φ45
Rapid traverse speed(m/min)
6/8
Stations No.
4/6
X/Z Accurac of positioning repeatability(mm)
0.01/0.02
Quill diameter(mm)
φ50
Quill travel(mm)
120
taper of quill
MT4
Guideway width(mm)
206


Main Features

1)The machine can process precisely internal or external diameter,face ,taper,arc and treading with high efficiency
2)Standard toolpost is 4-stations,also 6-stations toolpost can be optional selection
3)Spindle speed changed by frequency
4)Induction harden bed-way.Bed saddle with plastic sticker can improve the accuracy and service life of the machine
5)The spindle is supported by imported precision bearings
6)Normally machine is provided with 3-jaw chuck.According to customer's optional selection,hydraulic chuck or pneumatic chuck also can be supplied

Accessories

Standard accessories

1)3-jaw chuck and tool post wrench
2)Allen wrench
3)Electrical tool post(4 station)
4)Cooling system
5)Manual lubricating system
6)Working lamp
7)Iron casting stand

8)GSK CNC controller system.

Optional accessories

1)6-Stations toolpost
2)Pneumatic chuck
3)Hydraulic chuck

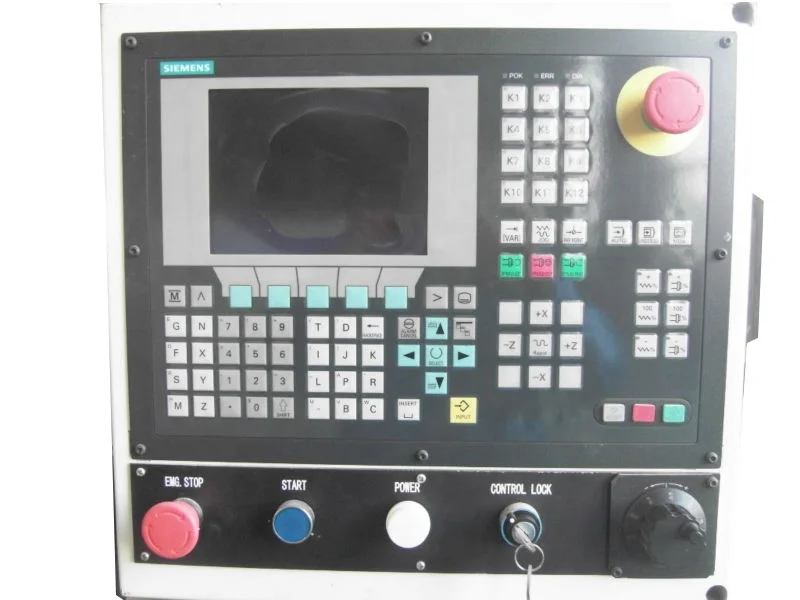

4)controller system:Siemens or FANUC
5)Auto-lubricating system

Packing & Delivery
Packaging
Size
1850*1200*1650mm
Weight
N.W./G.W 1400/1600KGS



Packaging Details
Plywood case
Certifications
Our Work Shop
We In Fairs
Our Service

OEM APPROVED

* LOGO OEM accept.

* Packing design OEM accept

* Even machine design OEM accept.

Our team Service

* Professional team,perfect pre-sale and after-sale service.

* Engineers available to service machinery overseas.

* Good English speakers from sale department,can handle your suggestion
