Электронная печатная плата на заказ OEM ODM для электронной печатной
- Категория: Multilayer PCB >>>
- Поставщик: Shenzhen,Sunosoar,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.83 $* | 0.76 $* |
| Aug-18-2025 | 0.55 $* | 0.90 $* |
| Jul-18-2025 | 0.77 $* | 0.83 $* |
| Jun-18-2025 | 0.37 $* | 0.42 $* |
| May-18-2025 | 0.17 $* | 0.75 $* |
| Apr-18-2025 | 0.59 $* | 0.94 $* |
| Mar-18-2025 | 0.72 $* | 0.18 $* |
| Feb-18-2025 | 0.22 $* | 0.11 $* |
| Jan-18-2025 | 0.76 $* | 0.52 $* |
Характеристики
WELCOME TO SUNSOAR
60 l 60% 65% custom design Diy service keyboard pcb60 hot swap swappable pcb smd60% tk controller wireless mechanical keyboard pcb pcb assembly multilayer pcb assembly 60% keyboard hotswap pcb assemblyShenzhen PCB Manufacturer Fast delivery customized PCB Fabrication circuit boards pcb boardsRohs pcb board assembly printed circuit
COMPANY PROFILE
Shenzhen Sunsoar Tech Co.,Ltd
Production Process
Sunsoar has invested in the best equipment, environment and staff training.
We have has been committed to R&D The professioonal high-precision and special material PCB and has the ability to make 4-28 layers high-precision impedance, multi-layer blind-layer hole, high Tg, Al base, Copper base and ceramic base PCB, 1-6 layer FPC, Etc.
The company takes ISO9000 Standardization managemeng and have certified UL,RoHS international certification.
AOI Testing
1 Line Multi-Function Placement Machine
2-Wire Panasonic High-Speed Placement Machine
PRODUCT DESCRIPTION
PCB Capacility
This Chart is a simple process for multilayer PCB production.
PCB Layers | 1-28 layers | Min PCB Board thickness | 4 layers, 0.4mm/16 mil |
Max PCB Board Size | 457*610mm | 6 layers, 0.8mm/32 mil | |
PCB Material | FR4, 94 V-0 | 8 layers, 1.0mm/40 mil | |
Min PCB Line Width | 0.1mm | 10 layers, 1.2mm/48 mil | |
Min PCB Line Space | 0.1mm | Min PCB Hole Size | 0.2mm |
PTH Wall Board Thickness | 0.02mm | Outline Tolerance | +/-0.1mm |
Product Application
We Manufactured products are widely used in communication apparatus,automoblie electronics,computers,medical devices and network devices and consumer electronics class fields.
Product Display
Since the establishment in 2008. The company has been committed to R&D the professional high-precision and special material PCB and has the ability to make 4-28 layers high-precision impedance, multi-layer blind-layer hole, high Tg,Albase, Copper base and ceramic PCB,1-6 layers FPC , Etc.
The company takes ISO9000 Standardization managemeng and have certified UL,RoHS international certification.
WE has been effort to build PCB design + PCB manufacture+SMT Assembly one-stop sourece of integrated electronic suppiser.
Rigid PCB Quick turn delivery
Name: PCB
Brand: SUNSOAR
1-20 layer of hign-precision impedance boards,blind&
buried boards,HDI board.
Base materials:FR4,FR4 High TG(TG150,TG170).
Flexible Fabrication
Name: FPC
Brand: SUNSOAR
1-6 layer flexible circuit board(FPC) and rigid-flex flexible board.
Base materials: Polyimide(Kapton),polyester(PET),polyimide(Kapton) + FR4.
Speciai circuit board
Name: High frequency plate
Brand: SUNSOAR
Rogers,Taconic,Arlon,F4BK(PTFE) High frequency plate.
Berquist,Al-made basis 3.0 W/m℃thermal conductivity AL aluminum plate.

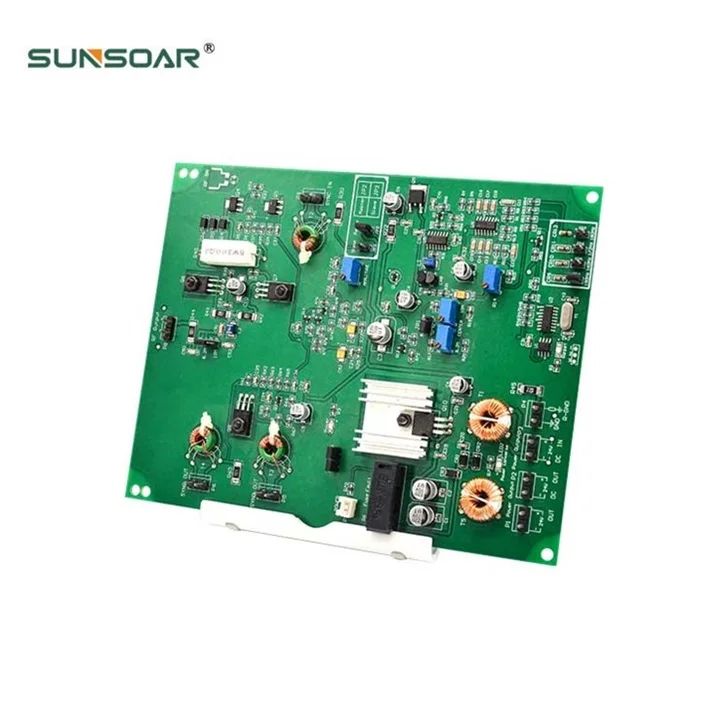

PCBA Welcome OEM
Name: PCBA
Brand: SUNSOAR
Electronic Components sourcing.PCB Assemblies,PCBA Assemblies,PCBA function test OEM&ODM are welcomed,No MOQ requirements
EXHIBITION&VISITS
Sunsoar focus mainly on oversea market and 75% our pcb products are exported oveseas. In order to expand our foreign market,we attend oversea exibition once a year and Hongkong Electronic Fair twice a year.If you need pcb manufcture, pcb assembly service, pleae feel free to contact with us and visit our booth.
OUR SERVICE
1. Professional engineer can provide PCB circuit design.
2. Provide PCB&PCBA prototype, and medium&low volume quick board service.
3. Compoent purchasing,SMT/PCBA one-stop source.
4. One-hour quote response,24 hours quick-turn produce.
5.Variety terms of delivery,costomer the flexibility to choose.
On-stop service products
We has been effort to build PCB design+PCB manufacture+SMT Assembly one-stop source of integrated electronic suppiser. Customer come to our company can be Obtained Circuit guide and design, also can be purchase PCB and PCBA. It is real worth money. We believe that we waill become the most trusted PCB partner in the near future!
PACKING&DELIVERY
Inquiry
1.PCB:Pleasep provide gerber file for detail Quote.
2.PCBA:Please provide gerder file and Bom list.
3.COPY PCB/PCBA:Please provide us the details of PCB.Picture and Sample will be better.
Quotation
1.We need to confirm PCB requirements and components.
2.PCB quote will be offered within 24 hours.
3.PCBA quote will be offered within 2 working day.
Delivery Time
Bare PCB
LAYER | PROTOTYPE | MASS PRODUCTION (above 30 m2) | ||
Quick Turn | Usual Time | |||
2 | 24 hours | 3-4 days | 8-10 days | |
4 | 48 hours | 5-6 days | 10-12 days | |
6 | 72 hours | 6-8 days | 12-14 days | |
8 | 72 hours | 8-10 days | 16-18 days | |
10 | 96 hours | 12-12 days | 18-20 days | |
....... | ...... | ....... | ....... | |
PCB Assembly
Order conditions | Standard Delivery Date | The Fastest Delivery Date |
prototype(<20 pcs) | 2 days | 8 hours |
small volum(20-100pcs) | 3 days | 12 hours |
medium volum(100-1000pcs) | 6 days | 24 hours |
mass production(>1000pcs) | Depends on BOM | Depends on BOM |
