Часовой механизм Cuckoo с кварцевым механизмом Skp
US $3.50-$5.00
HD1688 17 мм длина вала DCF радиоуправляемое движение подметания
- Категория: Запчасти и аксессуары для часов >>>
- Поставщик: Dongguan,Heng-Rong,Hardware,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.5 $* | 5.8 $* |
| Aug-17-2025 | 5.41 $* | 5.91 $* |
| Jul-17-2025 | 4.82 $* | 4.7 $* |
| Jun-17-2025 | 5.28 $* | 5.44 $* |
| May-17-2025 | 4.18 $* | 4.2 $* |
| Apr-17-2025 | 5.54 $* | 5.13 $* |
| Mar-17-2025 | 5.18 $* | 5.93 $* |
| Feb-17-2025 | 4.99 $* | 4.42 $* |
| Jan-17-2025 | 4.54 $* | 4.54 $* |
Характеристики
Product Description
Model NO | HD1688 |
Shaft Length | 17 MM |
Receiving Frequency | 77.5KHz |

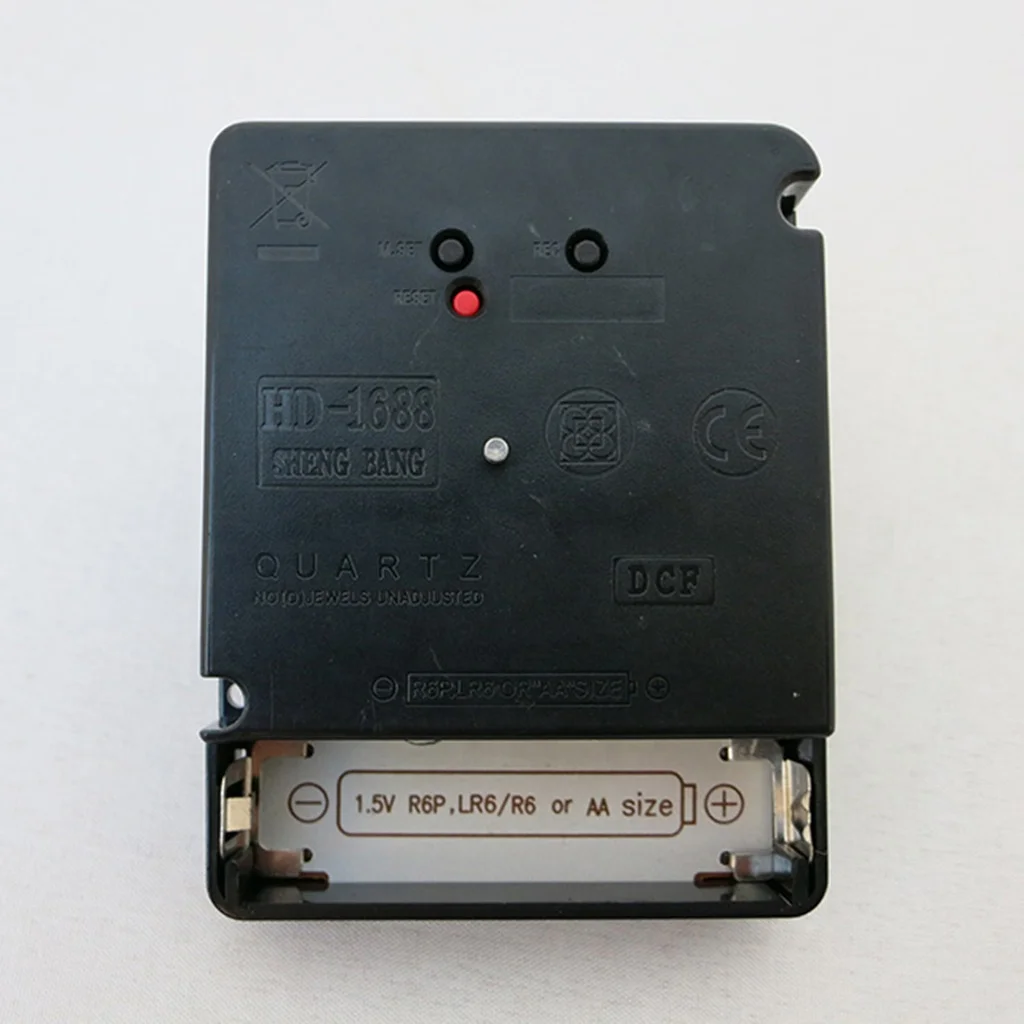

Battery Size | AA/LR6（Alkaline） |
Battery Life | ≥1 Year |
Operating Voltange | 1.25-1.7V |
Quartz Accuracy（AT25℃） | ±1s/d |
Operating Temperature | -5℃-+55℃ |
Storage Temperature | -20℃-+70℃ |
Current Consumption（1.5V) | ＜175μA |
Receiving Time | 3-12min |
Receining Current | ＜105μA |
Setting Time After Reception | max.4min |
Reception | 12x/day |
Peak Current | 7mA |
Sensitivity | ＜80μV/m |
Second Hand Torque（1.5v） | ≥150μNm |
Max.Mounting Pressure For Hand | 25N(Minute Hand)10N(Second Hand) |

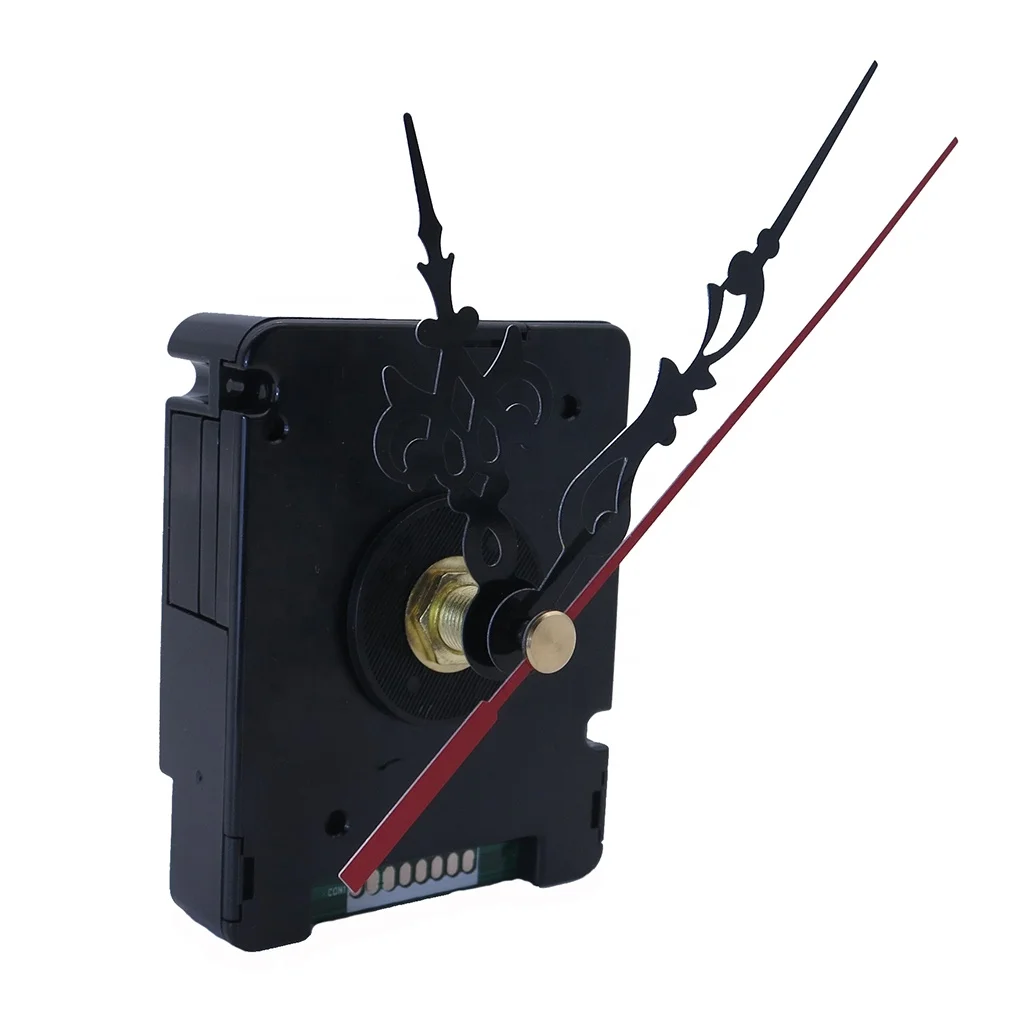

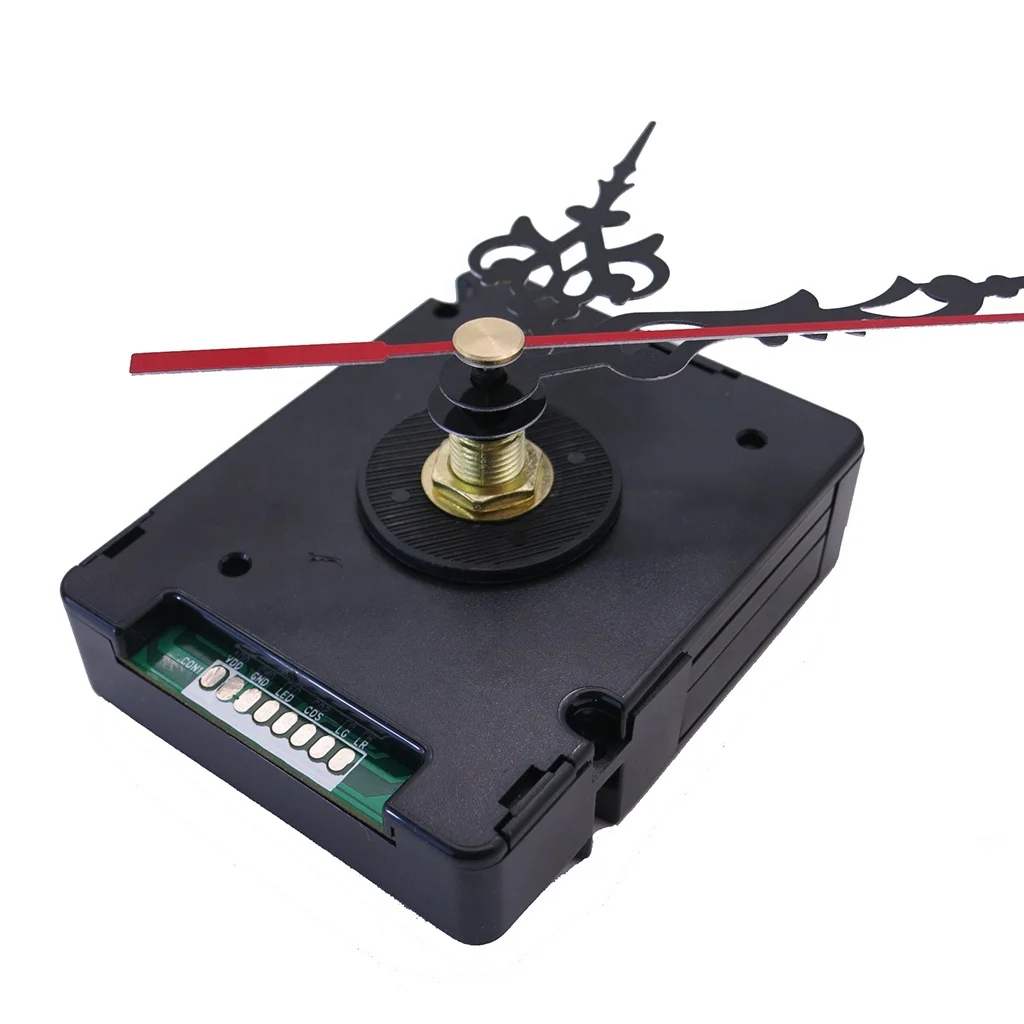

HD1688-17 MM Radio Controlled Sweep Clock Movement , Shaft Length is 17 mm, Thread Length is 9.5 MM.
Fit 1-5MM Thickness Clock Panel
Model: HR9301+904
Description : HR9301 Black Hour & Minute ( 59 MM / 86 MM )
HR904 Gold Copper Red Second Hand ( 90 MM )
Fit 22 CM Diameter Clock Face
Fit 1-5MM Thickness Clock Panel
Model: HR9301+904
Description : HR9301 Black Hour & Minute ( 59 MM / 86 MM )
HR904 Gold Copper Red Second Hand ( 90 MM )
Fit 22 CM Diameter Clock Face

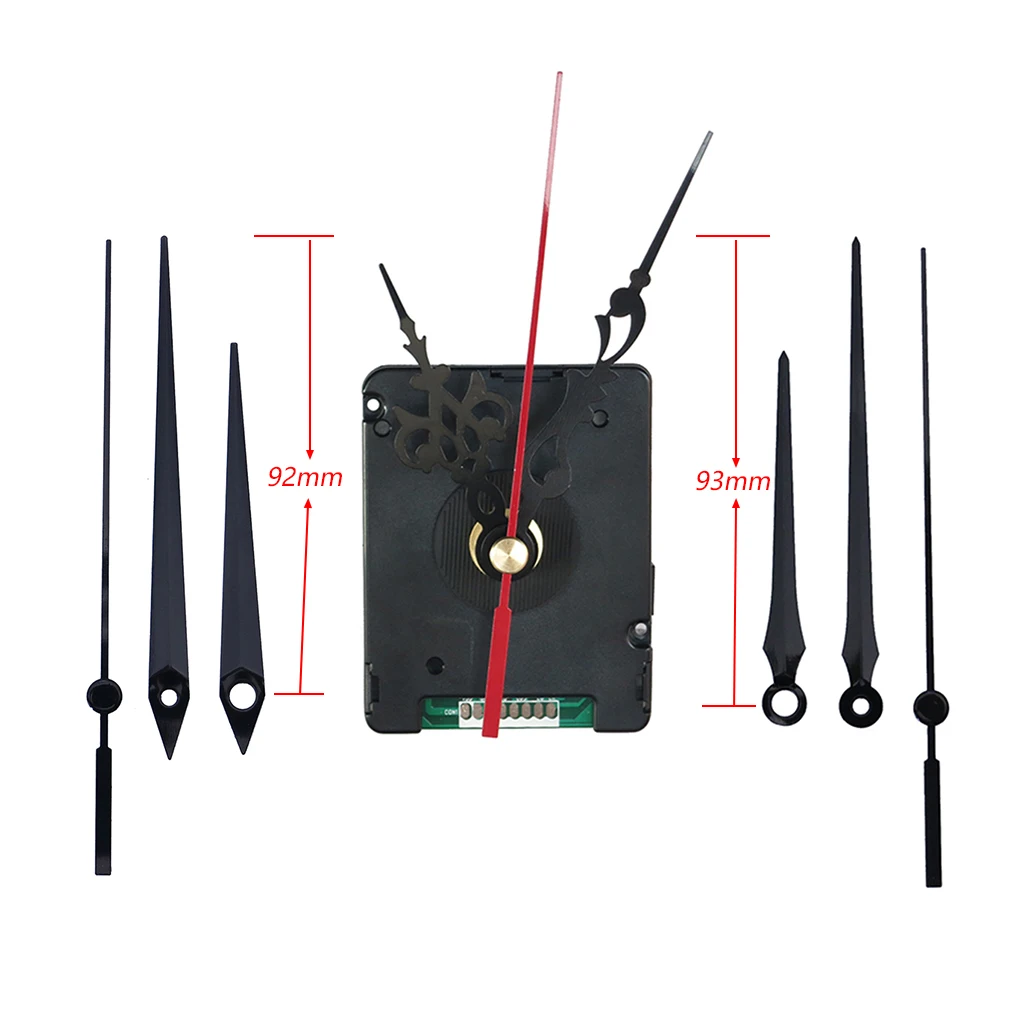

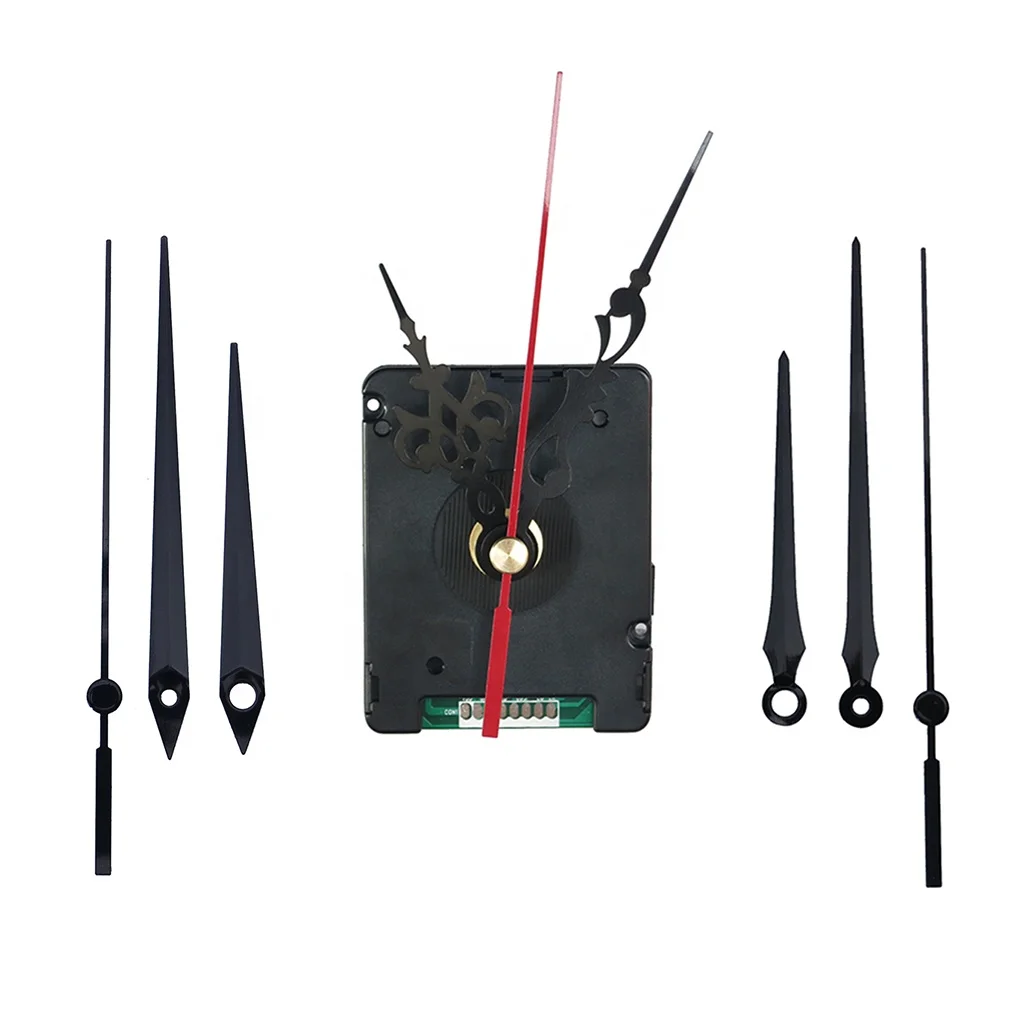

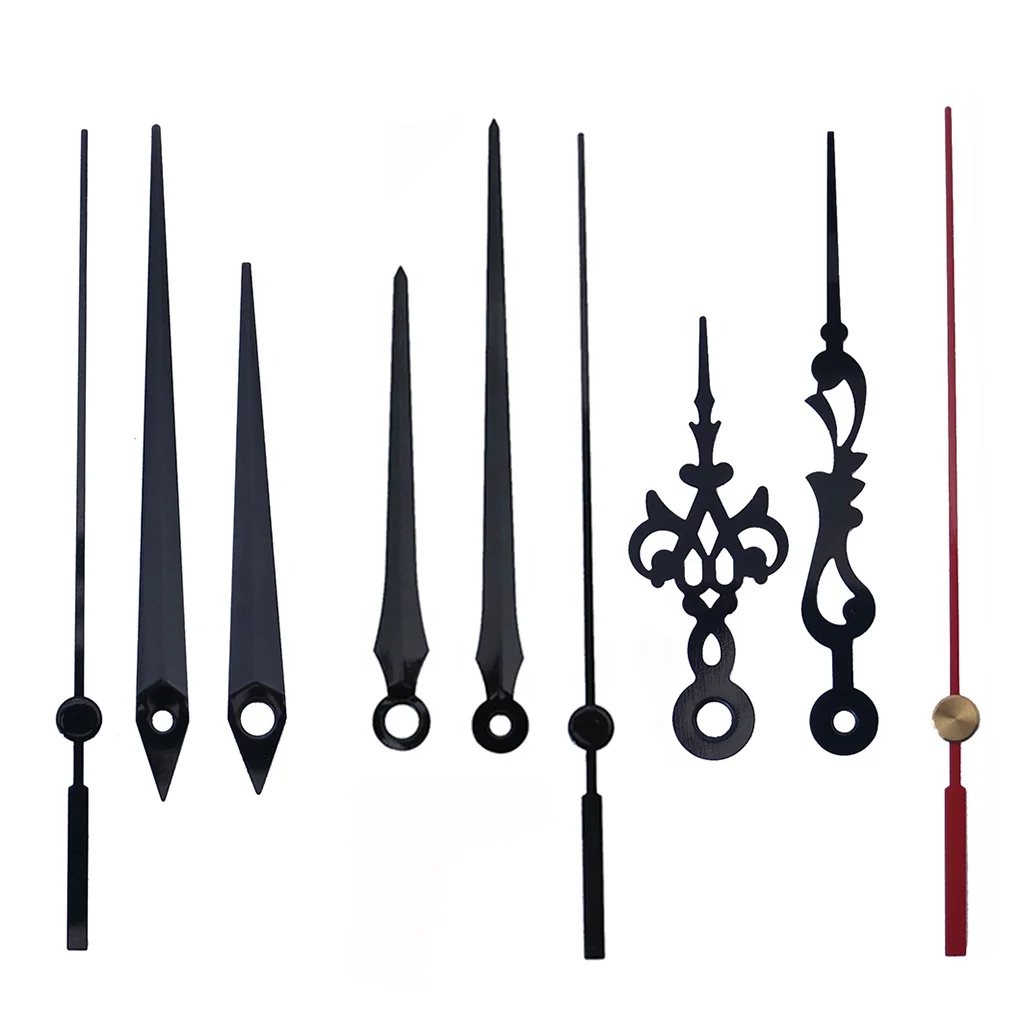

Clock Hand Style Can be Chooes :
HR9312+ 904 Black Hand
HR9624 + 904 Black Hand
HR9301+ 904 Black & Red Hand
Install Details
Related Products
Packing&Shipping
Cpaper carton with polystyrene
2) Carton Size: Customized Package Size
Company Introduction
Dongguan Heng Rong Electronics Technology Co., Ltd. is an OEM manufacturer of wall clocks and various clock-related parts and assemblies.
The company was established in December, 1999 and from day one, we have been committed to our production resources and technological expertise to offer high-quality and fresh designs of timepieces to our clients.
The company was established in December, 1999 and from day one, we have been committed to our production resources and technological expertise to offer high-quality and fresh designs of timepieces to our clients.
Customer Photos
FAQ
1Q: How fast can I get the quotation?
A: Within 8 hours after we get your inquiry.
2Q: How can I get a sample to check your quality?
A: Yes,you can have the sample from our factory.
3Q:Is the MOQ fixed?
A:MOQ 500pcs per model.
If the Items you need have stock. small quantity are acceptable.
4Q: Is there any discount possible if I place an order?
A:Yes.we have different price ranges based on different order quantities.
5Q: What about the lead time for mass production?
A: It is depends on the order quantity when you place the order.
Produce time is about 25 days.
6.Q:Do you have "CE" and "ROHS"certificate?
A:Yes."CE" and "ROHS"certificate is available,Our main market Europe, United States, Australia, New Zealand, Australia and so on
7.Q: What is your terms of delivery?
A: Paypal,Western union or T/T is accepted.
8.Q:What if the clock movement is defective after we get?
A: Good after-sale service is our promise.Warranty 2 years .
Any need of clock /clock parts welcome to send me your inquires !
