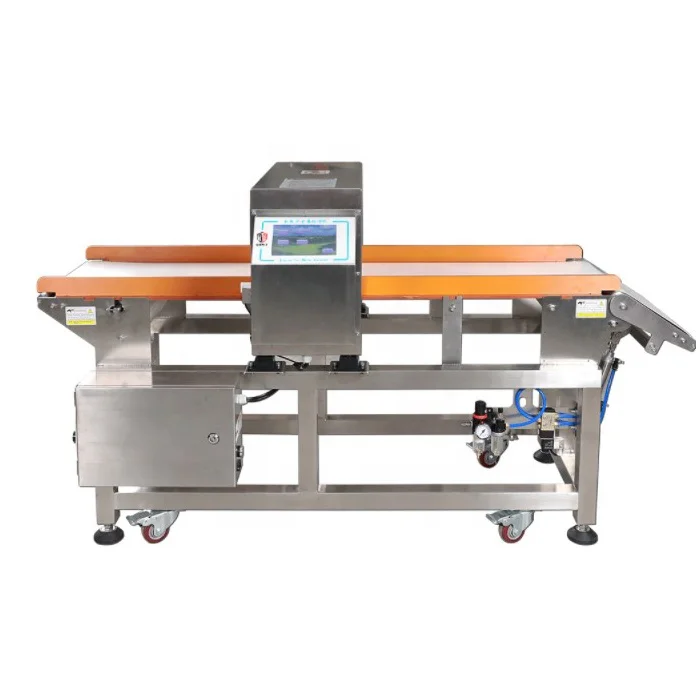

Intelligent Food Metal Detection Machine/Metal Detector/Industrial metal detector

Introduction

This type of metal detector is a new generation of microcomputer intelligent metal detector launched by the company. The product has high sensitivity and stable performance, and breaks through the technical bottleneck that most of the equipment is only sensitive to magnetic substances.The product adopts double circuit circuit design, 7 inch large full color LCD touch screen, more convenient to operate, more intuitive;This device can detect iron and nonferrous metals, such as the sensitivity is adjustable, with memory function, can be preset 12 kinds of the parameters of the test material, and can according to user needs to add play in addition to the function, the whole machine is made of stainless steel materials, corrosion resistance, no rust, easy to clean, can be widely used in food, medicine, toys, etc. The metal in the demanding object detection.

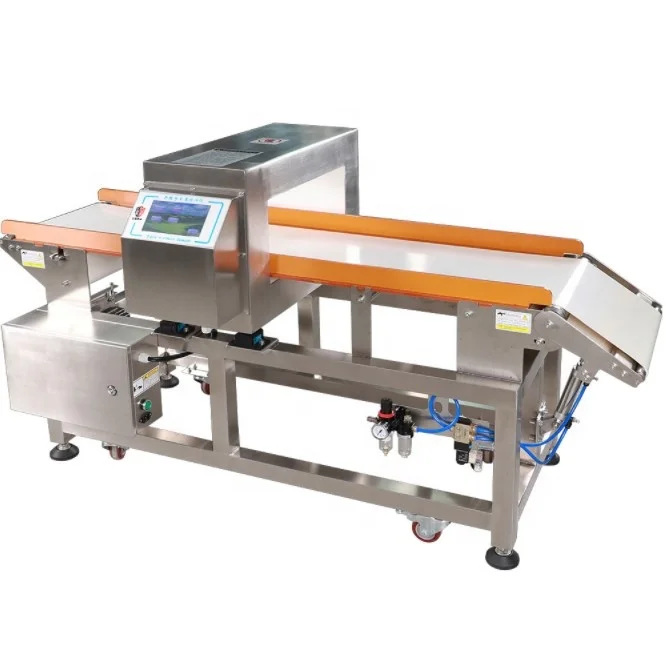

Intelligent Food Metal Detection Machine/Metal Detector/Industrial metal detector

Application:

It can be used for the detection of drugs, health care products, dry goods and semi-dry food, including local specialties, tea, cooked food, coffee, etc. It can also be used for the detection of aquatic products, poultry, frozen food, cold collections and other gray goods

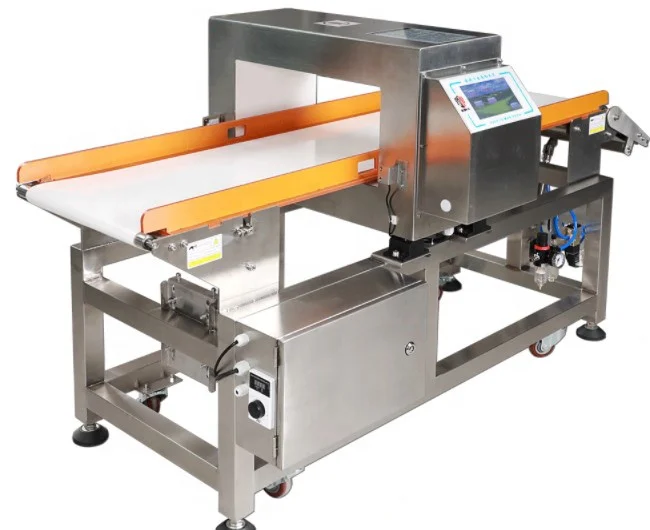

Intelligent Food Metal Detection Machine/Metal Detector/Industrial metal detector

Technical Specification

Testing way	Electromagnetic wave detection, new analog circuit and digital circuit combination
Display	Digital circuit new 7 "touch full color LCD display
Detection sensitivity	0.8mm iron ball, 1.5mm stainless steel, 1.2 mm copper (empty machine) state
Sensitivity regulation	100level
Alarm way	Sound and light alarm, stop
Conveyor speed	20M/min
Test width	500mm  (Can customize)
Test height	25mm(Can customize)
Number of memory products	12kinds
Power	100-265VAC,50-60Hz
Consumed power	60W
Weight	180kg
Product size(L×H×W)	1600×800×1000mm(Can customize)



General selection table

Width (cm)	Sensitivity
	(cm)	(Fe)mm	(Cu)mm	(Sus)mm
40	8	0.5	0.8	1.0
	10	0.8	1.0	1.2
	12	1.0	1.2	1.5
50	15	1.2	1.5	2.0
	20	1.5	2.0	2.5
	25	2.0	2.5	3.0



Feature Function

l Double circuit electromagnetic wave detection, new analog circuit and digital circuit combination, greatly improve the reliability and intelligence of the product.

l Adopting the input of new touch screen and the composition of large scale integrated circuit, the CPU completes the analog signal collection and conversion to digital quantity for processing and output, automatically collecting the best point of metal content detected, which greatly improves the sensitivity and reliability of detection.

l Humanized interface design is adopted, the whole operation process is simple and intuitive, human-machine interface is clear at a glance, all functions can be performed by direct operation on the screen.

l It can set various required functions and modes, and set self-check function.

l Sensitivity, adjustable increase, decrease (1-9 adjustable).

l When trace metal is detected, sound, light and instrument will alarm at the same time, and the machine will stop or the unqualified products will be kicked out.

l This product adopts the computer to form the control system, according to the special requirements of the user, it can complete the quantity statistics of detection objects, the classification statistics of qualified and unqualified products, the data storage and printing, the identification of dry and wet concentration products, and the separation of mutual interference produced by the simultaneous work of multiple devices.
