Машина для лазерной резки одежды с ЧПУ 1610 лазерная резка ткани автоматической
- Категория: Лазерное оборудование для промышленности >>>
- Поставщик: Jinan,Lasermen,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.62 $* | 0.66 $* |
| Aug-16-2025 | 0.66 $* | 0.64 $* |
| Jul-16-2025 | 0.74 $* | 0.8 $* |
| Jun-16-2025 | 0.77 $* | 0.22 $* |
| May-16-2025 | 0.11 $* | 0.22 $* |
| Apr-16-2025 | 0.65 $* | 0.88 $* |
| Mar-16-2025 | 0.21 $* | 0.2 $* |
| Feb-16-2025 | 0.65 $* | 0.55 $* |
| Jan-16-2025 | 0.47 $* | 0.65 $* |
Характеристики
Product Description

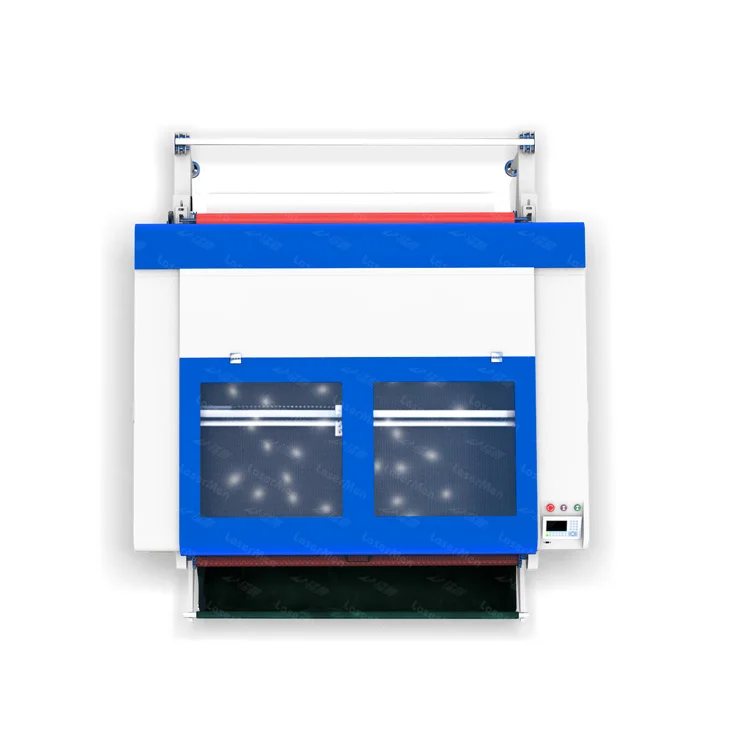

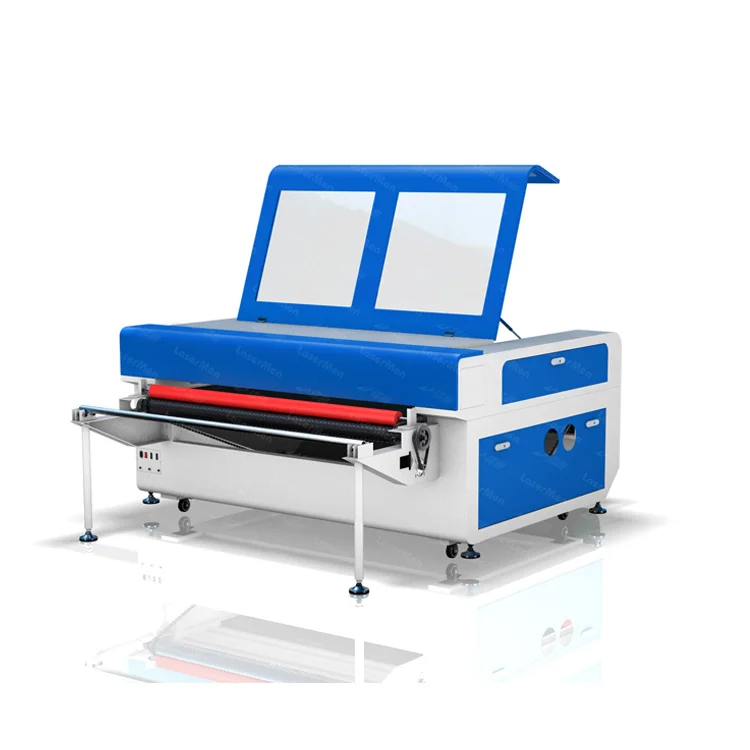

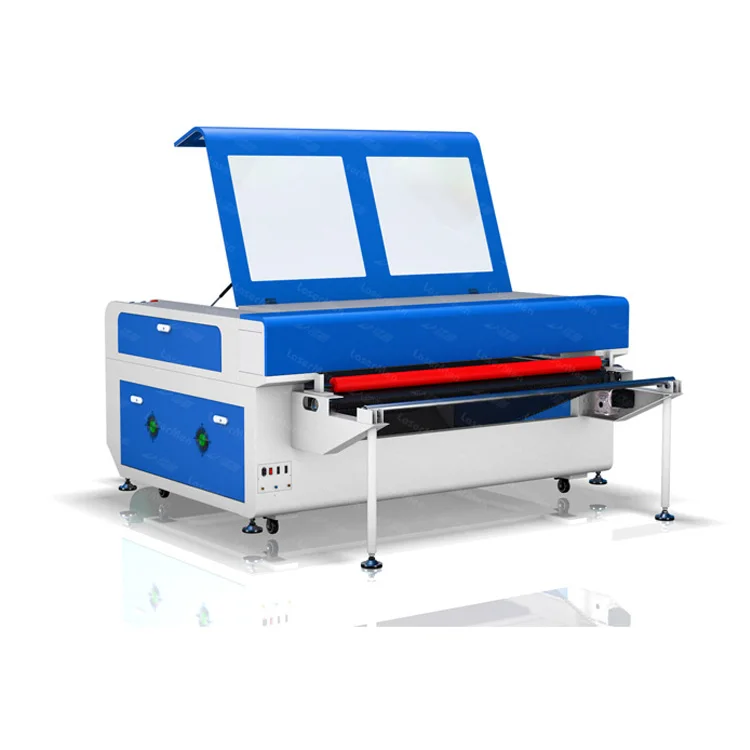

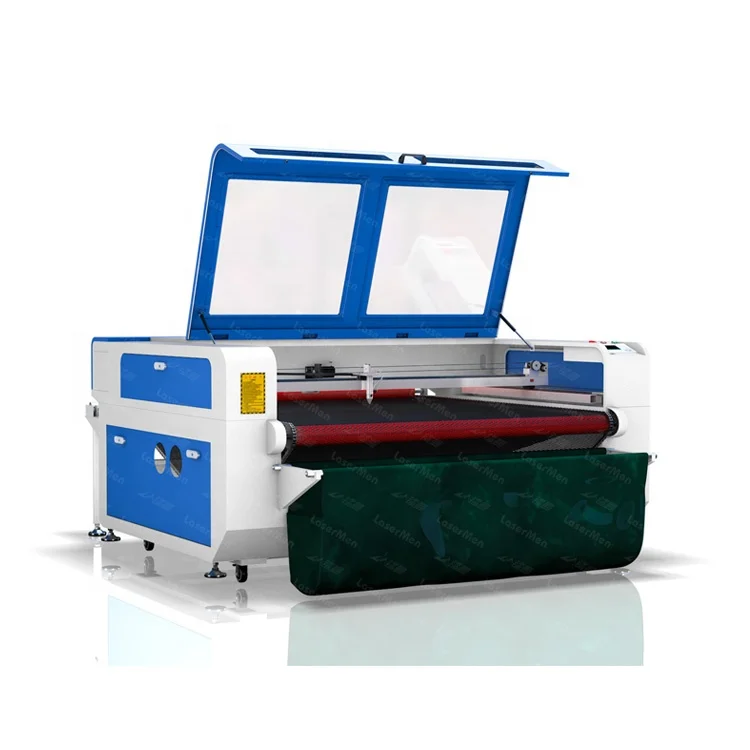

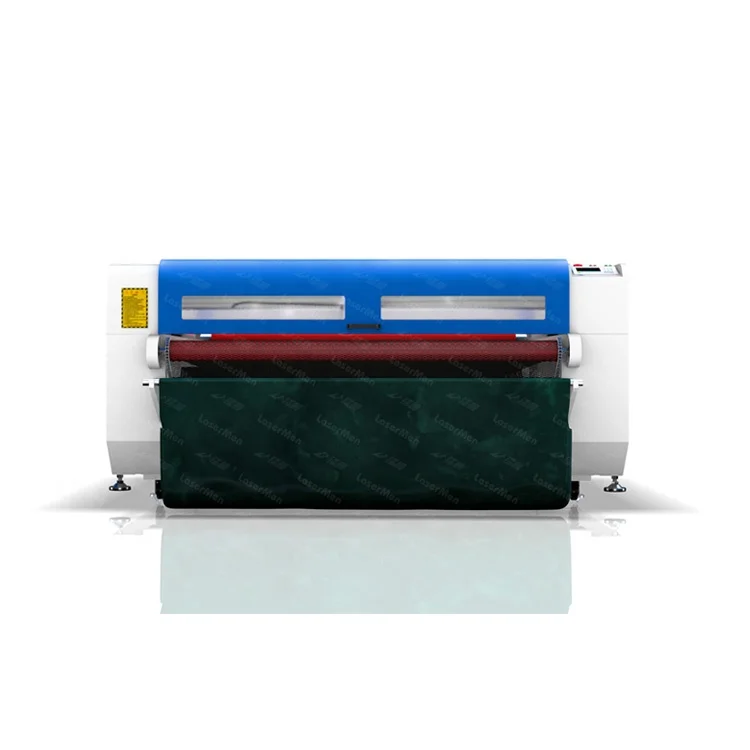

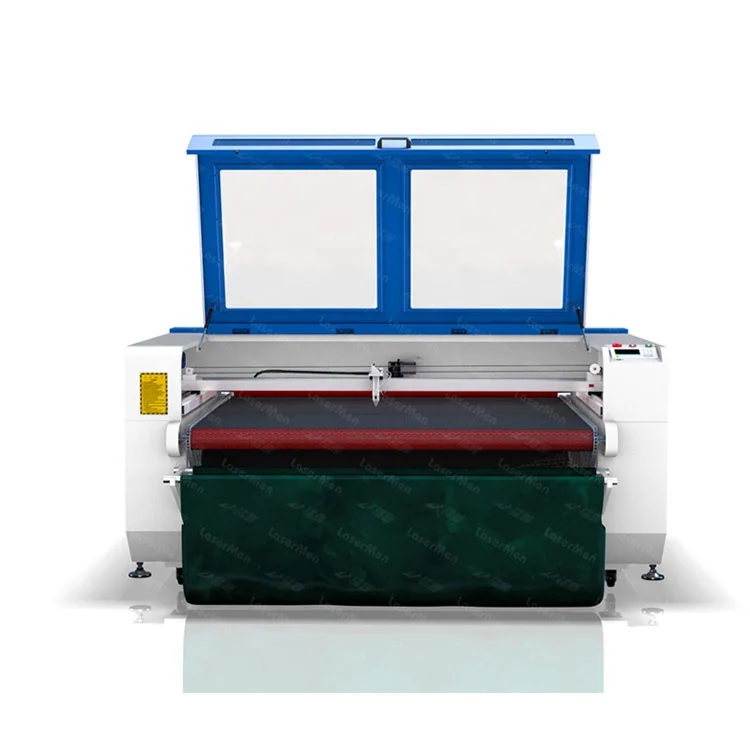

cnc clothing laser cutting machine 1610 fabric cut laser with auto feeding system
Machine model | Fabric laser machine |
laser type | Sealed CO2 laser tube, wavelenght:10:64μm |
laser power | 60w/80w/100w/150w/180w/280w/300w |
Cooling mode | Circulating water cooling |
Laser power control | 0-100% software control |
Control system | DSP offline control system |
Max. engraving speed | 60000mm/min |
Max cutting speed | 50000mm/min |
Repetition accuracy | ≤±0.01mm |
Min. Letter | Chinese:1.5mm, English:1mm |
Table size | 1600*1000mm |
Working voltage | Working voltage |
Working conditions | temperature:0-45℃，humidity:5%-95% |
File formats | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc |
cnc clothing laser cutting machine 1610 fabric cut laser with auto feeding system
1.Double heads with high efficiency and effectiveness work simultaneously.
2.The auto-feeding function is specially designed for piece goods, such as cloth, fabric,Towel, leather, jeans, knit article, embroidery, etc.
3.Widely applied in clothes embroidery industries.
Detailed Images
Co2 glass laser tube with 60w, 80w, 100w, 130w, 150w, 180w laser power
China top brand Yongli or Reci laser tube.
Double heads
Double heads with high efficency and effetciveness work simultaneously. Time saving parts can cut kinds of piece goods, such as cloth, fabric,Towel, leather, jeans, knit article, embroidery, etc.
Auto feeding table
The auto-feeding function is specially designed for piece goods, such as cloth, fabric,towel, leather, jeans, knit article, embroidery, etc. It's so practical. Widely applied in clothes industries.
Control panel
The work table is controlled by Ruida works & 8 software. When to move, and how far to move, all of this data can be set up on the digital panel.
Laser source
Supplies power for the laser tube with high quality.
Rolling system
The piece goods in rolls are put on the rolling syste,The table can move forward every time you finish cutting, and the rolling system can rotate the goods when working, in this way, the goods can be processed effectively.
Control system
Ruida control card, driving system(x-axis, y-axis, z-axis), power supply, air switch, intelligent no-arc ac contactor included.
Reducer
with this part , the piece goods can be processed more accurate, the cutting edge will be more smooth.
Samples
Packing & Delivery
Related product
Our Service
Pre-Sales Service
* Inquiry and consulting support.?
* Sample testing support.?
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.?
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
* Inquiry and consulting support.?
* Sample testing support.?
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.?
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
2-YEAR WARRANTY, LIFETIME MAINTENANCE
1.Two-year warranty for the machine, except for consumables.
2.Laser tube warranty:
- CO2 40W, 50W, 60W tubes: 3 months;
- CO2 80W tube: 6 months;
- CO2 100W, 130W, 150W, 180W tubes: 10 months;
- CO2 220W, 300W tubes: 15 / 18 months.
3.Optical lens and mirrors are not within warranty scope.
1.Two-year warranty for the machine, except for consumables.
2.Laser tube warranty:
- CO2 40W, 50W, 60W tubes: 3 months;
- CO2 80W tube: 6 months;
- CO2 100W, 130W, 150W, 180W tubes: 10 months;
- CO2 220W, 300W tubes: 15 / 18 months.
3.Optical lens and mirrors are not within warranty scope.
Our Company
FAQ
1.Q:Why should we choose you ?
A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2.Q:I'm not familiar with the machine,how to choose?
A:Just tell us materials, thickness and working size, I will recommend the suitable machine.
3.How to operate the machine?
A:We will deliver English manual and video with the machine to you.If you still need our further help,please contact us.
4.Q:Can I get the sample to check quality of machine ?
A:Of course.Please provide your logo or design to us, free samples can be provided for you.
5.Q:Can the machine be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for us?
A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
