Понижающий преобразователь постоянного тока/постоянного тока понижающий модуль от 12 В 24 до 5 25 А 125 Вт Автомобильный светодиодный дисплей P10 трансформатор
- Категория: Power Supplies >>>
- Поставщик: Yucoo,Network,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7.13 $* | 7.42 $* |
| Aug-18-2025 | 7.47 $* | 7.72 $* |
| Jul-18-2025 | 6.70 $* | 6.12 $* |
| Jun-18-2025 | 7.16 $* | 7.90 $* |
| May-18-2025 | 6.89 $* | 6.60 $* |
| Apr-18-2025 | 7.3 $* | 7.83 $* |
| Mar-18-2025 | 7.16 $* | 7.15 $* |
| Feb-18-2025 | 7.17 $* | 7.3 $* |
| Jan-18-2025 | 7.55 $* | 7.7 $* |
Характеристики

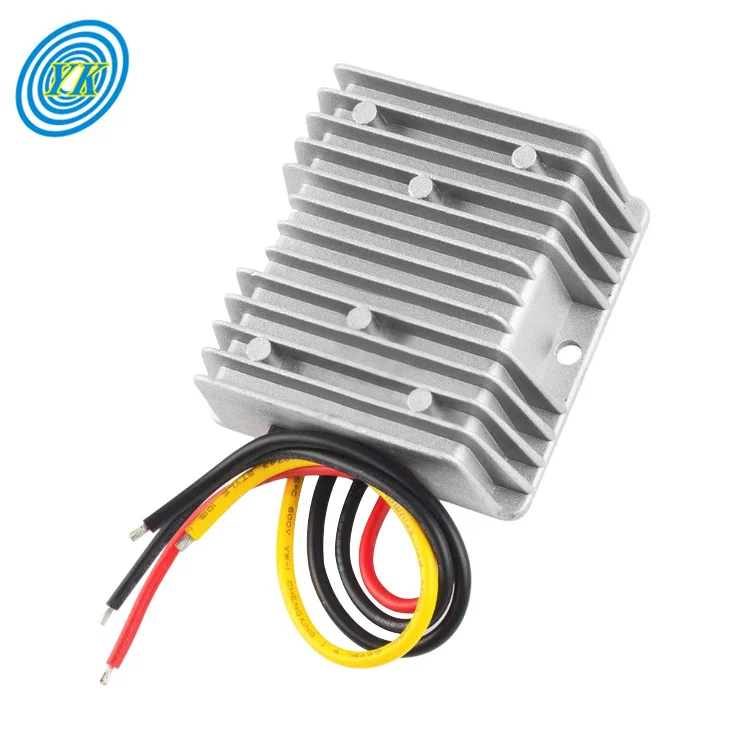

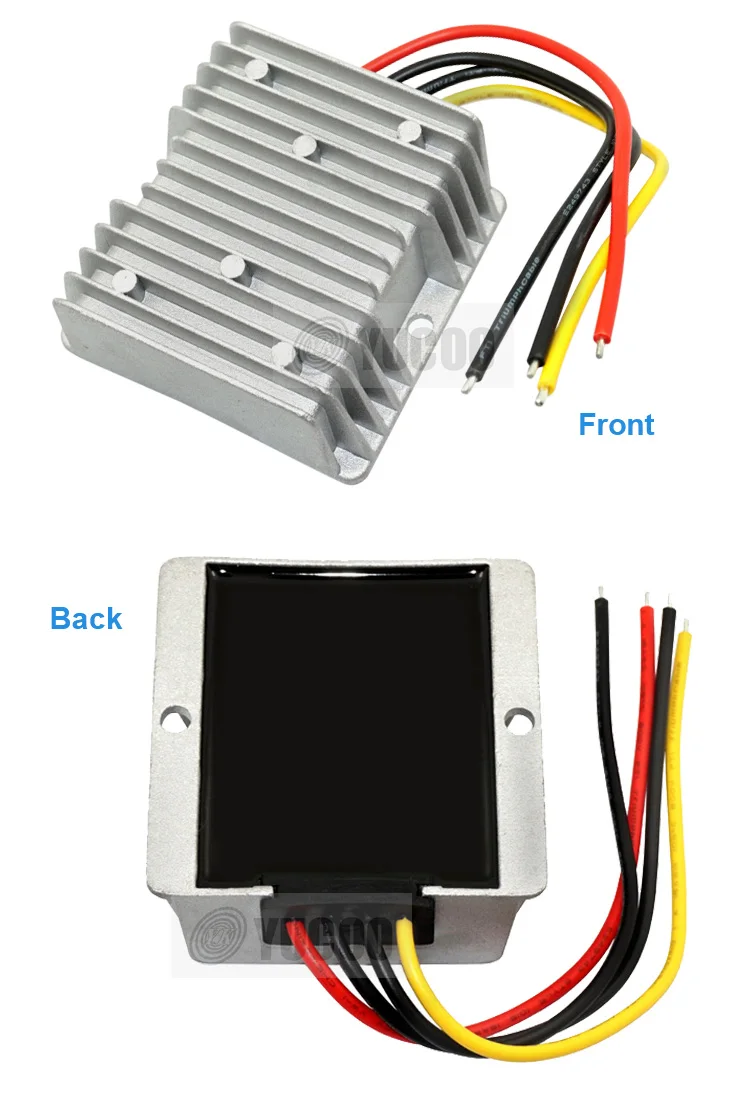

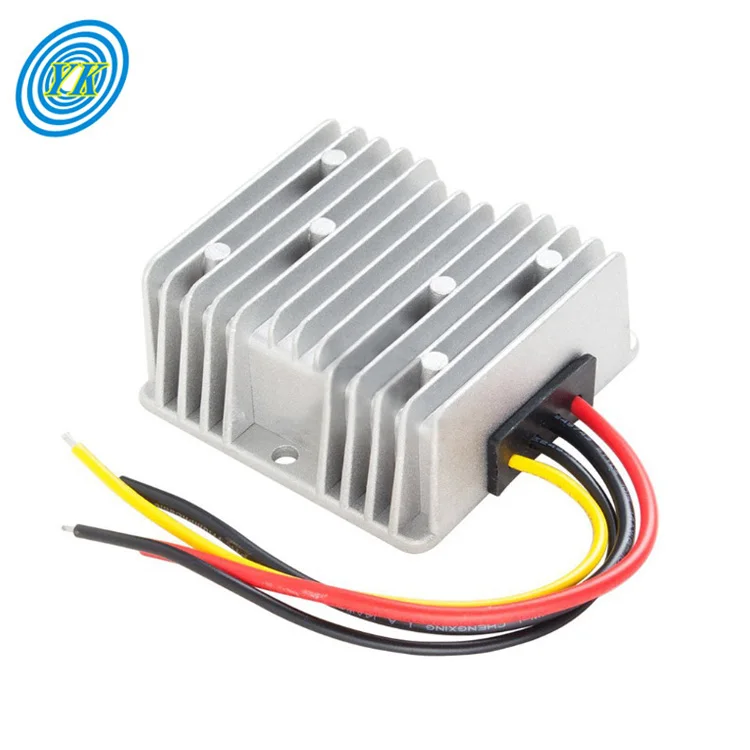

DC/DC Buck Converter Step Down Module 12V 24V to 5V 25A 125W Car P10 Led Display Power Supply Transformer
Product Advantages

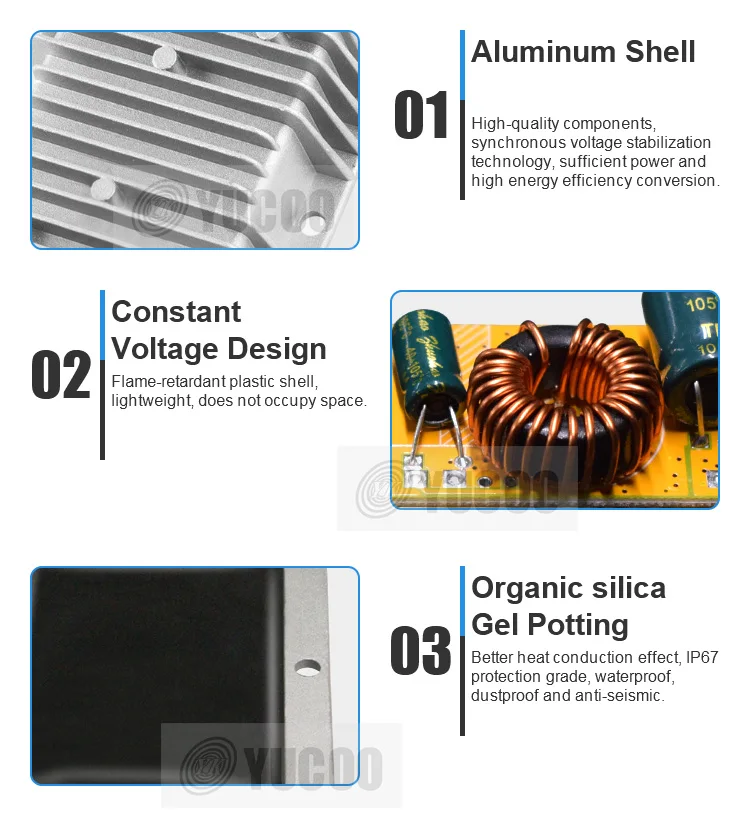

Features of dc dc buck converter:
1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. 2:1 wide input range
5. Built-in EMI filter, low ripple noise
6. 100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage / Automatic recovery work
10.Ultra compact size, light weight , high reliability
11.1 year warranty, lifetime up to 100,000 hours
Applications of dc dc buck converter:
1. Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts
2. Navigation, surveillance, Air conditioning
3. LED car display, DVD, LED lights, Audio
4. Wind Power System, Solar Power System, Photo voltaic energy
5. Electrical appliances, industrial equipment, telecommunications and so on.
Product Parameters
| Product Name | DC DC Converter |
| Model | YK-DD12/24S525 |
| Input voltage | 12/24Vdc (8-35V dc) |
| Output voltage | 5Vdc |
| Output current | 25A |
| Output power | 125W |
| Transfer efficiency | 90% |
| Working temperature | -35℃ - 80℃ |
| Waterproof rating | IP67 |
| Weight | 250g |

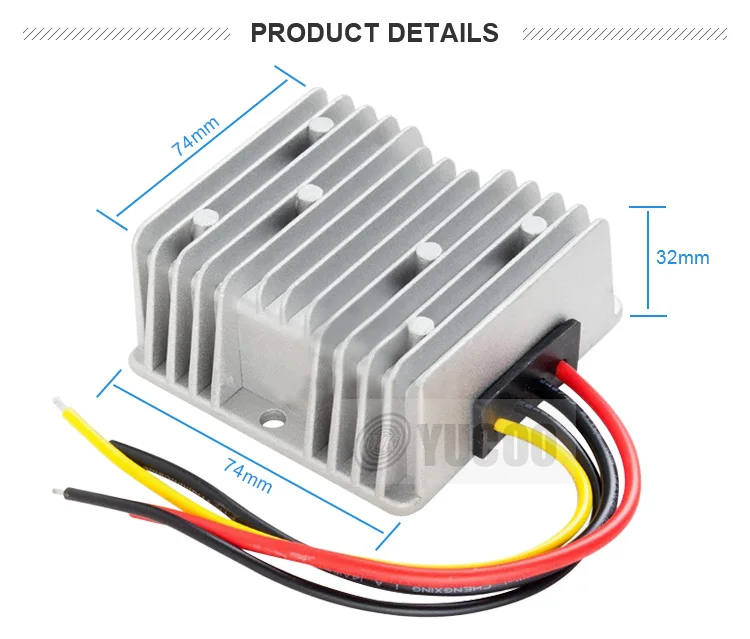

| Size | 74*74*32mm |
| Installation length | 13-15cm |
Product Details
Customized Range
| Model/ Series | DC-DC Conversion | Output Current (Be option) |
| Boost DC-DC Converter | ||
| YK-DD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A |
| YK-DD12S15** | 12v to 15v | 1/2/3/5/8/10/15A |
| YK-DD12S19** | 12v to 19v | 5/8/10/15/20A |
| YK-DD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40/50A |
| YK-DD12S28** | 12v to 28v | 3/5/8/10/15/20/25/30/40A |
| YK-DD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30/40A |
| YK-DD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A |
| YK-DD24S48** | 24v to 48v | 3/5/10/20/32/42A |
| Buck DC-DC Converter | ||
| YK-DD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
| YK-DD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A |
| YK-DD3648S5** | 36v/48v to 5v | 5/10/15/20A |
| YK-DD3648S12** | 36v/48v to 12vdc | 5/10/15/20/25/30/50/60A |
| YK-DD3648S24** | 36v/48v to 24v | 8/10/15/18/21/30/40/50A |
| YK-DD48S36** | 48v to 36v | 5/10A |
| YK-DD60S5** | 60v to 5v | 5/10/15/20A |
| YK-DD60S12** | 60v to12v | 5/10/15A |
| YK-DD60S24** | 60v to24v | 60v to24v |
| YK-DD60S36 | 60v to 36v | 5/8A |
| Auto Buck and Boost DC-DC Converter | ||
| YK-DD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
| YK-DD12S13.8 | 12v to 13.8v | 3/5/10A |
| YK-DD24S24 | 24v to 24v | 1/2/3/5/8/10A |
| Isolated DC-DC Converter | ||
| YK-DD48S12 | 35-100v to 12v | 8A/10A |
| YK-DD48S5 | 36-75v to 5v | 15A/20A |
| YK-DD48S24 | 36-75v to 24v | 5A |
