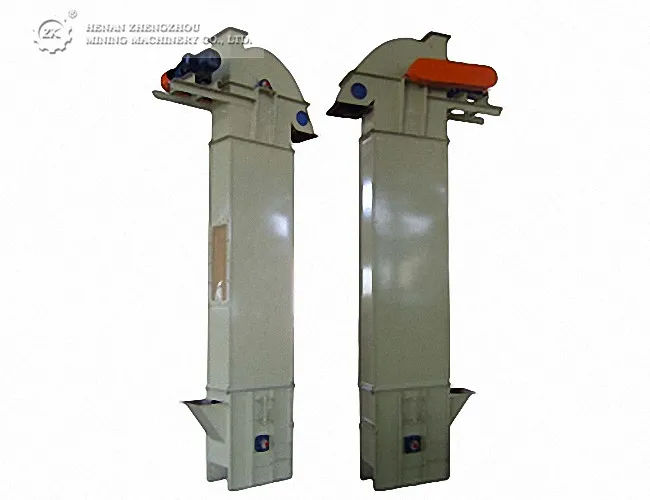

Stainless Steel TH300 Bucket Elevator for Sale

Bucket elevator has large throughput, great enhancing-height, stable and reliable operation, long life and other significant advantages. Hybrid-type or gravity discharge,  earth-type loading. Application to transport packing density of less than 1.5t/m³, easy to take out the powder, granular, small block of low-mill cut materials, such as coal, cement ,gravel ,sand fertilizer, food and so on. Delivery temperature of the material does not exceed 250°C.





Features of Bucket Conveying Elevator

1. Bucket Elevator has characteristics of large transport capacity, high elevation, stable operation and long working life.

2. The machine is applicable for conveying the powder, grain and small block materials, such as coal, cement, block, sand, clay and ore.

3. Bucket Elevator is allowed to convey materials with high temperature(250°c) when armed with special chain structure, and the elevating height can reach 40m.

4. It has vast range of application with almost no limitation for lifting material forms and properties. Materials like power, grain or big lump could be all applicable .Also its good sealing condition could effectively reduces the environmental pollution.

5. Excellent running reliability. Advanced design and processing method ensure the running reliability of the complete machine.

6. Long service life. The design of this machine ensures that the materials is seldom scattered while feeding and discharging, which reduces the mechanical wearing.





Bucket Conveying Elevator Technical Parameter

model	type	Transmission capacity		hopper					Drive shaft rotation speed (r/min)	Most large degree conveying material (mm)	Hoisting height (m)
				capacity(L)		Dou distance (mm)	Dou wide (mm)	Operation speed (r/min)
		Deep fights	Shallow fights
				Deep fights	Shallow fights
D160	Tape type	8	31	1.1	0.65	300	160	1.0	47.5	25	4.62~30.02
D250	Tape type	21.6	11.8	32	2.6	400	250	1.25	47.5	35	4.48~30.08
D350	Tape type	42	25	7.8	7	500	350	1.25	37.5	45	4.3~30.3
D450	Tape type	69.6	48	15	14.5	640	450	1.25	37.5	55	4.54~34
TH160	Tape type	6	22	1.1	0.65	400	160	0.87	47.5	25	4.84~30.02
TH250	Tape type	14	6.8	3.2	2.6	500	250	0.87	47.5	35	4.84~30.08
TH300	Tape type	28	16	5.2	4.4	500	300	1.25	37.5	40	4.66~30.16
TH400	Tape type	47.2	30	10.5	10	600	400	1.25	37.5	50	4.52~30





Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment
according to your special demand.

Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.

After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
