Вольфрамовый твердосплавный резьбонарезающий инструмент с прямой
- Категория: Инструменты для резьбы >>>
- Поставщик: Changzhou,Mikai,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 14.87 $* | 14.79 $* |
| Jul-20-2025 | 11.80 $* | 11.30 $* |
| Jun-20-2025 | 14.36 $* | 14.33 $* |
| May-20-2025 | 14.35 $* | 14.32 $* |
| Apr-20-2025 | 11.17 $* | 11.53 $* |
| Mar-20-2025 | 13.80 $* | 13.60 $* |
| Feb-20-2025 | 13.77 $* | 13.97 $* |
| Jan-20-2025 | 13.22 $* | 13.42 $* |
Характеристики
Product Description
| Product Name | Tunsten Solid Carbide Tapping Tools Straight Flute Machine Tap |
| Brand Name | MIKAI |
| Blind Hole/Through Hole | Blind Hole |
| Material | Carbide,Tungsten Steel |
| HRC | 45/55/60/65 |
| Size | UNC UNF BSW BSF |
| Precision | High Precision |
| Coating | AlTiN TiAlN TiSiN Nano,Customized |
| Suitable for | Copper, Steel, Stainless Steel, Carbon Steel, Alloy Steel, Die Steel,Cast Iron, ect. |
Raw Material
Super material is the basis of the tools. We choose the high performance material with good wear-resistance, high hardeness and high toughness.
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
| Grain Size:0.7um | Grain Size:0.6um | Grain Size:0.5um | Grain Size:0.5um |
| Co:10 % | Co:10 % | Co:12 % | Co:10 % |
| Flexural strength:3320N/mm2 | Flexural strength:4000N/mm2 | Flexural strength:4300N/mm2 | Flexural strength:4300N/mm2 |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
| Coating Process Parameters | ||||
| Item | AITin | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| (Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Performance Comparison Of Taps
| Classification | Performance | Characteristic | Purpose |
Straight Flute Tap | Lower debris discharge, through hole | Right angle groove | Cutting continuous curved material |
| No chip clogging | Holes with axial grooves in the inner wall | ||
| High flexural damage strength | Through hole processing | ||
| Strong cutting ability | High Speed Machining | ||
| Spiral Tap | Upper debris discharge, blind hole | Right angle groove | Cutting continuous curved material |
| Tappable to the lowest part of blind hole | Holes with axial grooves in the inner wall | ||
| Good chip removal effect | Blind hole processing | ||
| Easy to get into the bottom. | |||
| Easy cutting |
Quality assurance:
1. Equiped with world advanced grinding machine and coating machinies
2. Quality control system and inspector

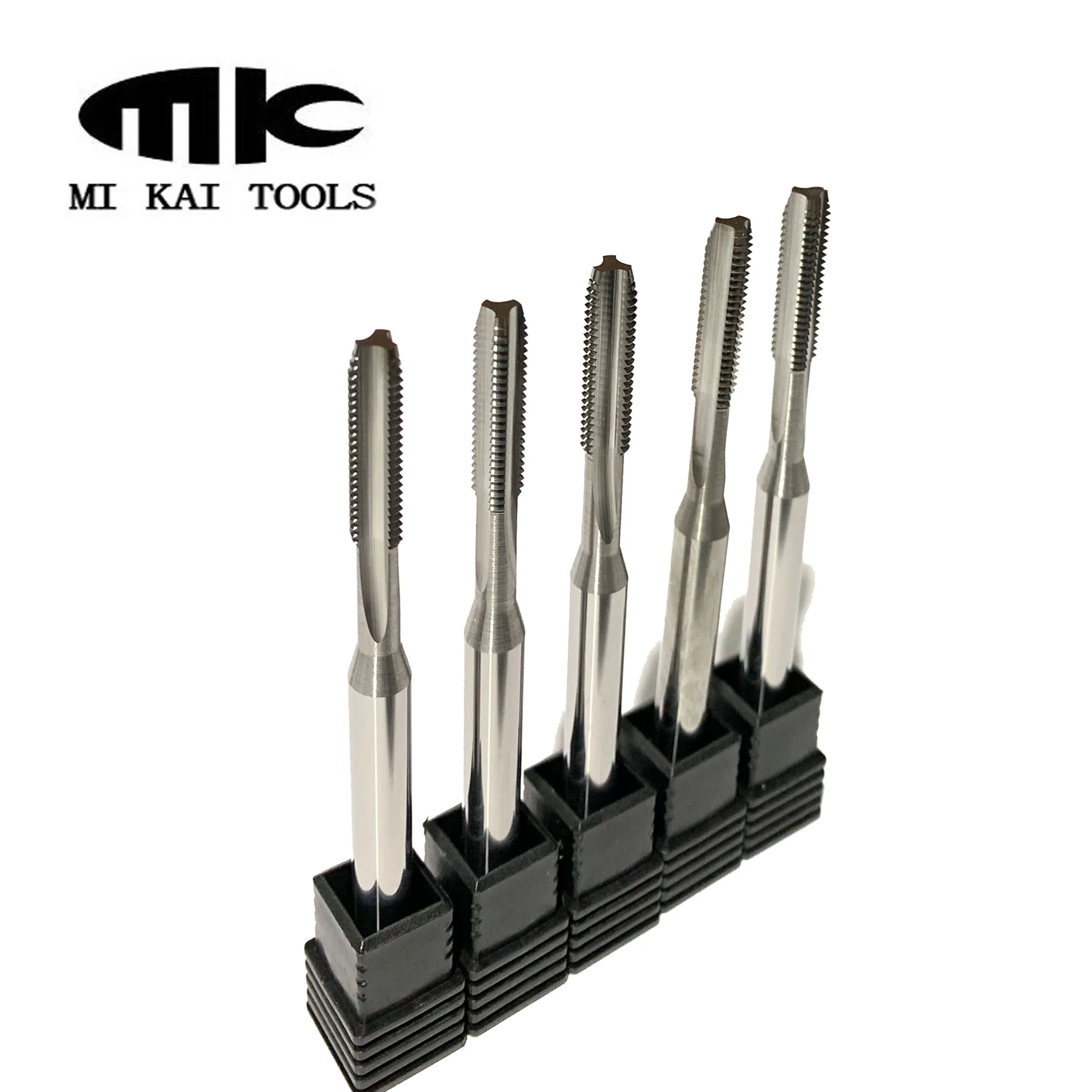

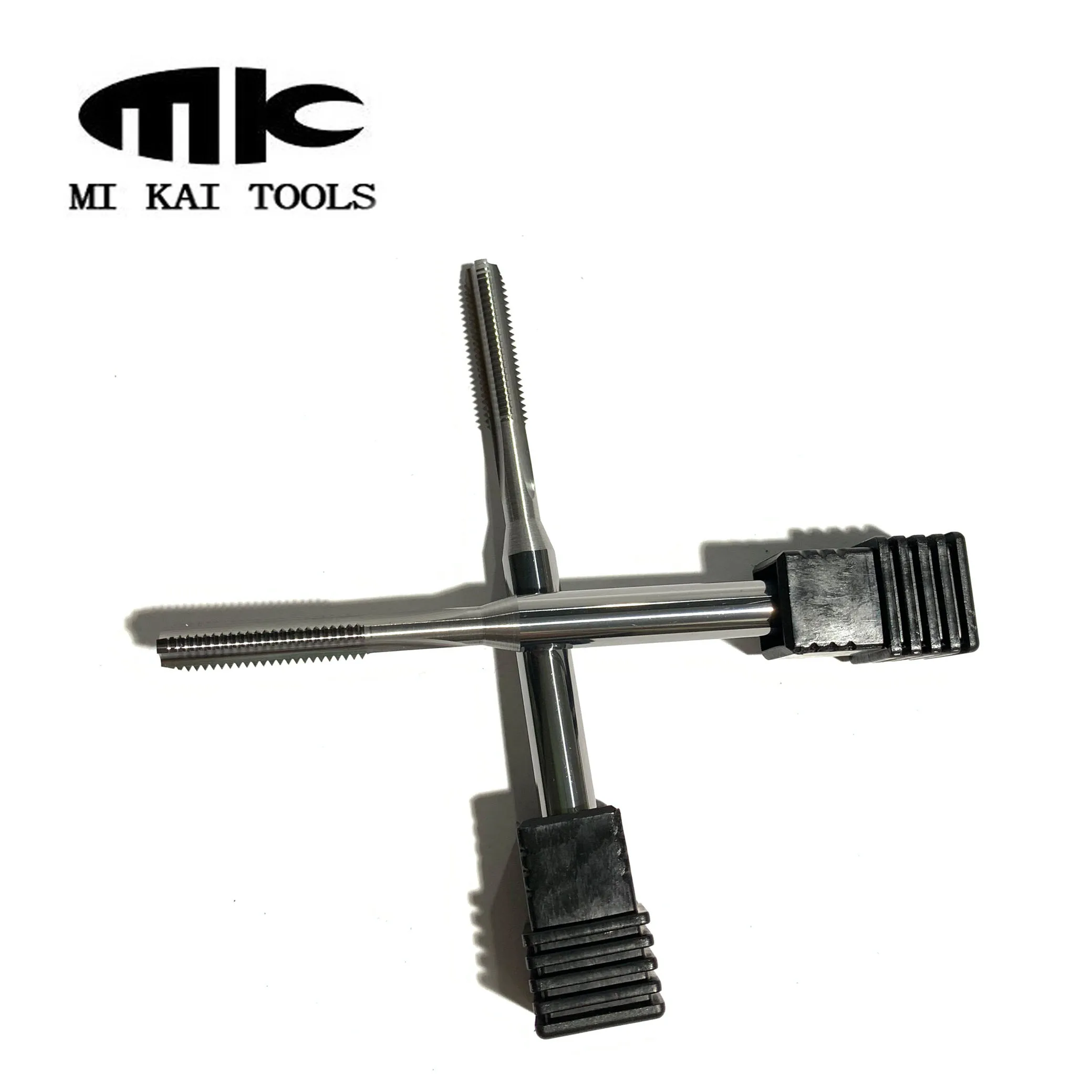

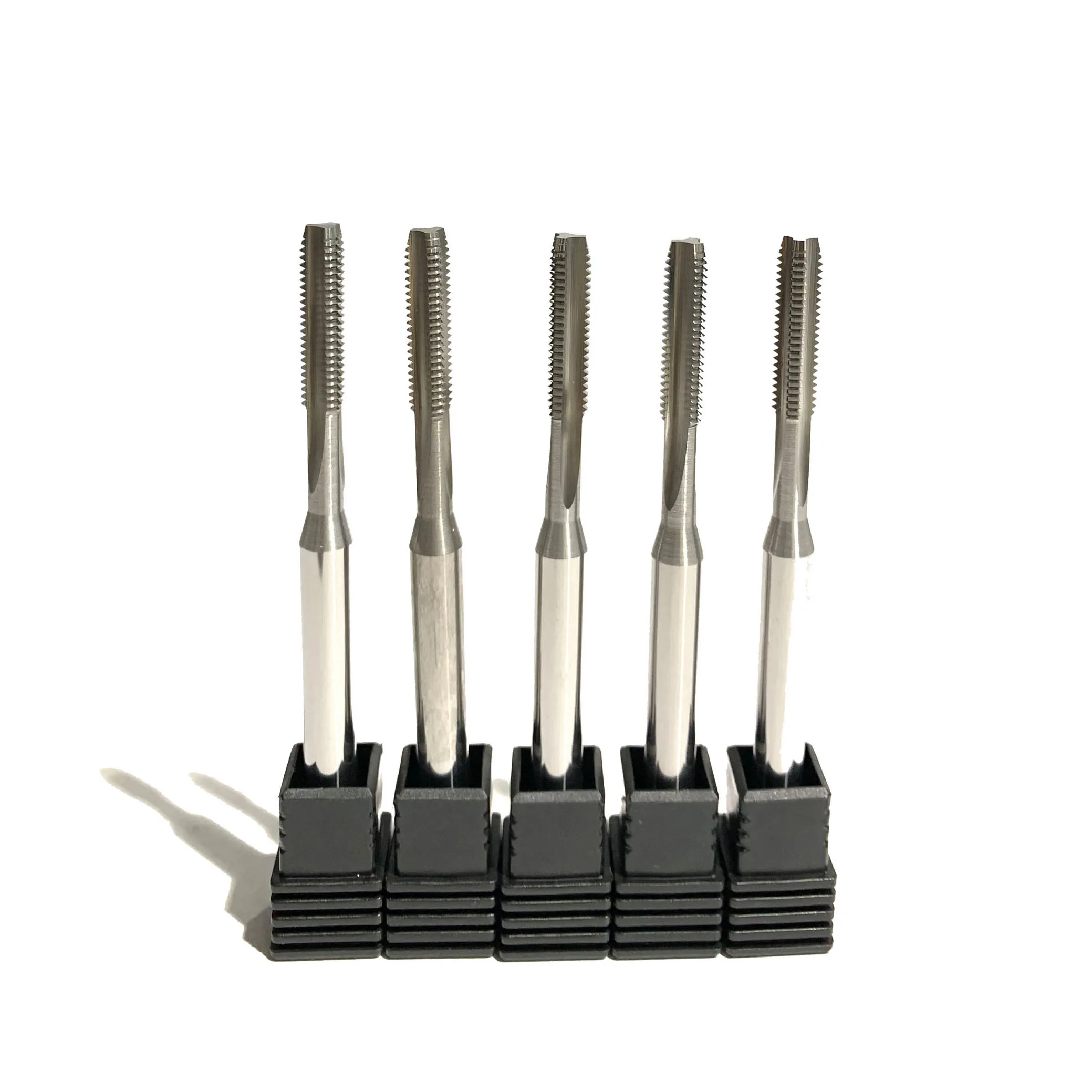

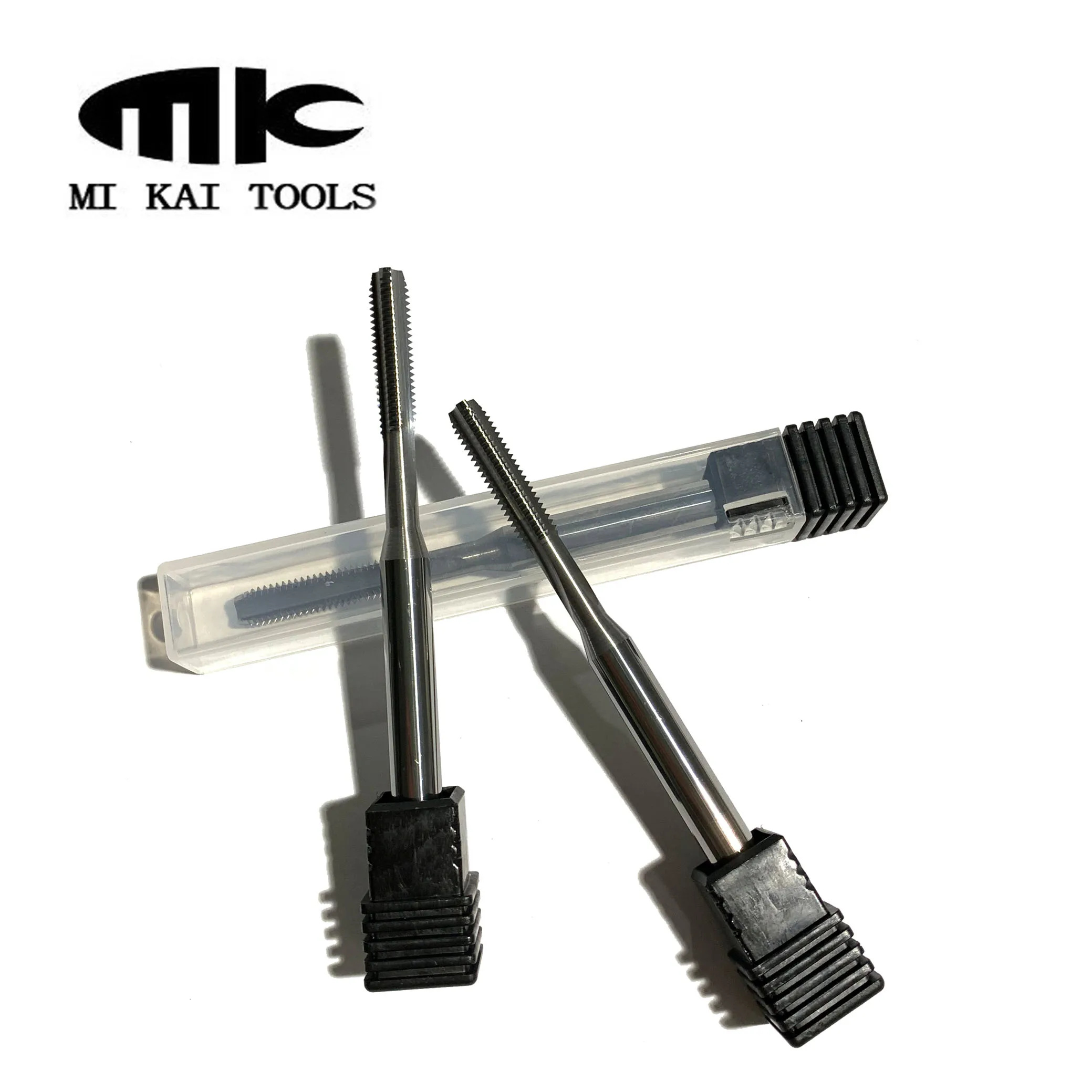

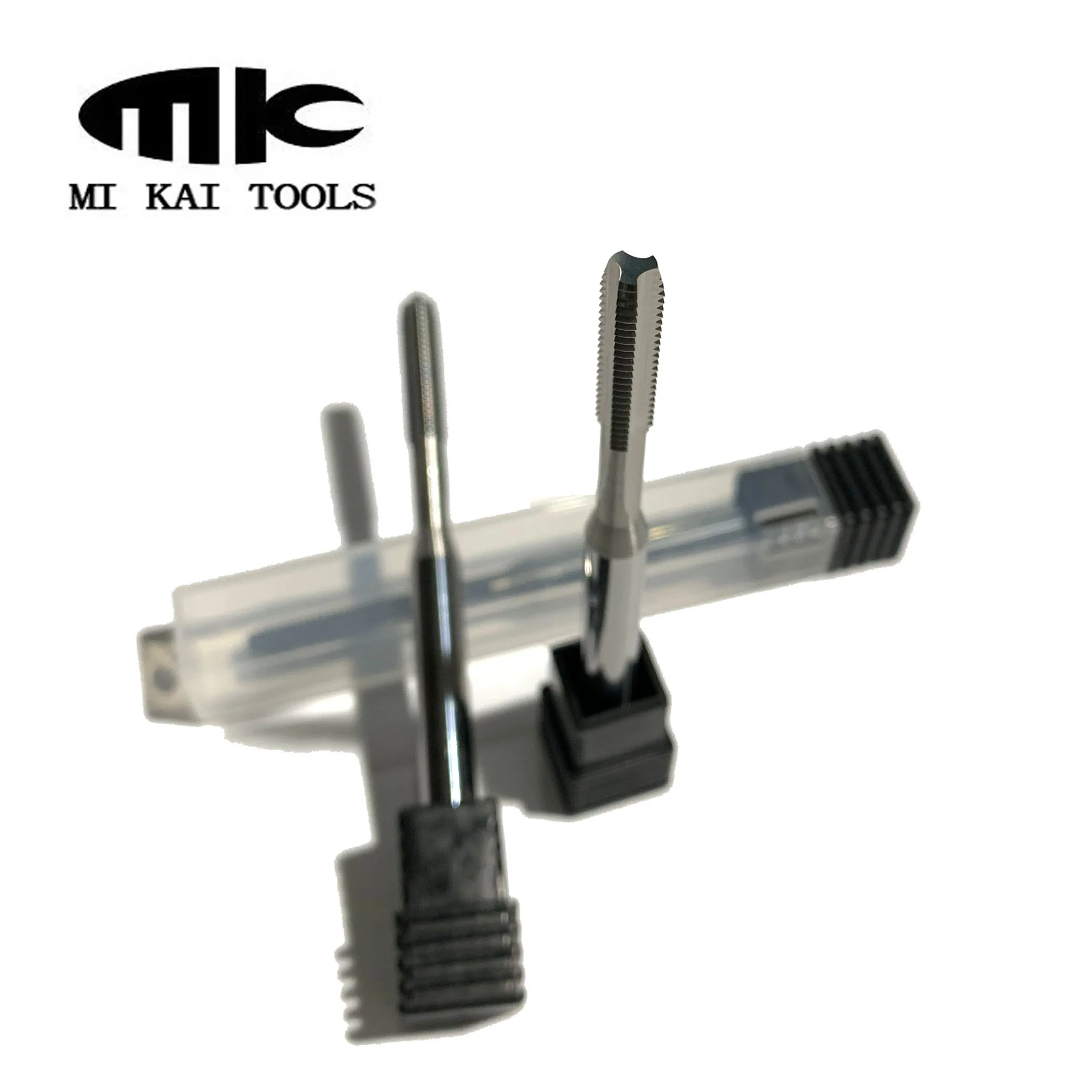

Product Show
Product Application
Our Customers
Company Information
Packaging & Shipping
1-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we can provide samples of some products free of charge, but we don't pay the freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
Wechat:15189717627
Whatsapp:15189717627
