Плата разработки встроенной системы Allwinner S3 с мощной мультимедийной функцией и интеллектуальной возможностью обработки
- Категория: Системы разработки и IoT продукты >>>
- Поставщик: Shenzhen,Sochip,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 500.51 $* | 525.63 $* |
| Aug-17-2025 | 496.96 $* | 521.85 $* |
| Jul-17-2025 | 416.20 $* | 437.4 $* |
| Jun-17-2025 | 487.17 $* | 511.9 $* |
| May-17-2025 | 424.89 $* | 445.56 $* |
| Apr-17-2025 | 479.4 $* | 503.52 $* |
| Mar-17-2025 | 475.0 $* | 499.28 $* |
| Feb-17-2025 | 470.72 $* | 494.13 $* |
| Jan-17-2025 | 466.15 $* | 489.88 $* |
Характеристики
Product Description
Model number | SC1615S |
IC | Allwinner IC CPU S3 |
Function | S3 development board is a demo board specially for S3 media processing chip. |
Package | FBGA 234 balls, 11mm x 11mm size, 0.65 pitch |
Product performance description
产品性能介绍说明

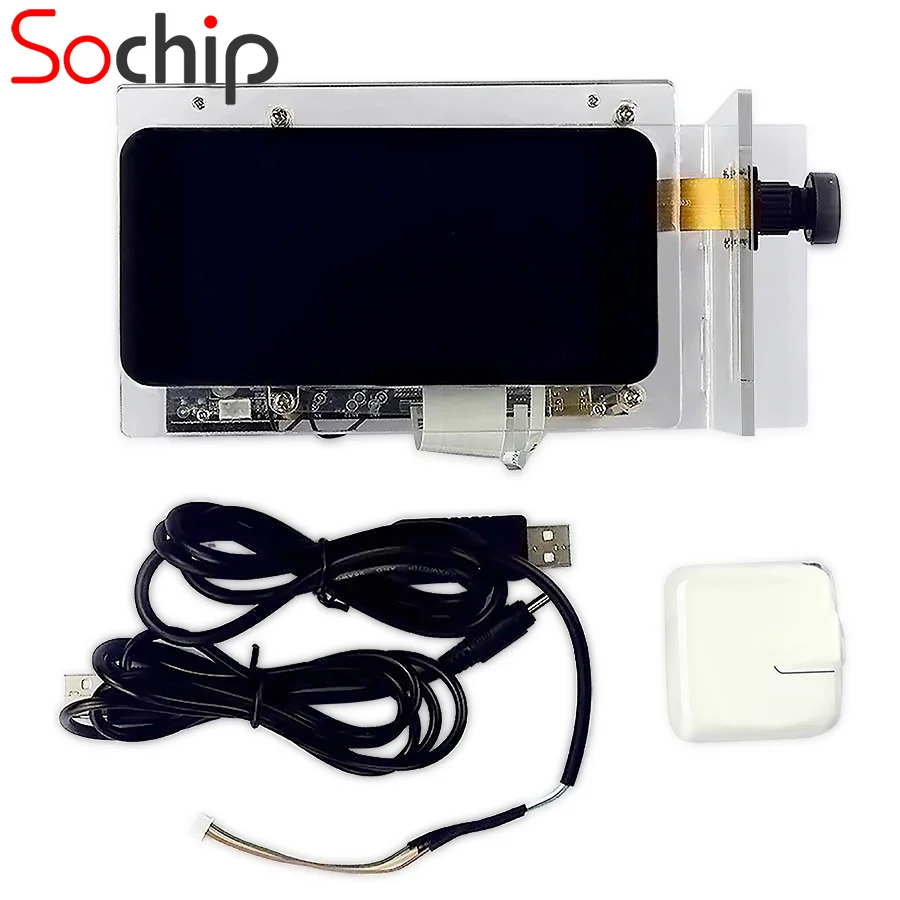

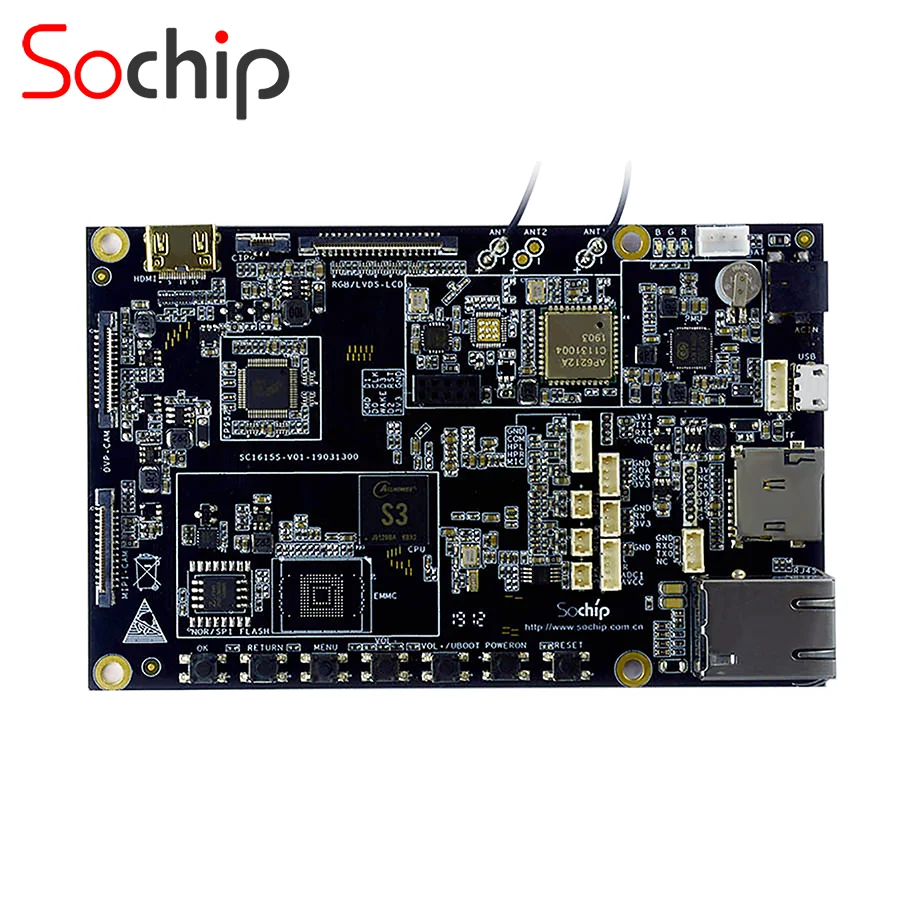

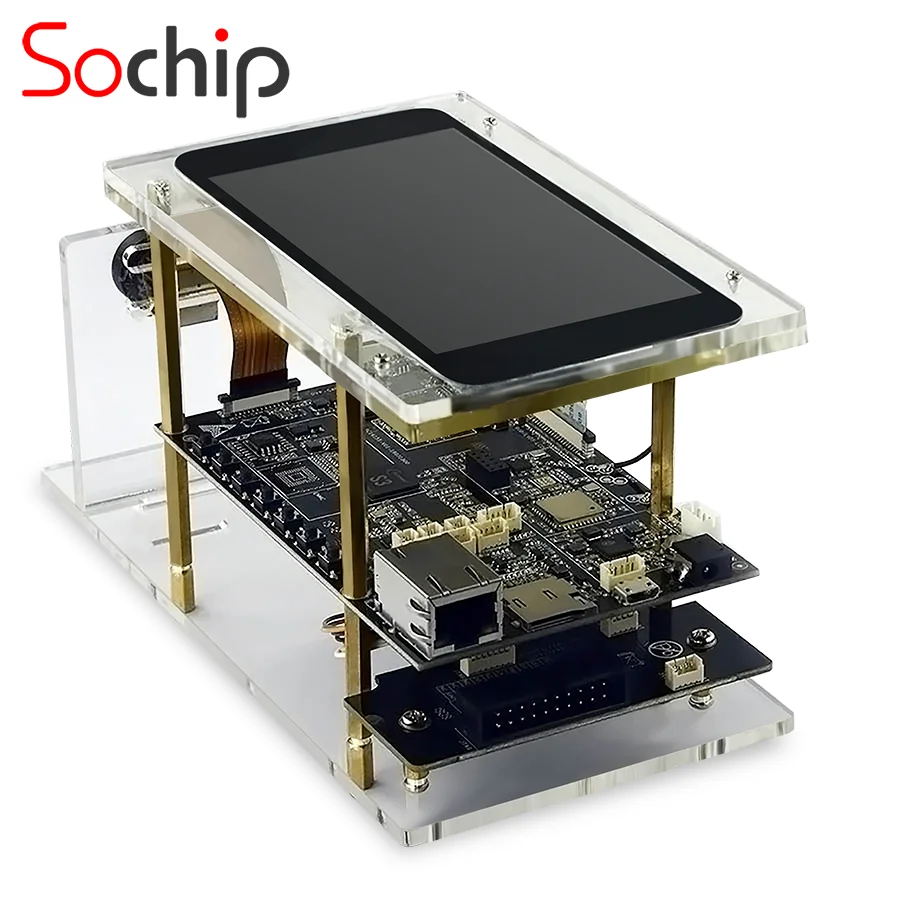

It is used to show customers the powerful multimedia function and intelligent video processing ability of S3. Customers can also do pre-software development work on S3 development board. S3 development board provides many of interfaces, and provides a reference for customer hardware design, customers only need to add or delete the circuit of S3 development board to complete the hardware design.
Details Images
The S3 processor represents Allwinner's latest achievement in video encoding processors, operates at speed up to 1.2GHz with supporting numerous peripherals. H.264 encoder by 1080p@60fps enables the S3 to capture superior shots in motion with the fine details. To enrich camera feature and enhance image quality, S3 equips an 8M HawkViewTM ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens shading correction, color correction and anti-flick detection statistics. Audio subsystem includes audio codec with dedicated hardware, and supports I2S/PCM interface for connecting to an external audio codec. The S3 processor includes one built-in DDR3, and external memory interfaces to SPI NAND/Nor flash an SD/MMC. Designed to be a connected solution, the S3 supports WiFi or 3G/4G connectivity to enable to be controlled wirelessly from a smartphone or other remote device. Time lapse photography is also supported by the S3 processor. To reduce total system cost and enhance overall functionality ,the S3 has a broad range of hardware peripherals such as UART, SPI, USB HS/FS OTG , TWI, EMAC etc. Applications: Action Camera CDR
ISP
• Integrated ISP up to 8M pixels
• Supports two channel outputs for display and encoding respectively
• Supports various input and output formats
• Supports AE/AF/AWB
• Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction
• Integrated ISP up to 8M pixels
• Supports two channel outputs for display and encoding respectively
• Supports various input and output formats
• Supports AE/AF/AWB
• Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction
VIDEO INPUT/OUTPUT
• Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2
• Supports BT1120 input
• Supports up to 8M CMOS sensor
• Supports RGB/i80/LVDS LCD up to 1024x768 resolution
• Supports Allwinner's next-gen SmartColor display technology for better visual effects for images & videos
• Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2
• Supports BT1120 input
• Supports up to 8M CMOS sensor
• Supports RGB/i80/LVDS LCD up to 1024x768 resolution
• Supports Allwinner's next-gen SmartColor display technology for better visual effects for images & videos
CONNECTIVITY
• 3 x SD card controllers
• LRADC/SPI/TWI/UART/PWM
• USB, EMAC+PHY
• 3 x SD card controllers
• LRADC/SPI/TWI/UART/PWM
• USB, EMAC+PHY
Product Usage
S3 development board is mainly used in laboratory. Before use, please read the following points carefully and abide by the relevant constraints.
✓ Before use, make sure the original power adapter DC5.1V/2.1A or lithium battery 4.2V
✓ Live working is not allowed in all interfaces or sockets, please turn off the power supply then insert or pull out.
✓ Live working is not allowed in solder any components, please turn off the power supply then solder.
✓ Please use this product in normal indoor environment. Temperature: (20 +5)degrees Celsius, relative temperature: (65 +20%).
✓ Place the development board flat on the dry insulation plane and make sure it is far away from heat source or strong radiation source.
✓ Most of circuits of the development board are exposed, please use under the environment of electrostatic protection,when draw PCBA, the operator must wear an electrostatic bracelet and connect to ground as well.
✓ Before use, make sure the original power adapter DC5.1V/2.1A or lithium battery 4.2V
✓ Live working is not allowed in all interfaces or sockets, please turn off the power supply then insert or pull out.
✓ Live working is not allowed in solder any components, please turn off the power supply then solder.
✓ Please use this product in normal indoor environment. Temperature: (20 +5)degrees Celsius, relative temperature: (65 +20%).
✓ Place the development board flat on the dry insulation plane and make sure it is far away from heat source or strong radiation source.
✓ Most of circuits of the development board are exposed, please use under the environment of electrostatic protection,when draw PCBA, the operator must wear an electrostatic bracelet and connect to ground as well.
Storage
S3 development boards are stored in clean, dry and ventilated rooms with ambient temperatures range from - 5 to 35 degrees Celsius, avoid Contact with corrosive substances and far away from fires and heat sources. The shelf life is 12 months, if the product exceeds the shelf life, must be re-inspected batch by batch, deliver the passed product to the orderer after inspected. For the fail products, shall be re-submitted for inspection, if they still failed, the orderer decides how to dispose.
