Product Description

QInfeng Machinery CF-TS 3080 Multi-function double shredder crushing machine

Model: CF-TS series

Cf-TS series plastic shredder machine adopts double film knife roller structure, with medium speed, high efficiency and low noise.Can meet the waste recycling requirements of various industries, recyclable materials, especially suitable for shredding electronic waste,rigid plastic,tire, film, woven bags, wood, paper and other medium hardness and soft materials.Different knife rolls can be used for different material requirements.




IMG_20170926_102739R.jpg   IMG_20170926_102728R.jpg   IMG_20170926_111440R.jpg

Featured with:

1  Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates

2  Wide angle, hexagon prism of power slewing axis; large hopper with big caliber for feeding large material

3  It adopts PLC control system, automatic overload protection and auto reverse switch

4  The low rotation speed results in a particularly quiet shredding process with low levels of dust generation

5  It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc

Technical Parameters

 The following data of CF-TS 3080 double shredder for reference


Item

Model   CF-TS3080

Dimension L/W/H(mm)

1834×1561×1735

Cutting Chamber C/D(mm)

800×576

Rotation Diameter(mm)

φ313

Main Shaft Speed (r/min)

36

Screen Mesh(mm)

Z 40

Rotor-knives(PCS)

(26×2)+(28×2)

 Stator-knives(PCS)

4

Main Motor Power (kw)

30+30

Capacity (kg/h)

500-600





             Configuration

Item

Standard Configuration

High configuration

Motor

Dongya

SIEMENS

Control

Yatai

PLC Control(SIEMENS)

Inverter control

(NONE)

ABB Inverter

Touch screen

(NONE)

Siemens touch screen

Gearbox

GUOMAO

GUOMAO

Bearing

ZWZ

NSK

Air Valve

CHNT

Yadek

Electricity Elements

CHNT

All the elements use SIEMENS

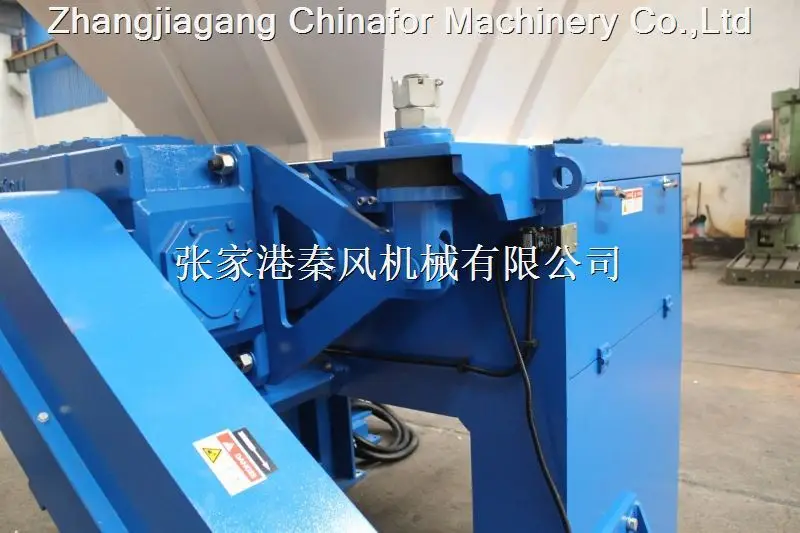

Detail View

QQ20160629165352

Applicable Material






Company Information

Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.

 -3

Packaging

Way Of Packing:

FCL delivery, directly wrap film package packing;

LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.

(The equipment can be packaged according to customer's requirement)FOB Shanghai

-1
