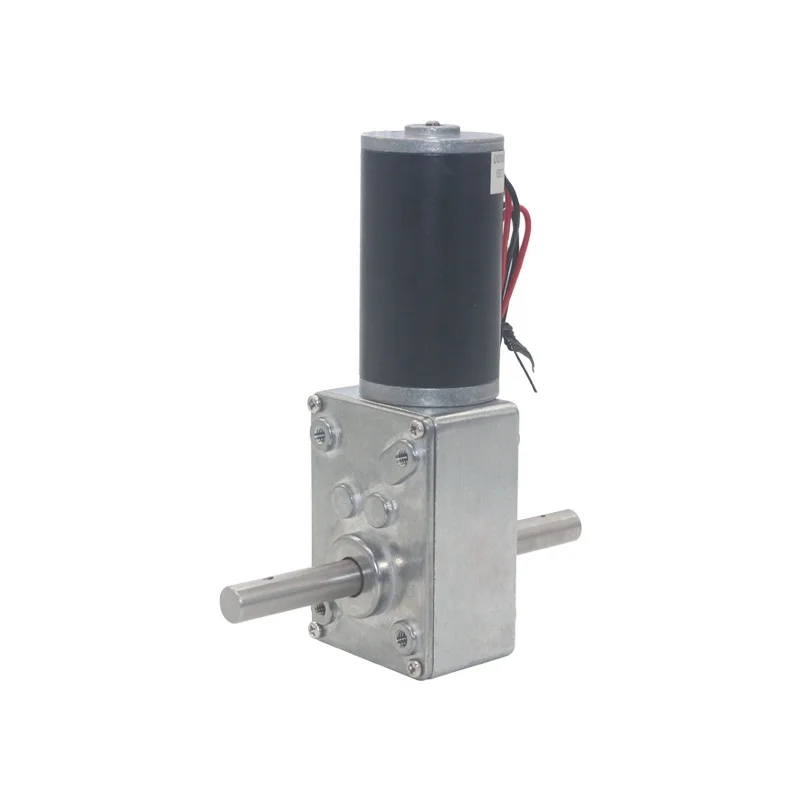

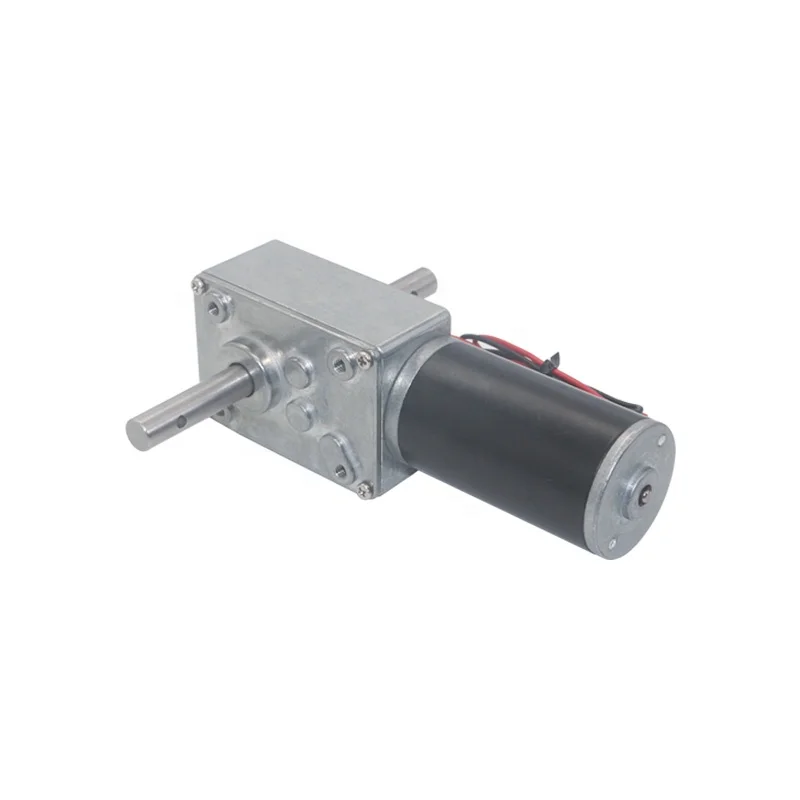

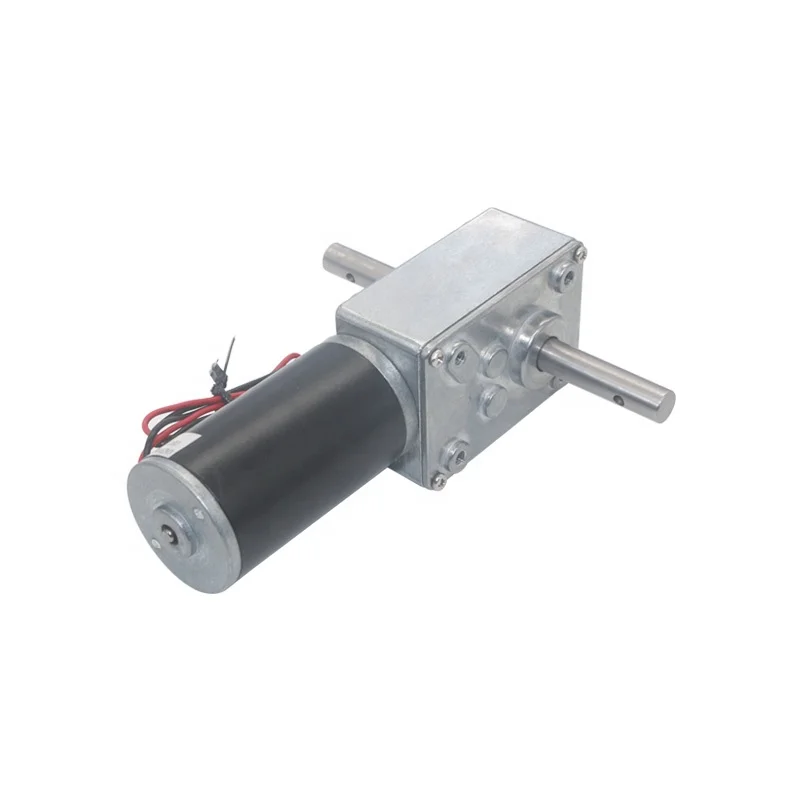

Двигатель коробки передач 24 в 12 В 100 об/мин 150 80 для
- Категория: Speed Reducers >>>
- Поставщик: Dongguan,City,Well,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.22 $* | 11.23 $* |
| Jul-19-2025 | 9.4 $* | 9.88 $* |
| Jun-19-2025 | 11.85 $* | 11.64 $* |
| May-19-2025 | 11.2 $* | 11.73 $* |
| Apr-19-2025 | 9.77 $* | 9.84 $* |
| Mar-19-2025 | 11.12 $* | 11.62 $* |
| Feb-19-2025 | 11.66 $* | 11.59 $* |
| Jan-19-2025 | 11.46 $* | 11.76 $* |
Характеристики
Product Display
* Dimension40*58mm
* Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Door Lock, Camera
Features:
*Support positive and negative
*Strong self-locking function
*Long carbon brush long life
*Maximum carrying capacity of 70kg
*High precision gear design
*Low noise, high efficiency
*Shaft diameter 8MM
MOTOR DATA:
| Rated Voltage | No load | Load Torque | Stall | Reducer | Weight | ||||||
| Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | Size | ||
| (V) | rpm | mA | rpm | A | Kg.cm | W | Kg.cm | A | 1:100 | mm | (g) |
| 12 | 470 | 240 | 330 | 1.2 | 2 | 14.4 | 11 | 3.5 | 17 | 58 | 320 |
| 260 | 240 | 180 | 1.2 | 3.6 | 14.4 | 21 | 3.5 | 30 | 58 | 320 | |
| 160 | 240 | 110 | 1.2 | 6 | 14.4 | 35 | 3.5 | 50 | 58 | 325 | |
| 80 | 240 | 56 | 1.2 | 12 | 14.4 | 70 | 3.5 | 100 | 58 | 325 | |
| 27 | 240 | 19 | 1.2 | 34 | 14.4 | 80 | 3.5 | 290 | 58 | 330 | |
| 16 | 240 | 11 | 1.2 | 60 | 14.4 | 100 | 3.5 | 500 | 58 | 330 | |
| 24 | 470 | 120 | 330 | 0.9 | 3.4 | 21 | 18 | 3.1 | 17 | 58 | 320 |
| 260 | 120 | 180 | 0.9 | 6.2 | 21 | 34 | 3.1 | 30 | 58 | 320 | |
| 160 | 120 | 110 | 0.9 | 10 | 21 | 55 | 3.1 | 50 | 58 | 325 | |
| 80 | 120 | 56 | 0.9 | 20 | 21 | 70 | 3.1 | 100 | 58 | 325 | |
| 27 | 120 | 19 | 0.9 | 58 | 21 | 80 | 3.1 | 290 | 58 | 330 | |
| 16 | 120 | 11 | 0.9 | 70 | 21 | 110 | 3.1 | 500 | 58 | 330 | |
