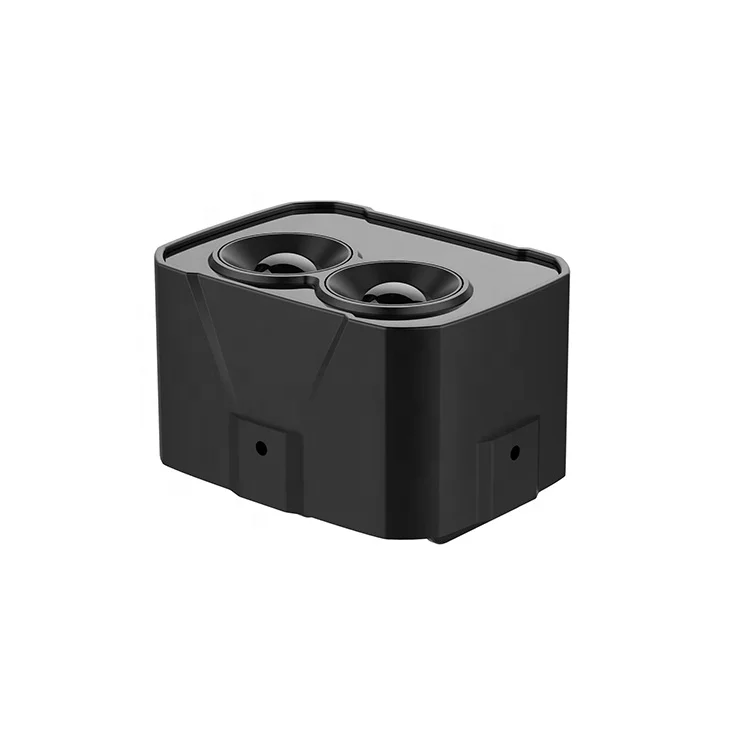

Киоск ATM интегрированный 3 мега пикселей Dual USB Инфракрасной сенсорной панели BW WDR (широкий динамический диапазон) Уход за кожей лица ливенесс обнаружения камерой с
- Категория: >>>
- Поставщик: Shenzhen,Yuxi,Smart,Electronic,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.80 $* |
| Aug-19-2025 | 0.44 $* | 0.44 $* |
| Jul-19-2025 | 0.50 $* | 0.2 $* |
| Jun-19-2025 | 0.35 $* | 0.1 $* |
| May-19-2025 | 0.26 $* | 0.57 $* |
| Apr-19-2025 | 0.5 $* | 0.68 $* |
| Mar-19-2025 | 0.14 $* | 0.24 $* |
| Feb-19-2025 | 0.38 $* | 0.15 $* |
| Jan-19-2025 | 0.45 $* | 0.2 $* |
Характеристики
Biometrics Facial liveness Detection Dual USB Infrared Camera SDK face Recognition Camera for ATM Bank Customs integration
Product Description
Why us?
Traditional face recognition techniques are vulnerable to face spoofing attacks.
With digital cameras and cell phones becoming increasingly popular, it is much
easier to conduct photo and video spoofing attacks; even 3D face models are
used for spoofing. Face spoofing detection camera, which is aimed to judge the genuine person from fake replicas.
What's the Solution?
Through the Dual camera using its sophisticated binocular algorithms to calculate high-precision face data, eye and nose and some other key feature points for accurate identification and positioning and calculate a variety of interpupillary distance, nose height, the distance from the eye to the ear And other spatial information, the calculation error is less than 1mm.
This will be able to effectively prevent face spoofing attacks, accurate detection of "living", "real" to ensure the accuracy of living detection.
Click here for more information.
What are the Specifications?
Main Specifications:
Camera | Image Sensor | AR0331(Color)+AR0330(Black & White) |
Effective Pixels | 2048*1536 | |
Video Comprossor | MJPG/YUY2 | |
SNR max | ||
Pixel size | ||
Data output | ||
Dynamic range | ≥105dB | |
Min. Illumination | 0.01LUX | |
Infrared | IR LED | 4pcs |
Effective Distance | 1.2m |
Other Specifications
Optical | Lens Angle | Horizontal angle | Color:80±5°/ Infared:80±5° | |
Vertical angle | Color:59±4°/ Infrared:59±4° | |||
Diagonal angle | Color:88±3°/ Infrared:88±3° | |||
Focus Range | 46cm~~INF | |||
Focus | Fixed | |||
Lens construction | 2P3G | |||
F/NO | 2.4 | |||
IR Filter | T=50%@650±15nm | |||
T=90%@835~~880nm | ||||
| MJPG Resolution & Frame Rate | 2048x1536 @ 15fps 1920x1080 @ 25fps | ||
1280x1024 @ 25fps 1280x720 @ 25fps | ||||
C | ||||
YUV2 Resolution & Frame Rate | 2048x1536 @ 15fps 1920x1080 @ 25fps | |||
1280x1024 @ 25fps 1280x720 @ 25fps | ||||
| 640x280 @ 25fps 320x240 @ 25fps | ||||
Transfer rates | ||||
Power requirements | 5V±5% | |||
Operating temperature(℃) | -30~70 ℃ | |||
Storage temperature(℃) | -30~80 ℃/0~90RH | |||
OS | Windows XP/Windows 7/vista/seven/8.1/Mac linux2.6.2(including UVC ) | |||
| Working current | Color:270mA | B/W:290mA | |
Case | Material | Aluminum alloy | ||
Case | Dimensions | 41.7x31.7x25.8mm | ||
PCB | Dimensions | 37x27x1.2mm | ||
What are the Features?

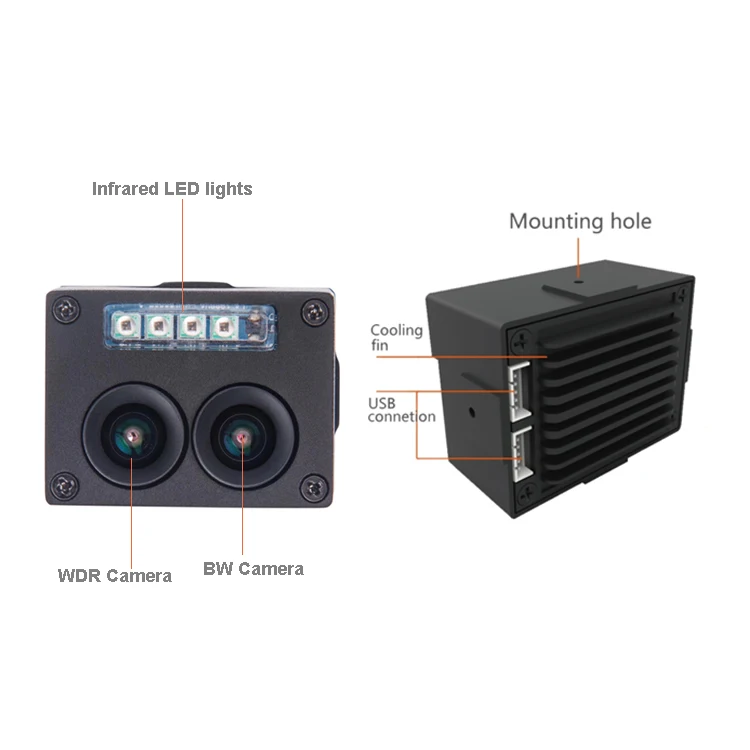

Industrial Level, HD Image Sensor AR0331(Color)+AR0330(Black & White)
Double Lens Camera (3Mega Pixels WDR Camera & 3Mega Pixels BW Camera);
Support face liveness detection
Accurate recognition of living human
Support SDK open connection
Fixed 25fps, no dragging shadow
Super Low illumination 0.01Lux
Wide Working Temperature at -30℃~+70℃
UVC Structure Compatible with Windows XP&7&8.1&LINUX&Andriod&MAC
What are the Applications?
Face Withdrawals, Face Clearance, Face Security Check, Face information Authentication, Face Acess Control etc.
