Характеристики
Product Description
High efficiency pulverizer mill limestone ultra fine grinding mill machine introduction:
1.Energy-Saving about 20%~35%.
2. Competitive Price
3.Stable performance
4.ISO 9001.,CE
Product Features: Lower operational & maintenance costs, excellent environmental protection, better quality of finished products
Input Size: 0-50mm
Capacity: 3-50TPH
Material: Limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, coal powder, etc.
High efficiency pulverizer mill limestone ultra fine grinding mill machine working principle:
After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTW European Grinding Mill. After grinding, materials are blown away by airflow to the powder concentrator for classifying. Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector. This system adopts a closed circuit and runs under positive and negative pressure. Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow. So, ZENITH arranges exhaust valves at the air outlet of the fan to induce redundant air into the bag filter. After purifying, the redundant air is discharged. This arrangement can achieve both the balance of airflow and the eco-friendly production.

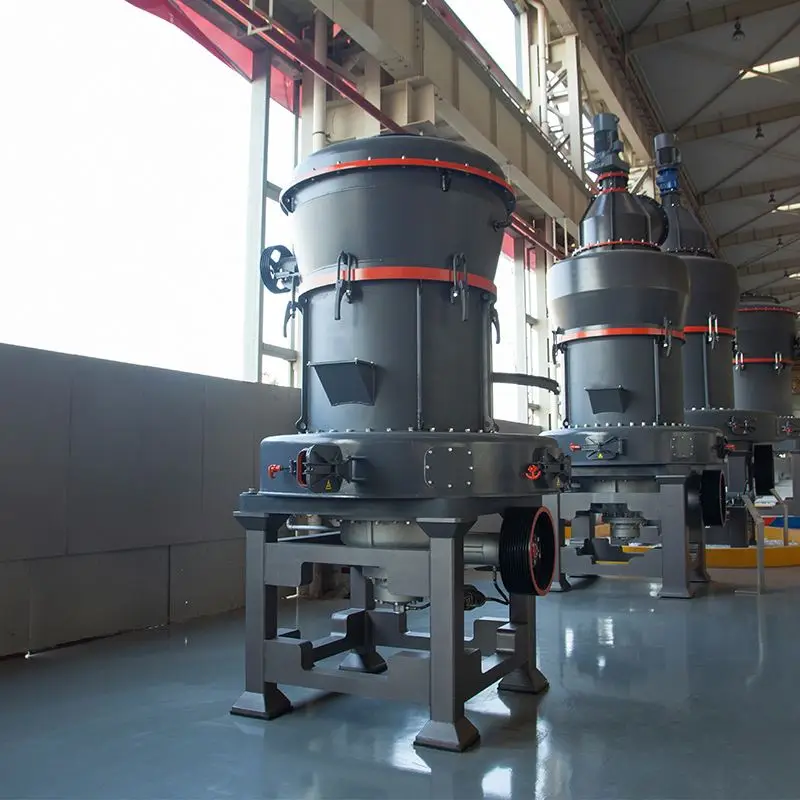

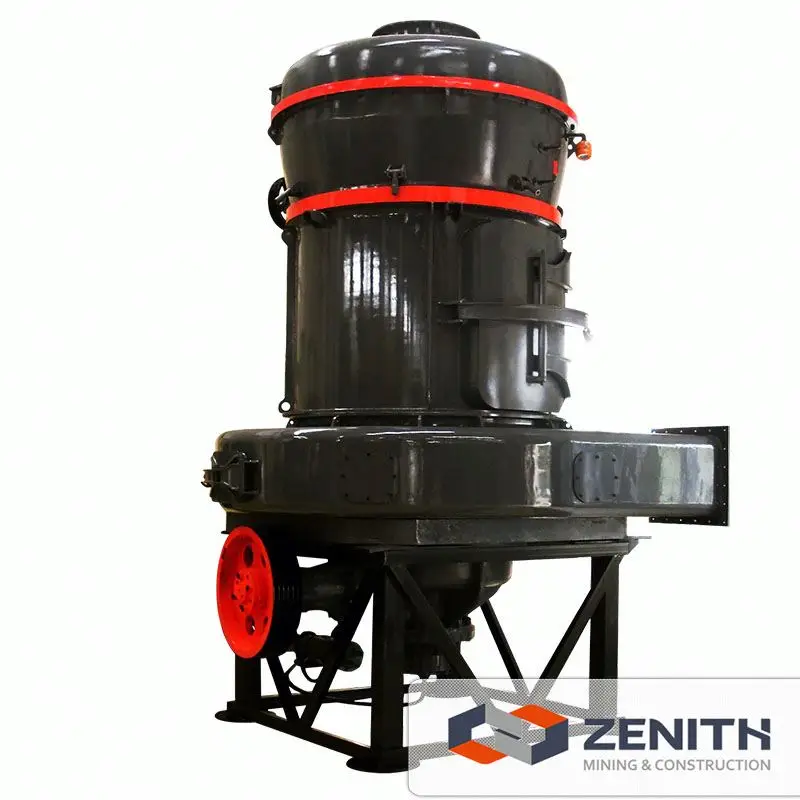

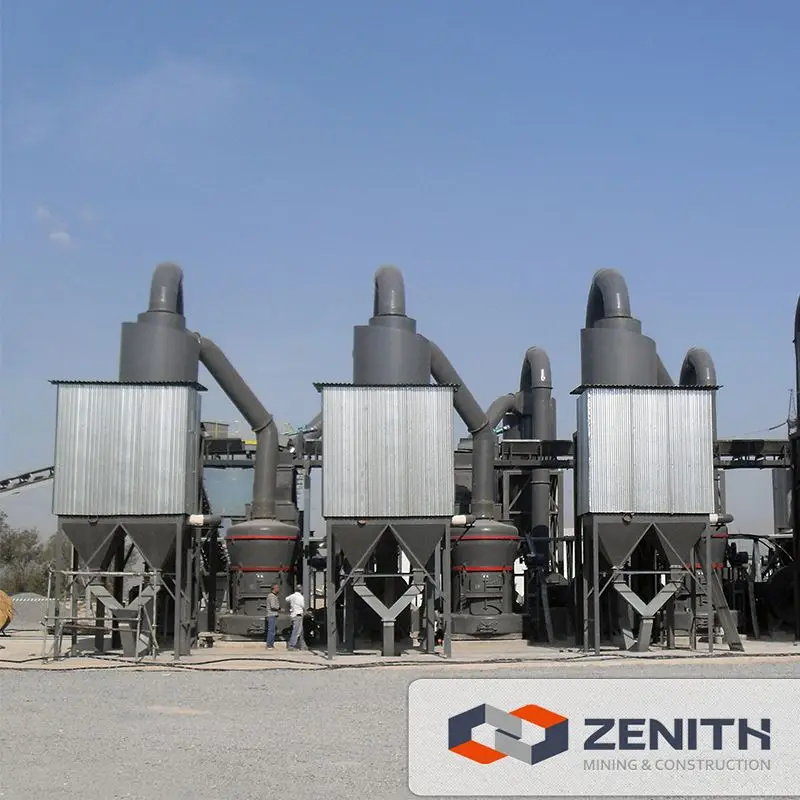

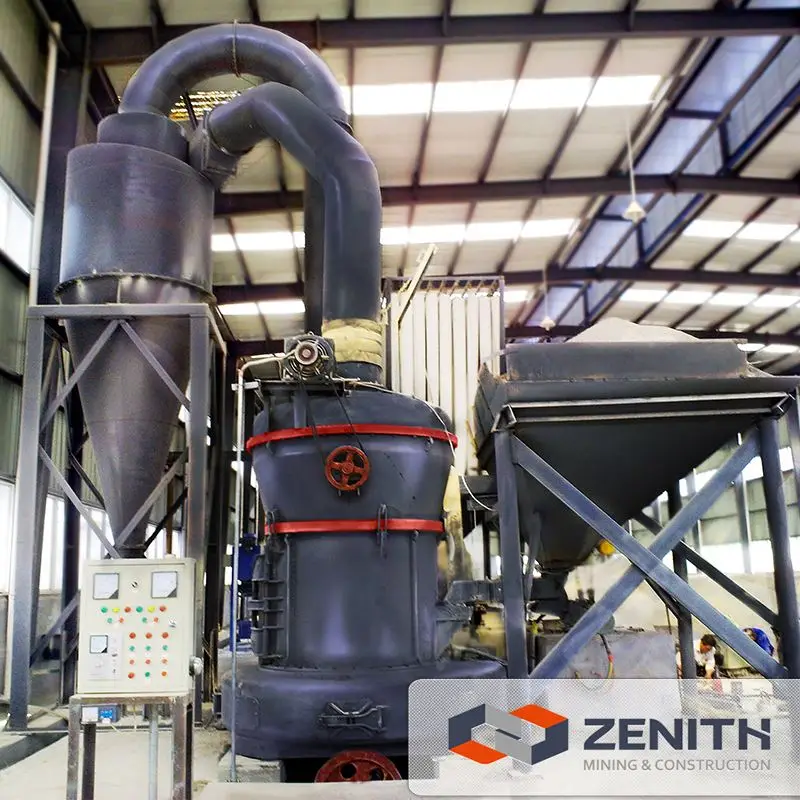

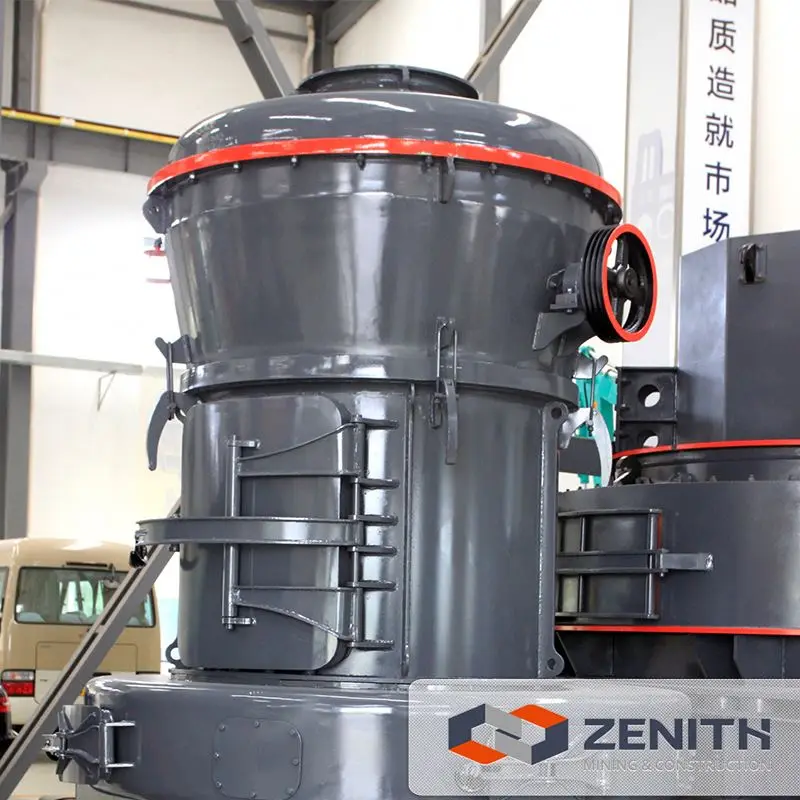

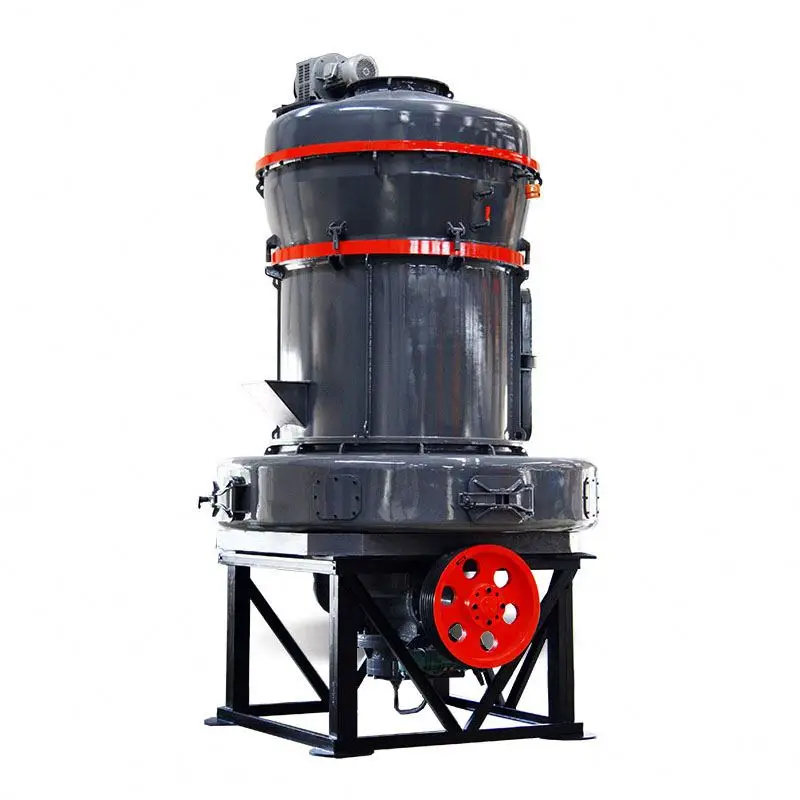

High efficiency pulverizer mill limestone ultra fine grinding mill machine photo:
WALK INTO FIELD
Zenith Customer MTW 138 Pulverizing Line
Certain chemical industry building material Co., Ltd., Zhejiang
This company mainly produces calcium carbonate powder, with finished product used in citric acid industry
It purchases a suit if MTW138 Europe version grinder complete equipment
Production Line Condition
Site: Zhejiang
Daily running: 22 hours
Raw material: Limestone, particle size 100-350mm, particle size into grinder<10mm
Finished product: calcium carbonate powder with 98% calcium content, particle size 150 screen meshes -200 screen meshes
Configuration: MTW138 pulverizing complete equipment
Customer’s comment
Zenith company is very concerned about service condition at our site. What is even rarer is that it can absorb practical experience in customer use. It constantly improves details according to our real production conditions. As a result, this suit if MTW138’s yield also exceeds expectance. Compared with our previously used equipment, the prominent merit is convenience and simplicity in repair and maintenance. Currently our company’s machines are developing to large scale. If new equipment needs to be increased, Zenith’s equipment will still be the first choice.
-----Mr. Shen, factory director of factory in this building material company
Finished Products of High efficiency pulverizer mill limestone ultra fine grinding mill machine:
Specifications of High efficiency pulverizer mill limestone ultra fine grinding mill machine :
| Name & Model | MTW110 | MTW138 | MTW175 | MTW215 |
| Ring Roller Number(pcs) | 4 | 4 | 5 | 5 |
| Major diameter of roller(mm) | 360×190 | 460×240 | 520×280 | 640x 320 |
| Inner diameter of roller (mm) | 1100×190 | 1380×240 | 1750×280 | 2150x 320 |
| Revolving Speed(rmin) | 120 | 96 | 75 | 65 |
| Max.Feed Size(mm) | <30 | <35 | <40 | <50 |
| Final size(mm) | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.075, fineness can reach to 0.038 |
| Capacity(th) | 3.5-10 | 6.5-15 | 13-20 | 30-45 |
| Overall dimension(mm) | 8625×7933×8642 | 10920×9470×10227 | 12275×9555×9916 | 14730x 10860x 10341 |
| Main unit motor | Model | Y280M-6 | Y315M-6 | Y355M2-8 |
| Power(kw) | 55 | 90 | 160 | 280 |
| Rotate Speed(rmin) | 980 | 990 | 740 | 740 |
| Classifier speed regulating motor (variable frequency motor) | Model | Y132M-4 | Y180M-4 | Y200L-4 |
| Power(kw) | 7.5 | 18.5 | 30 | 90 |
| Rotate Speed(rmin) | 1440 | 1470 | 1470 | 1470 |
| Centrifugal induced draft fan motor | Model | Y250M-4 | Y315-4 | Y315L2-4 |
| Power(kw) | 55 | 110 | 200 | 315 |
| Rotate Speed(rmin) | 1480 | 1480 | 1480 | 1480 |
| Elevator | Bucket Model | TH210 | TH315 | TH315 |
| Motor Model | Y100L2-4 | Y112M-4 | Y112M-4 | Y160M-4 |
| Motor Power(kw) | 3 | 3 | 4 | 11 |
| Rotate Speed(rmin) | 1430 | 1430 | 1440 | 1440 |
| Jaw Crusher | Model | PE250×400 | PE250×750 | PE250×750 |
| Motor Model | Y180L-6 | Y200L2-6 | Y200L2-6 | Y315M2-6 |
| Power(kw) | 15 | 22 | 22 | 110 |
| Rotate Speed(rmin) | 970 | 970 | 970 | 990 |
| Magnetic Vibrating Feeder | Model | GZ2F | GZ3F | GZ4F |
