120 Вт 4 Ом 10 дюймов НЧ

120 Вт 4 Ом 10 дюймов НЧ

Категория: Профессиональное аудио-, видеооборудование, и освещение >>>
Поставщик: GuangZhou,Welike,Electroacoustic,Co.,Ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.16 $*	0.71 $*
Aug-19-2025	0.53 $*	0.92 $*
Jul-19-2025	0.5 $*	0.10 $*
Jun-19-2025	0.10 $*	0.69 $*
May-19-2025	0.54 $*	0.10 $*
Apr-19-2025	0.38 $*	0.89 $*
Mar-19-2025	0.25 $*	0.63 $*
Feb-19-2025	0.50 $*	0.17 $*
Jan-19-2025	0.21 $*	0.0 $*

Характеристики

Product Description

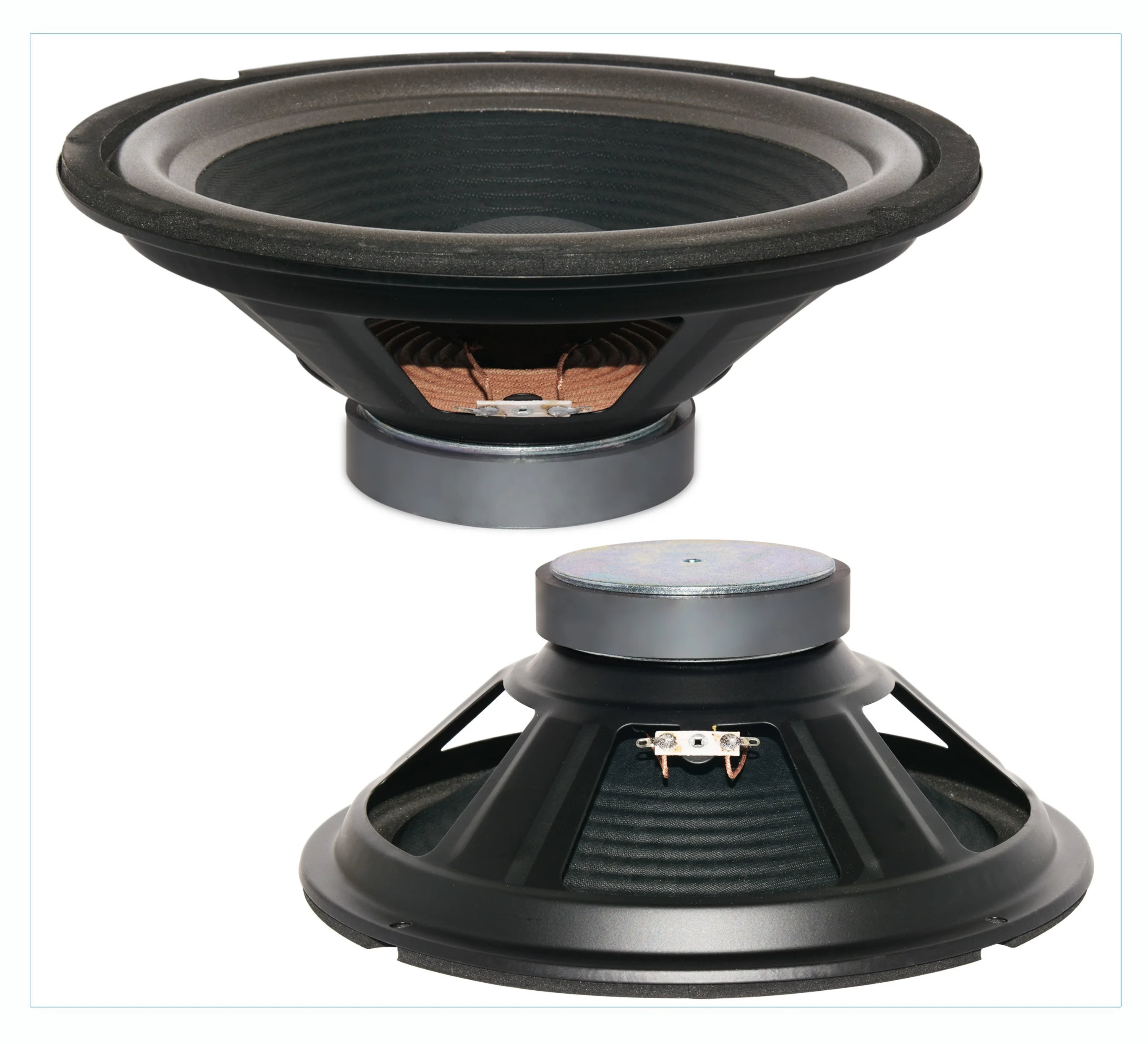

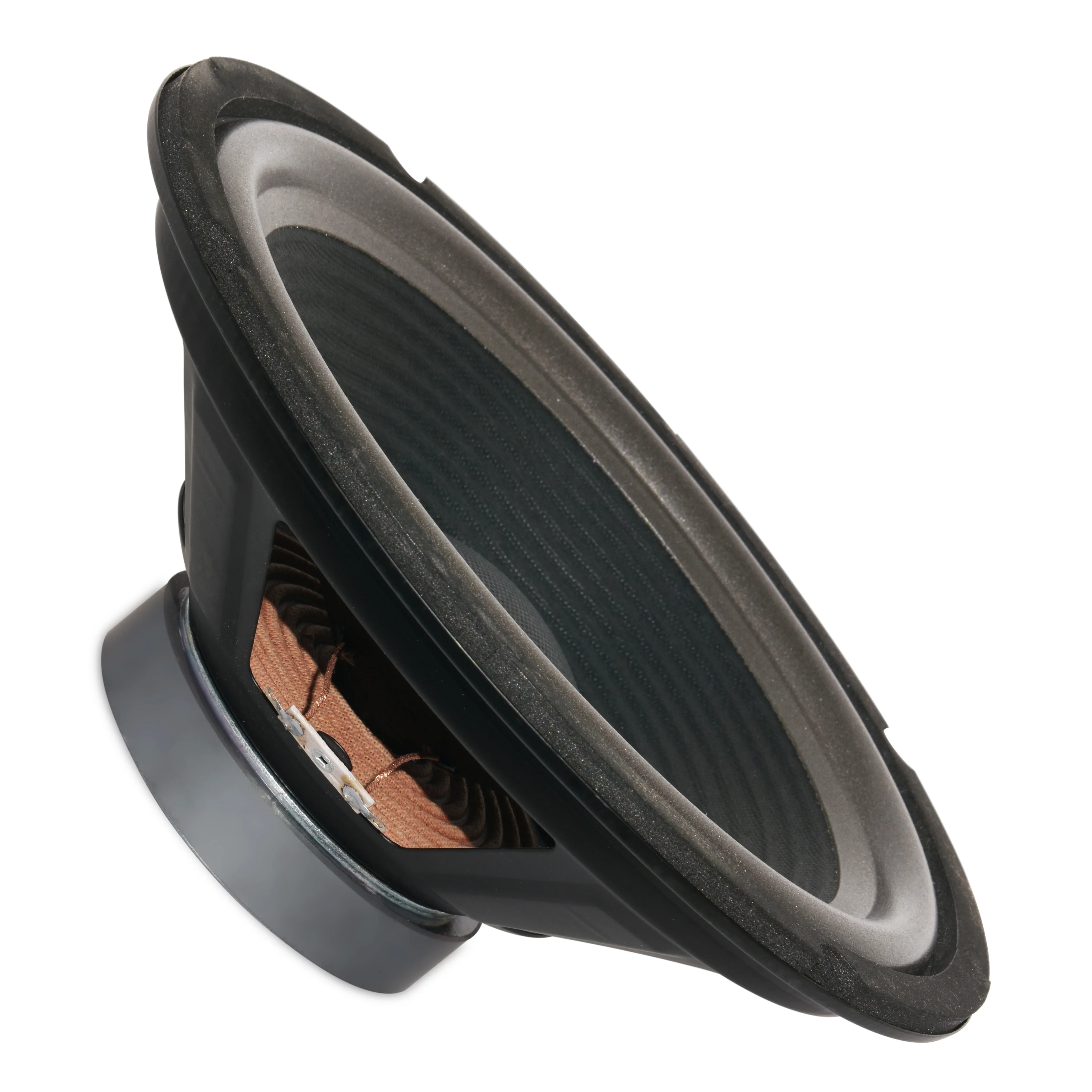

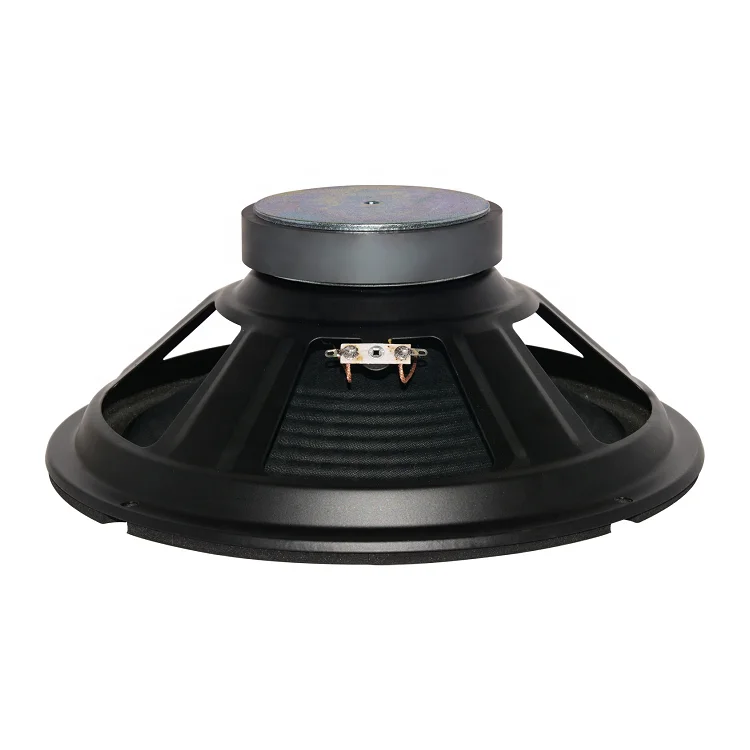

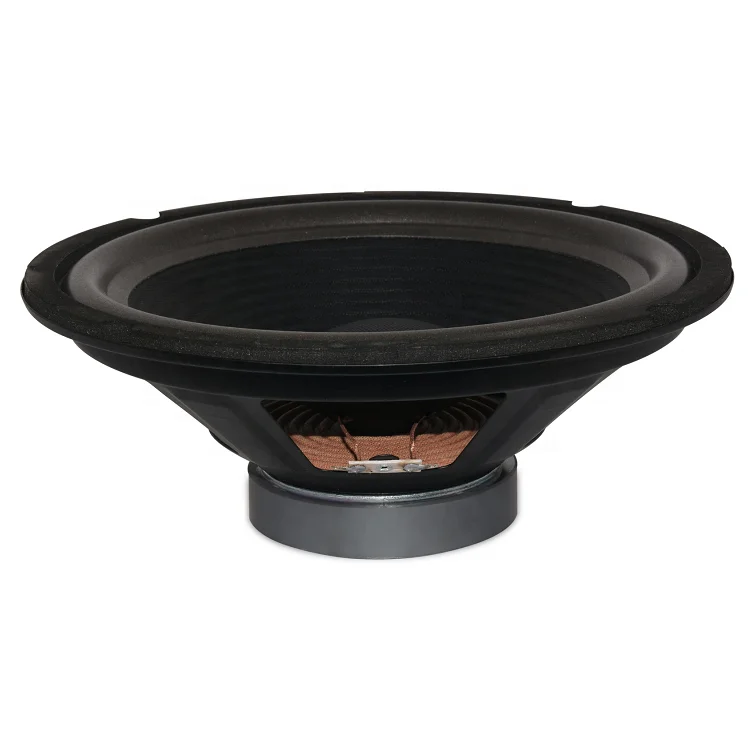

WL10100 60 Watts 4 ohm 10inch speaker woofer

Main Features

1) 10inch stage woofer speaker

2) 60 W continuous program power capacity

3) 43-3KHz response

4) 94.5 dB sensitivity

Product Parameter

Model	WL10100
Product Name	10inch stage woofer speaker

*General Specifications*

General Specifications

Nominal Diameter	254mm
Resonate Frequency fs	43Hz
Resonate Frequency Range	43-3KHz
Sensitivity	94.5db
Nominal Impedance	4 OHM
Shortterm Maximum Power	60W
Total Quality Factor,Qts	0.31
Voice Coil Diameter	25.5 mm
Magnet Diameter	1006018mm
Equivalen Air Volume to Cms,Vas	100L
Mechanical Quality Factor ,Qms	1.12

*Physical Information*

Physical Information

Basket(Frame)	Iron
BL	7.5 T.m

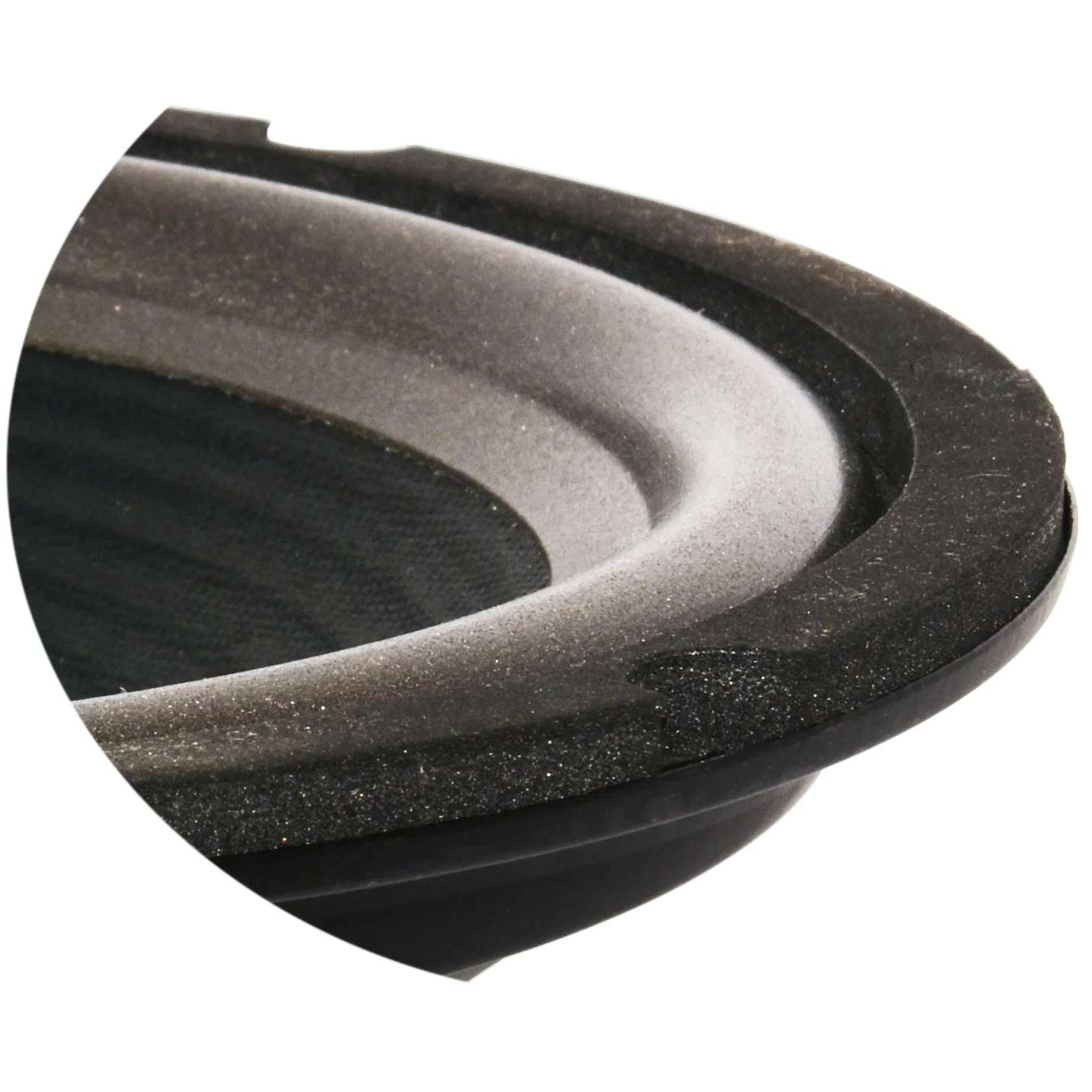

Surround(Damper)	Cotton
Voice Coil Wire	Copper(PESVW)
Voice Coil Bobbin	Aluminium(ASV)
Magnet	Ferrite
Surround Design	One-roll

Factory Tour

Exhibition

Certifications

FAQ

Q1: What is our warranty for speaker drivers?

For our speaker driver, we have one-year warranty.

Q2:How can i get a sample ?

If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.

Q3:How much the transportation freight of samples?

The freight depends on the weight and packing size and your area.

Q4:Is it OK to print my logo on the product?

Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q5:Can you produce according to customers' design?

Yes.we mainly do the OEM/ODM service.

Q6:What's the minimum order quantity(MOQ)?

MOQ is 50pcs-500pcs each model size.

Q7:How about the delivery time?

For sample: 10-15 days

For order: 30-45 days
