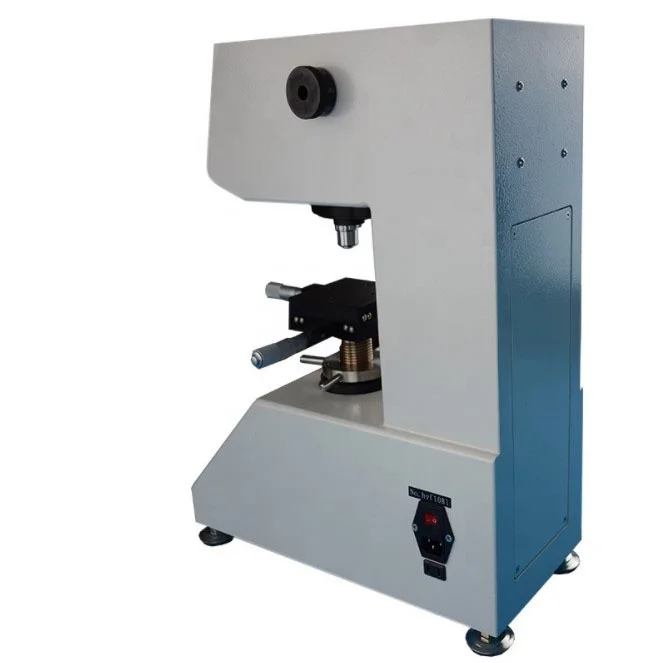

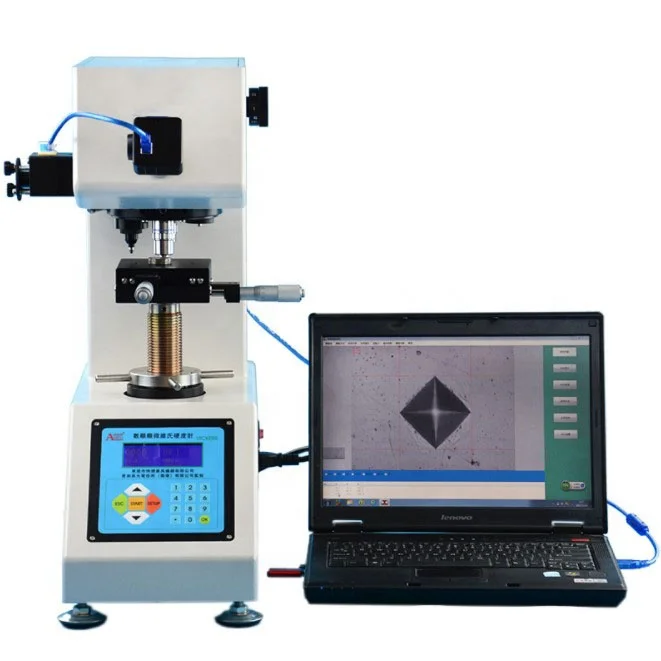

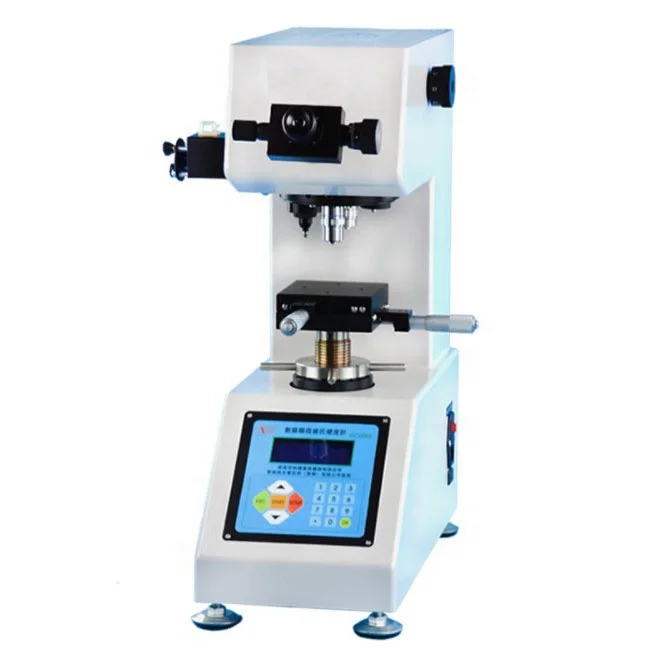

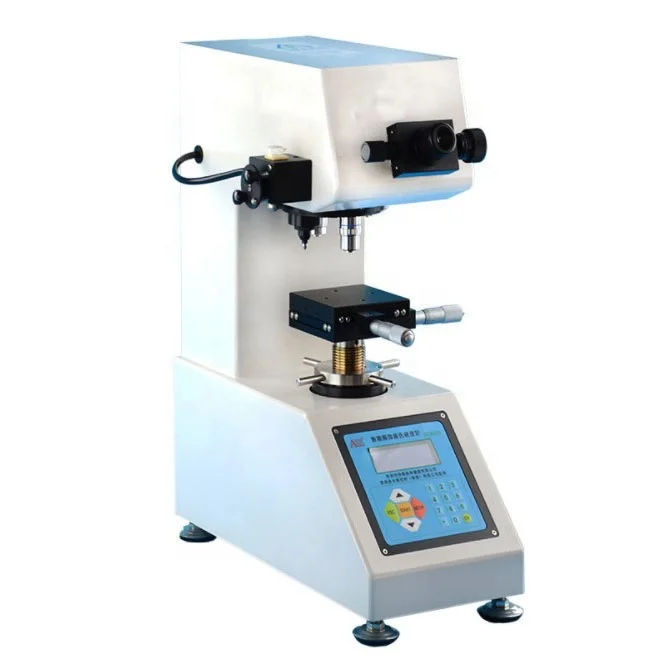

HV-1000 Digital Micro Vickers Hardness Tester/Micro Vickers Hardness Testing Machine

Application:

A. Black metal, non-ferrous metal, surface coating, laminated metal, IC chip;

B. Ceramics, glass, agate, gemstone, thin plastic, metal sheet, etc.;

Hardness test of depth and gradient of electroplating, heat treatment, carbonization, decarbonization and hardening layers.





HV-1000 Digital Micro Vickers Hardness Tester/Micro Vickers Hardness Testing Machine

Features:

1. Simple operation, direct input of indentation diagonal length, automatic calculation and display of hardness value of the instrument.

2, hardness automatic conversion function, you can choose (HRA, HRB, HRC, HR15N, HR30N, HR45N, HB) and other seven hardness scale, avoid the trouble of looking up the table.

3, humanized, menu-type operation panel, quick and convenient setting.

4. Intelligent sleep function extends the service life of optical and electronic components



Specification:

Vickers scale	HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5, HV1
Test force	10,25,50 ,100,200 ,300, 500 ,1000(gf)
	0.098,0.245,0.49,0.98 ,1.96 ,2.94,4.9,9.8(N)
Objective lens	10X(observe ),40×(measurement)
Test force selection	Through the selection of hand wheel by changing the test  force, the instrument can be automatically identified.
Test mode	HV / HK
Resolution ratio	0.25um
Measurement range	0-3000HV
Measurement accuracy	100HV under    ±5%
	200HV          ±3%
	400HV above   ±2%
Loading control	Automatic (load/hold/unload)
Cover charge time	5~60S
Hardness number	Manual measurement, automatic calculation of instruments,  display results.
XY Platform	size: 100×100mm
	displacement:  25×25mm
Max height of specimen	85mm
Light source	DC6V15W The brightness of the light source  is continuously adjustable
Power supply	AC220V / 50Hz
Dimensions	450×205×545(mm)  Length * width * height
Weight	40Kg
