Односторонний низкопрофильный пружинный возвратный гидравлический домкрат китайского

Односторонний низкопрофильный пружинный возвратный гидравлический домкрат китайского

Категория: Hydraulic Cylinders >>>
Поставщик: Jiangsu,Feiyao,Machinery,Manufacturing,Co.,Ltd.

Цена:152,00 $ - 160,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	181.60 $*	190.99 $*
Aug-18-2025	179.28 $*	188.69 $*
Jul-18-2025	150.81 $*	158.97 $*
Jun-18-2025	176.54 $*	185.3 $*
May-18-2025	154.30 $*	162.4 $*
Apr-18-2025	173.57 $*	182.50 $*
Mar-18-2025	172.91 $*	181.24 $*
Feb-18-2025	170.87 $*	179.13 $*
Jan-18-2025	169.5 $*	177.64 $*

Характеристики

Product Display

Single acting low height spring return hydraulic machine jack with high quality price

Product Display

Features

1.Light weight, low profile design for use in confined spaces

2.CR-400 coupler and dustcap included on all models

3.Plunger wiper reduces contamination, extending cylinder life

4.Grooved plunger end with threaded holes for mounting tilt saddles

5.Integral handle on RCS-1002 for easy carring

6.Plated steel plungers

7.Single-acting, spring return

Product Parameter

Model	Capacity (T)	Max.Working	Closed	Stroke	Effective	Oil	Extended	Outside	Bore	Plunger	Weight (kg)
		Pressure	Height		Area	Capacity	Height	Diameter	Diameter	Diameter
			A					D	E	F
		(Mpa)	(mm)	(mm)	(cm²)	(cm³)	(mm)	(mm)	(mm)	(mm)
FY-RCS-101	10	70	88	38	14.5	55	126	69	42.9	38.1	4.1
FY-RCS-201	20	70	98	45	28.7	129	143	92	60.5	50.8	5
FY-RCS-302	30	70	117	62	42.1	261	179	101	73.2	66.5	6.8
FY-RCS-502	50	70	122	60	62.1	373	182	124	88.9	69.8	10.9
FY-RCS-1002	100	70	141	57	126.7	722	198	165	127	92.2	22.7
FY-RCS-1502	150	70	130	44	196	862	174	204	158	115	33.9
FY-RCS-2500	250	70	155	50	346	1730	205	275	210	185	63
FY-RCS-3000	300	70	200	60	433	3601	260	297	235	210	95

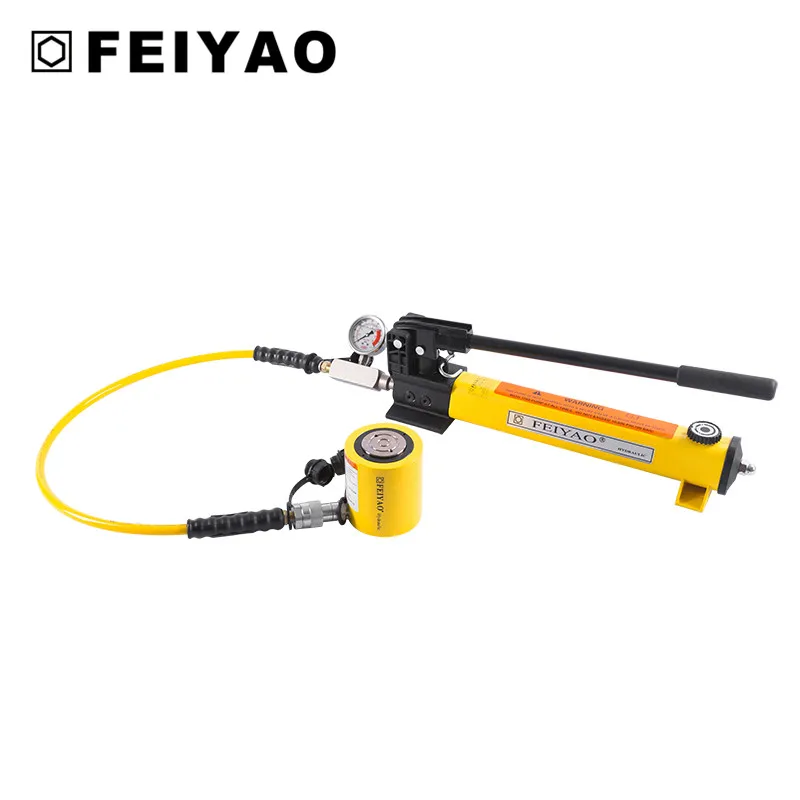

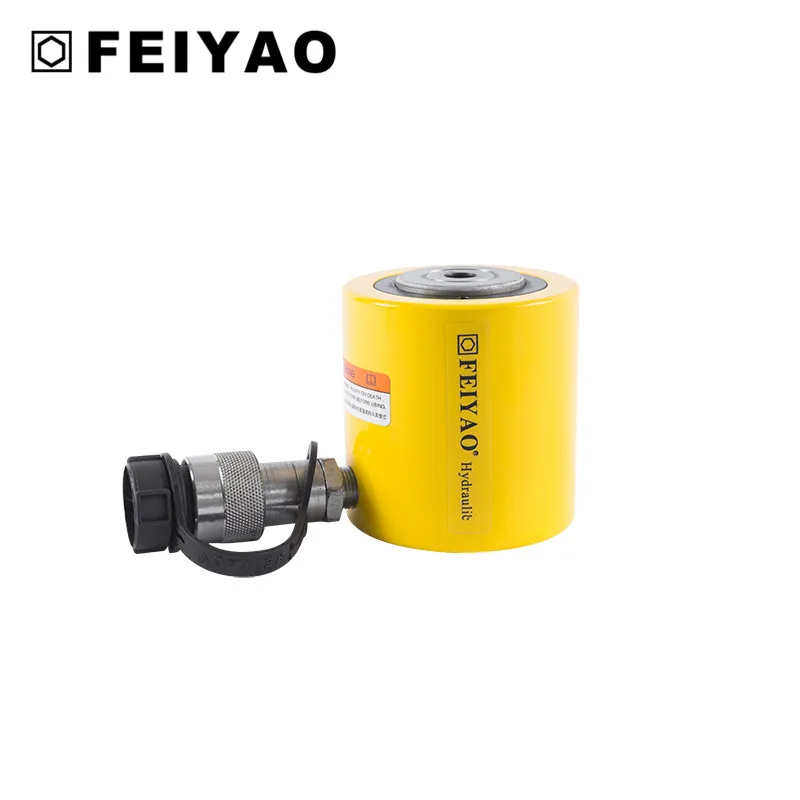

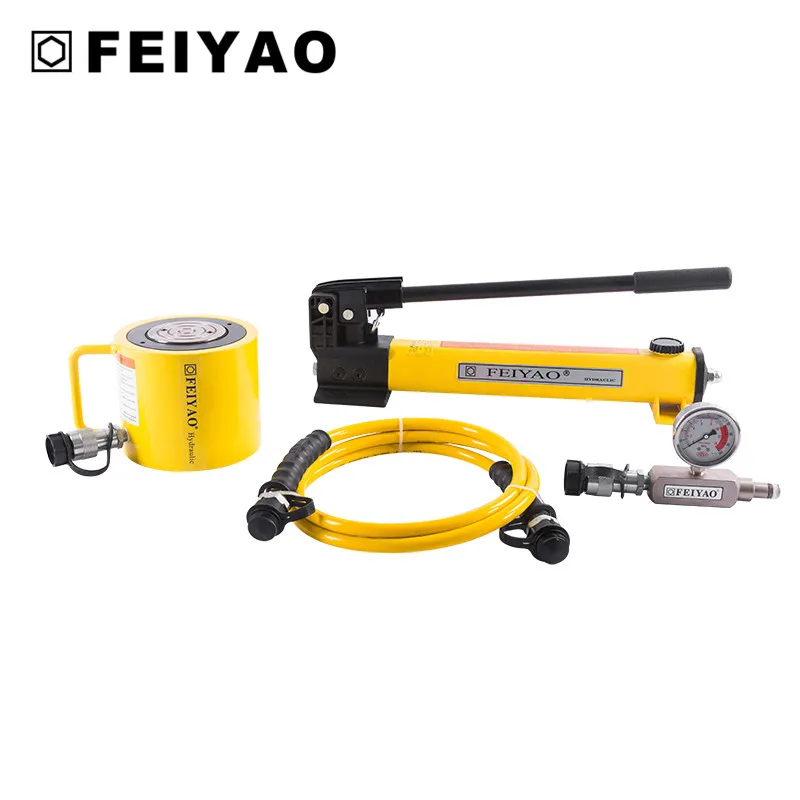

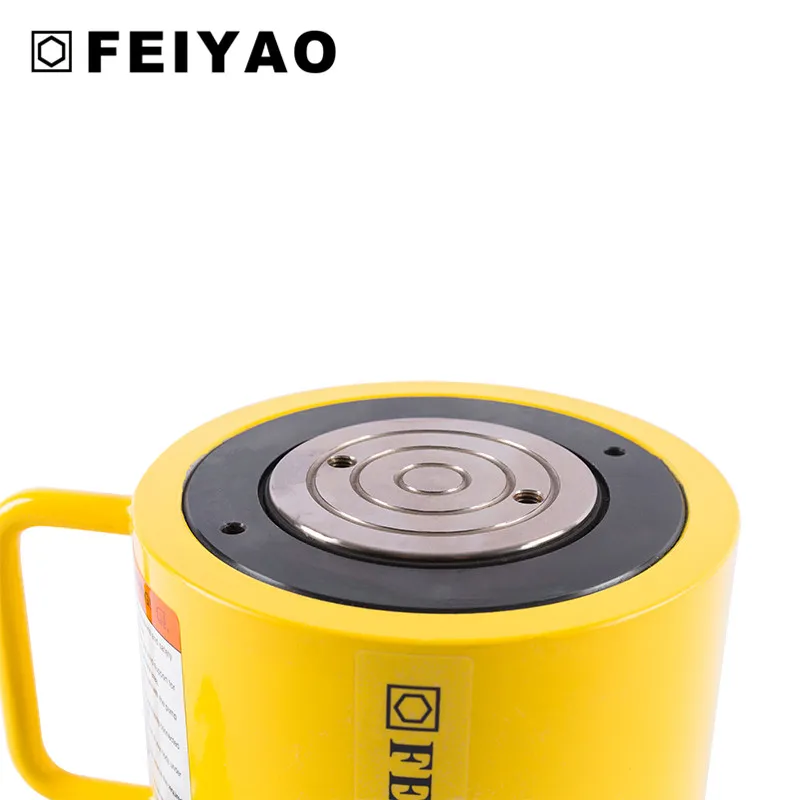

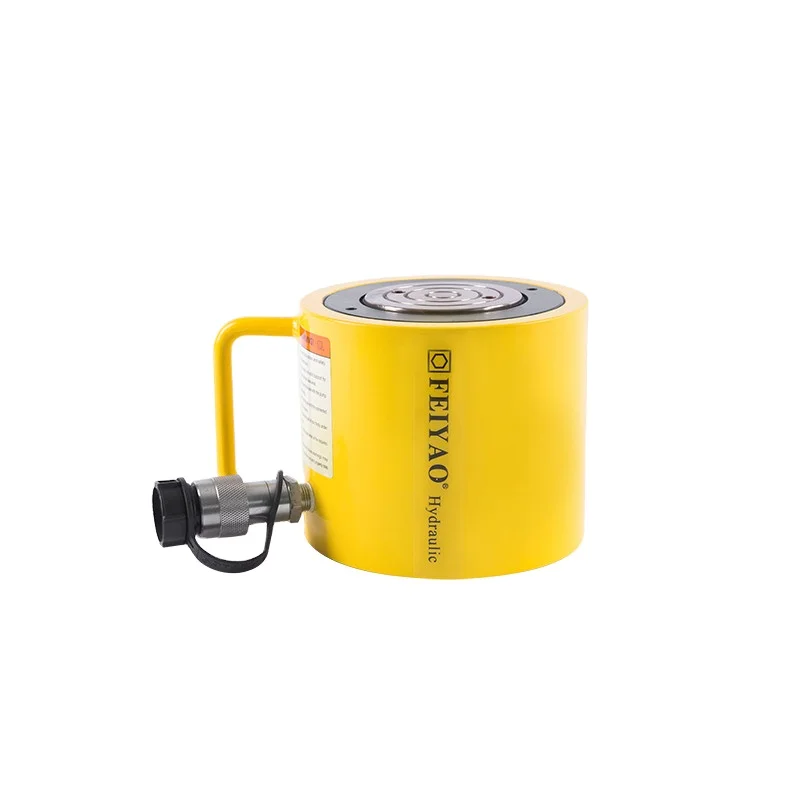

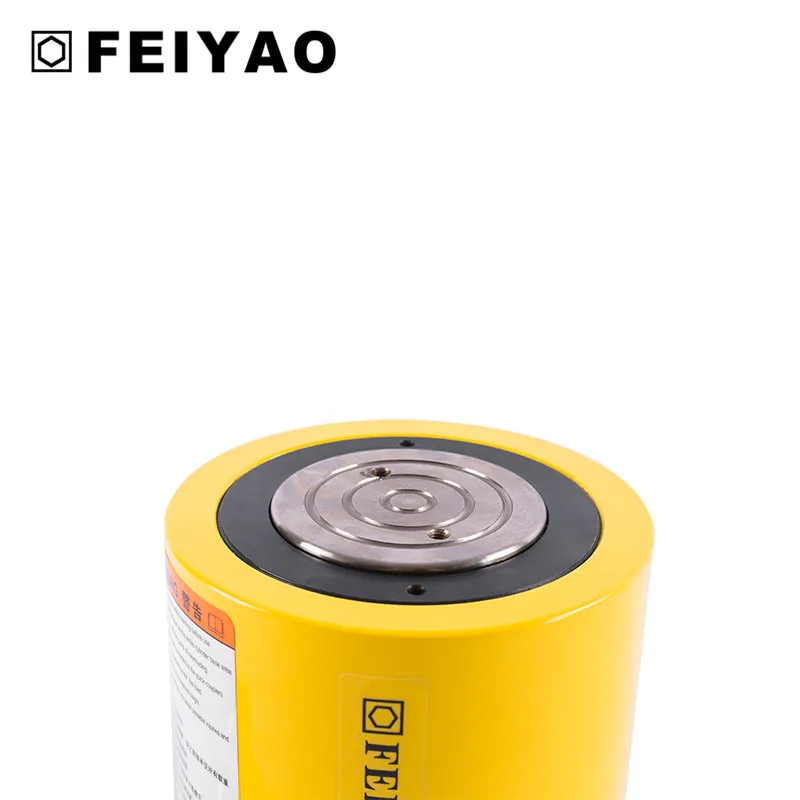

Products pictures:

Application:


Workshop:

Our Team:

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
