      High lumen plcc surface mount sanan chip datasheet 0.2W 0.5W 1W 2835 white smd led







l Package ( L/W/H ) : 3.5×2.8×0.8 mm

l Color : Ultra Bright White

l Lens: Yellow Diffuse Flat Mold

l EIA STD Package

l Meet ROHS, Green Product

l Compatible With SMT Automatic rocess





2.  2835 smd led specification







                                                                              Notes:  1. All dimensions are in millimeters ;

                                                                       2. Tolerance is ± 0.10 mm unless otherwise noted.







Parameter	Symbol	Rating		Unit
Power Dissipation	Pd	180		mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	80		mA
DC Forward Current	IF	60		mA
Reverse Voltage	VR	5		V
Operating Temperature Range	Topr	-30°C  ~  + 85°C
Storage Temperature Range	Tstg	-40°C  ~  + 90°C
Soldering Condition	Tsol	Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds
ESD CLASS	ESD	2000	V

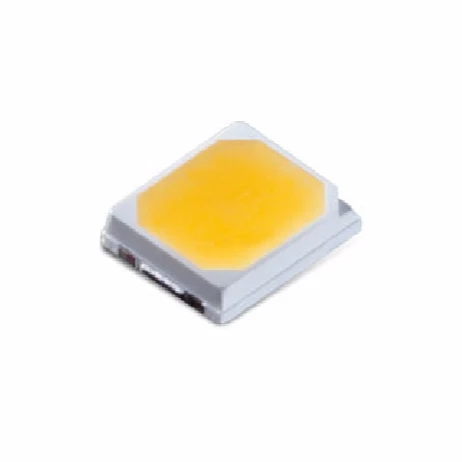

3.  Product View
