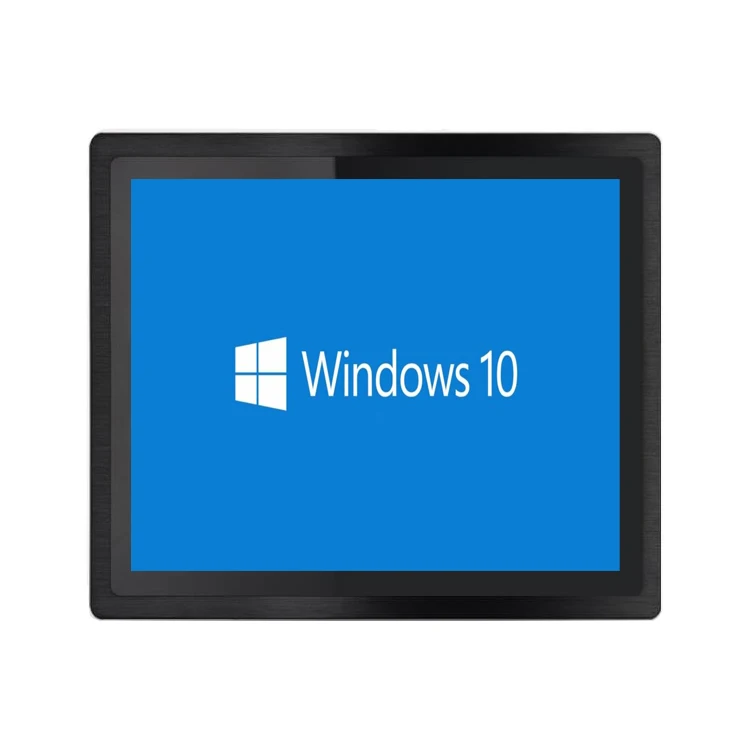

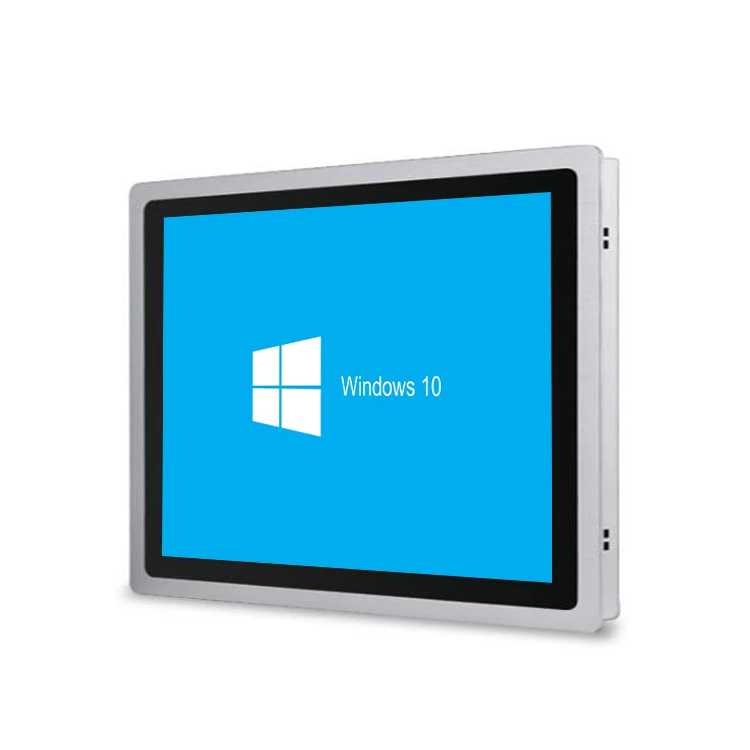

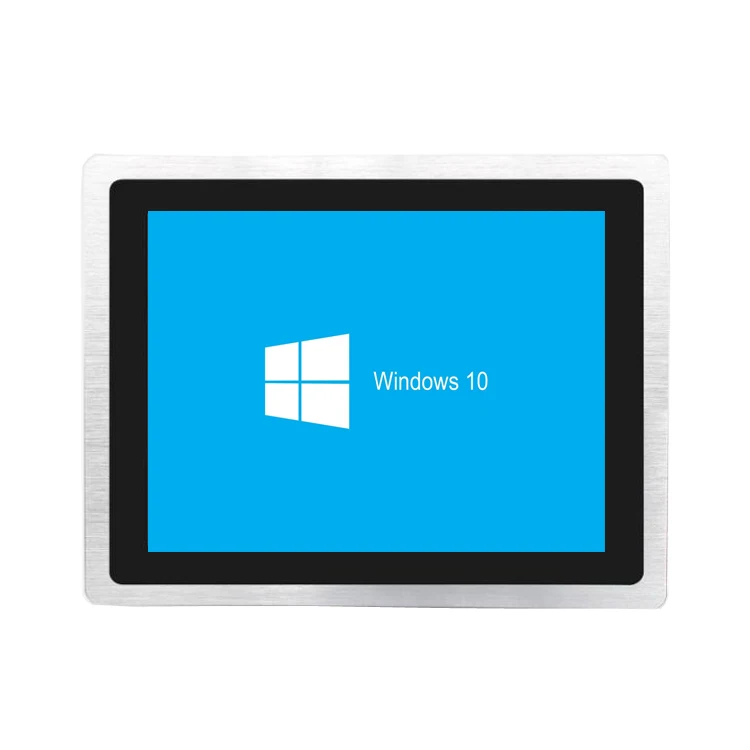

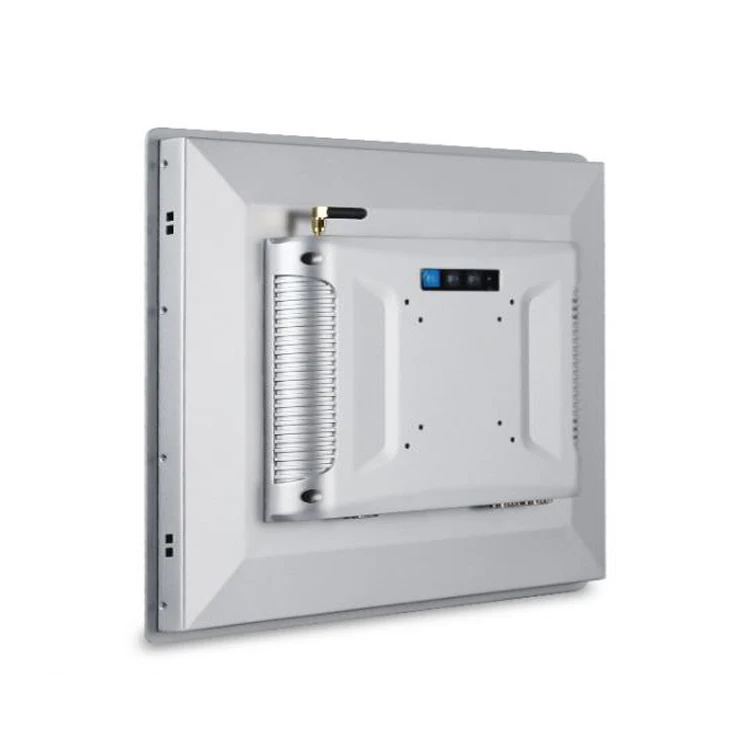

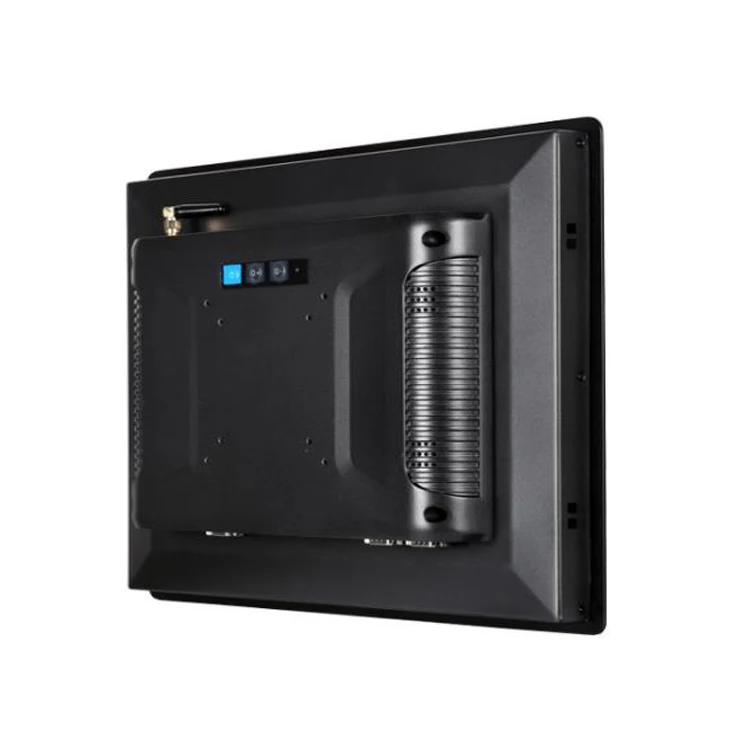

Aluminum alloy casing 15inch17inch19inch industrial embedded touchscreen panel pc for ATM equipment



Feature:

.Whole aluminum alloy casing, waterproof IP65 front panel
.True flat seamless,3mm ultra -thin front panel
.High efficiency heat dissipation, anti-interference, anti-corrosion, light weight
.Fully enclosed design, dustproof of the whole machine
.Industrial grade dust proof and waterproof speaker
.The design of circular arc heat dissipation structure
.High quality industrial LCD panel
.Intel J1900 CPU,Quad core,2.0GHz
.2GB DDR3 RAM,32GB SSD.
.Capacitive touchscreen/5-wire resistive touchscreen option
.Support Windows7/8/10 OS and Linux OS
.Can work in harsh environments
.Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
.Wide operational temperature range, -10°C to +60°C.
.High brightness 1000nits to 1500nits option, direct sunlight readable.
.Designed for industrial automation, industrial control systems, outdoor kiosk etc.







 Available Sizes: 8inch/10.1inch/10.4inch/11.6inch/12inch/15inch/17inch/19inch/21.5inch option





Specification:



Model number		YTPC-1502
LCD panel	Panel size	15inch
	Resolution	1024×768/60HZ
	Aspect ratio	4:3
	Panel	LED backlight
	Brightness	400cd/m2
	Contrast ratio	1000:1
	Display color	16.7M
	View angle	H170; V160
	Pixel pitch	0.264mm
	Response time	5ms
	Life	>50000h
Windows system	CPU	Intel J1900 CPU,Quad core,2.0GHz
	RAM	2GB DDR3, 4GB option
	Hard disk	32GB, 64GB/128GB/500GB option
	Graphics card	Integrated Graphics card
	Network card	Integrated gigabit network card
	Operating system	Support Windows XP/ Win7/Win10 OS
Touchscreen Option	Touchscreen	5-wire resistive touchscreen (10 points Capacitive touchscreen option)
	Touch number	>35 million
	Touch way	Pressure sensing
	Touchscreen interface	USB intergace(RS232 interface option)
Other	Power supply	DC12V/5A
	Power Consumption	<60W
	Work temperature	-20℃-60℃
	Storage temperature	-40℃-85℃
	Relative humidity	5-85%(No condensation)
	Dimension	379x300x63mm
	Casing	Whole aluminum alloy casing
	Color	Black/silvery option
	Interface	1xVGA,1xHDMI, 1xLAN,2xUSB2.0,2xUSB3.0, 2x COM,1xAudio I/O,1xDC12V,1xWIFI
	Installation	Embedded/Metal buckles/VESA holes/Wall-mounted/Desktop installation
	Accessories	Manual, adapter,power cable, metal buckles











Applications:

1.Embedded into all kinds of equipment as display device

2.Telecom, network engine room host monitor

3.Military standard monitor,Reinforcement level display

4.Industrial machinery, numerical control equipment, engineering machinery,

5.Train, subway, hospitals, government agencies, port monitoring and display

6.4S auto shop, product display, automatic vending machine, courier easy box

7.Self registration, bank line access number, terminal self - help machine,

8. Medical equipment,Terminal inquiry machine, automation equipment



Shipping and Package:

Gift&neutral box

SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!

Express(UPS,DHL,Fedex,EMS,etc) is available.

Sea and Air delivery is available

From Monday to Saturday 8:00am-17:30pm for Shipping Time.



1.Powerfull Research&Development Experience

2.OEM&ODM Ability

3.Strict QC TEST Control

4.EASY & FAST Communicate

5.Responsible 24 hours sale service















Q: Why choose Yan Teng?

A: 1. Professional Industrial panel pc manufacture for years with great experience .

     2. Own factory , you could share direct factory price .

     3. Quality guaranteed by our QC.

     4. Low price , but in high quality .

     5. OEM/ODM supported





Q: What's the time of delivery ?

A:  It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order ,

     10-15 working days for mass production after receipt of payments .





Q: What paying methods do you accept ?

A: T/T,Paypal and West Union .





Q: How is your warranty policy for goods ?

A: We focous on our after-sale service , and all our products share 12 months' warranty .











*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
