Измерительный инструмент для диаметра трубы измерительный прибор лазерной

1. Features:
•Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration;
•DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable;
• The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply  with PID. It’s easy to operate, user can setup a boundary numerical value, main engine will give an alarm automatically while the test result exceeds the set value.


2. Applications

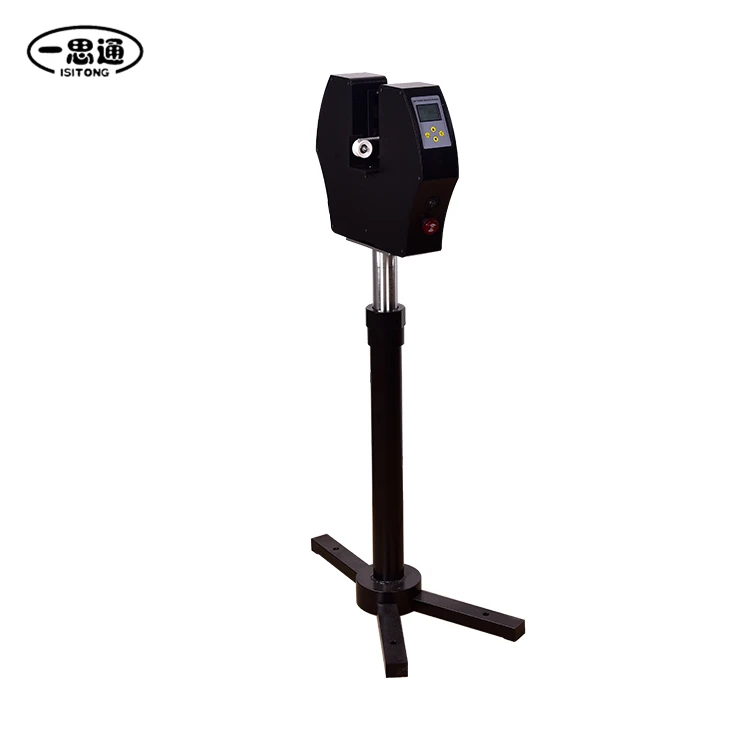

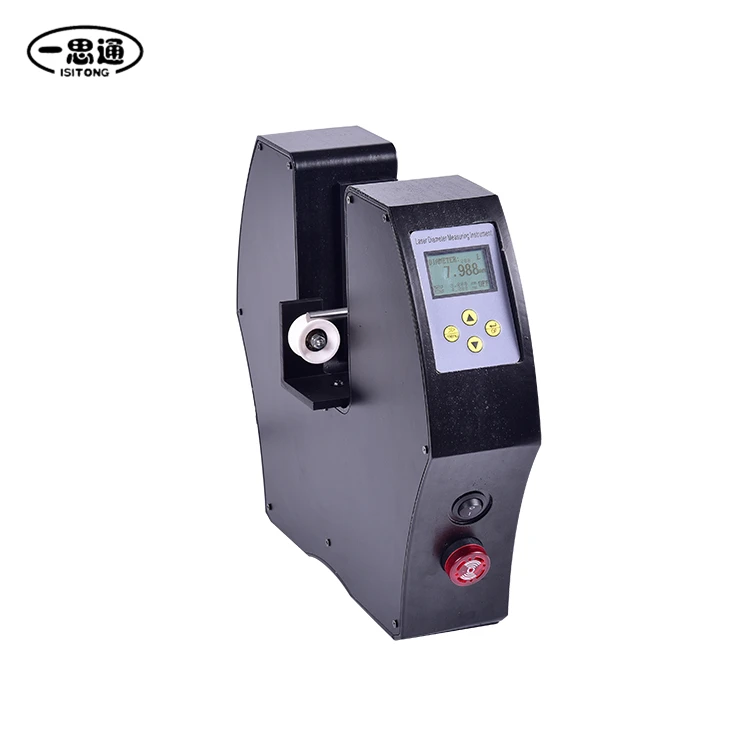

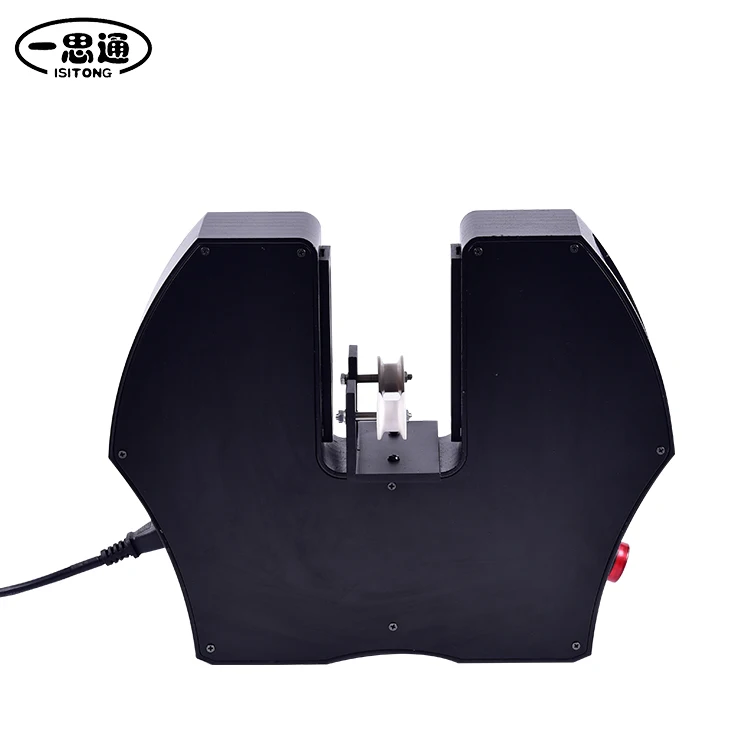

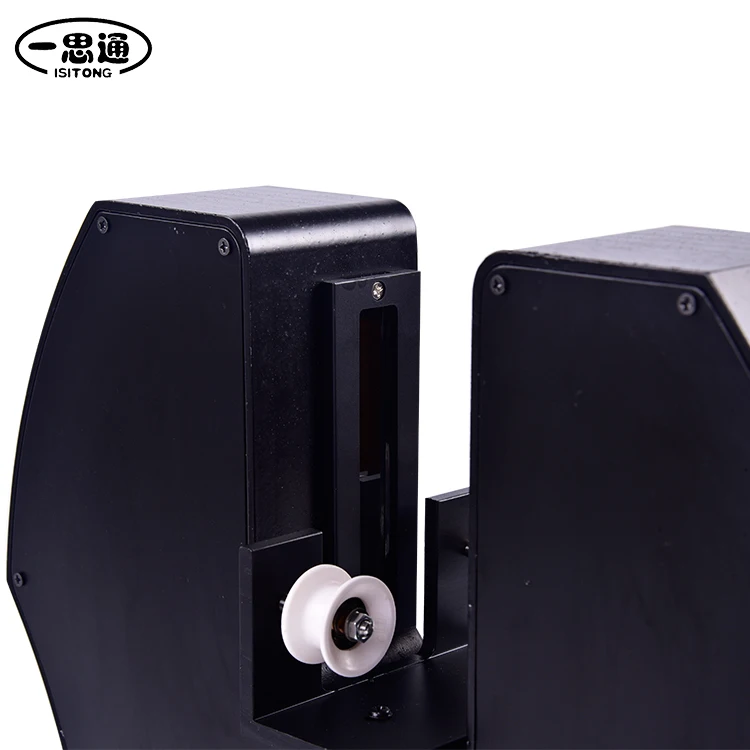

  The ETD-05B Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.

3. Technical specifications

     * Measuring range: 0.15-30mm(ETB-05B)

     * Sensitivity: 1um

     * Measuring accuracy: ±2um(ETB-05B)

     * Ambient temperature: 4-40℃

     * Ambient humidity: <85% without condensed dew

     * Power consumption of instrument: less than 50W

     * Operating voltage: AC220V 50HZ±10%

     * Scanning rate: greater than 50m/c

     * Dimension : 7.6*29*36.6(cm)

     * Weight:8.5kg

     * Colour: Black

     * Place of Origin: Guangdong, China (Mainland)

4. standard delivery

     Main unit......................1pc

     Manual.........................1pc

     Optional delivery

     the serial communication cable……….10m

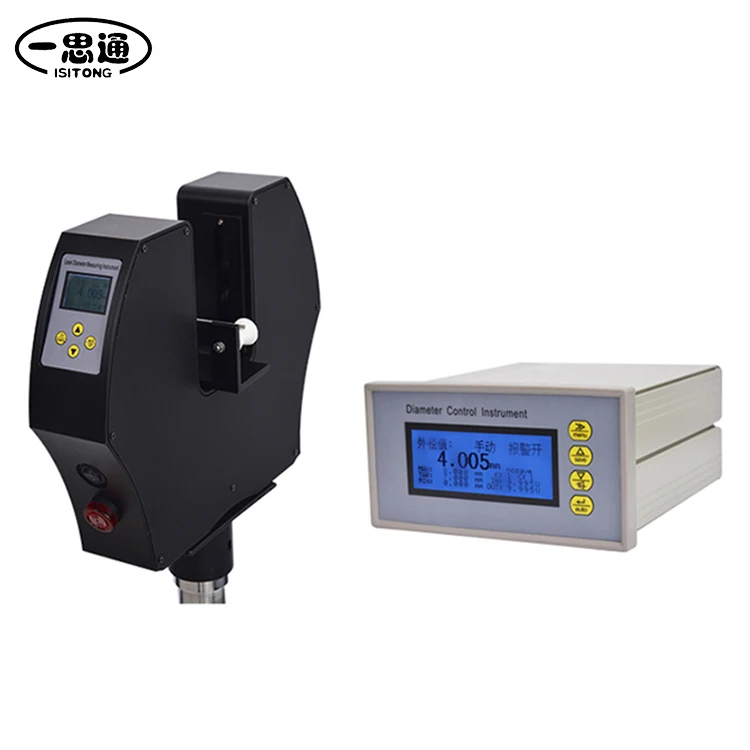

     display control box…………..1pc

     support…………..1pc

5. Services

This instrument has one-year quality guarantee, maintenance for all life. If there are any problem of this product, please contact the dealer in time.

 Q:Are you a trading company or a factory?

A: Yes, we are a factory, all products of our ali-shop are produced by our factory

 Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.

Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q. What’s the lead-time for orders?

A: Normally it takes 7~10 working days after receiving payment(basing on the actual quantity).

Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: What Shipping way Customer can choose?

A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
