Автоматическая машина для резки мрамора water jet автоматическая
- Категория: Камень машины >>>
- Поставщик: Jinan,zhongke,cnc,equipment,co,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 20230.75 $* | 21242.17 $* |
| Aug-16-2025 | 20060.84 $* | 21063.74 $* |
| Jul-16-2025 | 16830.21 $* | 17672.17 $* |
| Jun-16-2025 | 19720.39 $* | 20706.70 $* |
| May-16-2025 | 17170.36 $* | 18029.45 $* |
| Apr-16-2025 | 19380.73 $* | 20349.98 $* |
| Mar-16-2025 | 19210.49 $* | 20171.39 $* |
| Feb-16-2025 | 19040.10 $* | 19992.47 $* |
| Jan-16-2025 | 18870.26 $* | 19814.26 $* |
Характеристики
Product Description
In the stone and quartz processing industry, the incidence of silicosis is extremely high. There is a saying in the industry: dry all your life for three years; the reason is that the production technology is backward, people do not pay enough attention to the harm of quartz dust.
With the global emphasis on environmental protection, some economic structures will be reformed, which will be another opportunity and challenge for entrepreneurs.
Quartz industry will also leave the traditional production mode, from backward, pollution, small workshop, unhealthy, low price competition to new product differentiation, advanced production technology, pollution minimization, large factory mode operation, secure employer system, to meet the new economic structure.
Quartz stone table processing center will be the darling of the times.
With the global emphasis on environmental protection, some economic structures will be reformed, which will be another opportunity and challenge for entrepreneurs.
Quartz industry will also leave the traditional production mode, from backward, pollution, small workshop, unhealthy, low price competition to new product differentiation, advanced production technology, pollution minimization, large factory mode operation, secure employer system, to meet the new economic structure.
Quartz stone table processing center will be the darling of the times.
What functions and processes can CNC quartz table processing center achieve?

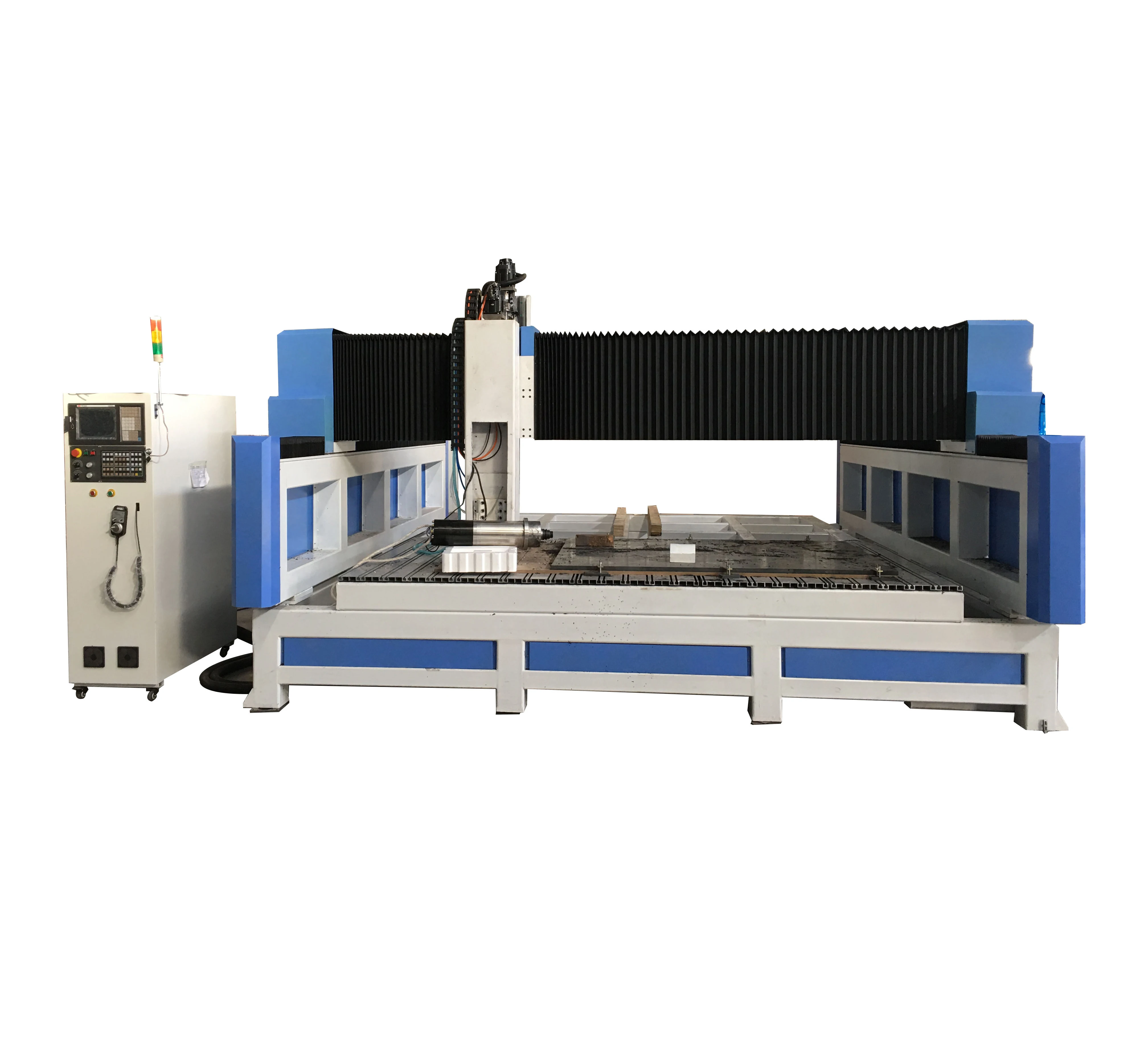

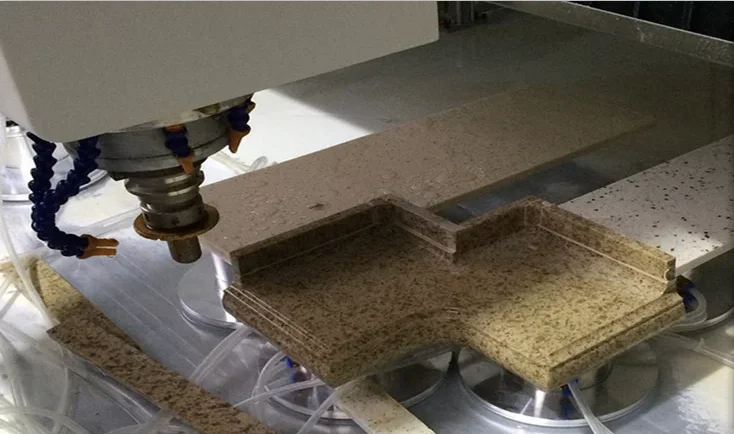

This machine is a fully automatic CNC machine tool designed for the processing of quartz stone tables, which can realize the functions of drilling, milling, grinding and cutting. One machine can finish the grinding and polishing of the back arc water retaining part, the opening and grinding of the washbasin position, the grinding and polishing of the Roman side, the cutting of special shapes, and the processing of the drainage tank, etc. This machine can fully meet the kitchen countertops, bathroom countertops, island counters, bar, tea table and other stone countertops processing.
Configurations
X,Y,Z,working | 3000*1500*200mm |
Whole structure | Welded Steel gantry structure |
Guide rail | Taiwan HIWIN square guide rail 30mm |
X,Y,Z structure | Taiwan TBI ball screw,high precision |
X,Y,Z Traveling Positioning Accuracy | ±0.04mm |
X,Y,Z repositionin Positioning Accuray | < 0.01mm |
Spindle | 9KW high power ATC spindle |
Driving mode | 1.3kw servo motor and driver |
Spindle Speed | 6000-24000rpm |
Working Voltage | 380V AC 1 PHASE /50-60Hz |
Command Code | G code (plt, mmg, uoo, bmp) |
Operating System | NK control system |
Inverter | Delixi/Fuling/Delta |
Reducer | Italy Runyan /Japan Shimpoo |
X,Y Delicacy | <0.01mm |
Running circumstance | Temperature: 0°C~45°C Relative humidity: 30%~75% |
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Advantages and efficiency
Related Products
Packing&Shipping
Exported machines will be packed in plywood box .
Most will be deliver by sea from Qingdao sea port .
After Sales Service
Company Introduction
Jinan Zhongke CNC Equipment Co., Ltd. has been engaged in CNC equipment industry for more than 10 years. It has built more than 10 acres of workshop, 10,000 square meters workshop and more than 80 employees. With CE certification, import and export rights, it has been about 8 years since the opening of international trade. Specializing in the production of CNC equipment, CNC machine, infrared side hole machine, woodworking center, metal engraving machine, woodworking engraving machine, stone carving machine, foam Dragon carving machine, laser engraving machine and so on. The equipment is mainly used in panel furniture cutting, cabinet door and wardrobe door processing, relief production, hollow carving, wooden box production, precise cutting, wood door carving, marble carving and advertising industry.
CE Certification
FAQ
