Двойной слой трехслойная стойка для совместной экструзии/цепляются CPP пленка термоусадочная упаковочная Полипропилен ПП пленки дуя
- Категория: Рукавных пленок производственная линия >>>
- Поставщик: Wenzhou,Dayu,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 30940.46 $* | 32487.8 $* |
| Aug-19-2025 | 30680.75 $* | 32214.59 $* |
| Jul-19-2025 | 25740.17 $* | 27027.32 $* |
| Jun-19-2025 | 30160.98 $* | 31668.96 $* |
| May-19-2025 | 26260.64 $* | 27573.15 $* |
| Apr-19-2025 | 29640.17 $* | 31122.49 $* |
| Mar-19-2025 | 29380.44 $* | 30849.1 $* |
| Feb-19-2025 | 29120.81 $* | 30576.1 $* |
| Jan-19-2025 | 28860.63 $* | 30303.3 $* |
Характеристики

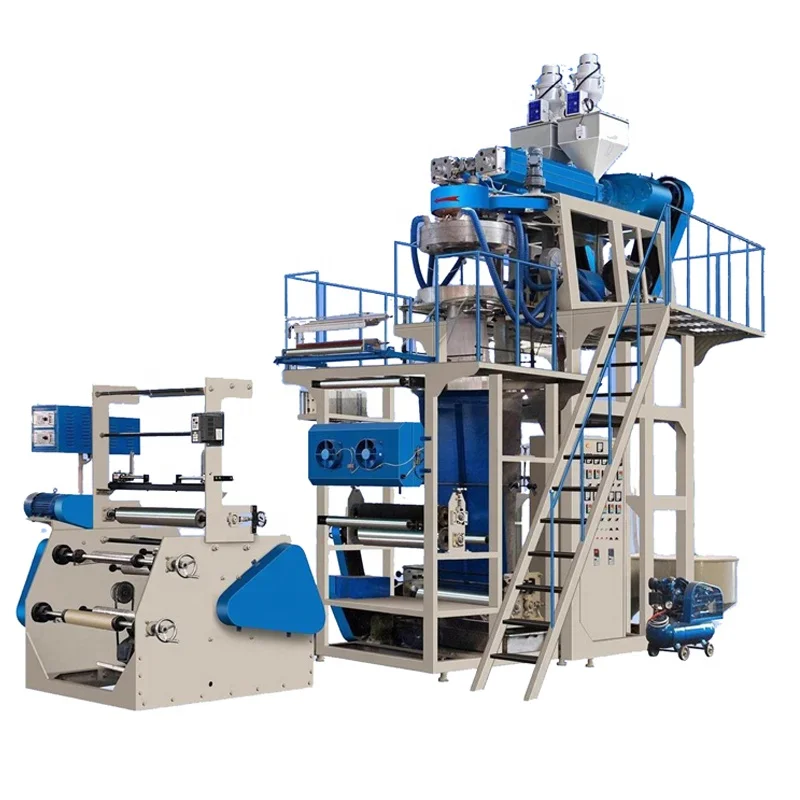

Double-layer Three-layer Co-extrusion Cling CPP Film Shrink Wrap Polypropylene PP Film Blowing Extruder Machine
Why Choose Us
(1) Efficient and satisfied service
(2) Complete machines solution for the whole production line
(3) Various and multi solutions for different requirement
(4) More than 18-year professional experience
(5) Qualified product and strict quality control
(6) ODM,OEM is welcome
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
“With us your MONEY in SAFE; Your BUSINESS in SAFE”.
Main Features
Application:
This machine is suitable for blowing double-layer co-extrusion polypropylene (PP) plastic film, which is widely used in food, clothing, garment bags, cloth bags and other consumer and industrial packaging.
Main Features:
This machine adopts blow-down type to blow polypropylene (PP) plastic film. Its extruder, cylinder and screw rods are made of quality 38 chrome-molybdenum aluminum (optional: alloy steel) after nitrogen treatment and precision machining, with the best hardness and corrosion resistance, specially designed screw, high output, good plasticization. The main motor adopts frequency control, improve the speed regulating stability. Different sizes of water cooling ring will be supplied with each machine for making different sizes of film.

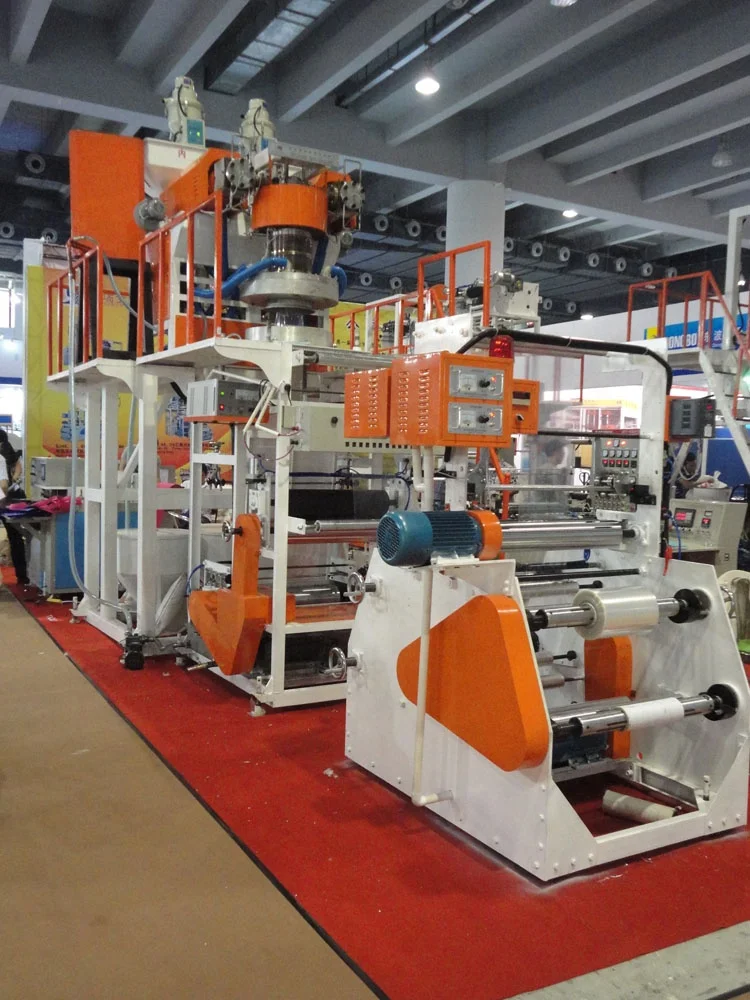

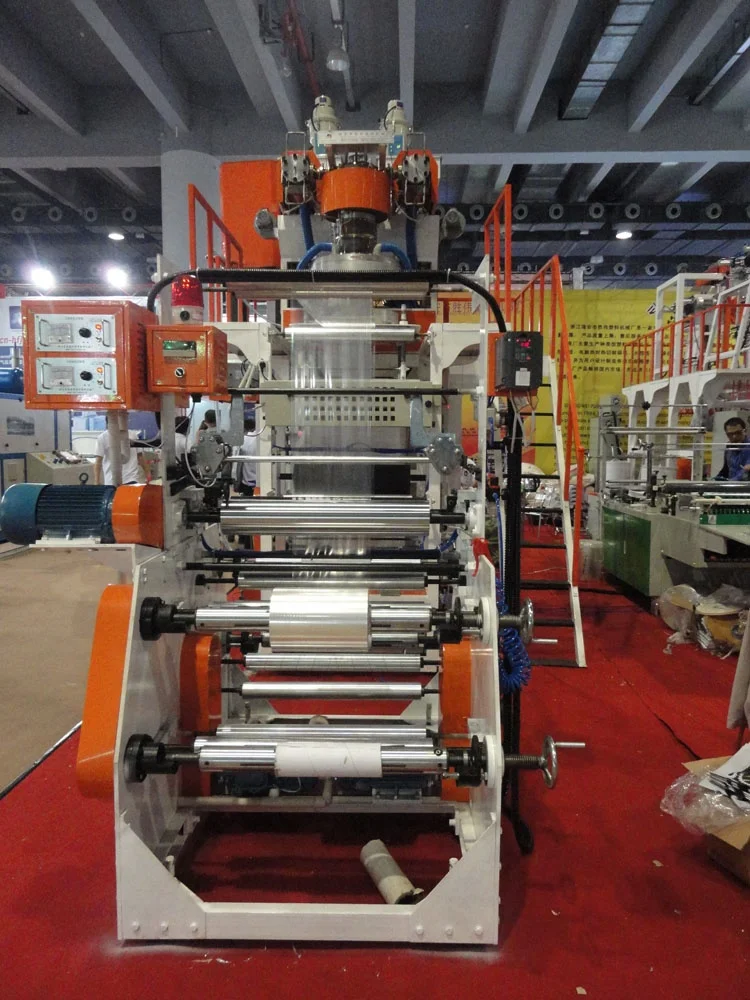

Machine Photos
Product Paramenters
Model | WT-PP-2L45 | WT-PP-2L50 | WT-PP-2L55 |
Screw diameter | Φ45mm*2 | Φ50mm*2 | Φ55mm*2 |
Screw L/D ratio | 1:27 | 1:27 | 1:27 |
Screw speed | 10-120rpm | 10-120rpm | 10-120rpm |
Folding width of film | 200-600mm | 250-700mm | 300-800mm |
Die head diameter | Φ180mm | Φ180mm | Φ250mm |
Main motor power | 7.5kw with frequency control*2 | 11kw*2 | 15kw*2 |
Max. output | 50kg/h | 60kg/h | 70kg/h |
Single-face film thickness | 0.02-0.15mm | 0.02-0.15mm | 0.02-0.15mm |
Total power | 45kw | 55kw | 65kw |
Machine height | 4.2-4.5m | 4.5-5.2m | 4.8-5.5m |
Other Related Machines
Plastic Bag Line
The Complete Plastic Polythene Bags Production Line Machines including Film Blowing Machine, Printing Machine, Plastic Bag Making Machine, and Plastic Recycling Machines can be supplied. Multi solutions for the project of plastic bags production!
