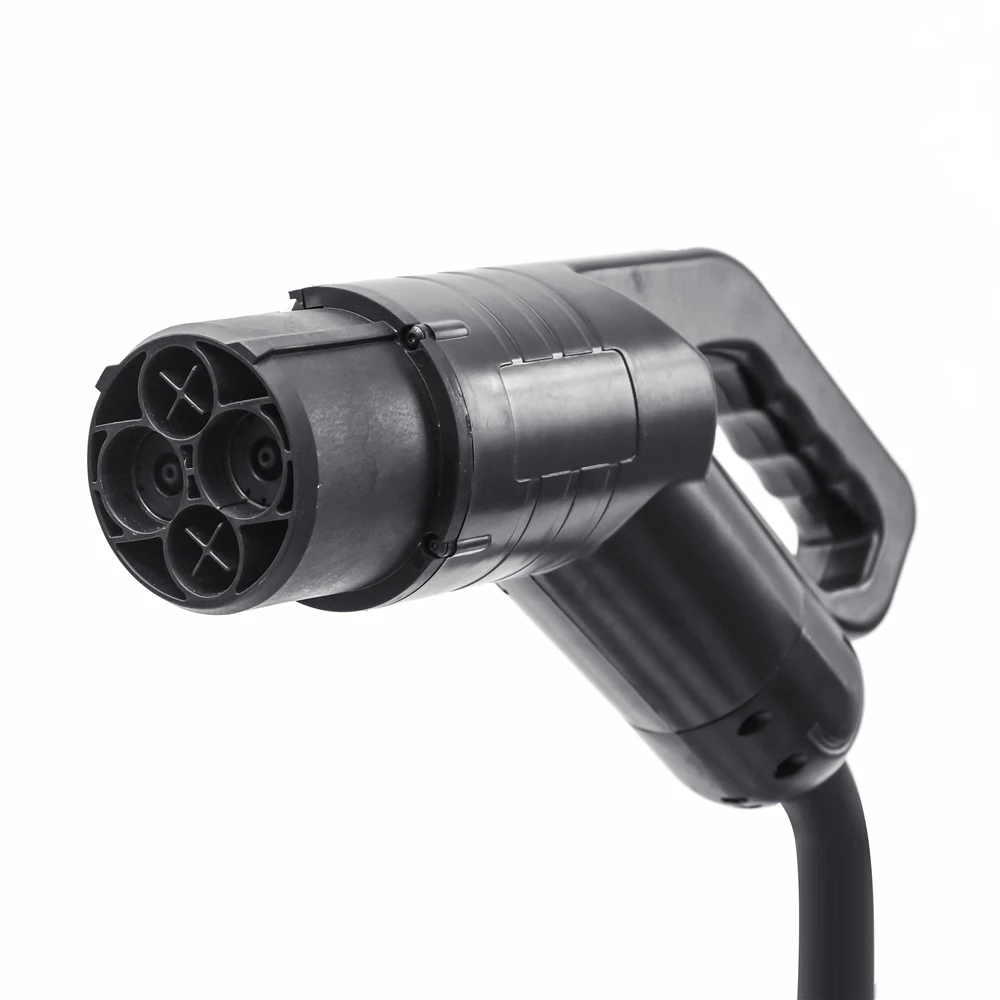

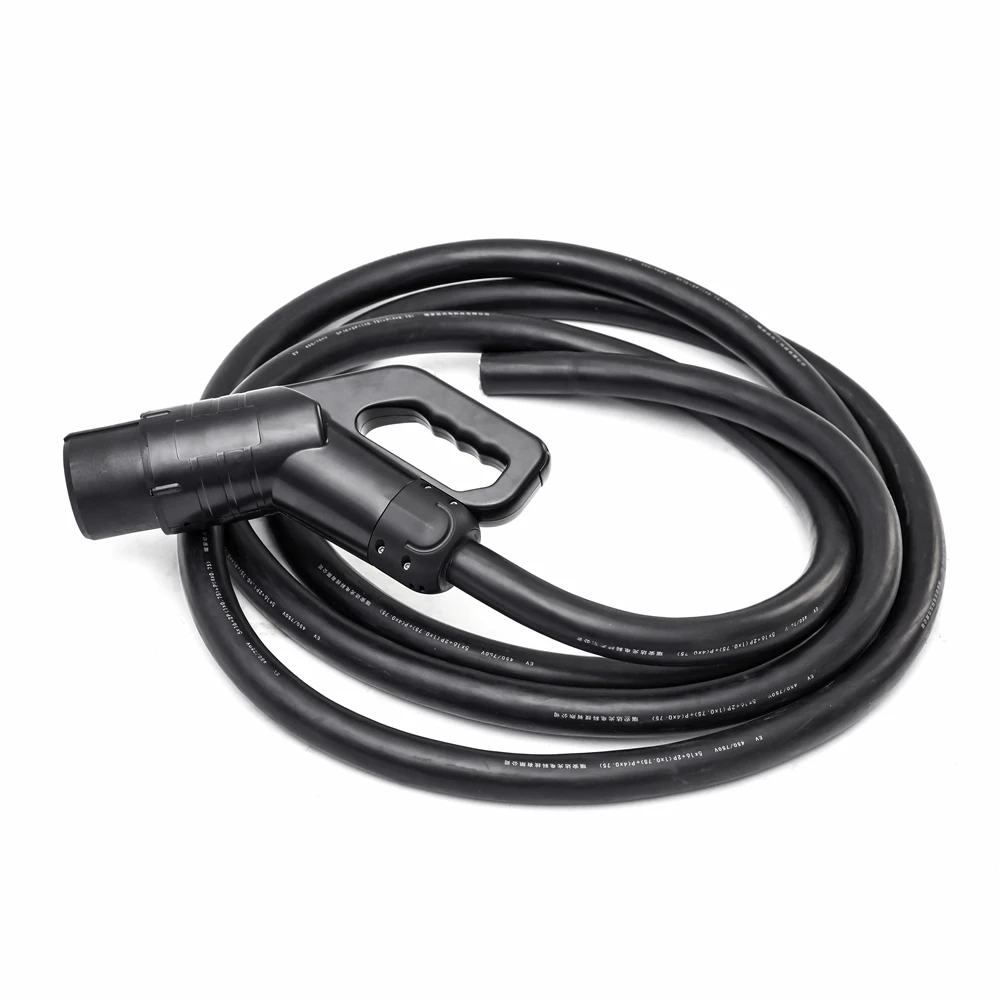

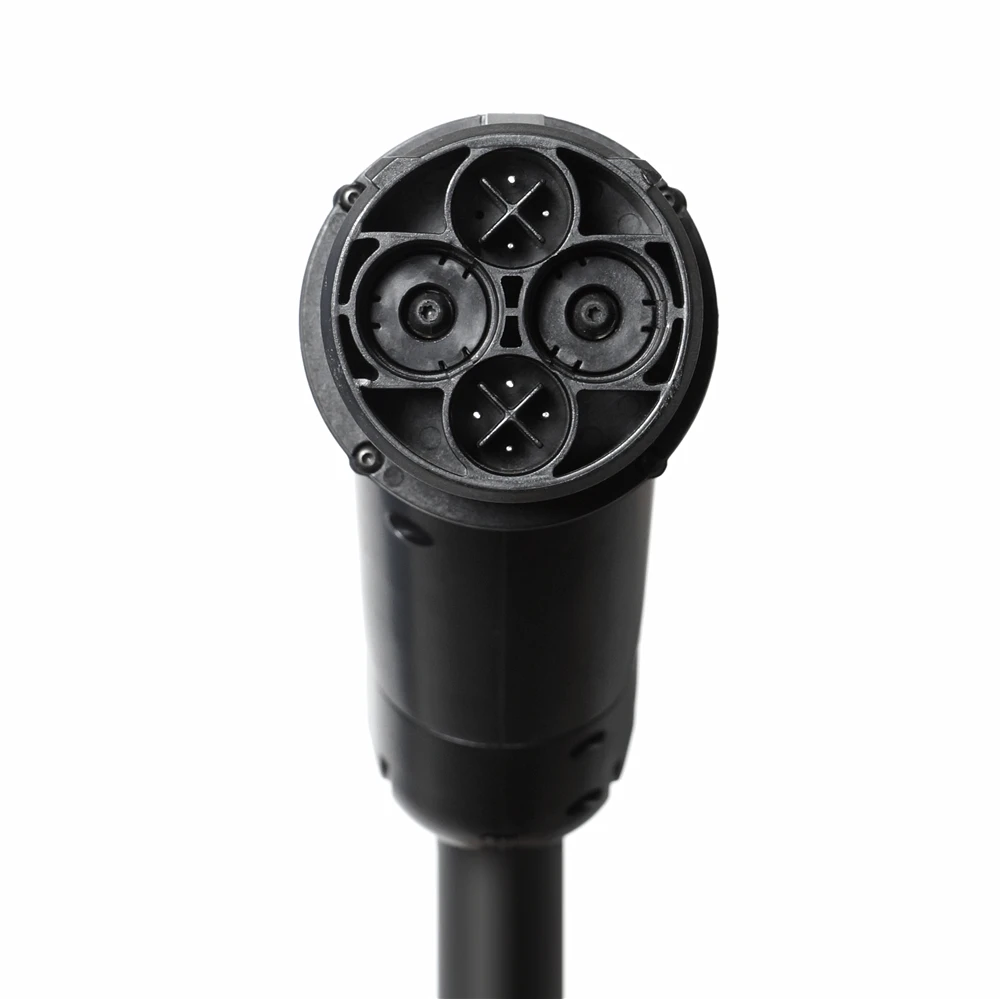

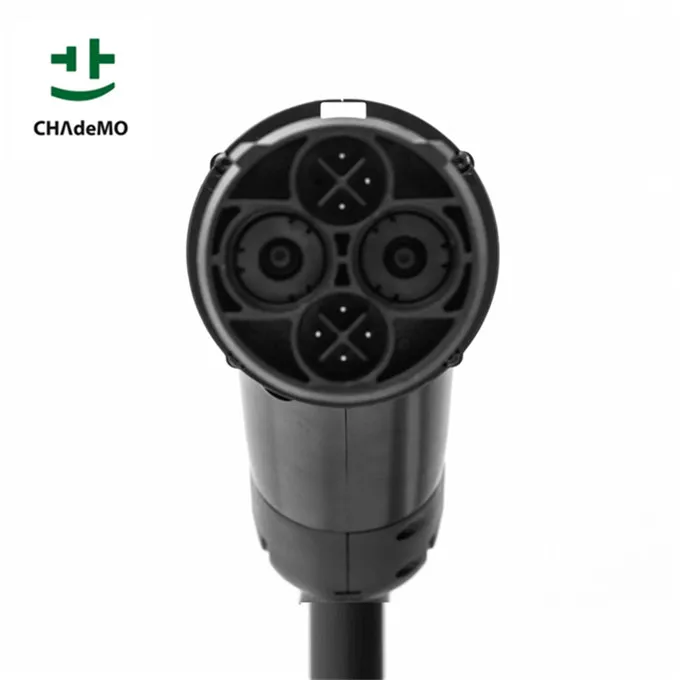

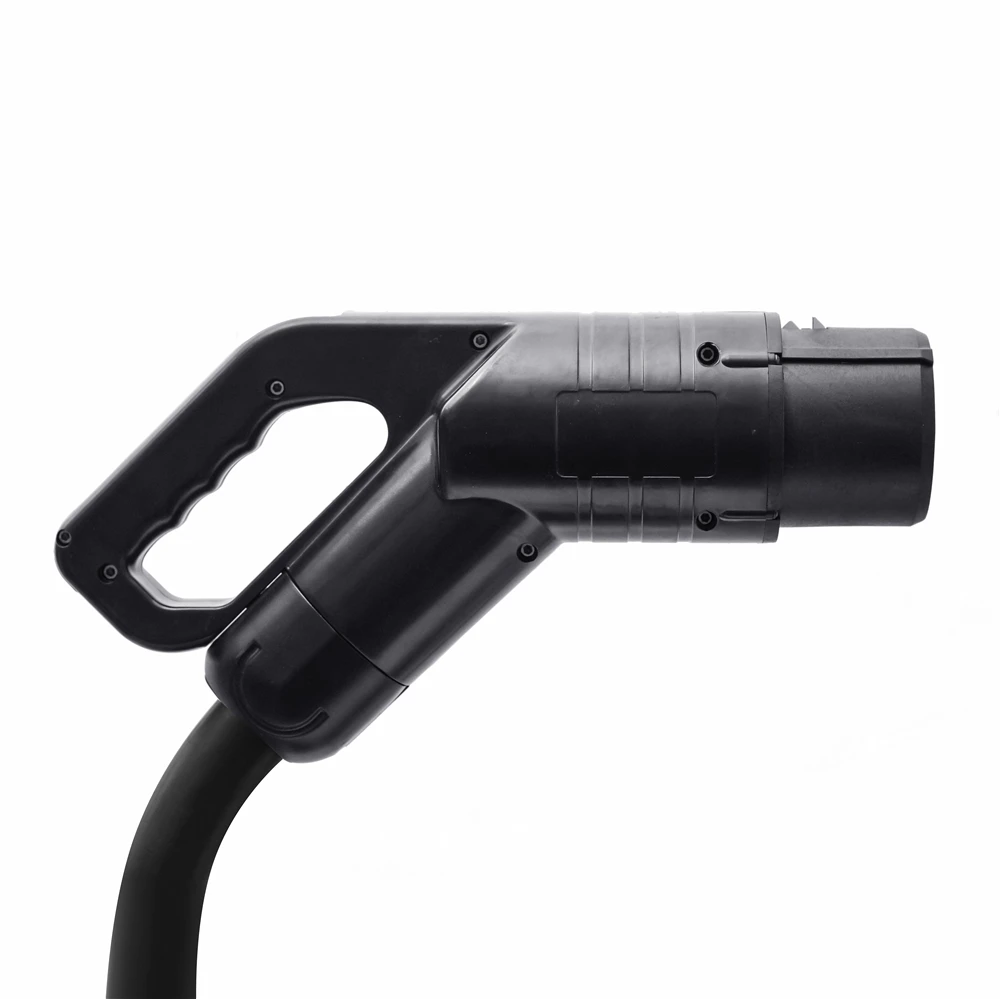

Штекер для быстрой зарядки DC 125a штекер chademo разъем постоянного тока с кабелями 5


Поделиться:


Цена:680,00 $ - 700,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 809.51 $* 849.91 $*
Aug-18-2025 802.56 $* 842.25 $*
Jul-18-2025 673.59 $* 707.95 $*
Jun-18-2025 789.8 $* 828.9 $*
May-18-2025 687.19 $* 721.2 $*
Apr-18-2025 775.80 $* 814.75 $*
Mar-18-2025 768.67 $* 806.60 $*
Feb-18-2025 762.16 $* 800.34 $*
Jan-18-2025 755.21 $* 793.64 $*

Характеристики



  • Product Description



Product Features:
1.Nice shape, hand-held ergonomic design, easy to use;
2.Protection class: IP67(in mated conditions);

3.Widely applied to trickle charge of electric vehicle, electric minibus,electric bus and chargeable hybird power vehicles etc.
































































                   Outlet side



Plug type: CHADEMO 1.0


Output current: 60A  90A 125A  150A  200A


Voltage :  1000VDC


Pin number : 10 pin


Cable specs: 16~50mm²*2+14*0.5mm²


Ambient  : -30~45℃





               Charger side



Plug type : high load connector


Output current: 80A*4+16*8


Pin :4*DC pin +14*single pin









         General Specifications



Cable diameter :23~45mm


Housing :IP67


Insulation resistance :100MΩ or more(500V DC)


Coil resistance value 38Ω ±10%


Withstand voltage : 300V AC applied for 1min


Weight : 10kg(5m cable)



  • Detailed:





















1pcs per carton ,
Sending by Express TNT , Fedex ,  DHL or By air , By sea by Customized

Express Freight cost Prepaid or Collect are both ok !.



  • Certification:




ELECWAY_1


  • Our company





FACTORY





Guangzhou Electway Technology Co.,Ltd was founded on March 20th,2012.It is located in Huangpu District,Guangzhou.Since its  establishment,our company has been focusing on R&D,production,sales and other services of hardware&software products of power electronics in the field of new energy.






Our company invest great efforts on the development of technology and the accumulation of hight-quality talents.We have a professional R&D team of more than 10 people.We pay highly attention to the accumulatiion and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents,and registered the trademark"ELECTWAY".










  • FAQ


Q1:Are you Trading Company or manufacturer?
A: We are  manufacturer.


Q2:What are your main market?
A:Mostly Europe and
America, Greater China, Southeast Asia





Q3:How long time to make a sample?
A:3-7 days if we make a new sample for you.
If you just select our existing sample, we can send you sample the next day.
Lead time:10-30 days, it depends on the quantity and plug itself.


Q4: What's the payment terms?
A: We accept T/T,L/C,Western Union and so on.


Q5: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.


Q6: What certifications do you have?
A: We have approved CE FCC, ROHS SGS etc certification.

Q7:What about your after sale service.


A:We will according to the internation quality standards to inspect every products before delivery.
