Концертная звуковая система ms10 дюймовый низкочастотный динамик 8 Ом 1000 Вт линейный массив среднего
- Категория: Speakers & Accessories >>>
- Поставщик: Guangzhou,Panyu,District,Shiji,Hiwell,Audio,Equipment,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.67 $* | 0.13 $* |
| Aug-18-2025 | 0.16 $* | 0.92 $* |
| Jul-18-2025 | 0.83 $* | 0.6 $* |
| Jun-18-2025 | 0.66 $* | 0.56 $* |
| May-18-2025 | 0.35 $* | 0.71 $* |
| Apr-18-2025 | 0.67 $* | 0.92 $* |
| Mar-18-2025 | 0.60 $* | 0.79 $* |
| Feb-18-2025 | 0.34 $* | 0.53 $* |
| Jan-18-2025 | 0.72 $* | 0.51 $* |
Характеристики

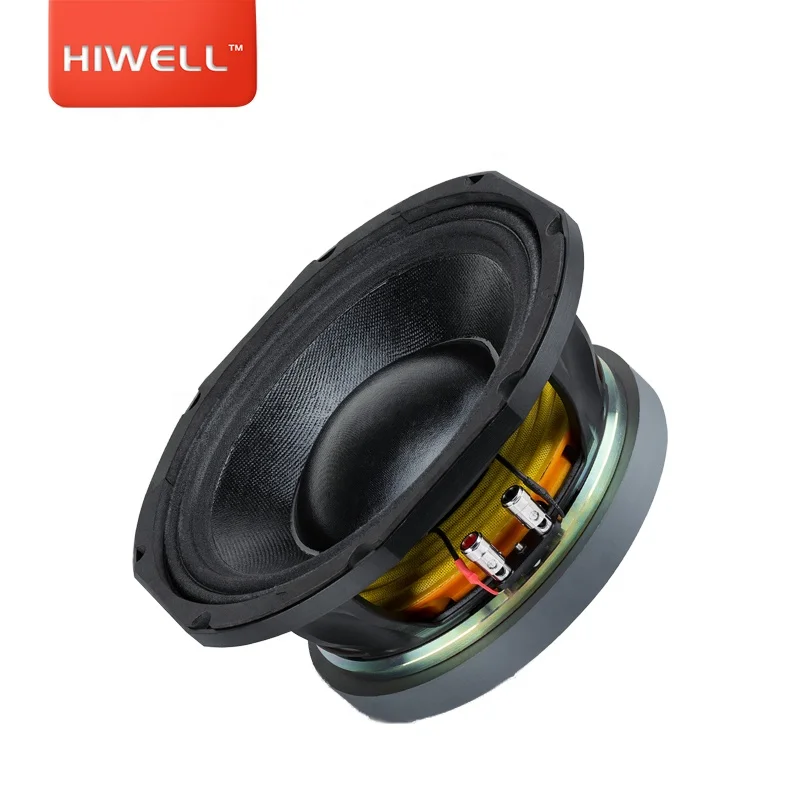

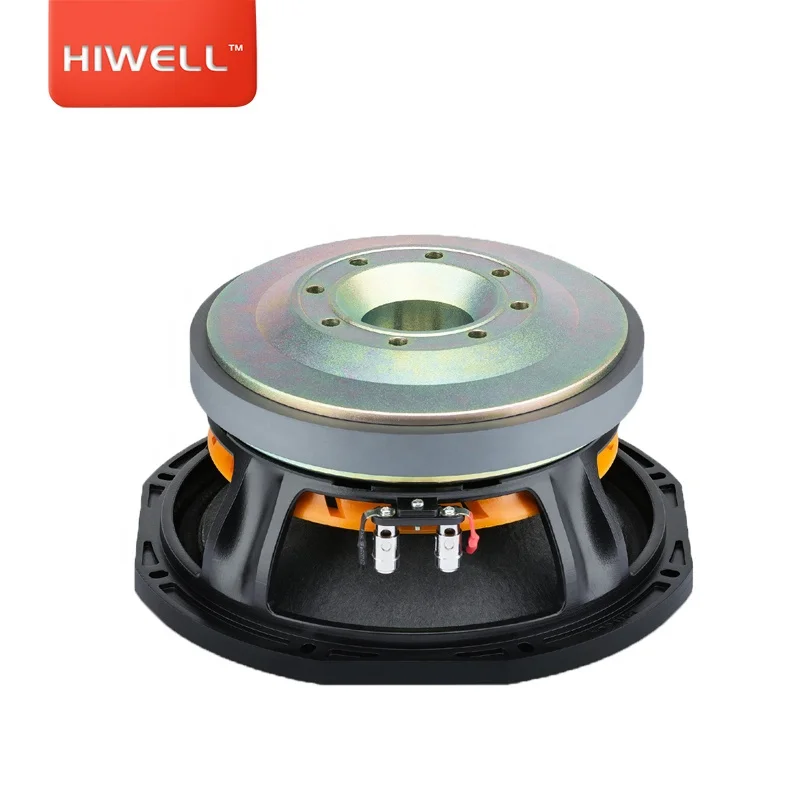

Concert Sound Systems10 inch Woofer 8 ohm 1000 Watt Line Array Midrange.
Product Description
4 INCH COPPER VOICE COIL
94.6 dB/SPL SENSITIVITY
1000 WATT PROGRAM POWER HANDING
FEM OPTIMIZED MOTOR AND SUSPENSIONS
OPTIMIZED COOLING SYSTEM
DOUBLE SPIDER
RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS

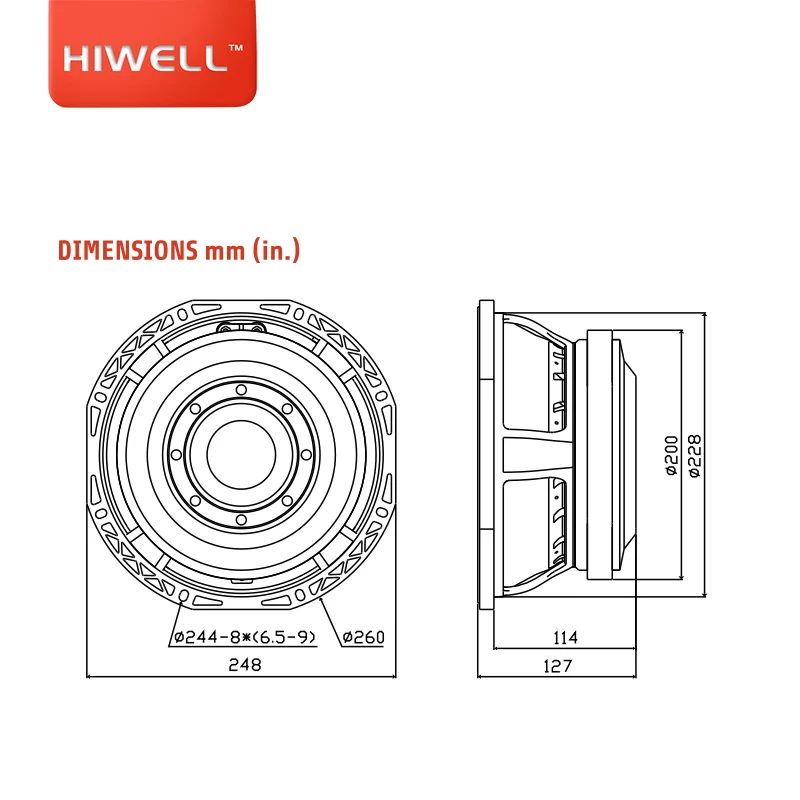

| Nominal diameter | mm (in.) | 260(10) |
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 7 |
| Program power (1) | W | 1000 |
| AES Power rating(2) | W | 500 |
| Sensitivity (3) | dB | 94.6 |

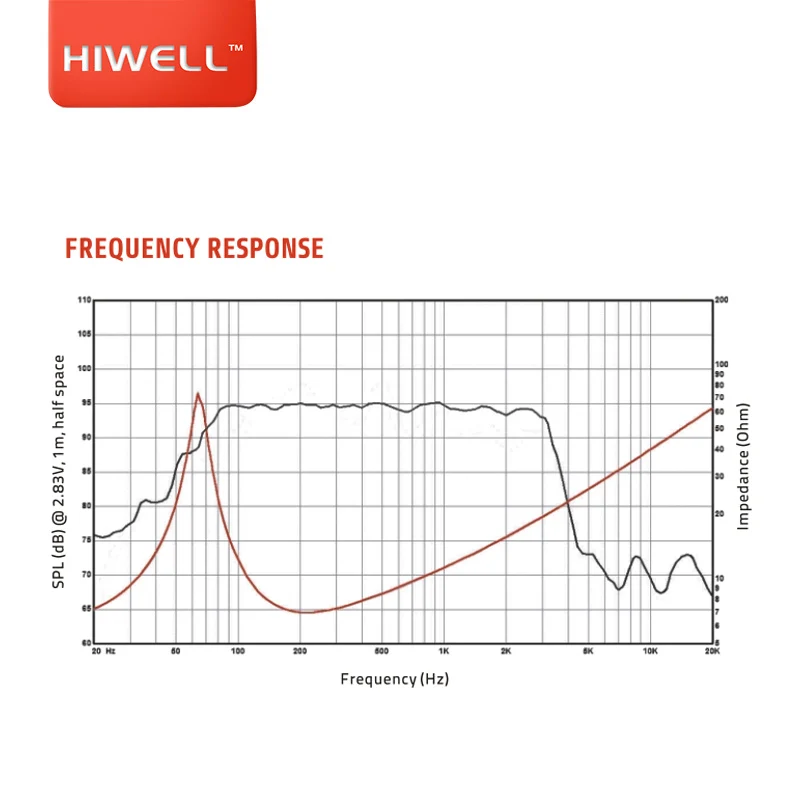

| Frequency range | Hz | 63 ~ 3000 |
| Voice coil diameter | mm (in.) | 100(4) |
| Chassis material | Aluminium | |
| Magnet material | Ferrite | |
| Magnet dimensions (ODxIDxh) | mm | 200x 110 x 20 |
| Coil material | ALW | |
| Former material | Glass Fiber | |
| Xmax(4) | mm | 5.5 |
| Xmech(5) | mm | 11 |
| Gap height | mm | 10 |
| Voice coil Wingding height | mm | 16 |
SMALL SIGNAL PARAMETERS
| DC resistance | Re | Ohm | 5.4 |
| Resonance frequency | Fs | Hz | 63.6 |
| Moving mass | Mms | g | 46 |
| Compliance | Cms | mm/N | 0.13 |
| Force factor | BL | N/A | 16.5 |
| Mechanical Q-factor | Qms | 6.8 | |
| Electrical Q-factor | Qes | 0.46 | |
| Total Q-factor | Qts | 0.43 | |
| Equivalent air volume | Vas | I | 26.8 |
| Voice coil Inductance | Le | mH | 4.1 |
| Diaphragm area | Sd | cm² | 380 |
| Reference efficiency | Eta 0 | % | 2.2 |
SHIPPING INFORMATION
| Net weight | Kg | 7.5 |
| Multipack size (1) (W x D x H) | mm | 270x270x158 |
| Multipack weight | Kg | 8 |
Payment terms
1. By T/T or Western Union
2. T/T 30% deposit, T/T balance before delivery
Packaging & Shipping
1. Packaging: Export Carton box
2. Shipping method:
Sample order by express
Produciton order by sea
Our Services
1.Great CUSTOMER SERVICE and COMMUNICATIONS
2.Fair price & durable quality we provide
3.More than 15 years' R&D team experience
Company Information

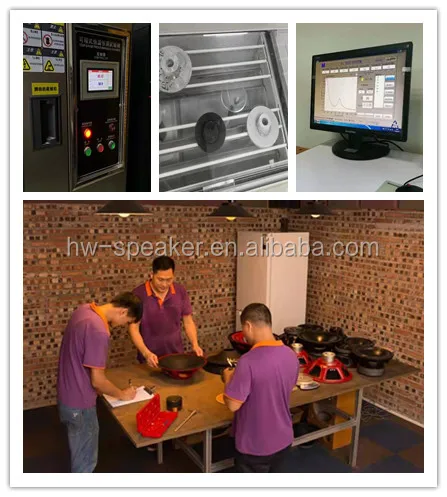

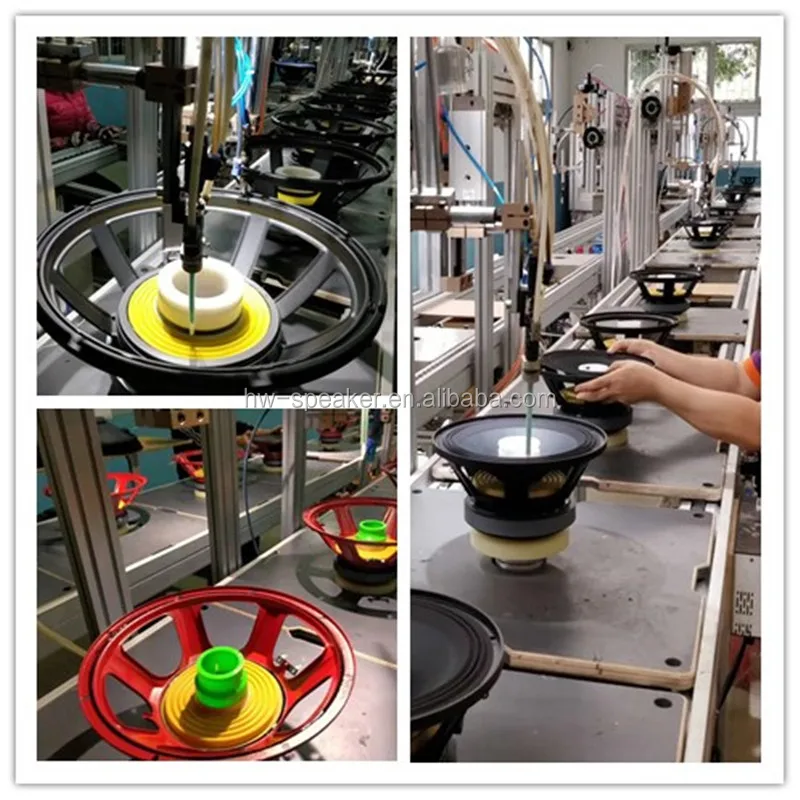

We are professional loudspeaker manufacturer in Guangzhou, China formed in 2009.
Hiwell Audio was established to design and manufacturer loudspeaker products include pa loudspeaker( woofer, tweeter, coaxial speaker),hi-fi speaker,KTV speaker and car speaker.
Hiwell Audio fucus on high quality and reliabiity.
FAQ
Q: How to order?
A:
Please send us your purchase order by mail or fax with below information:
1) Product information:Quantitiy,Model number,Specification.
2) Delivery time required.
3) Shipping information:Company name,Address,Phone number,Destination:seaport/airport.
4) Forwarder's contact details if you have.
Q: What is the whole process for doing business with us ?
A:
1) Details of the products are needed for quotation.
2)we provide Proforma Invoice to arrange payment for sample order
3) For bulk production, we will arrange production at once after we get 30% deposit.
4) We will send photos of all goods,packing,details,and B/L copy for client when goods finished.We will
arrange shipment and provide original B/L after balance.
