Чипсы машина
Китайская автоматическая профессиональная машина для производства свежих картофельных

Китайская автоматическая профессиональная машина для производства свежих картофельных

Категория: Чипсы машина >>>
Поставщик: Zhucheng,Xinxudong,Machinery,Co.,Ltd.

Цена:46 000,00 $ - 50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	54740.90 $*	57477.88 $*
Aug-15-2025	54280.31 $*	56994.41 $*
Jul-15-2025	45540.44 $*	47817.93 $*
Jun-15-2025	53360.9 $*	56028.6 $*
May-15-2025	46460.55 $*	48783.97 $*
Apr-15-2025	52440.72 $*	55062.65 $*
Mar-15-2025	51980.2 $*	54579.57 $*
Feb-15-2025	51520.22 $*	54096.45 $*
Jan-15-2025	51060.82 $*	53613.73 $*

Характеристики

Product Description

Product Application

Product Application

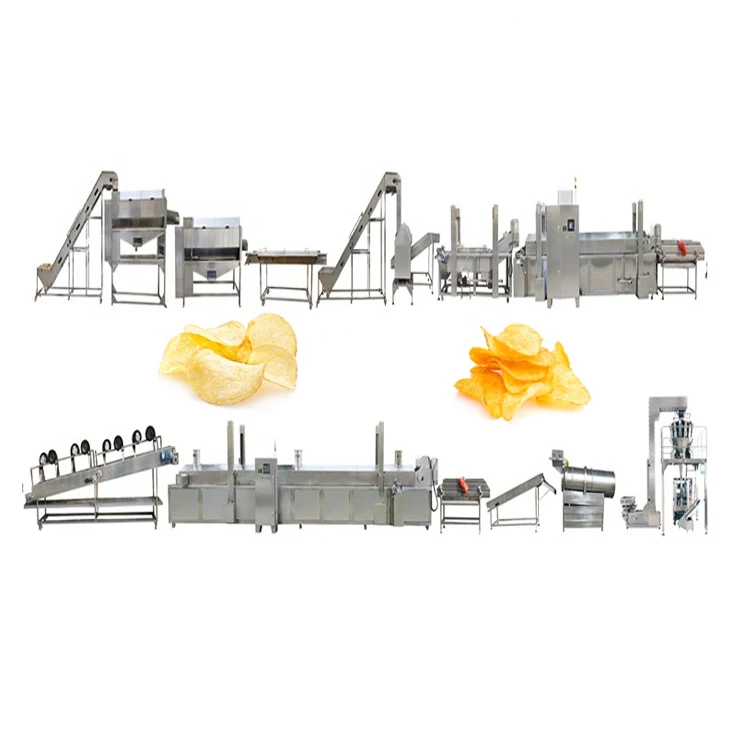

Automaitc Potato Chips Machine is a complete line from washing peeling to the seasoning and packing.

Two different potato processing
Fresh potato chips: directly frying after fresh potato cutting: Lays

1) process:
Raw material→washingpeeling→picking line→cutting→washing→drying→frying→seasoning

Including: Conveyor--washing peeling--picking line--conveyor--slicer--washing--air drying--frying--vibrating deoil machine--conveyor and gas heating system,
2)fresh potato chips requirement

For fresh potato
Diameter is about40-60 mm, regular shape;
Inside is white, small bud ;
Drying material content is about 22-25%.
deoxidize sugar content ≤0.2%:before using the potatoes, it is needed to put storage potatoes in another room whose temperature is about 12-18 °C and last for 1 week
Washing peeling: choose brush washing peeling
Chips: it is about1.5- 2mm; size and thickness is in uniform, surface is smooth

Output Capacity	50kgh semi-automaitc	100kgh	200kgh	300kgh
Input capacity	150-200kgh	300-400kgh	600-800kgh	1000-1200kgh
Power	100kw if electricity frying ; 20kw for gas fired and 20m³for gas consumption	Electricity cost:35kw Gas consumption: 50m3/h	Electricity cost:60kw Gas cost: 100m³/h, when working, it is about 80m³/h	Electricity cost:80kw Gas cost: 120m³/h, when working, it is about 100m³/h
Dimension	824m	4055m	5555m	6555m
Equipment consumption	low investment	low investmen	low investment	low investment
Raw material	fresh potato	fresh potato	fresh potato	fresh potato

NO	NAME FOR 300KGH POTATO CHIPS LINE	MODEL	QTY	POWER KW
1.	Washing&Conveyor	TSJ-3500	1	0.75
2	Washing peeling machine	QP J-2400	1	3.75
3	Picking line	TJX-3000	1	1.5
4	Washing &hoister 2	TSJ-3500	1	0.75
5	Potato chips cutter	QPJ-500	2	2.25*2=4.5
6	Washing tank	SSJ-2500	1	0.75
7	Drying line	FGX-5000	1	6.75
8	Continuous frying machine	XDL-8500	1	37
9	Oil tank	3.5t	1	0
10	Vibrating deoil machine	ZDS-1500	1	0.4
11	Conveyor	SSJ-2500	1	0.75
12	Flavoring machine	TWJ-3000	1	0.75
13	Conveyor	SSJ-3000	1	0.75
14	Elevator	For packaging	2	0.55*2=1.1
15	10 heads combination weigher	10 heads	2	1*2=2
16	Platform	For packaging	2	0
17	Packing machine with conveyor	420 packing machine	2	3*2=6
18	Former	For other weight	4	0
19	Conveyor	SSJ-3000*600	2	0.75
20	Nitrogen making machine	ZDJ-5	1	7.5
21	Gas fired external heating	600000kilocalorie	2	3*2=6
22	Drum oil filter	GYJ-1000	2	0
	TOTAL		34 SETS	81.75KW

Products Description

Conveyor+ Washing peeling machine

This machine is used to peel with stone brusher and hard brusher, it can peel completely; Uneven and corrugated brush can peel the potatoes completely;
Model: QPJ-2400
Size: 3000*950*1670 mm
Spiral vane speed is adjustable
Rolls speed is adjustable

Picking line

This machine is used to pick out the bad parts and eyes by manually. Then deliver the potatoes to the next process. With the dirty
collection holes.
1. Model:TJX-2500
2. Belt width:800mm
3. Power: 0.55KW/ 380V/ 50Hz
Overall SUS304 stainless steel

Slicer

This machine is used to cut potatoes into slices
It is smooth in surface and cut in fast speed.
Easy to wash and easy to operate.
Save labor and cost.
1. Model:QPJ-500
2. Size: 880*770*1222mm
3. Power: 2.25kw 380V/50HZ/set

Washing machine

Washing time is 30-60s; Washing process is for washing off the potato starch on the potato chips .
At the same time, potato is totally immersed in water which can keep it from enzymatic-oxydative browning;
Model: QXJ-4200
Size: 4200*1200*1600mm
Material: SUS304
Power: 1.5kw.

Air drying line

This machine is used to remove the surface water on slices.
It can save frying time and keep good taste for the chips.
1. Model:FGX-3000
2. Size: 3000*1100*1800mm
3. Power: 3KW/ 380V/ 50HZ
Overall SUS304 stainless steel.

Title goes here.

This machine is used to fry unified potato chips by automaticly, high precision temp control system to ensure the uniform quality
product.
Fry time and temperature can be adjusted based on actual

Frying time: 3min

Made of SUS304

vibrating deoil machine

1.It is used to remove some oil by vibrating
2. It is equipped with oil collection board and oil collection box
Model: ZDS-1500
Size: 1500*1100*1100mm
Power: 0.37KW/380V/50HZ
Material: SUS304
Board thickness: 2.5 mm

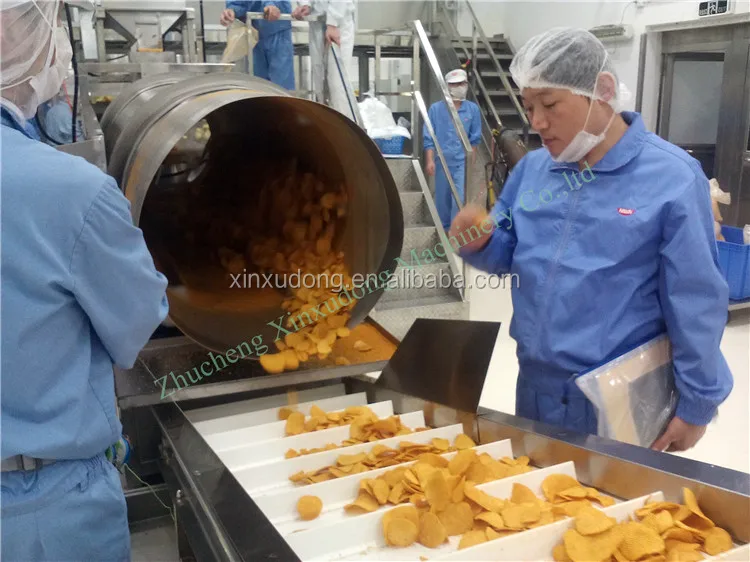

Flavoring machine

This machine is used to flavor for the fried chips automaticly. The hopper will leak the additives powder evenly, the fried food
will rolling with the drun to season evenly.
Add the vibrator dust flavor
Add the drum to remove small size
1. Model: TWJ-2500
2. Power:0.75KW/ 380V/ 50HZ
3. Size: 3000*1100*1700mm

Automatic weigher + packaging machine

This machine is used to weight and pack the potato chips automaticly.
One set of 10 heads weigher+ 1setsof 500 packing machine;
1 Units
Model:BZJ-500
Dimensions:5000*2700*4800mm
Power: 12KW/ 380V/ 50HZ
Bag width range:70- 240mm
Bag length range:80-300mm
With ONE pcs of former
