Характеристики

Product Description

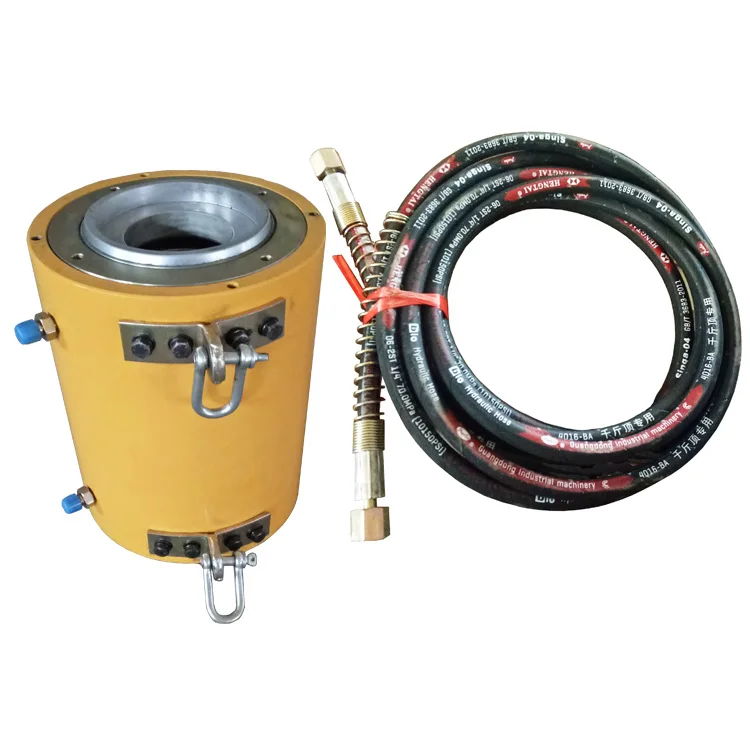

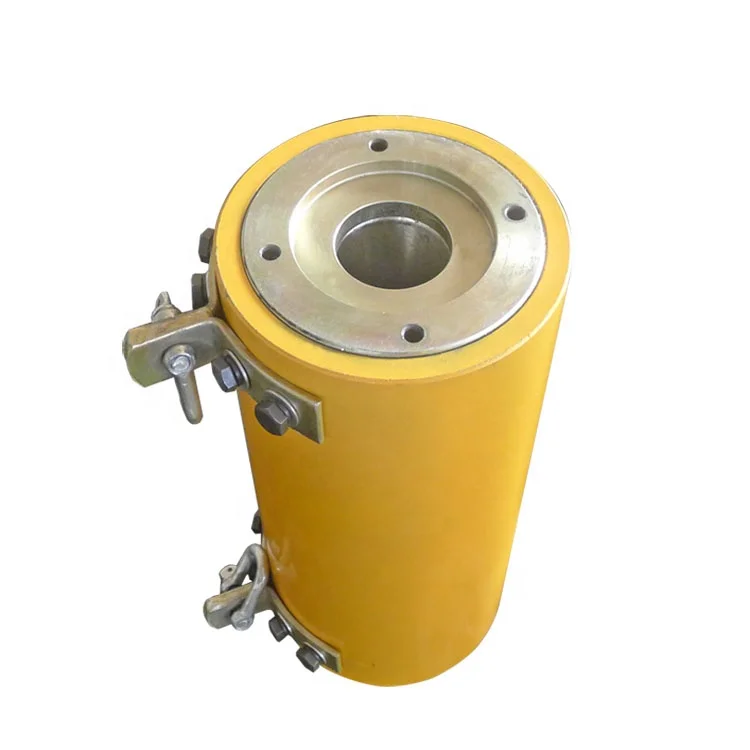

YCW-B Series post tension and stressing jack are light core-through jacks with multifunctions, which fit for various anchorages(group anchor) in prestressing tension operation.

Specifications

Type	Nominal tension force KN	Nominal oil pressure MPa	Tension piston area M²	Return piston area M²	Return oil pressure MPa	Coss-core aperture MM	Stroke MM	Overall size ΦA×L MM	Weight Kg
YCW70B	705	51	1.382×10-²	0.636×10-²	<25	Φ60	200	Φ188×330	40
YCW100B	973	51	1.908×10-²	0.534×10-²	<25	Φ78	200	Φ216×337	60
YCW150B	1493	51	2.927×10-²	1.609×10-²	<25	Φ103	200	Φ283×376	117
YCW200B	1998	53	3.769×10-²	2.168×10-²	<25	Φ120	200	Φ310×378	130
YCW250B	2480	54	4.594×10-²	2.803×10-²	<25	Φ140	200	Φ345×382	188
YCW300B	3011	51	5.904×10-²	3.518×10-²	<25	Φ145	200	Φ385×382	230
YCW350B	3529	52	6.786×10-²	3.463×10-²	<25	Φ165	200	Φ410×389	280
YCW400B	3927	52	7.611×10-²	4.595×10-²	<25	Φ175	200	Φ440×389	315
YCW450B	4490	51	8.804×10-²	5.788×10-²	<25	Φ175	200	Φ465×413	364
YCW500B	5026	50	10.05×10-²	4,775×10-²	<25	Φ196	200	Φ495×418	445
YCW600B	6050	50	12.1×10-²	6.83×10-²	<25	Φ196	200	Φ530×443	550
YCW650B	6566	50	13.13×10-²	6.291×10-²	<25	Φ240	200	Φ570×445	610

Details Images

YCW-B Series post tension and stressing jack are advanced devices based on their former structures of YCW, redesigned with high-strength steel, advanced structures, sealing function, optimization technology..

Why Choose Us

Why Choose us:

Our company YCW-B Series post tension and stressing jack are advanced devices based on their former structures of YCW, redesigned with high-strength steel, advanced structures, sealing function, optimization technology. This new type features tight structure, lightened weight, short axial length, strands saving by the short reserved length in prestressing strang anchorage. The result of the test shows its perfect performance, durability, flexibility of lifting, the convenience of using and repairing.

stressing jack machine

Construction

Certifications

Our enterprise has already passed ISO9001:2008 and CE certifications.

We adhere to the tenet of "People-Oriented, Focus On Innovation, Base On Sincerity and Honesty, Have a Self-Established Brand". Meanwhile, we persist in "Safety Goes First, Precaution Crucial, Comprehensive Handling". With the mature marketing, after-sale service and scientific research systems, our aim is to push forward the development of the prestressing force industry in China.
