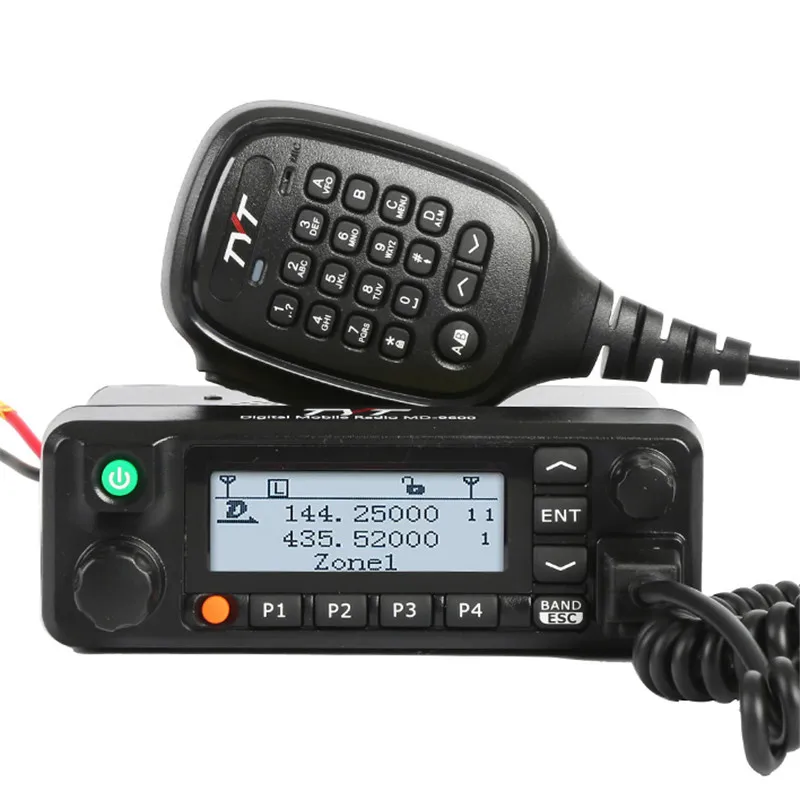

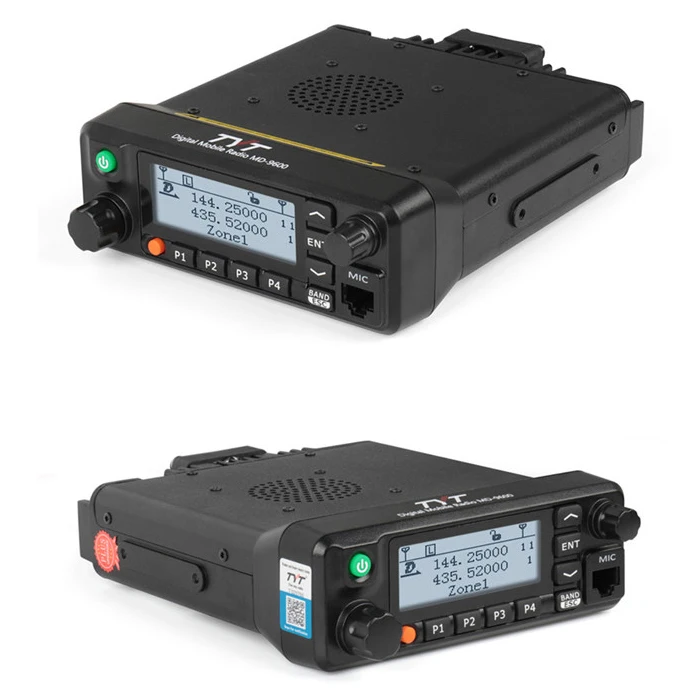

TYT MD-9600 GPS цифровой/FM аналоговые Dual Band DMR Quad Мобильный трансивер 50 Вт VHF/UHF автомобилей Грузовик радиолюбитель HAM двухстороннее
- Категория: Портативная рация >>>
- Поставщик: Fujian,Quanzhou,Qunyi,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 227.27 $* | 232.89 $* |
| Jul-18-2025 | 184.13 $* | 188.91 $* |
| Jun-18-2025 | 224.57 $* | 228.71 $* |
| May-18-2025 | 222.64 $* | 226.77 $* |
| Apr-18-2025 | 177.32 $* | 181.92 $* |
| Mar-18-2025 | 218.91 $* | 222.47 $* |
| Feb-18-2025 | 217.79 $* | 221.32 $* |
| Jan-18-2025 | 215.45 $* | 219.3 $* |
Характеристики
Product Description
Technical parameters | Technical parameters | |||||
General | General | |||||
Frequency Range(MHz) | 136-174MHz 400-480MHz | Operating Temperature | -30℃~+60℃ | |||
Channel | 3000 | Storage Temperature | -30℃~+85℃ | |||

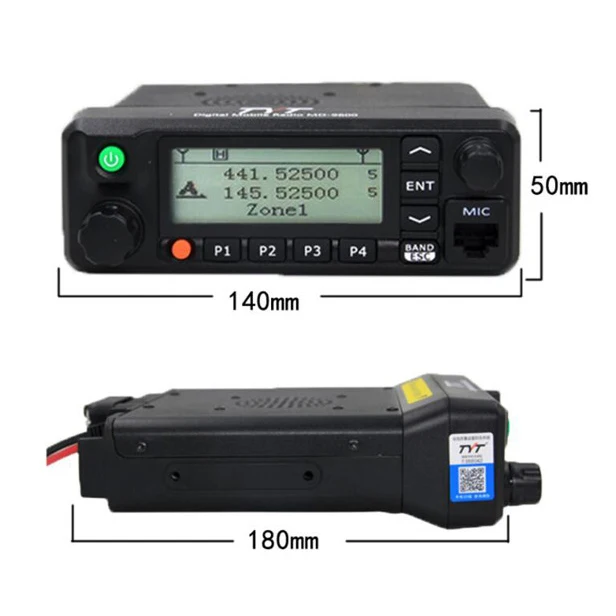

PLL Channel Spacing | 6.25 /25 / 12.5/25KHz | Dimensions(W×H×D) | 143x50x175mm | |||
Voltage Rating | DC 13.8V | Compatible With American Military Standard | (MIL-STD-810C/D/E) | |||
Receiver | ||||||
Frequency Stability (-20℃ + 60℃, +25℃) | +/-1.0ppm | Spurious Rejection | TIA603C:70 dB ETSI:70 dB | |||
Digital Sensibility | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | Audio distortion @ rated audio | ≤3% | |||
Analogue Sensibility | 0.35uV/-116dBm (20dB SINAD) 0.7uV/-120dBm (20dB SINAD) | FM Hum and Noise | -40dB @12.5kHz -45dB @25kHz | |||
Rated audio | 5W | Audio Response | +1dB~-3dbB | |||
Adjacent Channel Selectivity | TIA603C:60dB @12.5kHz ETSI:60Db @12.5kHz | Spurious Emission | -57dBm@<1GHz -47dBm@>1GHz | |||
Intermodulation | TIA603C:65Db ETSI:65dB | Block | 84dB | |||
Co-channel Rejection | 12 dB @12.5kHz | |||||
Transmitter | ||||||
RF Power Output | L:25W H:50W(VHF) L:25W H:45W(UHF) | Audio Distortion | 3% | |||
FM Hum and Noise | -40dB @12.5kHz -45dB @ 25kHz | FM modulation | 12.5kHz:11KOF3E 25kHz:16KOF3E | |||
Modulation Limited | +/-2.5kHz @12.5kHz +/-5.0kHz @25kHz | 4FSK digital modulation | 12.5kHz only data:7K60FXD 12.5kHz data and audio:7K60FXE | |||
Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz<4GHz | Digital Protocol | ETSI TS 102361-1, -2, -3 | |||
Adjacent Ch. power | -60dB @12.5kHz -65dB @25kHz | Digital vocoder type | AMBE++ | |||
Audio Response | +1dB~-3dbB | Digital agreement | DMR | |||
