Противовзрывной датчик давления для жидкого газа и пара 4-20

Противовзрывной датчик давления для жидкого газа и пара 4-20

Категория: Преобразователи давления >>>
Поставщик: Hefei,Wnk,Smart,Technology,Co.,Ltd.

Цена:45,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	57.50 $*	58.52 $*
Jul-17-2025	46.5 $*	47.45 $*
Jun-17-2025	56.5 $*	57.75 $*
May-17-2025	56.49 $*	57.74 $*
Apr-17-2025	45.68 $*	46.14 $*
Mar-17-2025	55.30 $*	56.20 $*
Feb-17-2025	54.78 $*	55.83 $*
Jan-17-2025	54.75 $*	55.5 $*

Характеристики

4-20mA Anti-Explosion Pressure Transmitter For Liquid Gas And Steam

Product Description

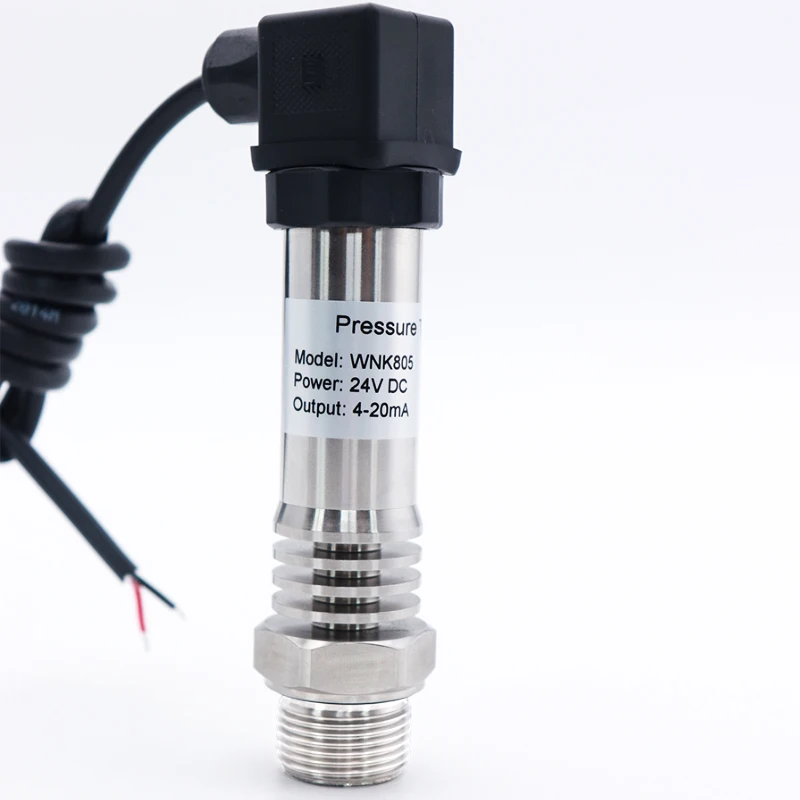

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)

WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Output signals	4~20mA, 1-5V for optional
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
