220 В Вибрационный двигатель для машины
US $22.00-$45.00
Хорошая цена легкий Вибрационный Мотор типа MV 1
- Категория: Vibration Motor >>>
- Поставщик: Haian,Flourishing,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 95.73 $* | 100.29 $* |
| Aug-20-2025 | 94.97 $* | 99.24 $* |
| Jul-20-2025 | 79.13 $* | 83.57 $* |
| Jun-20-2025 | 93.53 $* | 98.22 $* |
| May-20-2025 | 81.13 $* | 85.40 $* |
| Apr-20-2025 | 91.20 $* | 96.60 $* |
| Mar-20-2025 | 90.64 $* | 95.22 $* |
| Feb-20-2025 | 90.32 $* | 95.72 $* |
| Jan-20-2025 | 89.31 $* | 93.31 $* |
Характеристики

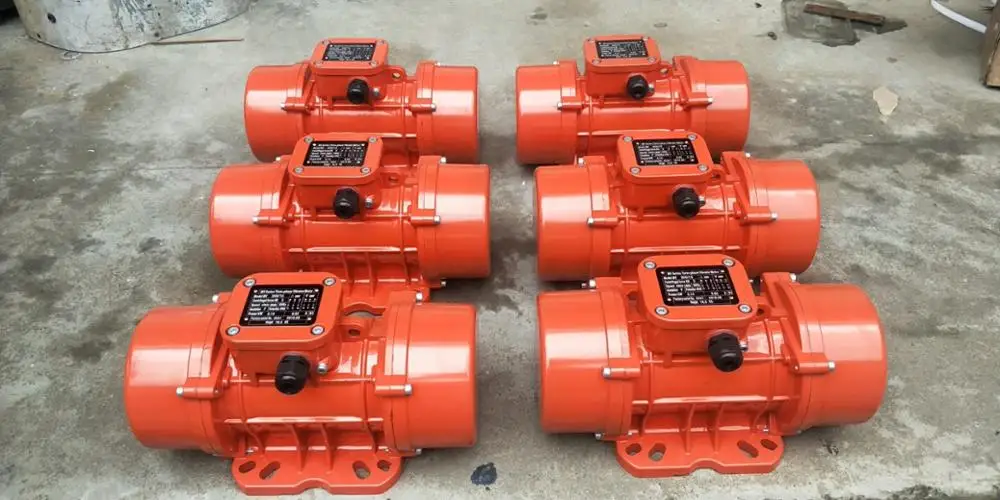

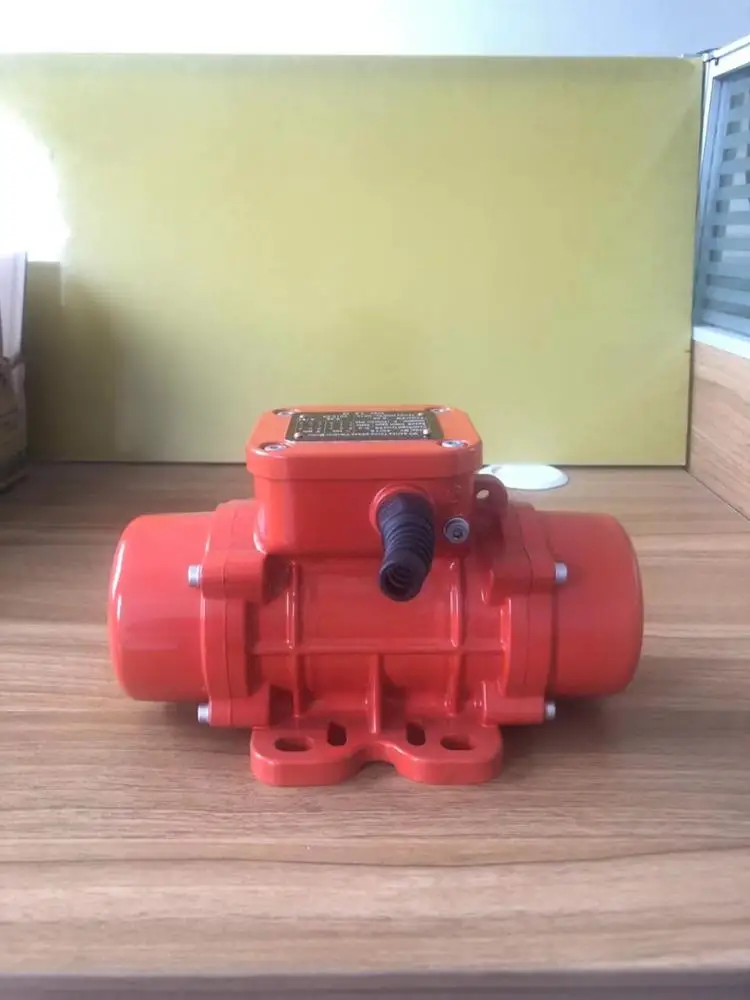

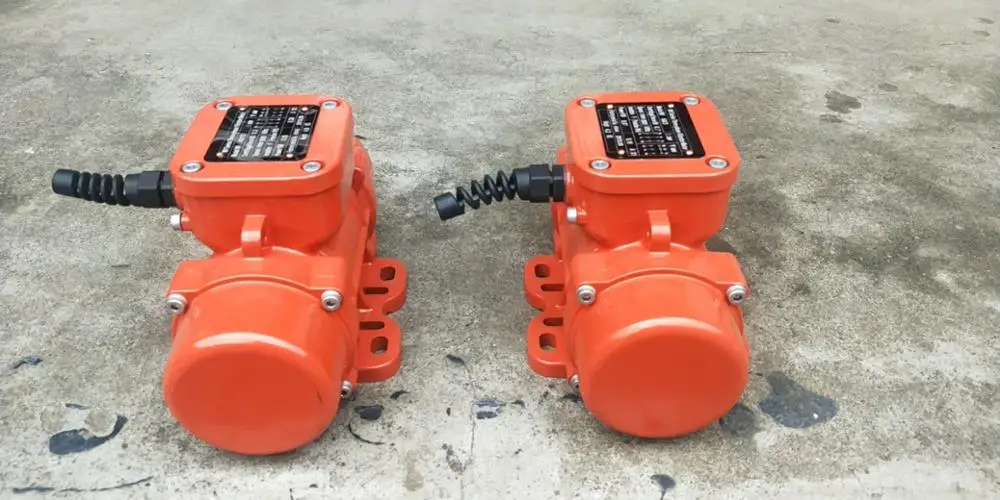

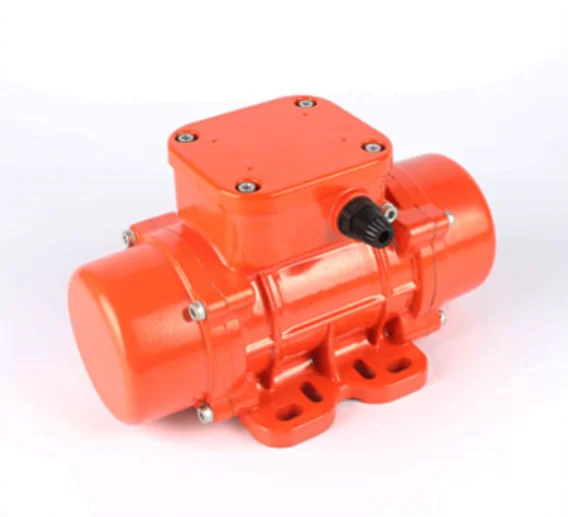

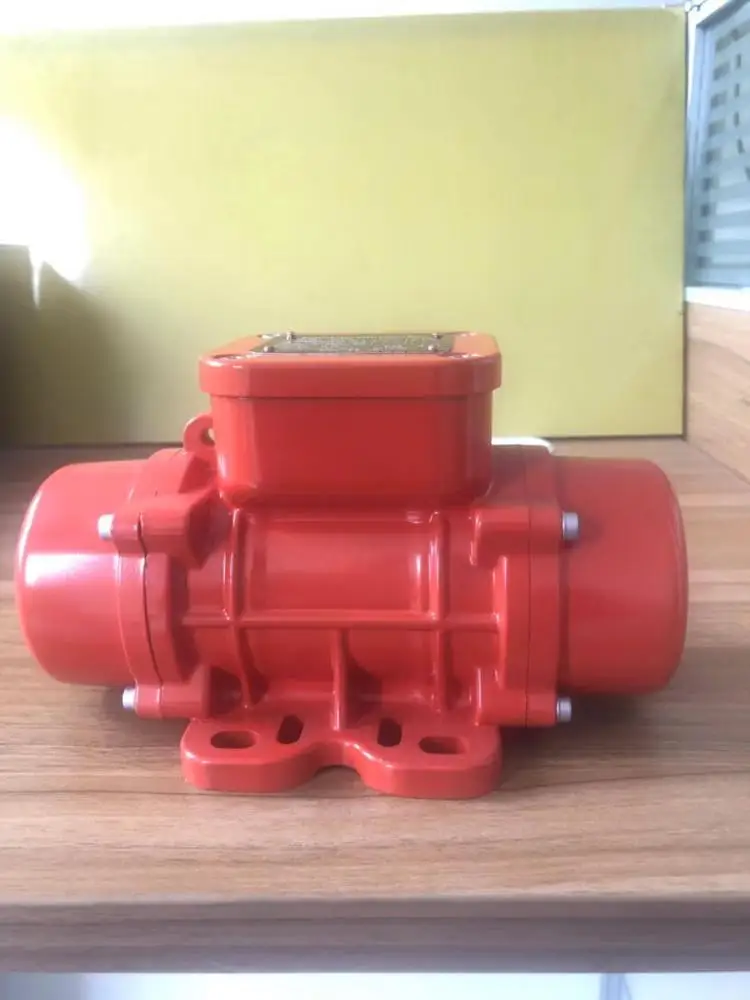

MV series AC electric horizontal vibration / small vibrating motors
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
Product Description
MV series vibration motor (motor vibrator) is designed as a high-end vibrating motor. It is available in several types with different specifications, while the most powerful one comes with an exciting force of 50KN, and is driven by 10kw power. The rotor and stators are made of excellent silicon steel sheet. The heat dissipation is limited. High purity copper wire is used for better performance of the motor. The design of electromagnetic spec is suitable for vertical motor's operating characteristics. Be swift starting and stable operating.
Features
1. Light machine weigh ,small volume, easy construction, convenient installation and repairment.
2. Stable frequency, low noise vibrating generated by stationary revolution, swift start, stable stopping.
3. Full sealed construction, applied in any working circumstance which has no explosion-proof requirement.
4. Exciting force can be adjusted infinitely.
5. Multispec installation for single and multi machines.
Advantages:
1. Centrifugal force: Adjustable

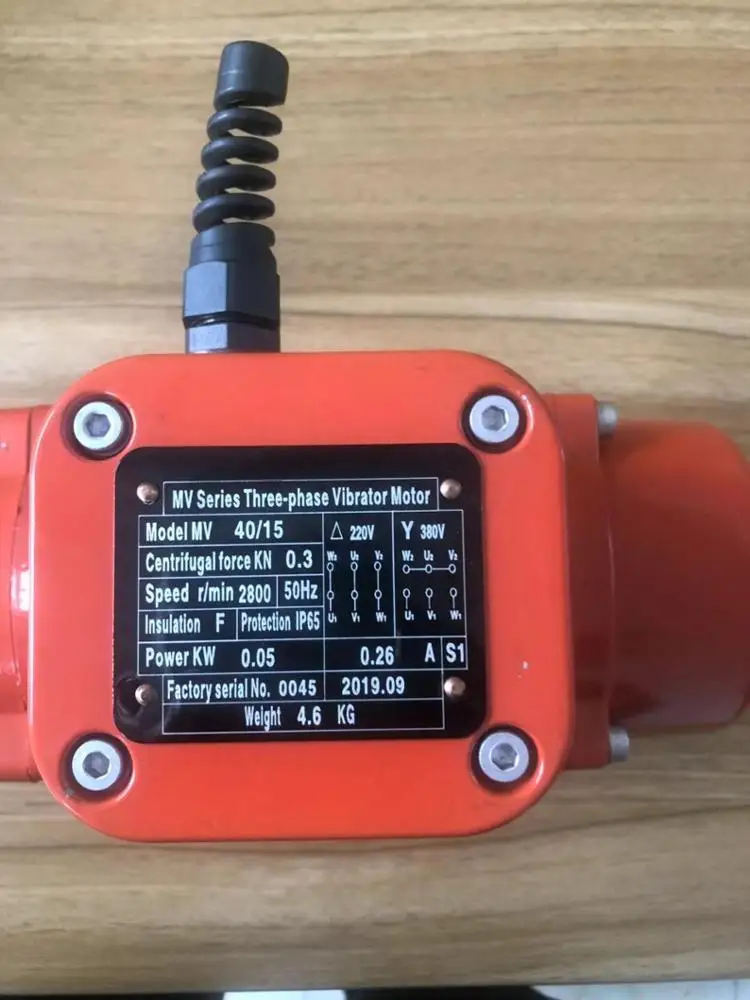

2. Protection class: F, Insulation class: IP65
3. SKF,NSK,C&U bearings
4. Italian design, beautiful appearance
5. Cast-iron or aluminum frame can be choosen
6. 220V/380V, 110V/220V and other voltages according to customers' requirements, 50Hz/60Hz
7. High quality packing carton and standard instruction.
2. Protection class: F, Insulation class: IP65
3. SKF,NSK,C&U bearings
4. Italian design, beautiful appearance
5. Cast-iron or aluminum frame can be choosen
6. 220V/380V, 110V/220V and other voltages according to customers' requirements, 50Hz/60Hz
7. High quality packing carton and standard instruction.
\t\t\t\t\t\t\t\t\tShape and size \t\t\t\t\t\t\t
Model | Force(KN) | Power(KW) | Weight(KG) | Installation Size(MM) | ||
Model | Force(KN) | Power(KW) | Weight(KG) | A | B | |
MV40/3 | 0.3 | 0.05 | 4.0 | 62-74 | 106 | |
MV60/3 | 0.7 | 0.07 | 4.2 | 62-74 | 106 | |
MV100/3 | 1 | 0.09 | 4.6 | 62-74 | 106 | |
MV200/3 | 2 | 0.15 | 6.8 | 62-74 | 106 | |
MV300/3 | 3 | 0.25 | 9.8 | 90 | 125 | |
MV400/3 | 4 | 0.27 | 10.3 | 90 | 125 | |
MV500/3 | 5 | 0.5 | 15.8 | 105 | 140 | |
MV700/3 | 7 | 0.59 | 16.5 | 105 | 140 | |
MV800/3 | 8 | 0.7 | 20.6 | 120 | 170 | |
MV1200/3 | 10 | 0.95 | 21.6 | 120 | 170 | |
MV1300/3 | 13 | 1.3 | 24.5 | 120 | 170 | |
MV1600/3 | 16 | 1.54 | 51.6 | 140 | 190 | |
MV1800/3 | 18 | 1.85 | 52 | 140 | 190 | |
MV2000/3 | 20 | 2.1 | 51.8 | 140 | 190 | |
MV2200/3 | 22 | 2.4 | 52.8 | 140 | 190 | |
MV2300/3 | 23 | 2.4 | 53.6 | 140 | 190 | |
MV3200/3 | 32 | 2.76 | 96.9 | 155 | 255 | |
MV4000/3 | 40 | 2.9 | 107 | 155 | 255 | |
MV5000/3 | 50 | 4 | 112 | 155 | 255 | |
MV60/3M | 0.7 | 0.08 | 4.5 | 62-74 | 106 | |
MV100/3M | 1 | 0.1 | 5.1 | 62-74 | 106 | |
MV200/3M | 2 | 0.13 | 6.8 | 62-74 | 106 | |
MV50DC-24 | 0.5 | 0.1 | 4.5 | 62-74 | 106 | |
MV200DC-24 | 2 | 0.16 | 6.5 | 62-74 | 106 | |
\t\t\t\t\t\t\t\t\tCompany introduction \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tproduction process \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tDelivery and Logisti \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1: How to choose the suitable electric motor vibrator?
A: 1. The type of motor:horizontal or vertical vibrating motor.Or you can tell me what equipment you use it for, we can recommand for you.
2. The power____ and voltage_____ .
3. The revolving speed _____and exciting force_____.
Q2: Can the motor voltage and machine color be changed?
A: Yes, we can change the motor according to the voltage requirement in your country. Rebar cutting machines colors can also be changed according to your preference.
Q3: How long is the warranty period for your equipment?
A: Our machine has 12 months guarantee. During the guarantee period, if any quality problems occur, we will provide the related spare parts(consumable spare parts not included freight free of charge.
Q4: What is the price term and payment method?
A: We can quote EXW, FOB, CIF and CFR price. You can pay us by T/T, L/C , Visa
