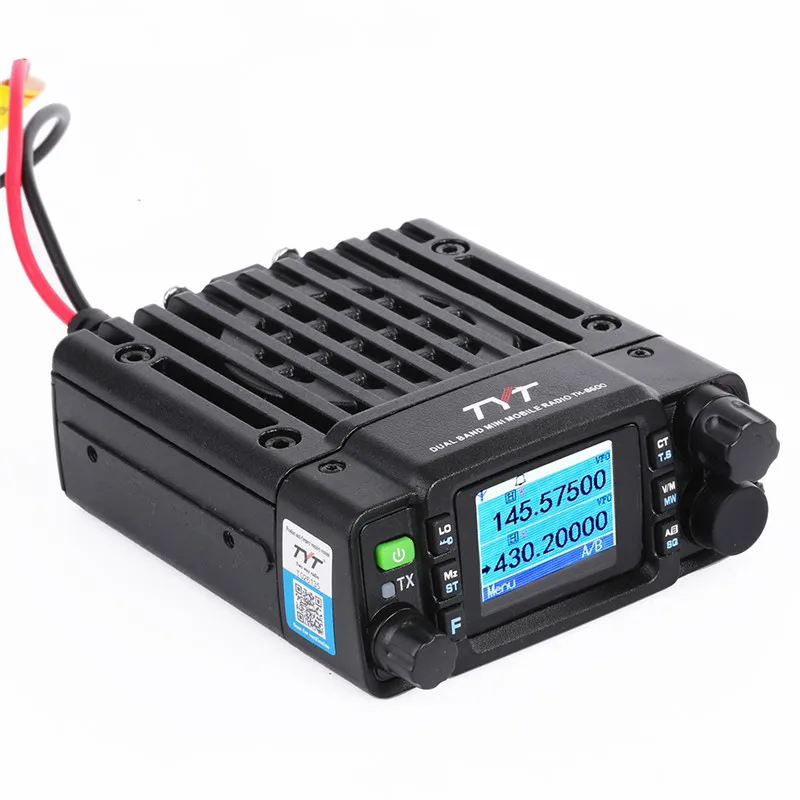

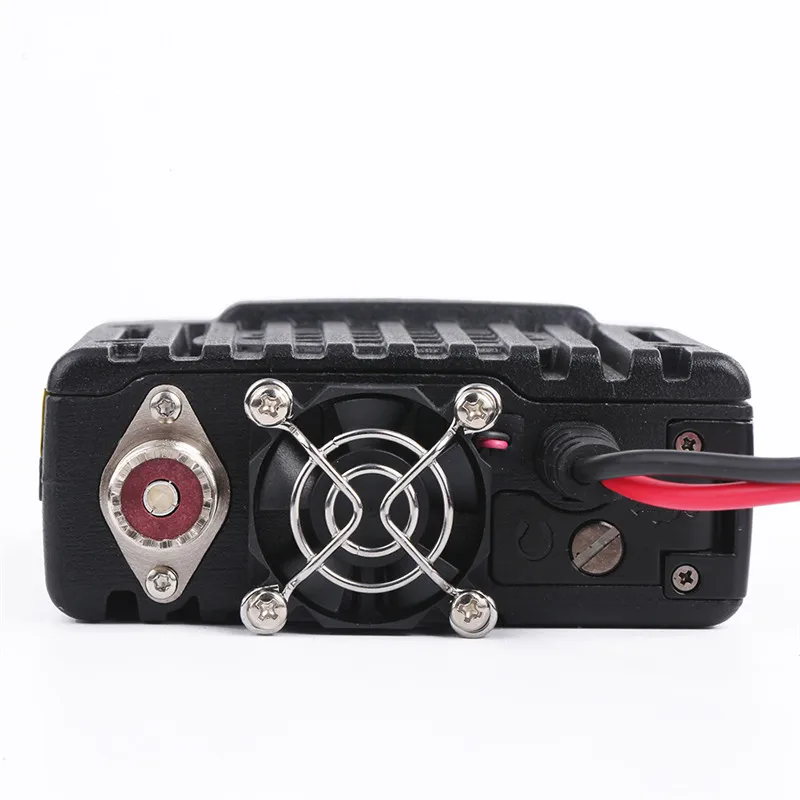

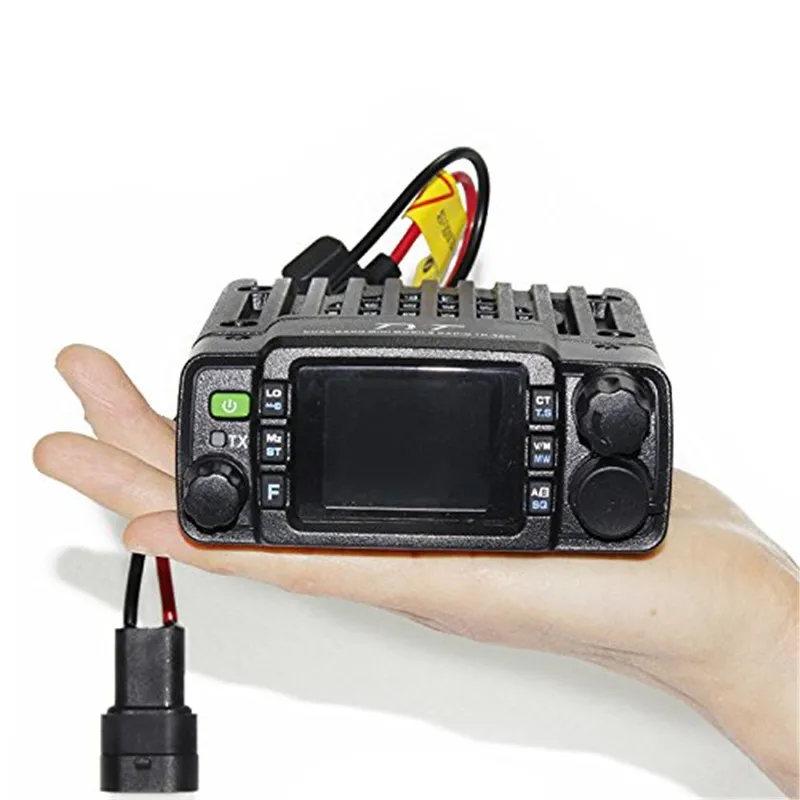

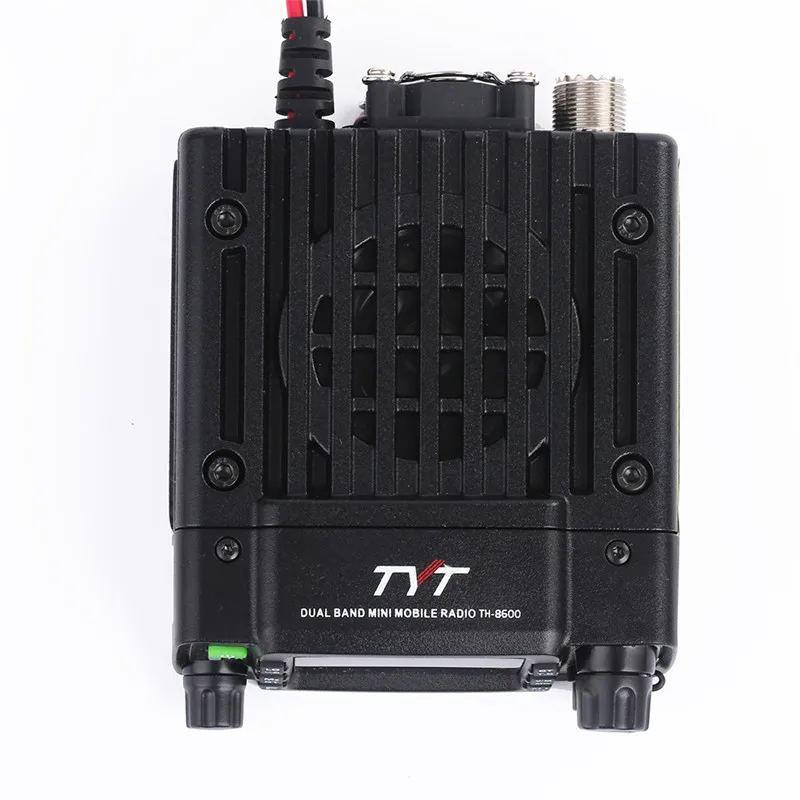

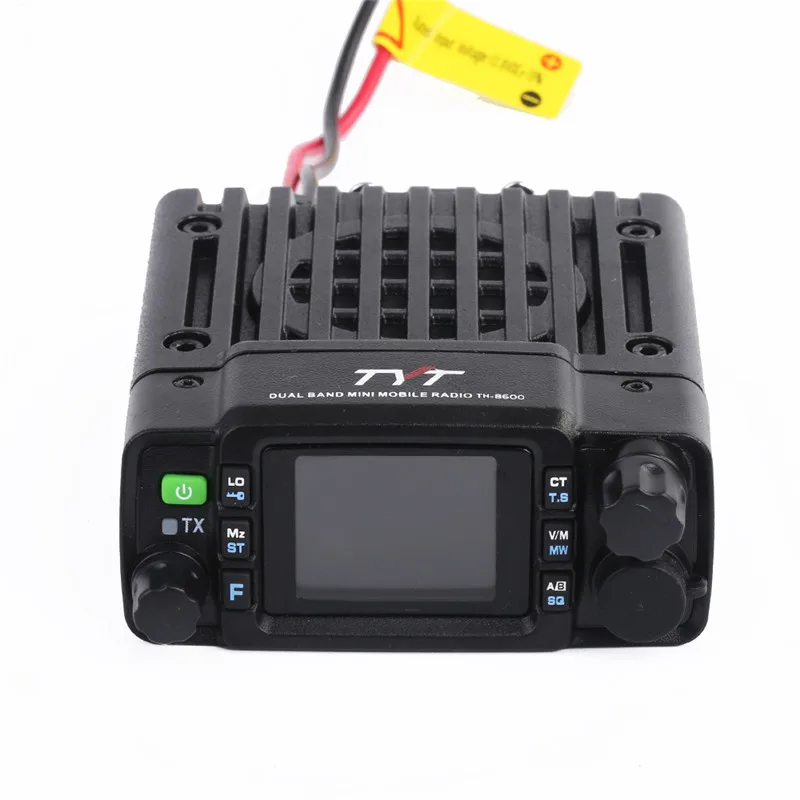

TYT TH-8600 Мини 25 Вт Dual Band радио антенна VHF/UHF любительских автомобиля Quad мобильный трансивер (HAM) Бесплатный Кабель для
- Категория: Портативная рация >>>
- Поставщик: Fujian,Quanzhou,Qunyi,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 113.45 $* | 115.74 $* |
| Jul-18-2025 | 92.72 $* | 94.62 $* |
| Jun-18-2025 | 111.78 $* | 113.91 $* |
| May-18-2025 | 110.13 $* | 112.53 $* |
| Apr-18-2025 | 88.19 $* | 90.57 $* |
| Mar-18-2025 | 109.69 $* | 111.63 $* |
| Feb-18-2025 | 108.90 $* | 110.50 $* |
| Jan-18-2025 | 107.9 $* | 109.38 $* |
Характеристики
General | ||
Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz | |
Channel | 200 | |
Frequency Stability | ±1ppm | |
Voltage Rating | DC 13.8V | |
Operating Temperature | -30℃~+60℃ | |
Storage Temperature | -30℃ ~+85℃ | |
Dimention | 107*125*45mm | |
Transmitter | ||
Output power | 25W(VHF) 20W(UHF) | |
Transmitting Current | 4A13.8V | |
Standby Current | 0.2A 13.8V | |
FM Modulation | Wide band:16K0F3E | |
Modulation distortion | <5% | |
FM Hun and Noise | ≥45dB 25KHz ≥40dB 12.5KHz | |
Adjacent Ch. power | ≥60dB 12.5KHz ≥70dB 25KHz | |
Audio response | +1~-3dB | |
Receiver | ||
Frequency stability (-20℃ +60℃,+25℃) | +/-1.0ppm | |
Sensibility | 0.2μV | |
Adjacent Ch. Selectivity | 60dB 12.5KHz 70dB 25KHz | |
Intermodulation | ≥60dB/≥65dB | |
Spurious Rejection | ≥70dB | |
Audio response | +1~-3dB | |
RF Sensitivity | -122dbm(12db SINAD) | |
Audio Distortion | <5% | |
FM Hum and Noise | -40dB 12.5KHz -45dB 25KHz | |
Rated audio | Rated audio | |
