Ручной оптоволоконный лазерный сварочный аппарат 1000 Вт 2000 для

Описание и отзывы

Трекер стоимости

Характеристики

1.Introduction

The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.



2.Advantages

1)The welding speed is 2-10 times faster than the traditional welding speed.

2)Laser welding consumes less material and has a long-life.

3)Easy to operate.

4)The welding seam is smooth and beautiful, which reduces the subsequent grinding

process and saves time and cost.

5)No deformation, no weld scar, welding firmly.

6)Safer and more environmentally friendly.



3.Parameters

No.	Item	Parameters

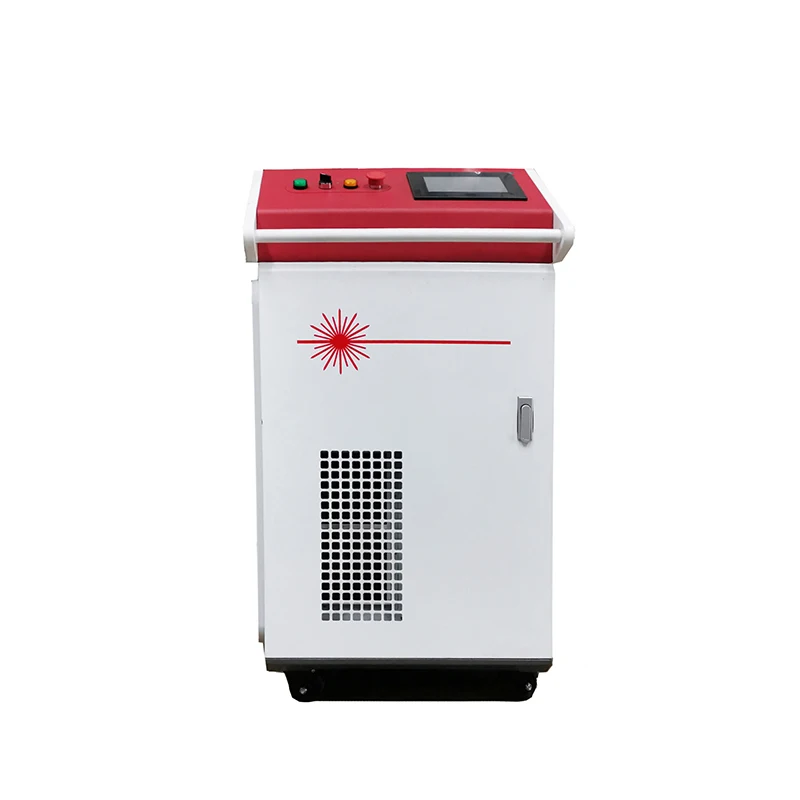

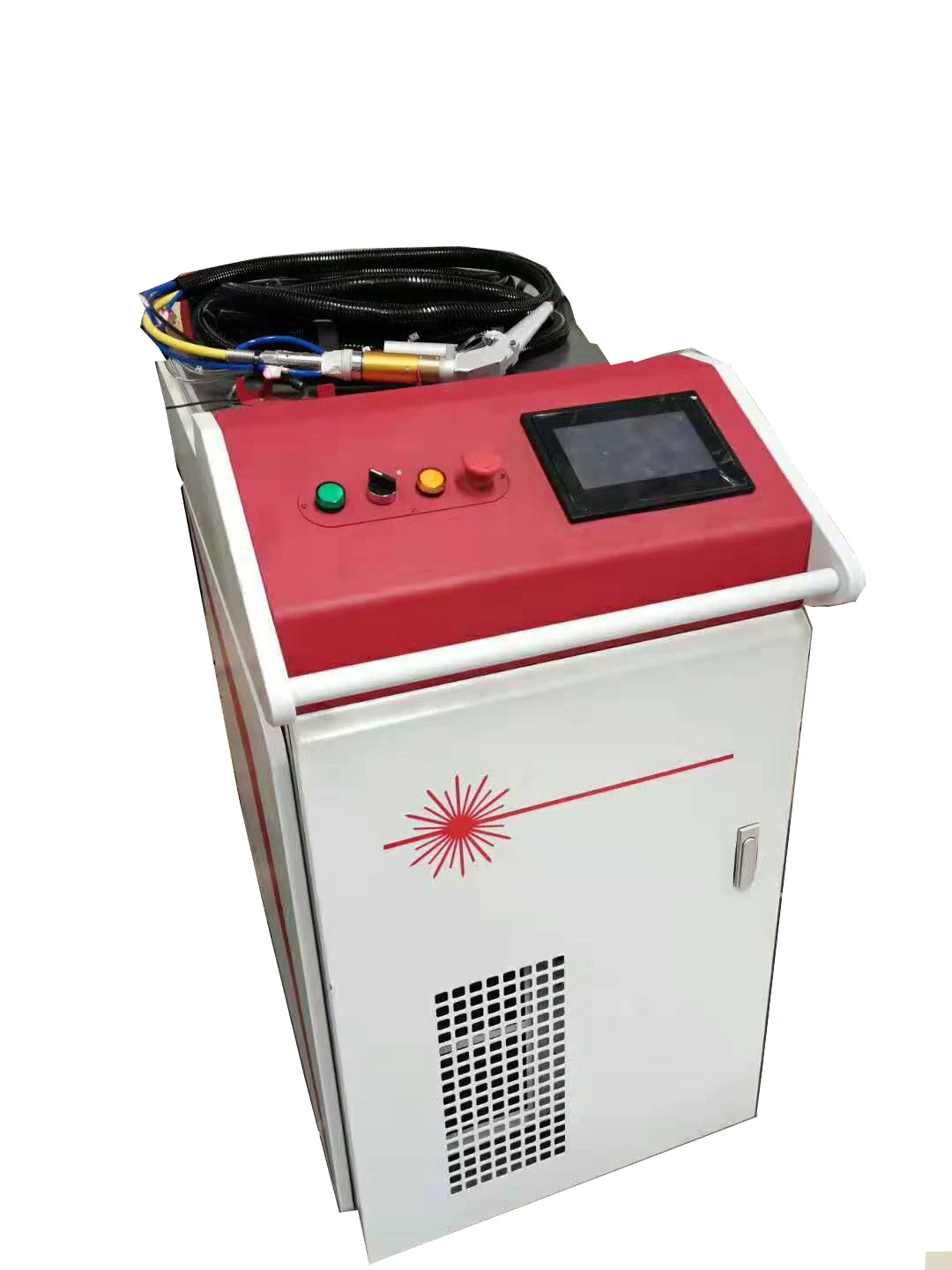

1	Name	Hand-held laser welding machine
2	Power	1000W
3	Wavelength	1080
4	Operation mode	CW/Modulate
5	Water chiller	Industrial thermostatic water tank
6	Operating temperature	10-40
7	Quantity welding thickness	0.5-4mm

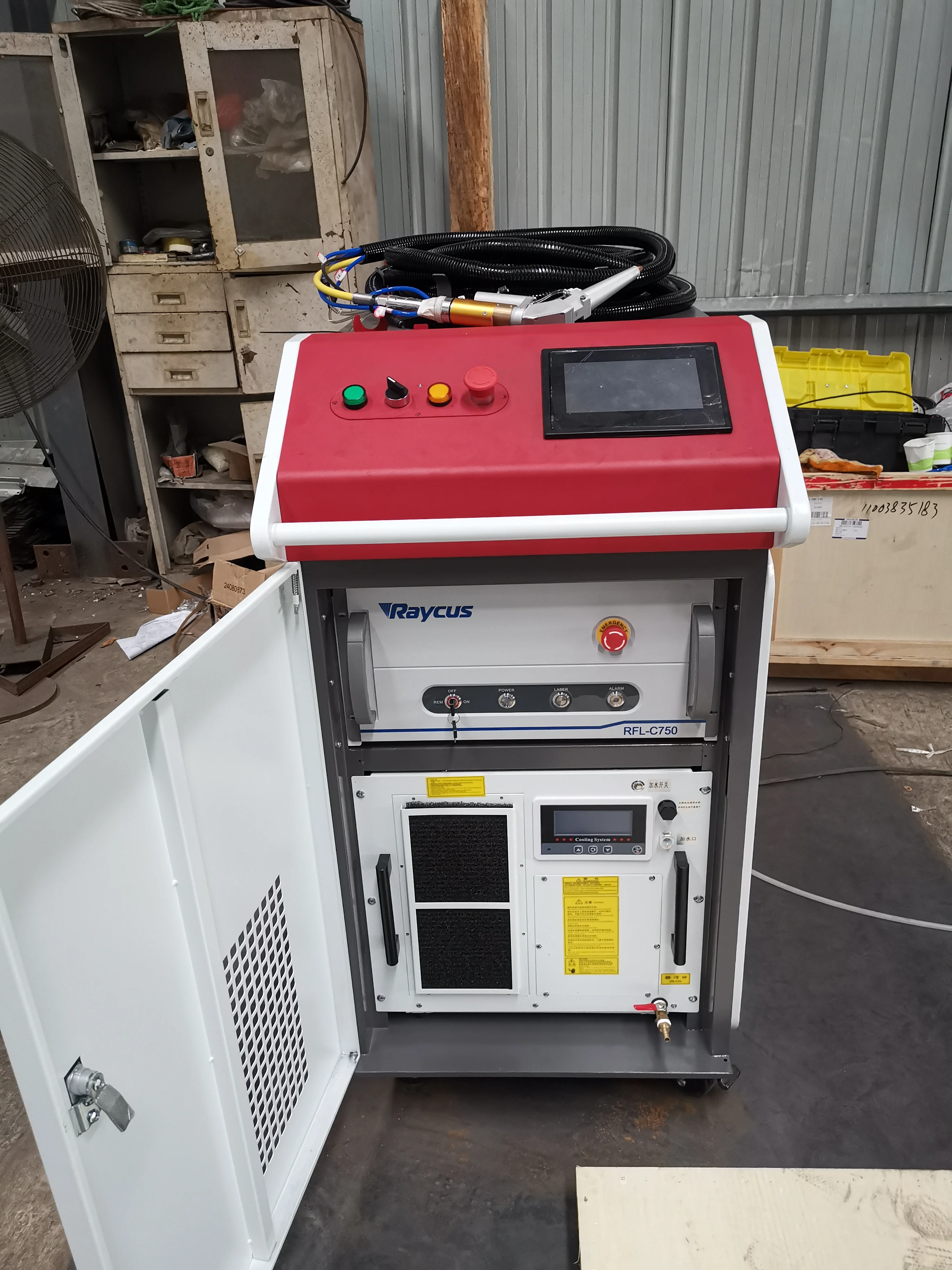

4.Product details

Laser source

The single module CW Fiber Lasers product is completely researched,developed and produced by Raycus independently. Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can  meet diversified demands of customers to the greatest extent,but also provide personal customization service. Now laser output connector is QBH,with multiple control modes. Its good compatibility has been widely recognized by the market. The product has been well sold domestically and abroad.

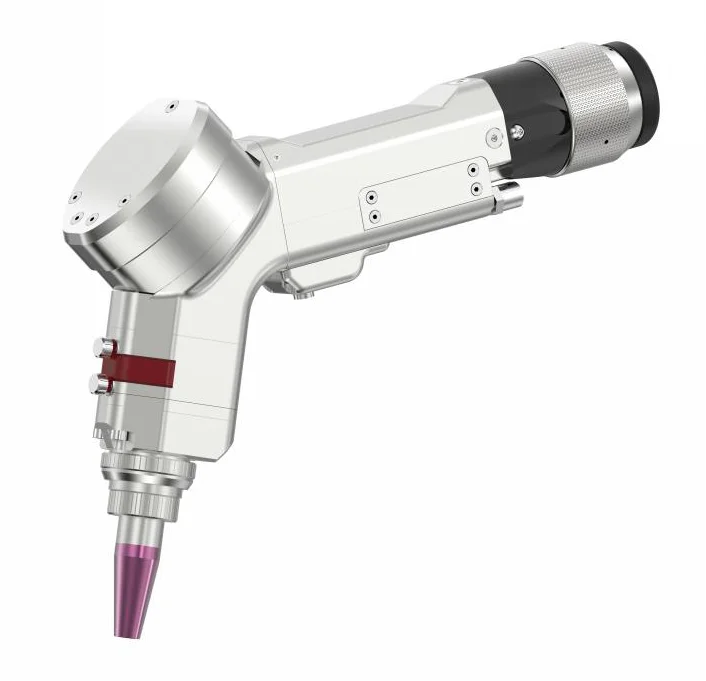

 Wobble Laser Welding Head

LHW-200S wobble laser welding head.

1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.

2.Light shape, Ergonomic design, advanced structure,And reliable performance ensure comfort grip and simple operation.

3.This head could be equipped with a variety of Angular nozzles to meet the welding needs of different products.



Technical Parameters
Interface Type	QBH
Laser Power	≤2000W
Collimation	50mm
Focusi Length	100mm
Wobble Ellipse Size	Short axis 1 mm, long axis 2 mm
Auxiliary pressure	<1.0Mpa

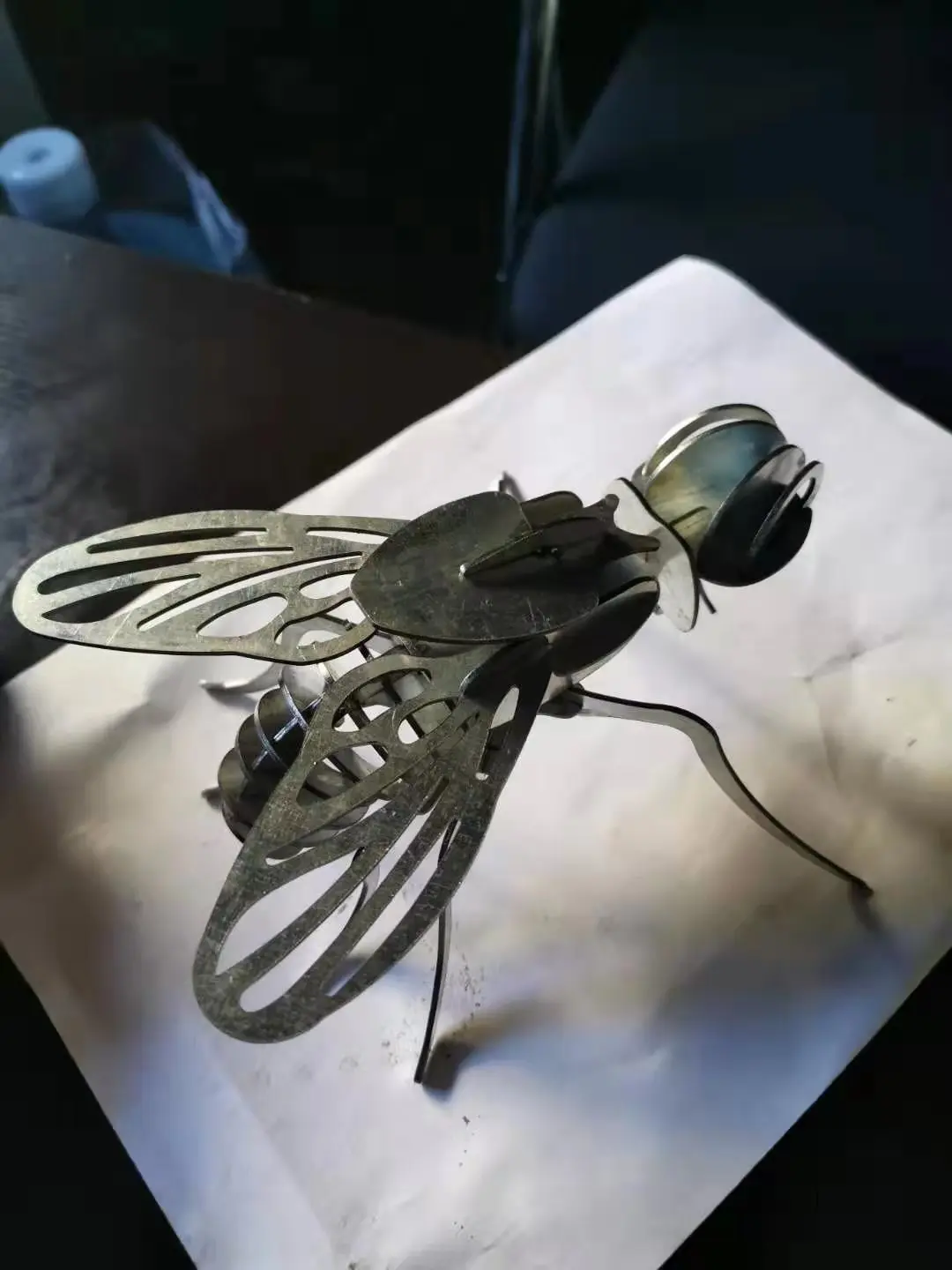

5.Welding sample





6.Warranty and service

Service after sales

A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, Skype…. for fast solution.

B. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. During training in our workshop, we offer free training and living cost for 5 days, limit 2 people.

C. We offer technician to customer site for installation and training, customer covers travel cost and local living cost.

Warranty

Laser power:  Two years warranty, Guaranteed by laser power manufacturer.

Machine table:  One year warranty, Guaranteed by Lonwill.
