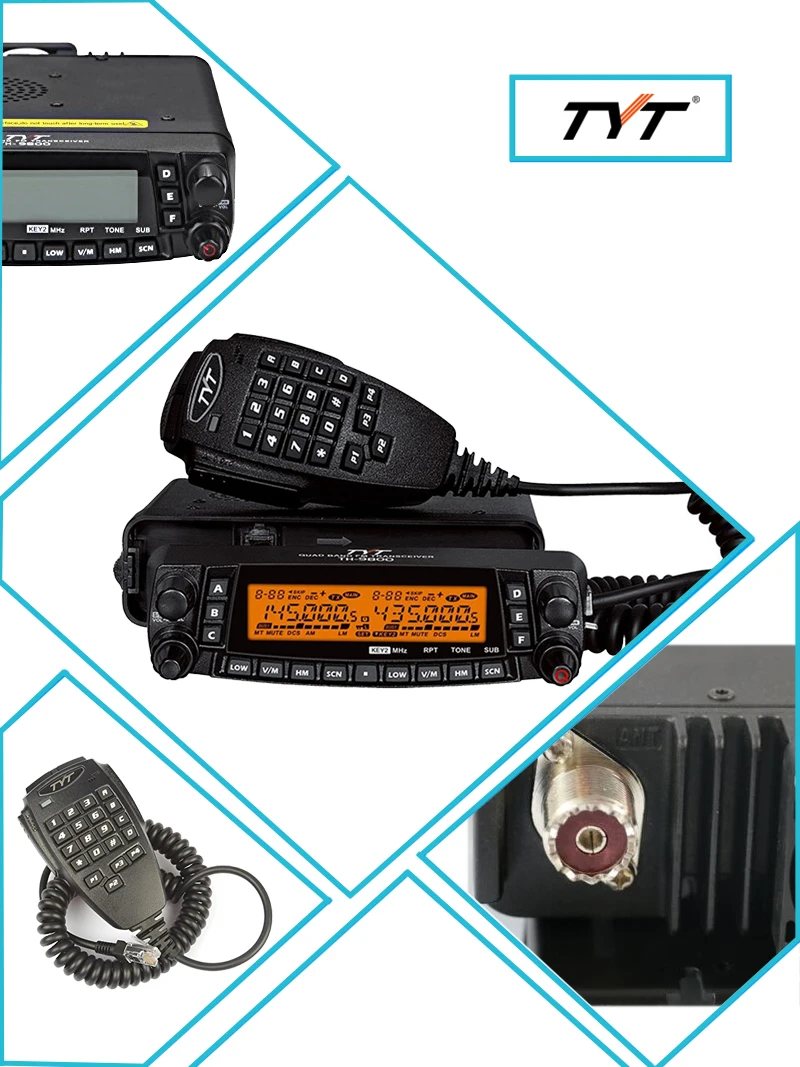

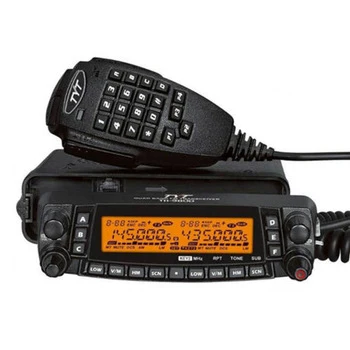

TYT Quad Band Мобильный трансивер автомобильная радиостанция TH-9800 диапазона квада 29/50/144/430 МГц 50 Вт иди и болтай Walkie Talkie “иди woki токи 2 тон/5
- Категория: Портативная рация >>>
- Поставщик: Fujian,Quanzhou,Qunyi,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 207.61 $* | 211.62 $* |
| Jul-18-2025 | 168.26 $* | 171.3 $* |
| Jun-18-2025 | 204.61 $* | 208.81 $* |
| May-18-2025 | 202.42 $* | 206.68 $* |
| Apr-18-2025 | 161.21 $* | 164.96 $* |
| Mar-18-2025 | 199.7 $* | 203.53 $* |
| Feb-18-2025 | 197.38 $* | 201.21 $* |
| Jan-18-2025 | 196.51 $* | 200.44 $* |
Характеристики
General | |||
Frequency range | Left Band | Right Band | |
RX | 26.000-33.000MHz, 47.000-54.000MHz, 108.000-180.000MHz, 320.000-512.000MHz 750.000-950.000MHz(except cell phone) | 134.000-180.000MHz, 400.000-512.000MHz | |
TX | 26.000-33.000MHz, 47.000-54.000MHz 134.000-174.000MHz, 400.000-480.000MHz | 134.000-174.000MHz, 400.000-480.000MHz | |
Modulation mode | F3E(FM) | ||
Antenna impedance | 50Ω | ||
Channel steps | 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz | ||
Rated voltage | 13.8V DC ±15% | ||
Operating Temperature | -20°C ~ + 60°C | ||
Frequency stability | 5ppm | ||
Current Consumption | RX:0.5A(Squelched) TX:8.5A | ||
Weight | 1.2kg | ||
Transmitting | ||||
Output power | 50/20/10/5W(29/50/144MHz) | |||
40/20/10/5W(430MHz) | ||||
Maximum Deviation | ±5KHz | |||
Suprious Radiation | <-60dB(29MHz:<-50dB) | |||
Modulation distortion | <3% | |||
Microphone Impedance | 2kΩ | |||
Receiving | ||||
Intermediate Frequencies | 49.95KHz/450KHz(Left band) | 38.85KHz/450KHz(Right band) | ||
Sensitivity(for 12dB SINAD) | <0.2μV | |||
Squelch Selectivity | <0.6μV | |||
Selective | 12KHz/30KHz | |||
Maximum AF Output | 2W @ 8Ω for 5%THD | |||
