Комплект зажигания мотоцикла блок постоянного тока для YAMAHA BWS 125 CYGNUS X125 4C61 YW125X 24P CC запасные части и

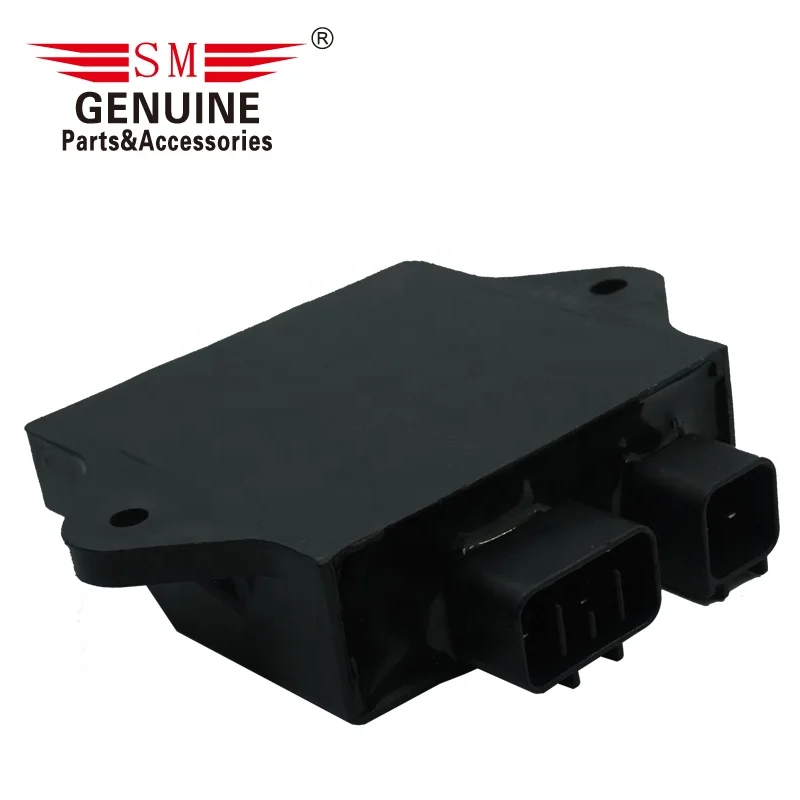

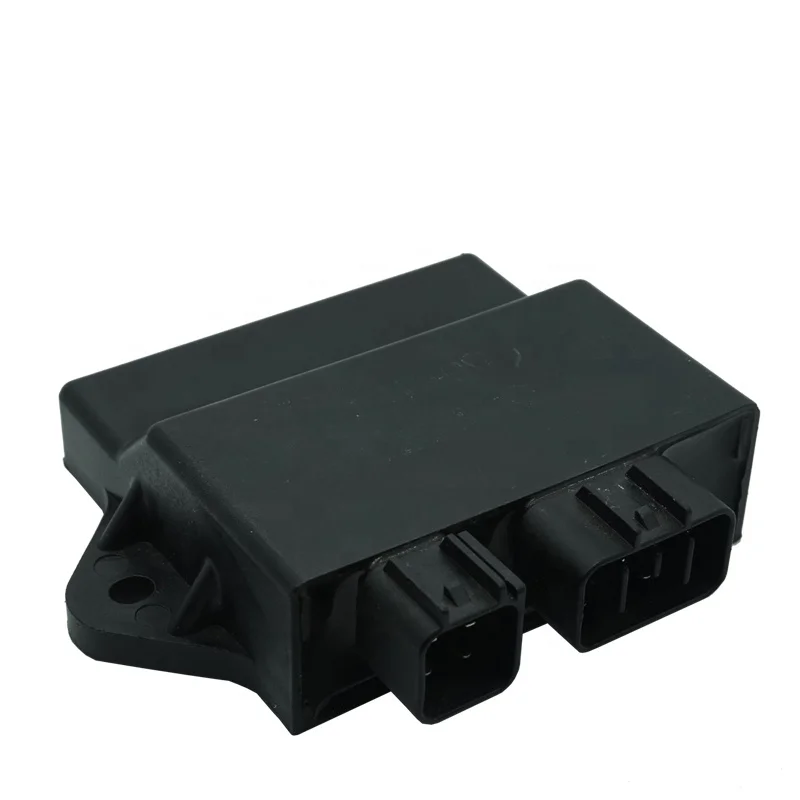

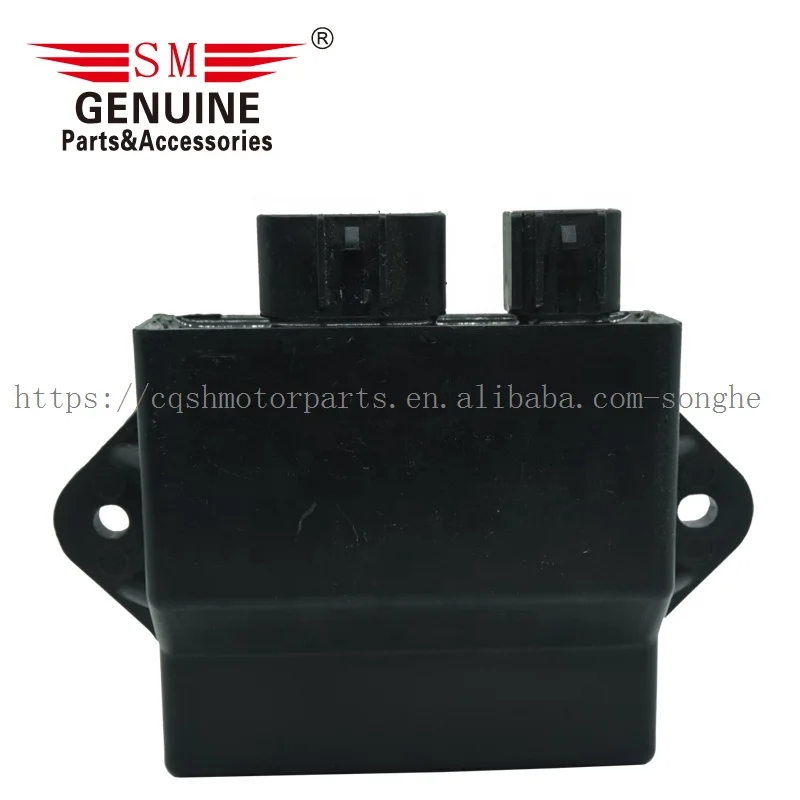

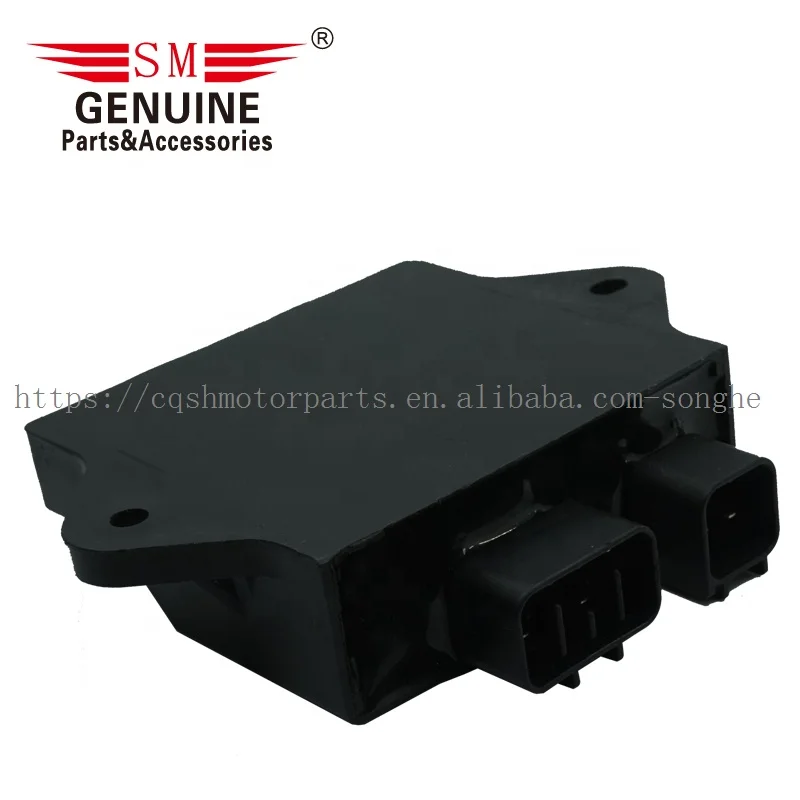

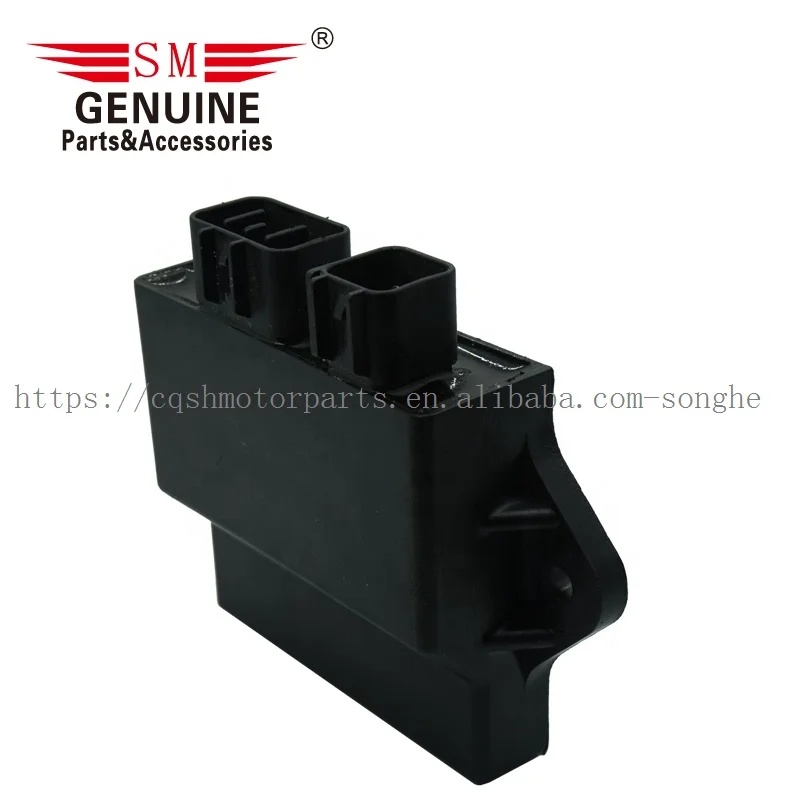

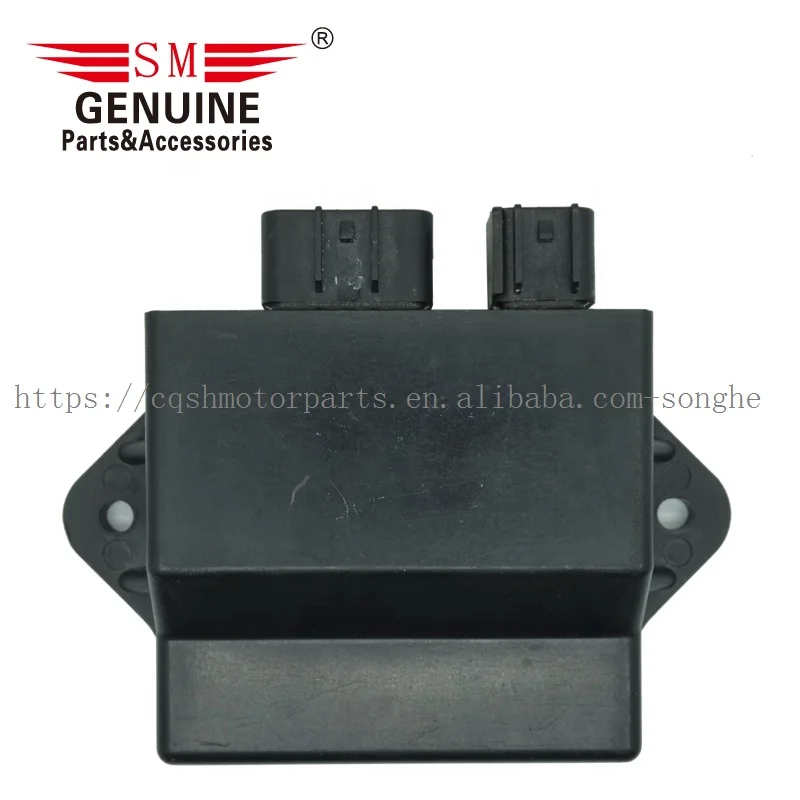

Motorcycle IGNITION KIT UNIDAD DE CDI UNIT for YAMAHA BWS 125 CYGNUS X125 4C61 YW125X 24P CC spare parts and accessories

 Technical requirements

1, The ignition characteristics:
--DC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤200r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤200r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Into the corner speed: 2000±200r/min (15±1.5°);
--End angle, speed: 3800±200r/min (36±1.5°);
--Ignition advance angle: 21°±1.5°;
--Turn off the SW end of the ground, ignition should turn off;
3,Appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
