Светодиодная лента ws2811 5 В 12


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.38 $* 0.35 $*
Aug-18-2025 0.11 $* 0.32 $*
Jul-18-2025 0.75 $* 0.55 $*
Jun-18-2025 0.75 $* 0.23 $*
May-18-2025 0.24 $* 0.92 $*
Apr-18-2025 0.68 $* 0.66 $*
Mar-18-2025 0.32 $* 0.5 $*
Feb-18-2025 0.80 $* 0.36 $*
Jan-18-2025 0.54 $* 0.35 $*

Характеристики



Product Description


LED Strip Data Sheet


Number
LED Quantity
Pixel Quantity
Volt
PCB Width
Power
IC Type
Color
HY-5050-60
60 LEDs/m
20 Pixels/m
12V
10mm
14.4W/M
WS2811
RGB
HY-5050-60
60 LEDs/m
10 Pixels/m
24V
12mm
14.4W/M
SM16703
RGB
HY-5050-30
30 LEDs/m
10 Pixels/m
12V
10mm
7.2W/M
WS2811
RGB
HY-5050-48
48 LEDs/m
16 Pixels/m
12V
10mm
12W/M
WS2811
RGB


Control Way
External Pixel Controller
Signal Protocal
SPI
PCB Color
Whte , Black  (Optional)
Cuttable
12V with 3 LEDs per cut
24V with 6 LEDS per cut
Strip Default Length
(16.4ft ) 5 Meters per reel
3 Wire JST SM Connector and power lead wire on both end
Emitting Colour
RGB Full colors,Every Pixels individual control
Waterproof Grade
IP20 Non-waterproof,with Double adhesive 3M Tape on backside
IP65:glue coating surface,  with Double adhesive 3M Tape on backside
IP65 Indoor Use
IP66 waterproof:strip inside Soft silicone tube
IP68 waterproof:strip inside Soft silicone tube+silicone glue filled in  tube
View Angle
120°
Product Warranty
2 Years
Life Time
> 50000 Hours

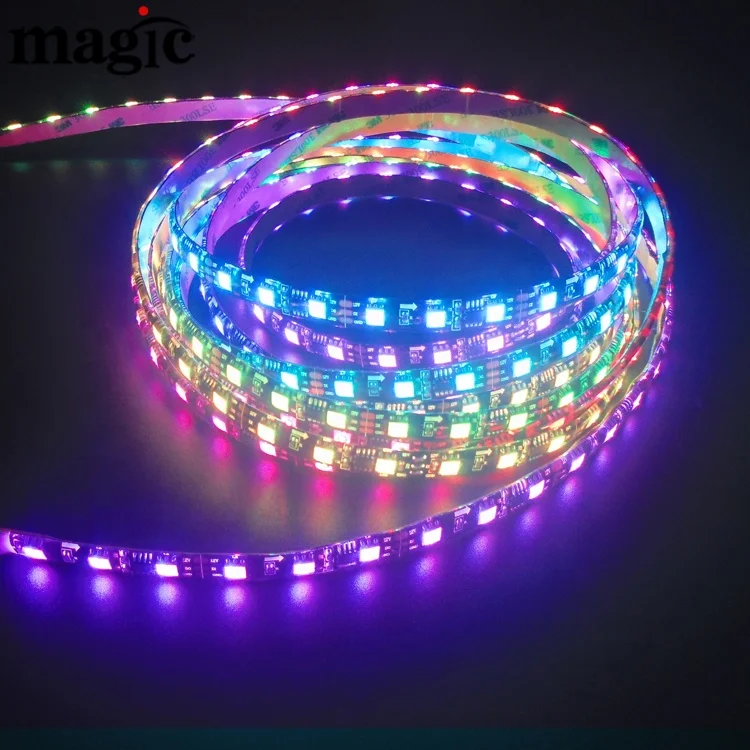

Digital (Magic / Dream Color) LED Strip with addressable LEDs can be used for advanced light effects like rainbow, chasing lights, or custom light programs.

1.Using the flexible FPC as the base material, FPC is conductive, fast heat dissipation,

 2.can achieve a variety of animation
effects by the controller programming

3.Low voltage power supply, more secure

4. can be cut along cut mark without damaging the strip

5.Every Pixel Can be separately control

6.Both end with 3pin Cable connector


Digital LED strips are sometimes also sold as Magic or Dream LED strips.

Using digital LED Strips you can create advanced light effects. Thanks to the individually controlled LEDs it is possible to create spectacular light effects such as rainbow, chasing lights and much more.

It requires the use of an Digital Controller, On our website you will also find controllers with built in effects  or programmable controller with software that you can program yourself. You can use these controllers to create your own light programs! You can also connect digital LED strips to your own controller.

Our digital LED strips have the IC 1903 / SM16703, or WS2811 (optional), which is the most typical type of digital LED strip IC.


Digital LED strips have a variety of special applications, the most simple of which are chasing lights or rainbow. However, it is also possible to place many LED strips side by side to create a matrix of LEDs. You can project graphics or video on such a matrix. For such applications you will need a special digital controller with software  . Using this controller, it is possible to define where exactly each LED strip is placed, and then graphics or video can be projected over the array of LED strips.



Detailed Images














Installation Instructions






Company Profile


Shenzhen Magic LED Lighting Co.,Ltd. was founded in 2014 ,it is an excellent Enterprise and Specialize in High Quality Led Strip lighting products with more than 7 years experience and holds strong R&D and Manufacturing Capacity

Our company has 1,000sqm plant and with strong engineering capability,high quality management and advanced productions equipment, such as 4pcs High Speed SMT Machine, 4PCS Reflow oven and others test machine.

Our products win great success throughout the world, mainly in Europe, South Africa, North America and Australia. We guarantee our products comply with international quality standards with CE ROHS approved.

We accept :Custom design,Custom size, OEM and ODM
We focus on High quality products






Certifications






Customer Reviews




Our Services

1.Your inquiry related to our products or prices will be replied within 24 hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.

4.Distributorship is offered for your unique design and some of our current models.

5.Protection of your sales area, ideas of design and all your private information.



Why Choose Us

1). Advanced machinery, well trained workers.

2).6years experience in LED lighting industry.

3).Unique designed, good quality, competitive price.

4).Full range of indoor and outdoor LED lighting solution.Zero improper after sales service if any quality issue happened.



Packing & Delivery


Package
1. 5 meters per reel in one spool,packaged in Anti-static Bag,stick label on bag
2. Customized packing




Delivery

1. FedEx/DHL/UPS/TNT  Express, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
