FILO Factory Storage Pallet Drive In Rack
Product Description
Description:
Jracking Drive-in rack or drive-through (sometimes spelled Drive-thru)is designed for storing a large number of similar goods (pallets). Pallets are placed on the supporting rails, which makes possible the high-density storage. The rack system is the most ideal for expensive storage space like cold storage warehouses.
Drive-in & through rack Advantages:
1. Suitable for small variety but large quantity stored products, especially for standard goods;
2. Very high utility ratio of the warehouse;
3. Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another;
4. Forklifts operation alongside the aisle;
5. First-in-last-out access process, one side in/out or two side in/out can be met.
6. Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
7. First level pallets can be placed on the floor;
8. Surface treatment: powder painting;
9. Different size available
Drive-In & Drive-Through Racks offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Racking can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.

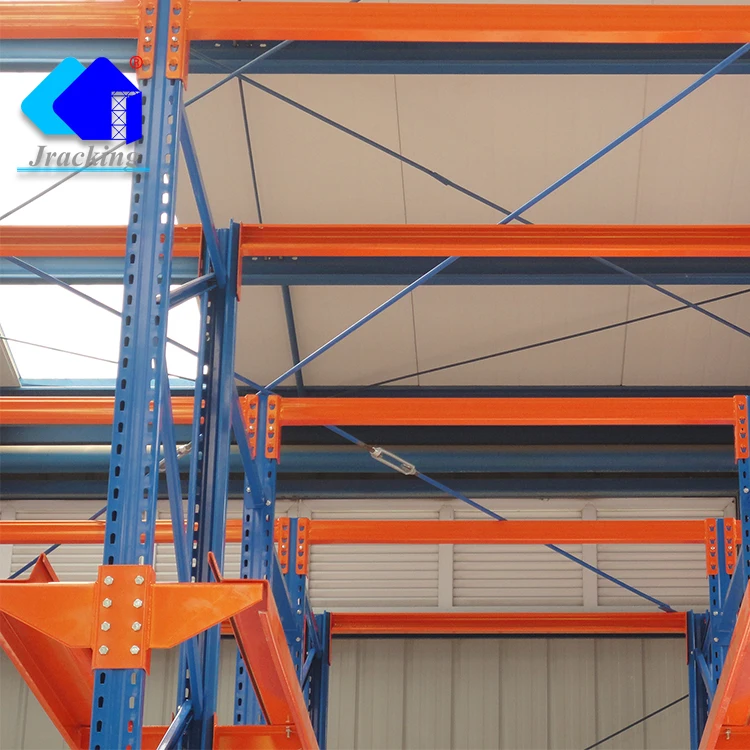

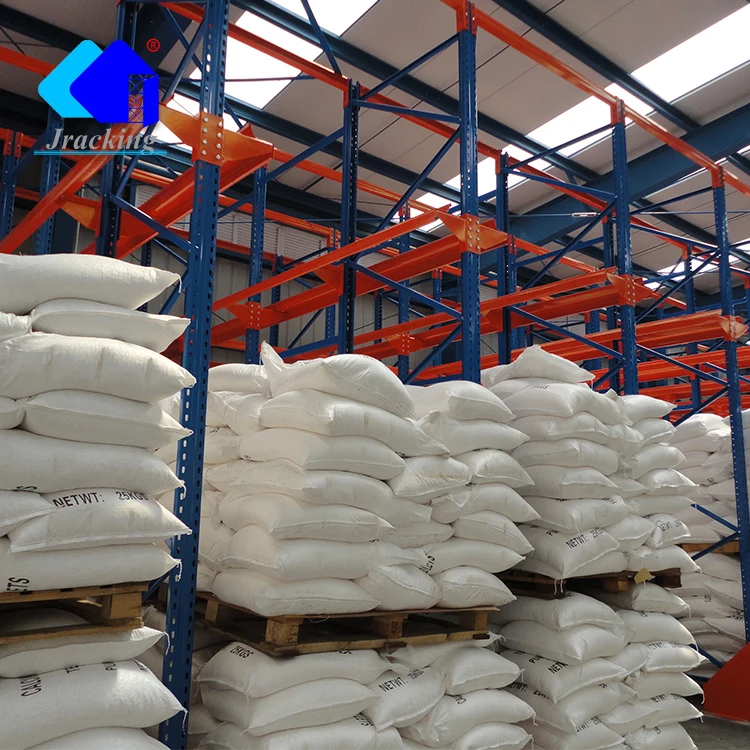

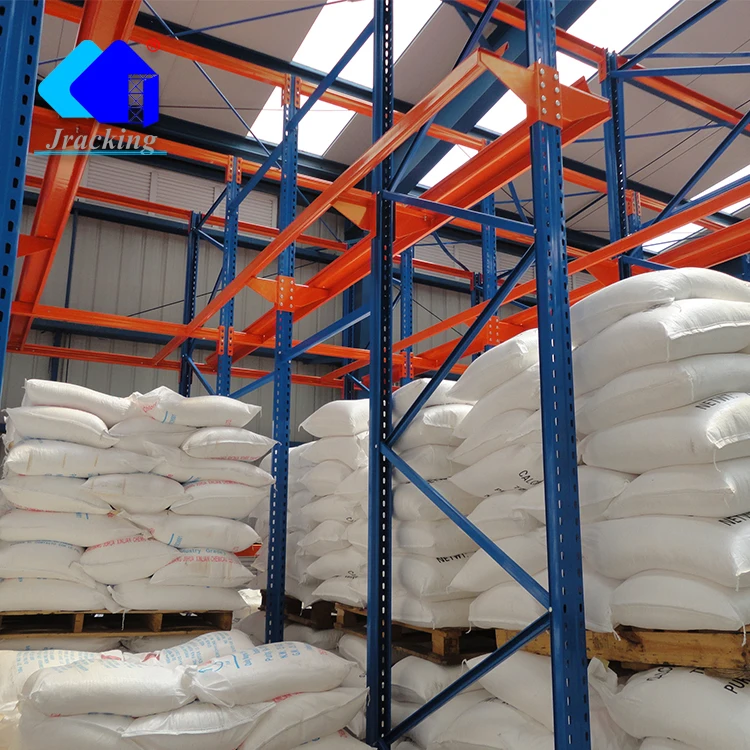

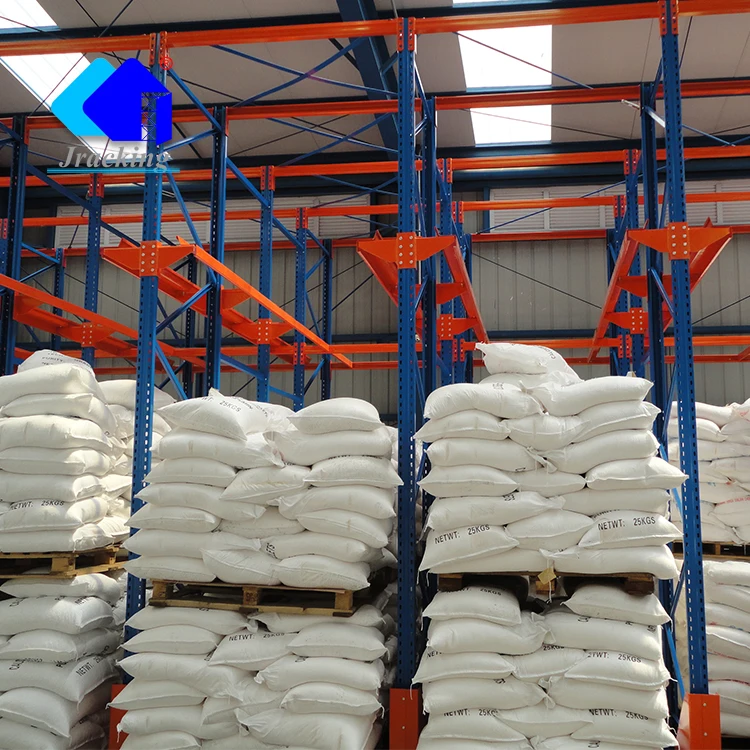

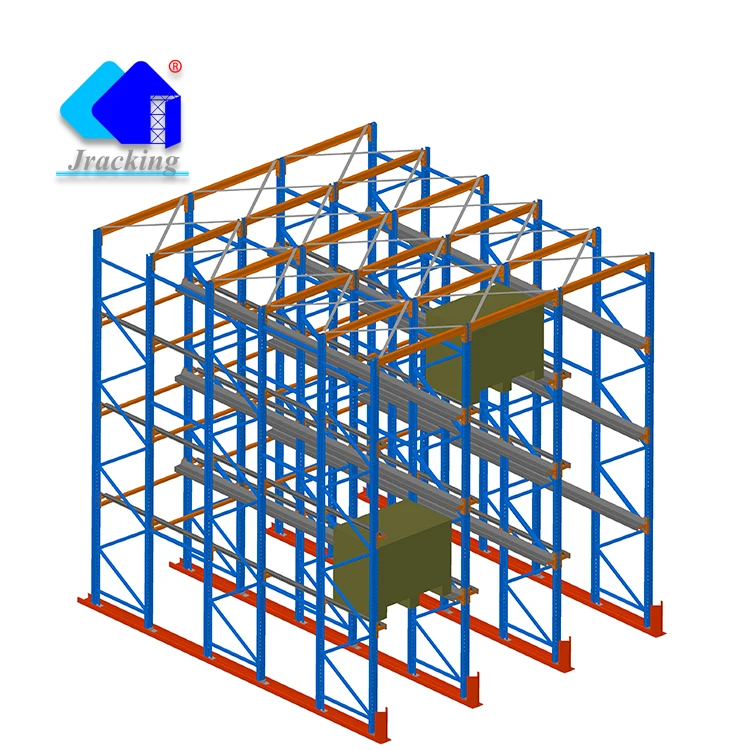

Drive-in & through rack Shows:
Loading Chart of frame:
Size(mm) | Steel thickness(mm) | Frame loading(kgs) |
85x70(Standard Duty) | 1.8 | 8,000 |
2.0 | 10,000 | |
2.3 | 12,000 | |
100x70(Heavy Duty) | 2.0 | 12,000 |
2.3 | 14,000 | |
2.5 | 16,000 | |
120x95(Extra Heavy Duty) | 2.5 | 18,000 |
2.75 | 21,000 |
Please inform us of the following information for quick quotation
1. | Drawing (if available) |
2. | Size of your warehouse |
3. | Size of racking (H*W*L) |
4. | How levels of the racking? |
5. | Loading capacity of each level? |
6. | (RAL) Color you want. |
Accessories:
Certifications:
Our Markets:
If you are in our products, contact us please.
Packaging & Shipping
Packaging and Loading:
Company Information
Our Factories:
The old factory covers an area of 24000 square meters. The new factory covers an area of 31000 square meters. The advanced automatic production facilities for the cold profiling of metals enable us to achieve high level in racking industry. Rigorous tests are implemented on raw materials, half finished and finished products, which ensure us a continuous evolution of efficiency and quality standards.
FAQ
Q1: what quality level about your products?
A: Our products have passed the cetification of CE,ISO9001:2008,FEM10.2.09,AS4084-2012,RMI2002 and every piece of our products here is checked with three steps by the QC workers . We promise that the materia and the process of the products meet the standards.
Q2: What about the service of your products?
A: We consider the issues on the customers view, and we do the best to serve our customers' demands. We can provide you the pictures of the products in the production process, and if you have any problems our sales team can handle it asap
