Новый ес центробежный вентилятор с загнутыми назад лопатками радиальный пластиковые ресторан AC машин мастерскими по ремонту 2 лет завод производству
- Категория: Центробежные вентиляторы >>>
- Поставщик: Shanghai,Anneng,Fan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 55.9 $* | 56.72 $* |
| Jul-16-2025 | 44.19 $* | 45.45 $* |
| Jun-16-2025 | 54.17 $* | 55.58 $* |
| May-16-2025 | 53.30 $* | 54.23 $* |
| Apr-16-2025 | 43.97 $* | 44.97 $* |
| Mar-16-2025 | 52.27 $* | 53.96 $* |
| Feb-16-2025 | 52.70 $* | 53.98 $* |
| Jan-16-2025 | 52.38 $* | 53.89 $* |
Характеристики
Type: R3G225-H050-01B

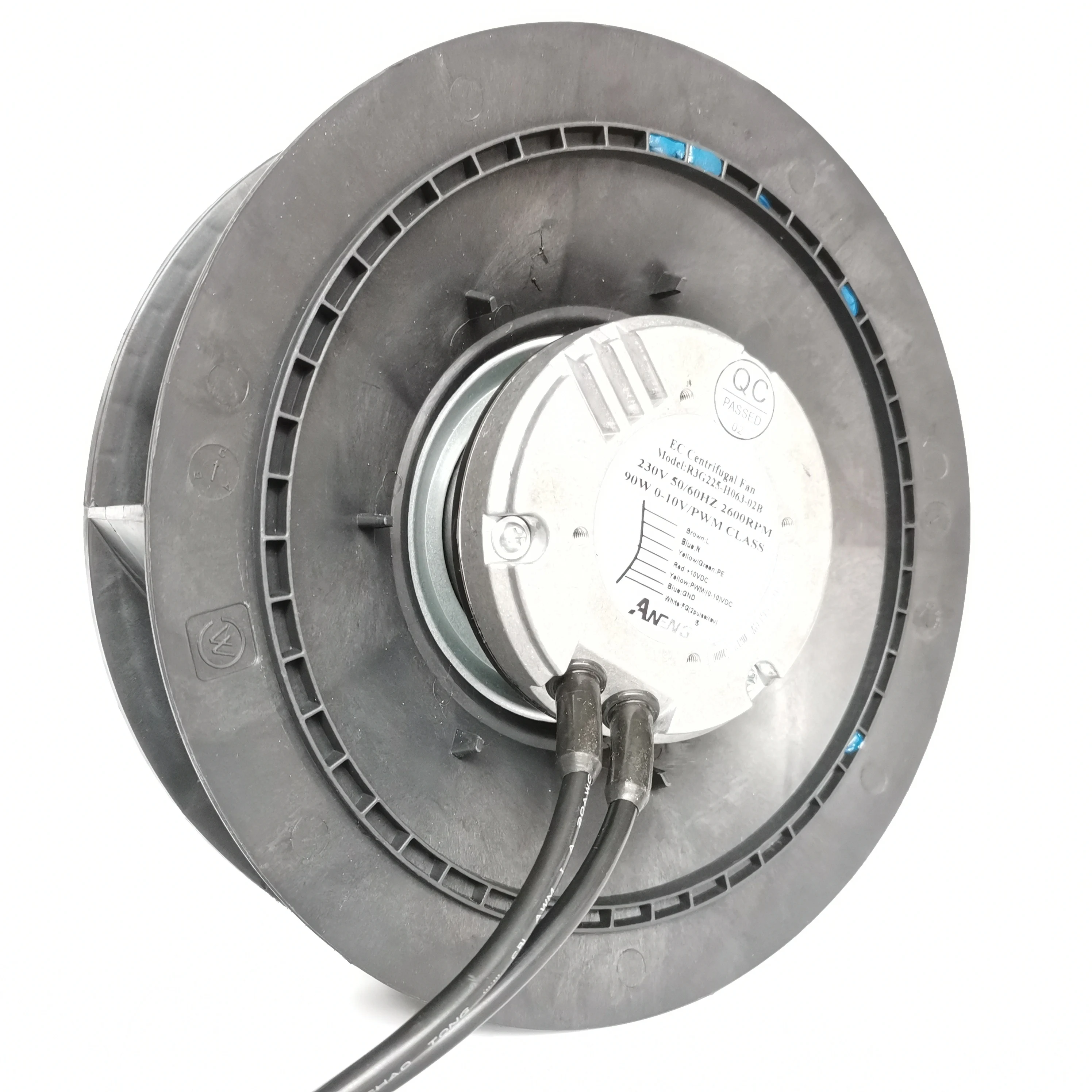

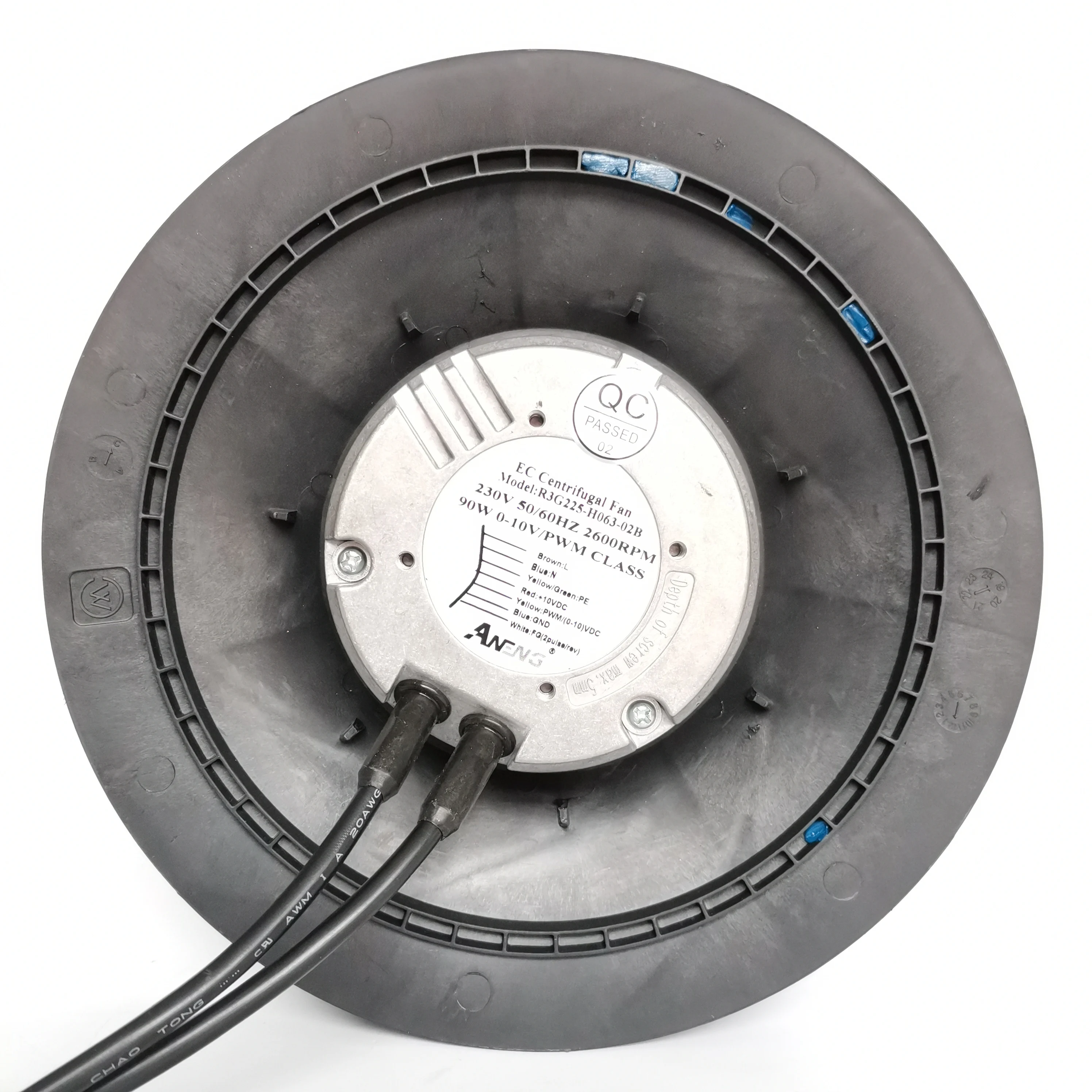

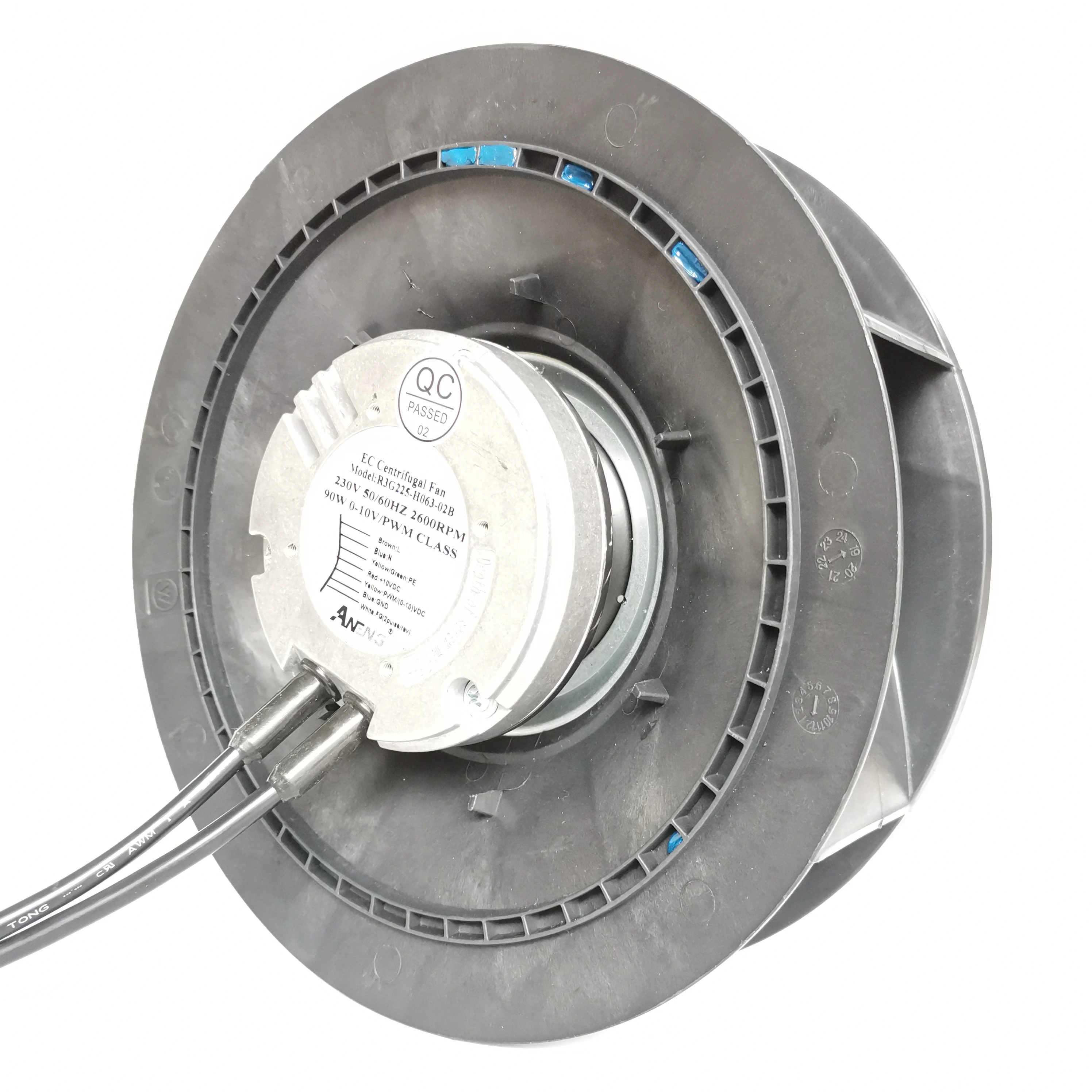

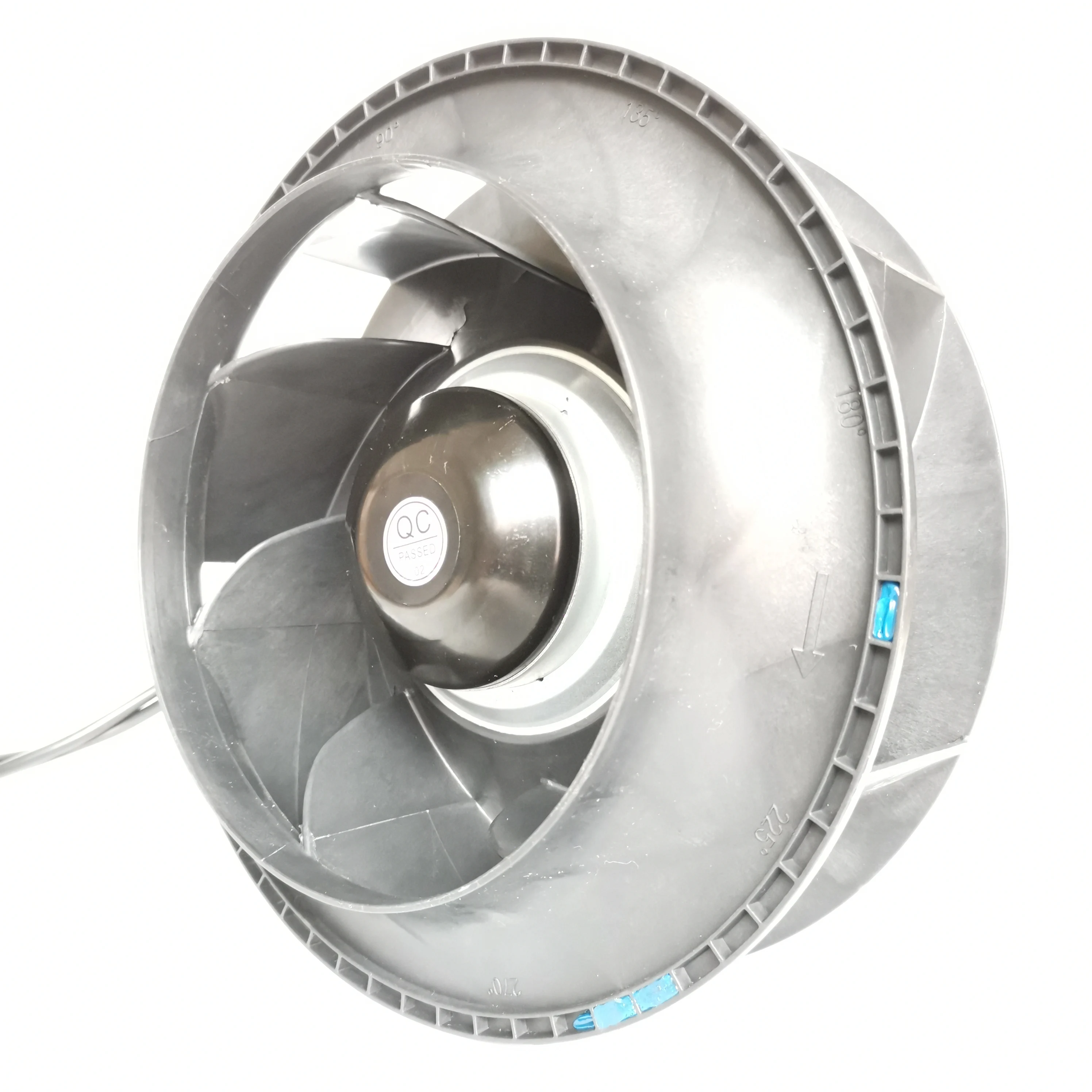

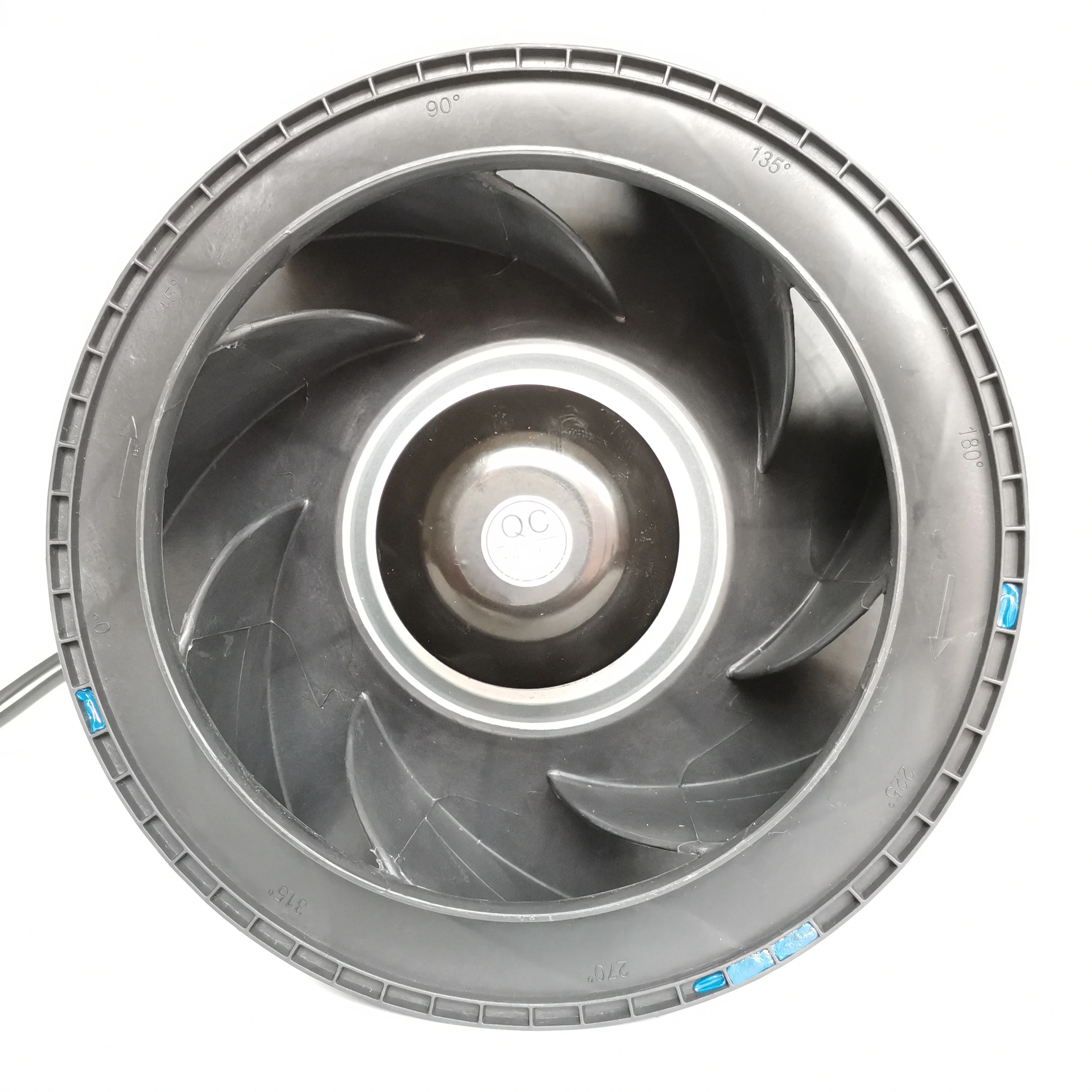

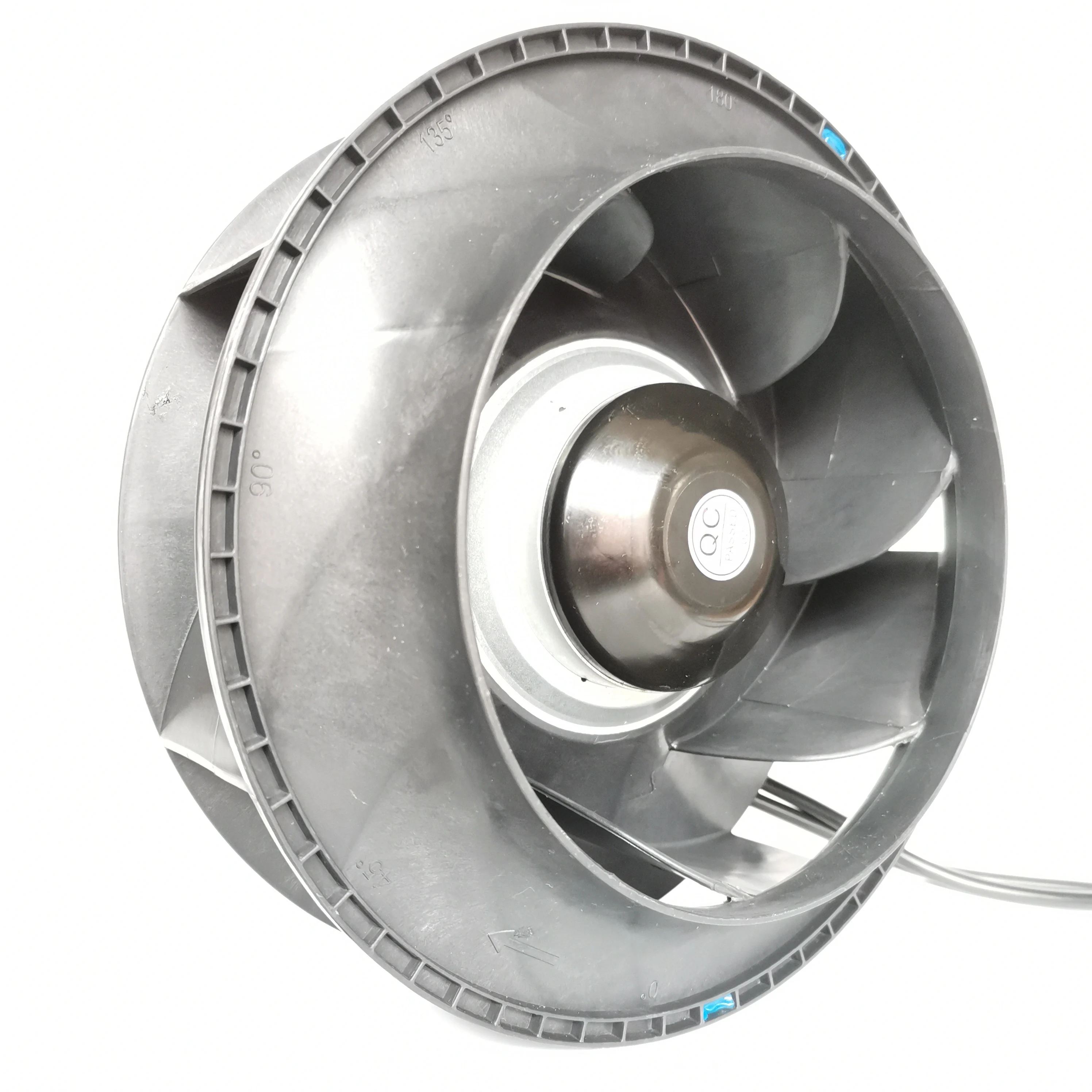

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
| Specification | |||||||
| Model Type: R3G225-H050-01B / Motor Type: 72mm 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 220 | 50/60 | 1.0 | 124 | 2700 | 664 | 1130 | 580 |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "B" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 2.0kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "7" | ||||||
| Type of Protection | IP55 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||
specification
Factory Display
Production Line
  |
Packaging
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
 |
Certifications
 |
Our Guarantees
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
