Two Years Free Update Online Multi-Lainguage Launch X431 Pro Mini

Top 4 reasons to get Launch X431 Pro Mini
1.THE WORLD SUPERIOR X-431:
LAUNCH X431 PRO MINI is a highly-portable, drop-tested and waterproof Android-based scan tool tablet with a 6.9" ultra-high resolution IPS touchscreen and an eight-hour battery life;

Full system diagnosis is through a Class-1 connector for optimum wireless connectivity

2.EXTENSIVE VEHICLE COVERAGE + MULTI-LANGUAGE:
Launch X431 Pro Mini Diagnostic Tool supports all electric controlling system of EFI vehicles that covers Ma-rtha Laht-i, Ferr-ari, Rol-ls-Roy-ce, B-en-tley, M-rced-es Be-nz, B-M-W, Au-di etc up to 150 car brands, up to 10000 car models .

MULTI-LANGUAGE :English, Arabic,Polish, German, Russian, French, Finnish, Dutch, Czech, Portuguese, Spanish, Hungarian, Italian, Japanese, Swedish, Turkish, Greek, Denish, Korea can be chosen for this product.

3.POWERFUL SPECIAL FUNCTIONS:
SRS;ABS Bleeding;DPF Regeneration;Oil Reset Service;RESETGEAR;Battery Match;RESETIMMO;THROTTLE RESET;Brake Reset;TPMS;Steering Angle Calibration;Injection Reset; Electronic Parking Brake Reset,etc.which is very suitable for garage and mechanics.

4.REMOTE DIAGNOSIS:
Configures X-431 PRO MINI as an I/M (Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently. You can diagnose cars anywhere!Save time and make your job easier!
Launch X431 PRO MINI Description:

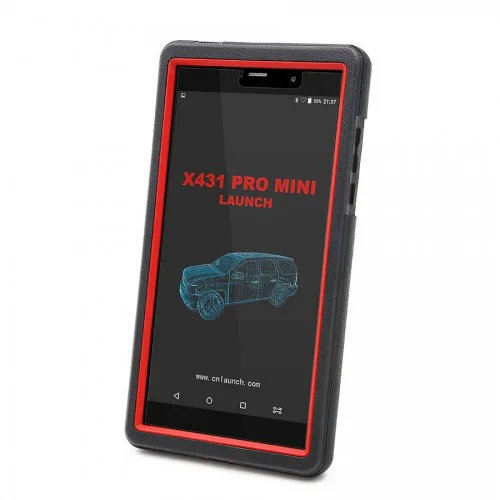

X-431 PRO MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the simple communication between the VCI module and X-431 PRO MINI, it achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream,Actuation Test and Special Functions.
Moreover, it supports Wi-Fi connection, which enables you surf the Internet,update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.

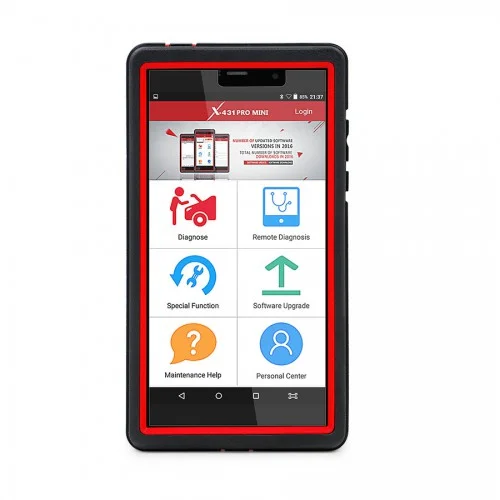

X-431 PRO MINI Features
1. Diagnostic Tool:
A. Diagnose
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions etc.

Specially designed for Android platform with clear and user-friendly interface.

Via , it is simple for the VCI module to communicate with X-431 PRO MINI.

Equipped with an exclusive X-431 PRO MINI protective sleeve to prevent it from being damaged.

B. One-click Update: Lets you update your diagnostic software more efficiently. To obtain better function and update service, advise you update the software regularly.
C. Repair Data: provides abundant automotive handbook, repair case and wiring diagrams for reference and retrieval.
D. Remote Diagnosis: configures X-431 PRO MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

2. Browser: built-in Wi-Fi module makes surfing on the internet freely.

3. Email: allows you to send and receive emails.

4. Settings: to configure your personalized X-431 PRO MINI through it.

5. Applications: other android based applications can be customized to install or uninstall.

6. Special functions:

Launch X-431 PRO MINI can program and code the electronic control system of prevailing vehicle models, also perform special functions, including:
Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
Gear Learning
Immobilizer Matching
Fuel Injector Coding

7. Wide Vehicle Coverage

X-431 PRO MINI supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models It achieves full car model and full system vehicle trouble diagnosis

8. Powerful Diagnosis: Accurate
Launch has rich experience of automotive diagnostic technology (for more than 20 years). It also develops original equipments for a vast majority of Chinese brands of automotive factories, so that X-431 PRO MINI performs diagnosis (fault code, data stream, action test and other functions) as the dealership.

9. Powerful Diagnosis: Fast
X-431 PRO MINI can perform full system diagnosis and one button to clear codes at a high speed. It’s easy to operate.

10. Data Stream record and playback
Record and playback the data stream help you analyze the trouble when driving and solve it.

11. VINSCAN
Automatic scan (OBD VIN) and manual input (INPUT VIN) are available.

12. View History
Generally once a vehicle diagnosis is performed, X-431 PRO MINI will record the every details of diagnostic process. The History function provides a quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.

13. Maintenance Help:
Including: How-to Videos, operation skills and user manual, Q&A, Quick start guide etc.

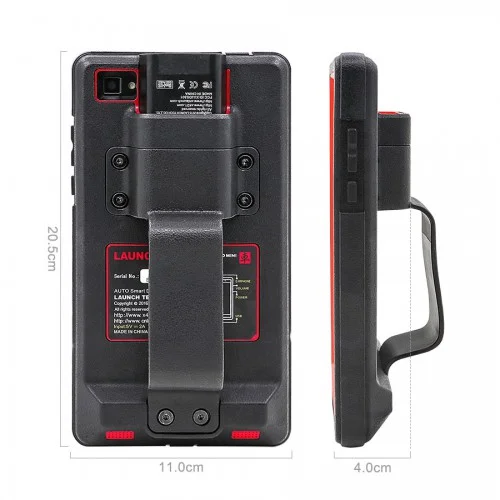

1 VCI module
2 Reset hole
3 Rear camera
4 Camera flash
5 Slot for VCI module For housing the VCI module.
6 POWER/Screen lock key In Off mode, press it to turn X-431 PRO MINI on; In On mode, turn X-431 PRO MINI off with long press or lock screen with short press.
7 Carry strap
8 Air intake vent
9 USB/Charging port To connect to the power adaptor for charging.
10 Microphone
11 LCD screen
12 VOLUME +/- Key To adjust the volume. To print the screen, hold and press the POWER and VOLUME – key until a snapshot pops up on the screen.
The captured snapshot is saved in the “Screenshots” folder.
13 Speaker
14 Front camera
15 Earphone Jack

How to Connect Launch X431 Pro Mini to Vehicle:
Preparation:
Normal testing conditions
1.Turn on the vehicle power supply.
2.Vehicle battery voltage range should be 9-14 Volts.
3.Throttle should be in a closed position.

Select the VCI module
If X-431 PRO MINI is testing vehicles equipped with universal OBD II 16 PIN diagnostic socket, please use the included VCI module. (For vehicles with
non-OBD II 16 PIN diagnostic socket, a non-16 PIN connector is required.)

DLC location
The DLC (Data Link Connector) is typically a standard 16-pin connector where diagnostic tools interface with a vehicle’s on-board control modules. The DLC is
usually located 12 inches from the center of the instrument panel, under or around the driver’s side for most vehicles. If DLC is not located under dashboard,
a label should be there telling location. For some Asian and European vehicles,the DLC is located behind the ashtray and the ashtray must be removed to
access the connector. If the DLC cannot be found, refer to the vehicle’s service manual.

Vehicle connection:
The method used to connect the VCI module to a vehicle’s DLC depends on the vehicle’s configuration as follows:
1.A vehicle equipped with an OBD II management system supplies both communication and 12V power through a standardized DLC.
2.A vehicle not equipped with an OBD II management system supplies communication through a DLC connection, and in some cases supplies 12V power through the cigarette lighter receptacle or a connection to the vehicle battery.
Follow the steps mentioned below to connect OBD II vehicle:
1. Locate vehicle’s DLC socket.
2. Plug the VCI module into the vehicle’s DLC socket (It is suggested to use the
OBD II extension cable to connect the VCI module and DLC socket.)

3. Choose one of the two ways to obtain power from:
A. Power adaptor: Connect one end of the included power adaptor to DC IN port of X-431 PRO MINI tablet, and the other end to AC outlet.
B. Internal battery pack


For non-OBDII vehicle, proceed as follows:

• 1. Locate vehicle’s DLC socket.


• 2. Select the corresponding non-16pin connector.


• 3. Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.


• 4. Connect the other end of the adaptor to the included VCI module.

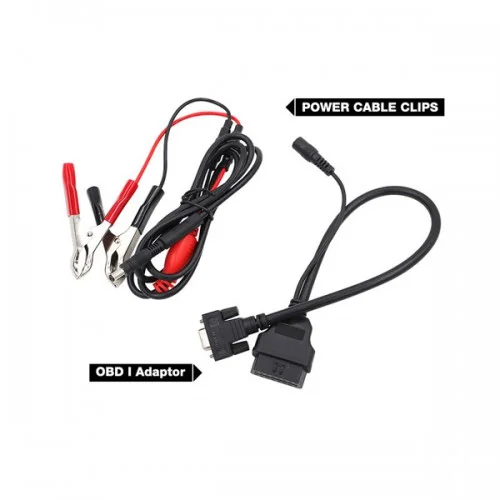

• 5. To supply power to OBD I adaptor from


• A. Cigarette Lighter cable(optional): Connect one end of the cigarette lightercable to vehicle’s cigarette lighter receptacle, and the other end to the power


• jack of OBD I adaptor.

B. Battery Clamps Cable: Connect one end of the battery clamps cable to vehicle’s battery, and the other end to the power jack of OBD I adaptor.

X-431 PRO MINI Technical Parameters:
Operating system: Android 5.1
Processor :Quad core 1.3 GHz
Memory: 2GB
Storage:16GB
LCD screen: 6.9 inch with a resolution of 1280 x 720 pixels
Camera :Front-facing 2MP camera + rear-facing 5MP camera
Battery :3.7V/3000mh rechargeable polymer lithium battery
Connectivity : Wi-Fi: WLAN 802.11b/g/n , : 4.1
Working temperature: 0℃ ~ 45℃
Storage temperature: -10℃ ~ 50℃

VCI module:
Working voltage 9 ~18V
Average working current About 85mA
Standby current About 55mA
Working temperature -10℃ ~ 55℃
Storage temperature -20℃ ~ 70℃
Relative humidity 20% ~ 90%

DBScarⅢ adapter parameters:
The brand-new DBScarⅢ adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports
CAN diagnosis also USB data transfer.
Size: 69 × 40 × 18 mm
Operating voltage: 9V DC - 18V DC
Test voltage: DC12V
Typical power consumption: ≤2W
distance: 100 m
Connectivity: + wired
Operating temperature: -10℃to 50℃
Red Indicator: Turns red when connected to power supply;
blue Indicator: Turns blue then wireless work;
USB work: Turns green when the connector is connected to the USB cable

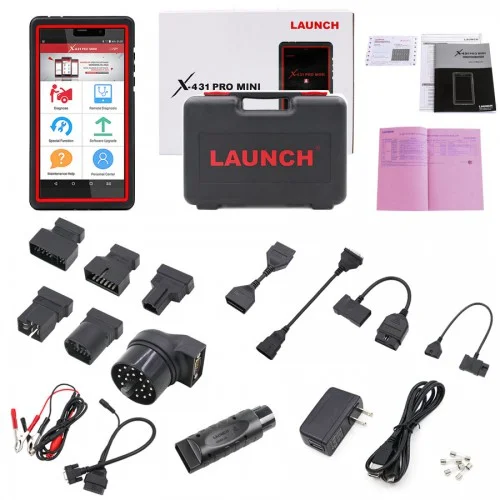

Packing List:
1pc x X-431 PRO MINI tablet
1pc x Password envelope
1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the
VCI module)
1pc x Battery clamps cable
1pc x Power adaptors
1pc x Non-16pin connectors (For connecting non-OBD II vehicle)
