Шанхай yiyou пластиковое изделие Термоформовочная Машина дизайн
US $120000-$150000
Компания Xinrong машина для производства двухслойных пластиковых гофрированных труб
- Категория: Оборудование для обработки пластика и резины >>>
- Поставщик: Jiangsu,Xinrongplas,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 116620.49 $* | 122451.70 $* |
| Aug-19-2025 | 115640.38 $* | 121422.23 $* |
| Jul-19-2025 | 97020.71 $* | 101871.34 $* |
| Jun-19-2025 | 113680.71 $* | 119364.86 $* |
| May-19-2025 | 98980.16 $* | 103929.45 $* |
| Apr-19-2025 | 111720.5 $* | 117306.27 $* |
| Mar-19-2025 | 110740.34 $* | 116277.72 $* |
| Feb-19-2025 | 109760.33 $* | 115248.88 $* |
| Jan-19-2025 | 108780.63 $* | 114219.41 $* |
Характеристики
Jiangsu Xinrongplas Machinery Co., Ltd.
Our main products are: plastic pipe extrusion line and plastic recycling machine.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
Final Products
CORRUGATED PIPE MACHINE
1) Extremely strong resistance to chemical corrosion and erosion.
2) Good flexibility and strong impact resistance
3) Cold resistance and aging resistance. The connection is simple, safe and reliable.
4) Light weight and convenient construction.
5)Strong wear resistance. The service life is more than 50 years, and it is maintenance-free during the service life.
6) Superior drainage performance. It is hygienic and can be recycled and used.
PE Pipe
PVC Pipe
PPR Pipe
Corrugated Pipe
PPR Fiberglass Pipe
Hollow Wall Winding Pipe
If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!
Products Description
Double Wall Corrugated Pipe Extrusion Line.
Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion, good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line for more than 20 years. We have the whole series of double wall corrugated pipe machine: horizontal type, vertical type and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.
Our double wall corrugated pipe extrusion line can produce from inner diameter of 63mm to 1200mm.
Our double wall corrugated pipe extrusion line can produce from inner diameter of 63mm to 1200mm.
Single Screw Extruder.
1.1 Siemens PLC
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox
barrel for other material such PP powder, etc. Provide suitable extruder for different customer requirements.
Die Head and Calibration Sleeve.
Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each
channel is after heat treatment and mirror polishing to ensure material flow smoothly. Also die head provides compressed air
between both layer.

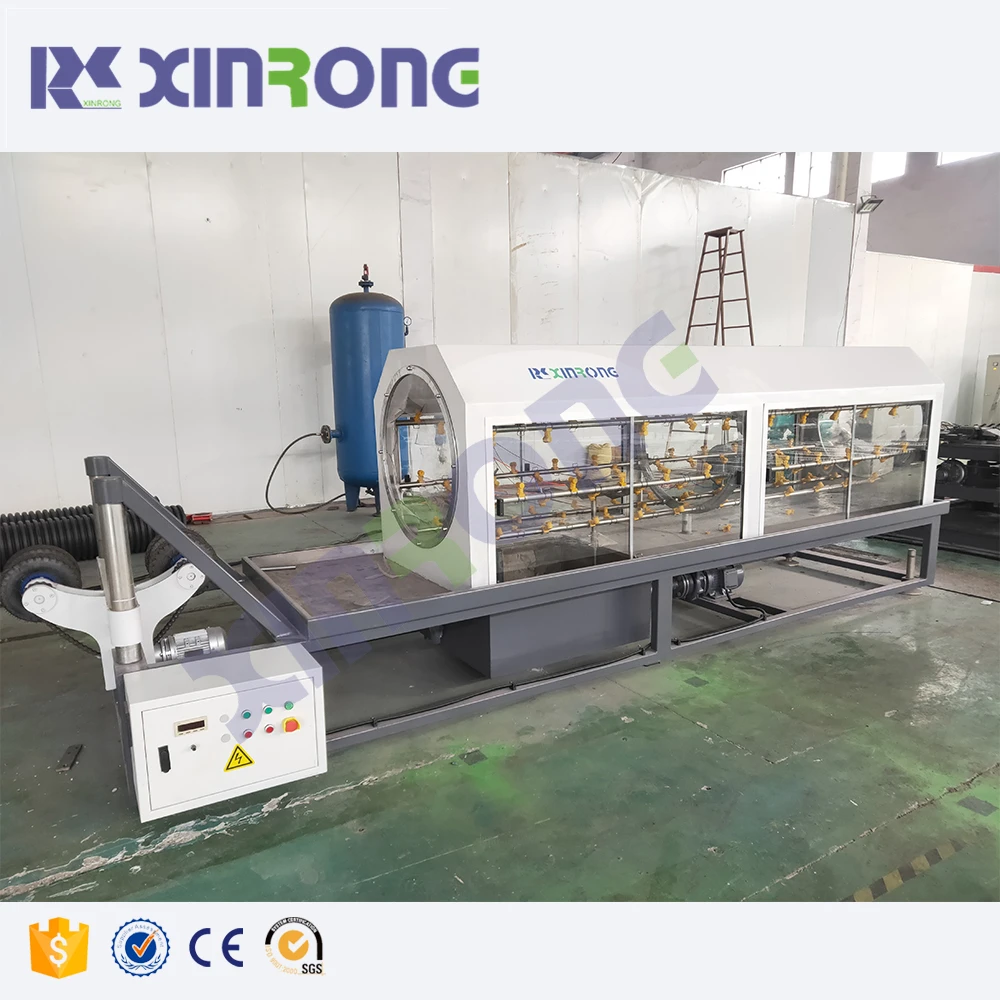

Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve
to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe
roundness.
channel is after heat treatment and mirror polishing to ensure material flow smoothly. Also die head provides compressed air
between both layer.
Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve
to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe
roundness.

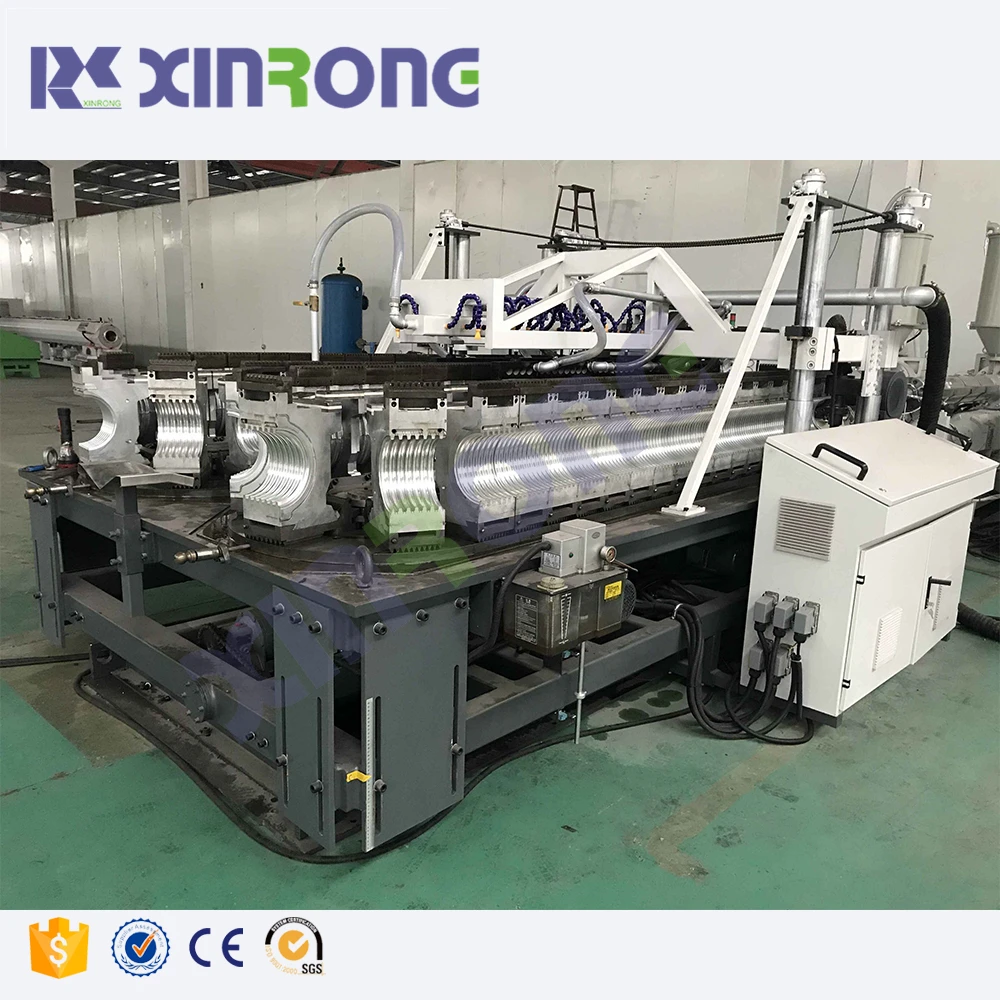

Corrugator and Corrugated Mould.
3.1 Siemens Touch Screen and PLC
3.2 Upper Adjustment System
3.3 Frame Adjustment System
3.4 Tension Adjusting System
3.5 Automatic Lubrication System
3.6 Proportional Valve
3.7 UPS Backup Power
3.8 Mould Cooling System
3.9 Transmission Gear Rack

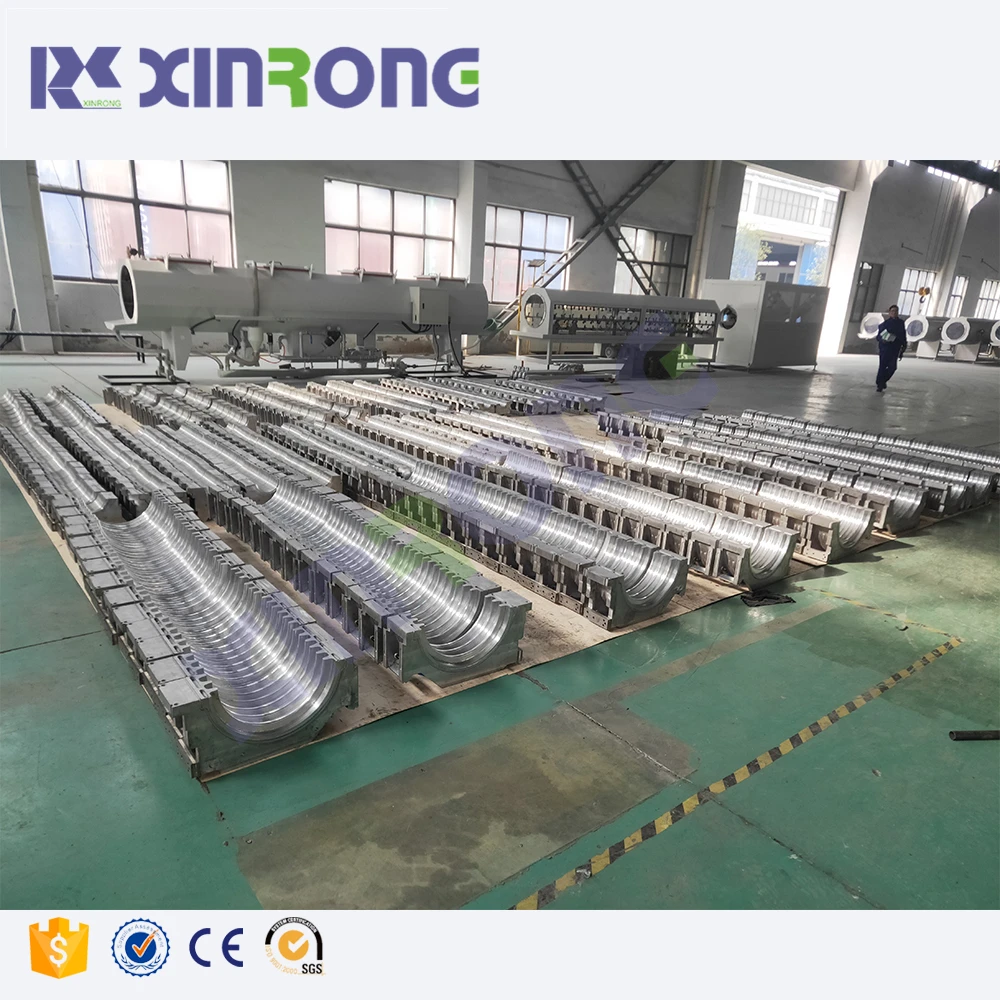

3.10 Mould tooling
Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.

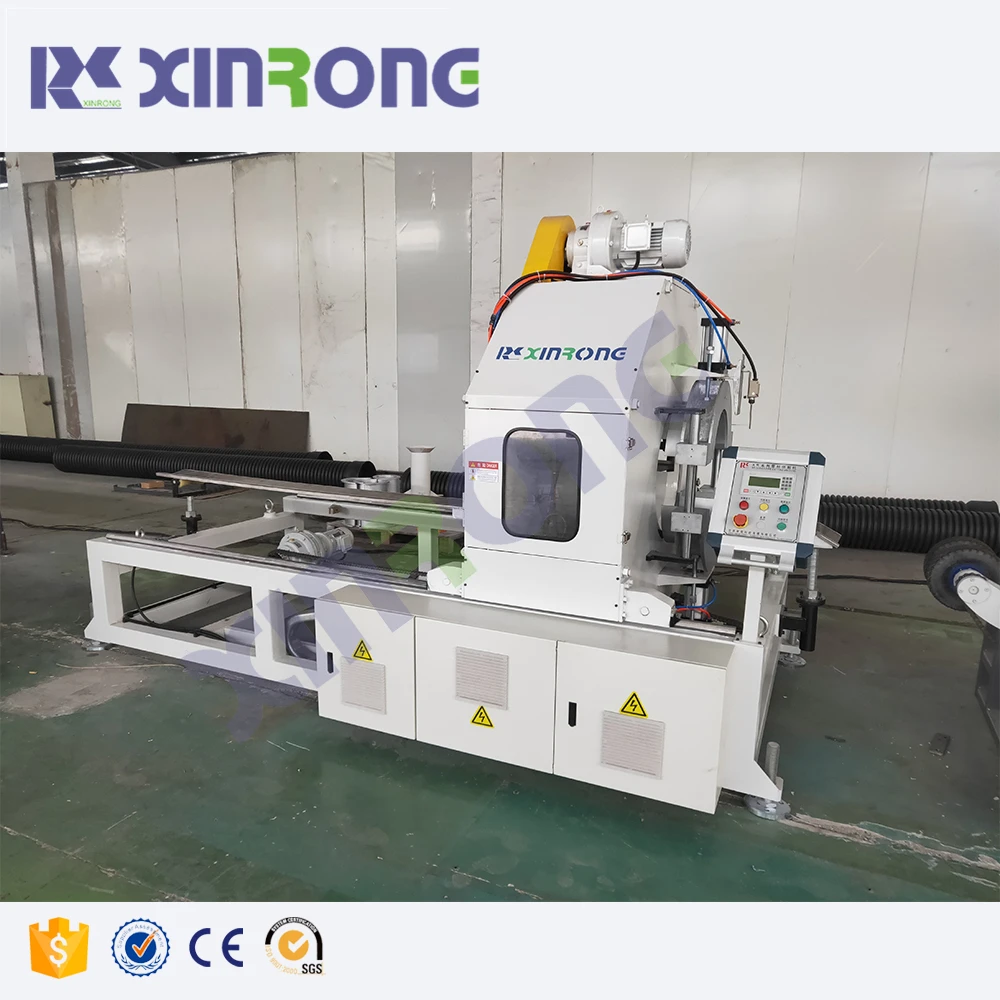

Cutter
5.1 Aluminum Clamping Device
5.2 Double Knife Cutting
5.3 Synchronization system

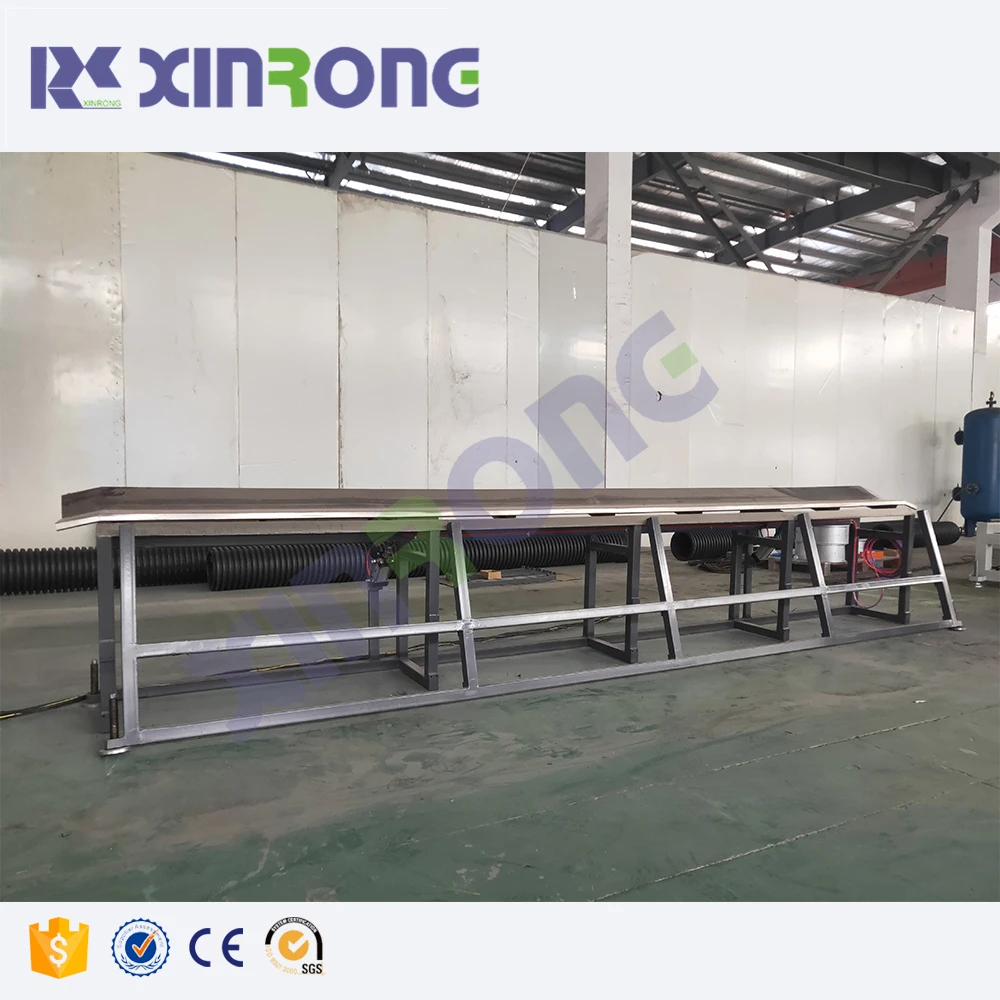

Stacker.
6.1 Pipe surface protection
Product Paramenters
Model | Pipe Range (mm) | Corrugator Type | Output Capacity (kg/h) | Main Motor Power (kw) |
WPE160 | 63 - 160 | Horizontal | 400 | 55+45 |
WPE250 | 75 - 250 | 400 - 520 | (55+45) - (75+55) | |
WPE400 | 200 - 400 | 740 - 1080 | (110+75) - (160+110) | |
LPE600 | 200 - 600 | Vertical / Shuttle | 1080 - 1440 | (160+110) - (200+160) |
LPE800 | 200 - 800 | 1520 - 1850 | (220+160) - (280+200) | |
LPE1200 | 400 - 1200 | 1850 - 2300 | (280+200) - (355+280) |
Recommend Products
Why Choose Us
Jiangsu Xinrongplas Machinery Co., Ltd.
Jiangsu Xinrongplas was established in 1996. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
Workshop.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Certificates & Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
Exhibitions.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
Exhibitions.
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 24 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
* Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
* How about the machine quality?
Our machine quality is reliable.We select every parts ot the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
* How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
We are manufacture,have 24 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
* Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
* How about the machine quality?
Our machine quality is reliable.We select every parts ot the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
* How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
