Горизонтальный карты вентиляторный доводчик с водяным Охлаждением Блок змеевика вентилятора использует 3 0-4.2kW в сверхвысоком разрешении
- Категория: Industrial Air Conditioners >>>
- Поставщик: Shenzhen,Monchrui,Industrial,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 364.46 $* | 382.93 $* |
| Aug-17-2025 | 361.84 $* | 379.30 $* |
| Jul-17-2025 | 303.74 $* | 318.65 $* |
| Jun-17-2025 | 355.61 $* | 373.61 $* |
| May-17-2025 | 309.43 $* | 324.81 $* |
| Apr-17-2025 | 349.46 $* | 366.42 $* |
| Mar-17-2025 | 346.61 $* | 363.63 $* |
| Feb-17-2025 | 343.41 $* | 360.57 $* |
| Jan-17-2025 | 340.53 $* | 357.54 $* |
Характеристики
Product Description

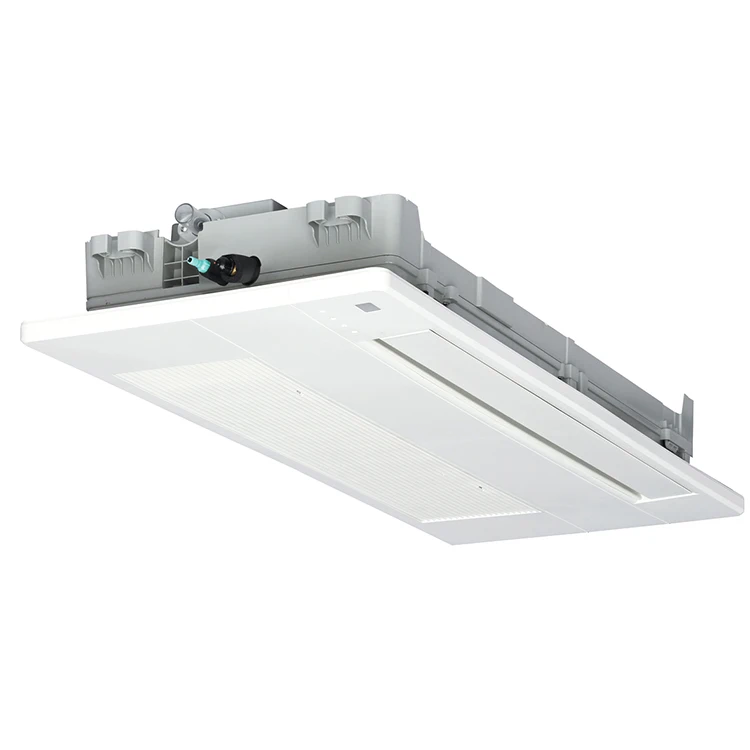

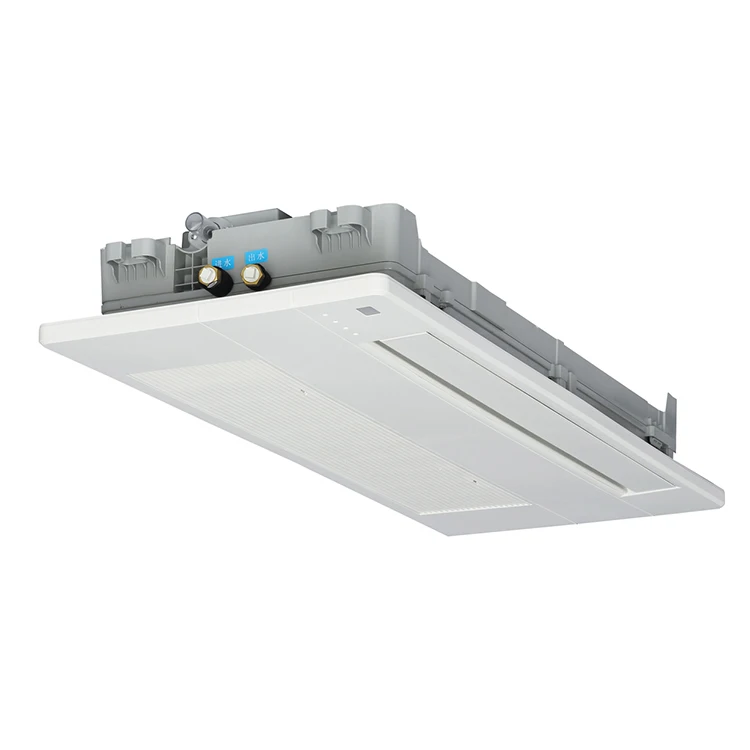

Horizontal card fan coil fan coil unit uses 3.0-4.2kW ultra-large cooling capacity
| CFM | 400 |
| Air Flow Rate | 400-680m3/h |
| Cooling Total Capacity | 2.6-3.8kW |
| Cooling Sensible Capacity | 1.9-2.8kW |
| Cooling Water Flow Rate | 655L/h |
| Cooling Water Pressure Drop | 18kpa |
| Heating Capacity | 4.5-6.4kW |
| Power Supply | 220~240V/1PH/50Hz(or60HZ) |
| Power Input | 45 |
| Sound Pressure | 39dB(A) |
| Fan Type | CentrifugalFan |
| Fan Model | 97m |
| Fan Quantity | 1pcs |
| Motor Type | 3-speedMotor |
| Motor Quantity | 1pcs |
| Coil Rows | 2 |
| Coil Max. Working Pressure | 1.6mPa |
| Coil Tube Diameter | 3/8”inch |
| Unit Body | 1054x4251695mm |

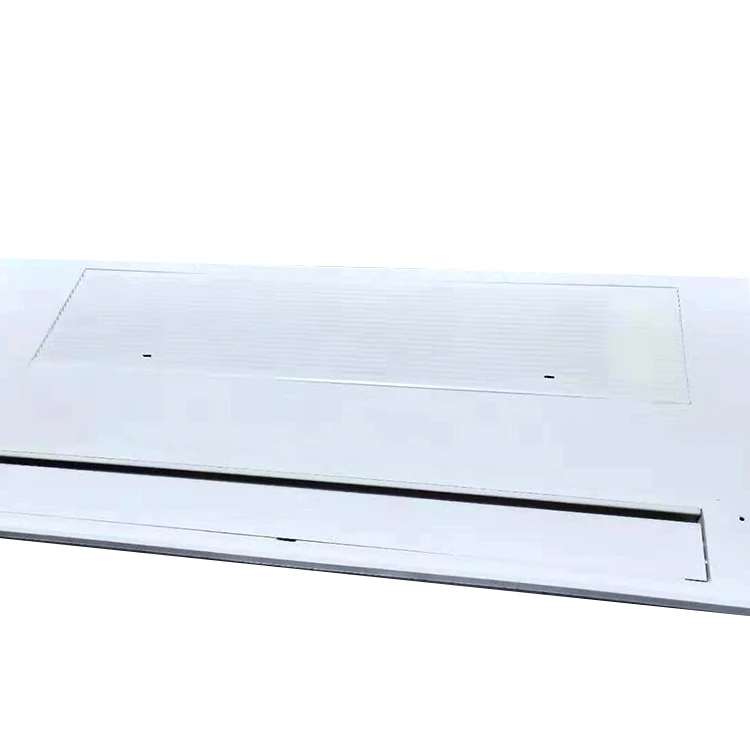

| Panel Assembly | 1180x465x25mm |

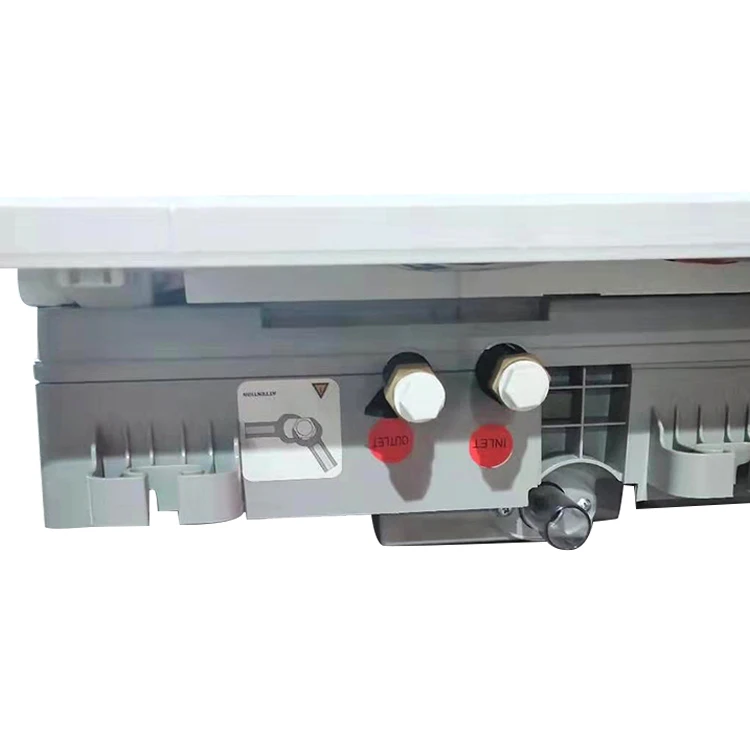

| Water Inlet/Outlet Pipe | ZG3/4”/ZG3/4”inch |
| Condensate Discharge | 26inch |
