Токоизмерительные клещи ETCR6300 высокой чувствительности 0 000ма ~ 60

Model

ETCR6300 High Accuracy Clamp leakage Current Meter

Range

0.001mA~60.0A

Resolution

1uA

Accuracy

±1.5%±5dgt (23℃±3℃, below 70%RH)

Power Supply

Alkaline battery 6LR61 9V, continuous working for 80 hours

Weight

210 g (including the battery)

Dimension

175mm×70mm×38mm

Clamp Size

25mm×30mm

LCD Size

35mm×21.5mm; display domain: 32mm×15mm

Sampling Rate

2 times/s

Frequency

50Hz.60Hz Automatic identification

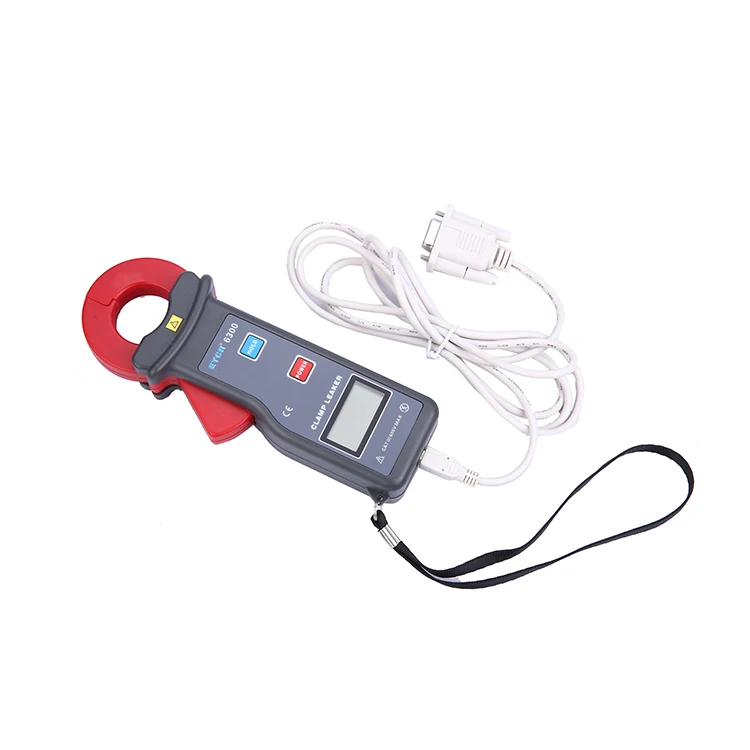

RS232 Interface

Data stored in the memory of the meter via RS232 upload to PC

Data Memory

99units, FULL blinks when the memory is full

Peak Hold

Peak value capture hold function, press HOLD without Release to display peak value

Reading Hold

DH indicating the reading is hold

Out of Range

OL A indicating the current is out of range

Auto Power-off

5 Minutes after power on, it will power off automatically to lower the power consumption

Battery Voltage

Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed

Working Current

5mA

Line Voltage

Below AC600V

Range Shift

Automatically

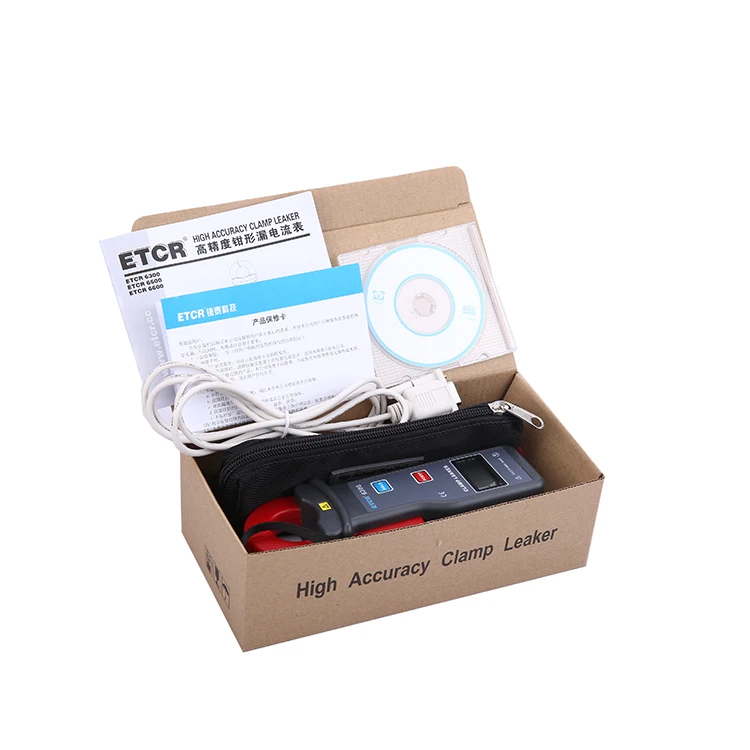

Accessories

Meter:1PCS; RS232 Com-cable:1PCS; Software disk:1PCS; Cloth bag:1PCS,Battery 6LR61 9V:1Piece
