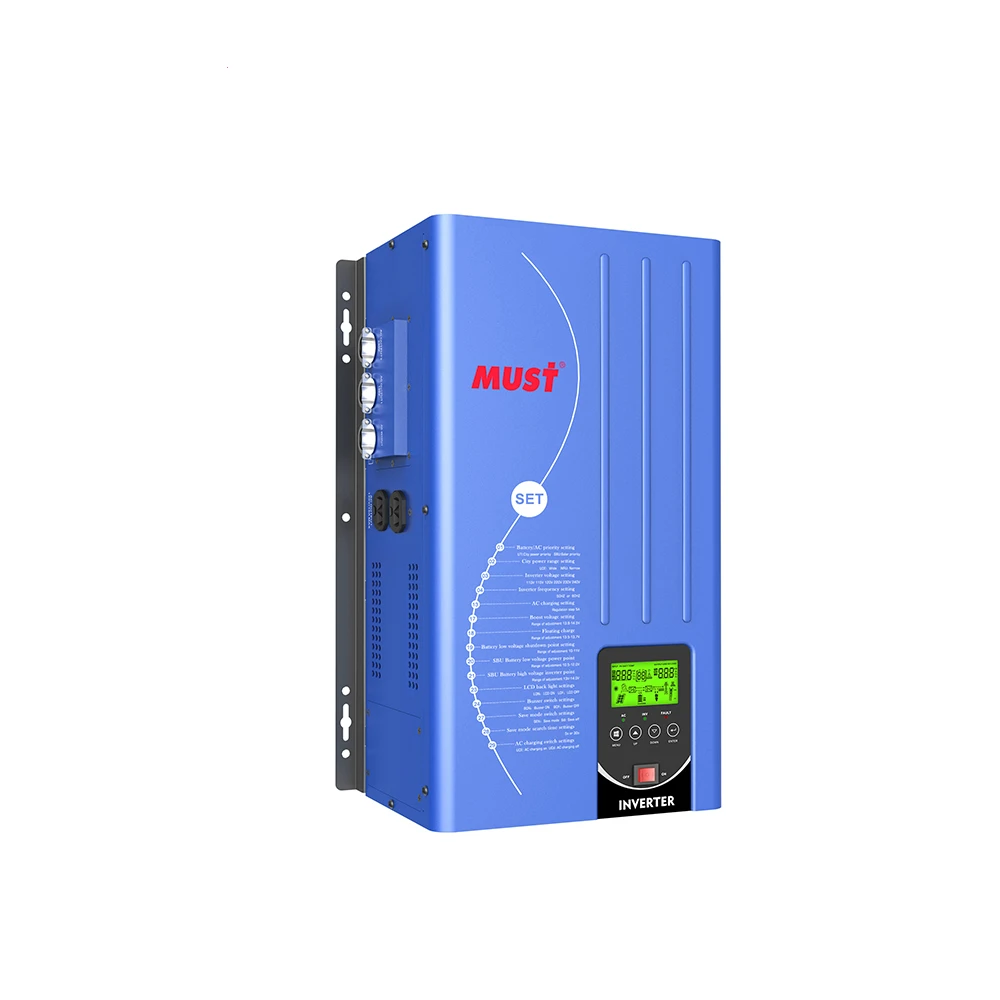

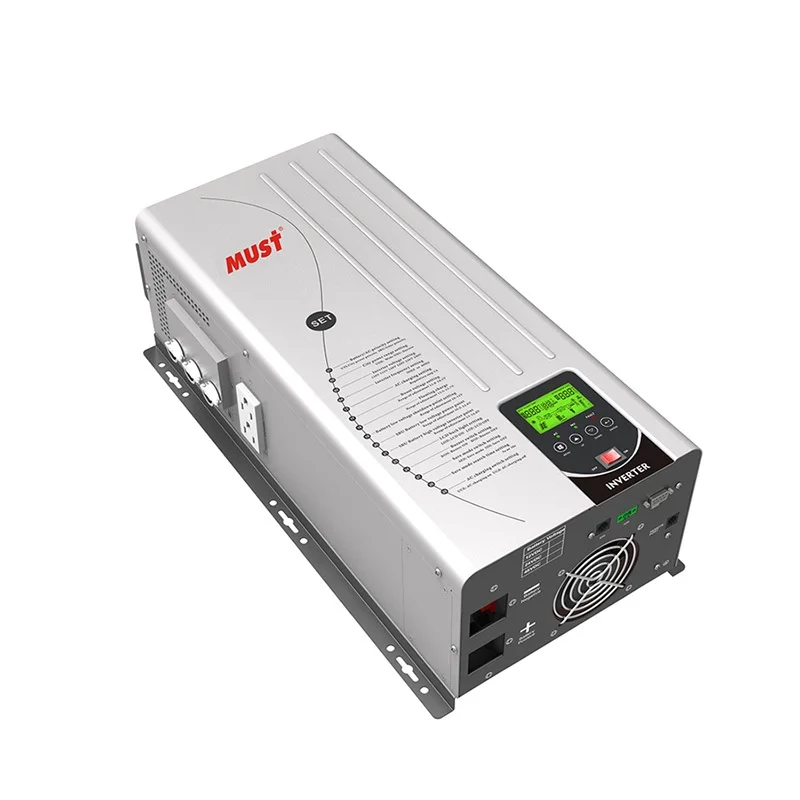

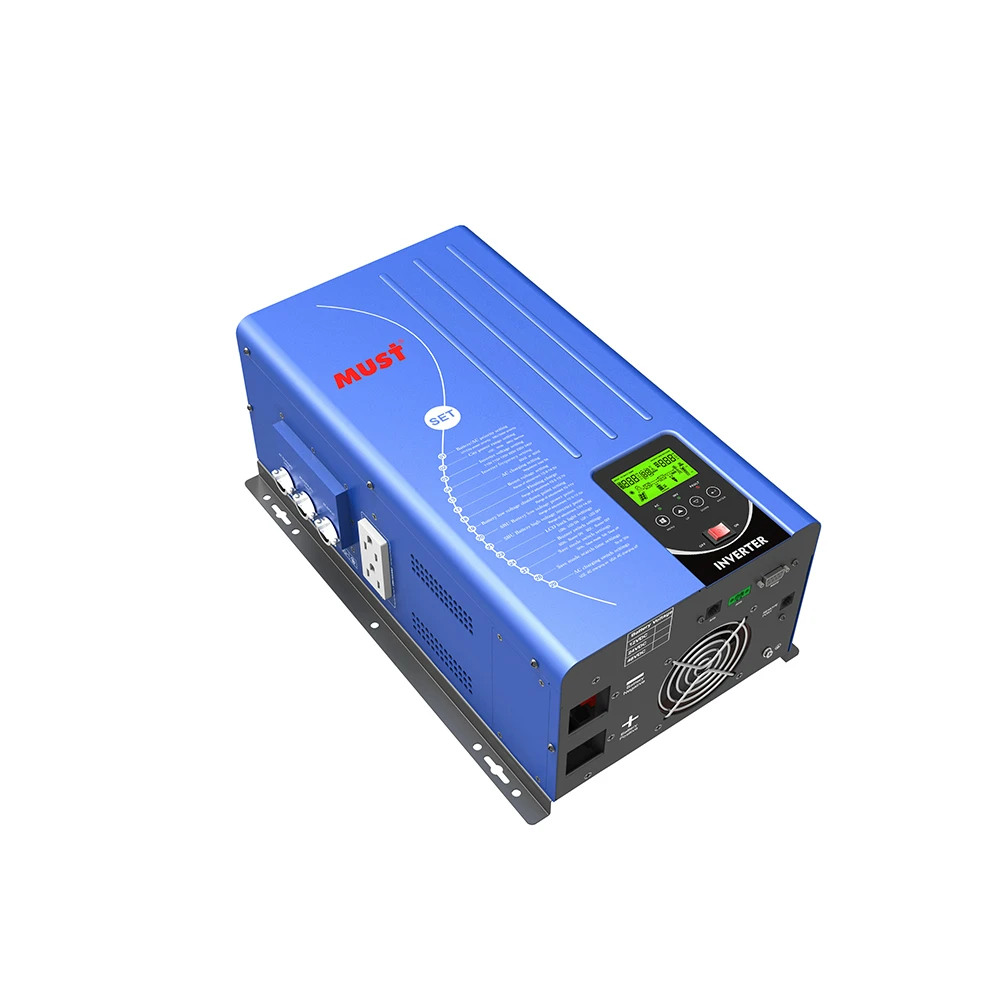

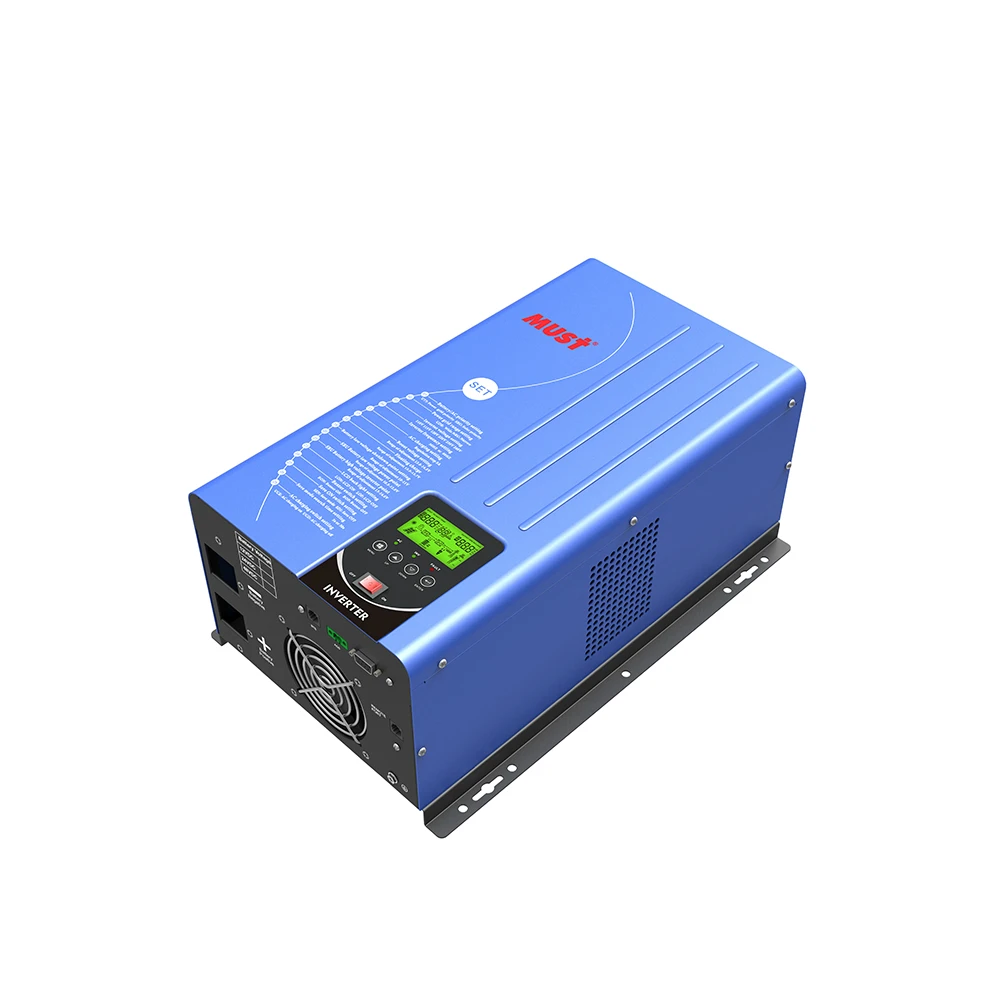

Iversor de corriente 12v a 220v 20.000 watts inverter 48v 5kw Inverter MUST



EP3300 LV series is applicable to different markets demands, it matches different voltage AC 120V/240V, also can set output voltage, frequency, charging voltage, charging current, it’s available to work in all single-phase power environment.

• Pure sine wave output
• 3 times surge powerMFD (multi-function display)
• Overload and short-circuit protection
• Set charging voltage/charging current
• Battery low voltage shutdown point can be set to 10/10.5/11V
• Power-save mode
• Set utility priority/ Battery priority
• Set utility input wide/narrow range
• Inverter voltage can be set to 110/115/120/220/230/240V
• Inverter frequency can be set to 50/60Hz
• Set utility charging on/off switch

MODEL

EP33-1012 LV

EP33-1024 LV

EP33-1512 LV

EP33-1524 LV

EP33-2012 LV

EP33-2024 LV

EP33-3024 LV

EP33-3048LV

EP33-4024 LV

EP33-4048LV

EP33-5048LV

EP33-6048LV

Nominal Battery System Voltage

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

24VDC

48VDC

24VDC

48VDC

48VDC

48VDC

INVERTER OUTPUT

Reted Power

1KW

1.5KW

2KW

3KW

4KW

5KW

6KW

Surge Rating (20ms)

3KVA

4.5KVA

6KVA

9KVA

12KVA

15KVA

18KVA

Capable Of Starting Electric Motor

1HP

1.5HP

2HP

3HP

Waveform

Pure sine wave/ same as input (bypass mode)

Nominal Output Voltage RMS

110V/115V/120VAC(220V/230V/240VAC)±10%

Output Frequency

50Hz/60Hz±0.3 Hz

Inverter Efficiency(Peak)

>80%

Line Mode Efficiency

>95%

Power Factor

1

Typical Transfer Time

15ms(max)

AC INPUT

Output Breaker Rating

30A

30A

40A

50A

63A

Voltage

120/230Vac (±3%)

Selectable Voltage Range

96~132VAC 155~280VAC(For Personal Computers)

Frequency Range

50Hz/60Hz (Auto sensing) 40~80Hz

BATTERY

AC Input Breaker Rrating

30A

30A

40A

50A

63A

Minimum Start Voltage

11VDC/22VDC/44VDC

Low Battery Cut off

(low voltage fault code04) 10/10.5/11V for 12V model 20/21/22V for 24V model 40/42/44V for 48v model

Low Battery Alarm

Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11V) +0.5Vdc for 12V model; (20/21/22V) +1Vdc for 24v model (40/42/44V) +2Vdc for 48v model

High Voltage Alarm

Add +1V/battery: (high voltage one second one time/after 30s fault 03); (13.8-14.5V) + 1V for 12V model (27.6-29V) + 2V for 24v model (55.2-58) + 4V for 48v model

Idle Consumption-Search Mode

Load≤40W(110V)/80W(220V)

CHARGER

Output Voltage

Depends on battery type

Overcharge Protection S.D.

15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode)

Maximum Charge Current

30A

20A

45A

25A

60A

30A

40A

20A

60A

30A

35A

40A

BYPASS&PROTECTION

Input Voltage Waveform

Sine wave (grid or generator)

Nominal Input Frequency

50Hz or 60Hz

Overload Protection (SMPS Load)

Circuit breaker

Output Short Circuit Protection

Circuit breaker

Max Bypass Current

30Amp

MECHANICAL SPECIFICATIONS

Mounting

Wall Mount

Dimensions (W*H*D)

441.7*259.3*195.9 mm

597*259.3*185.9mm

Net Weight (Solar CHG) kg

16.5

17

21.1

20

26

24.5

24.8

38.2

35.8

45.2

45

Shipping Dimensions(W*H*D)

592*376*306mm

747*376*296mm

Shipping Weight (Solar CHG) kg

19.3

20

24.1

22.8

29.1

27.5

27.5

42.3

40

49.5

49.3

OTHER

Operation Temperature Range

0°C to 40°C

Storage Temperature

-15°C to 60°C

Audible Noise

60dB MAX

Display

LED+LCD

Standard Warranty

1 year
