Высокоэффективная 550 Вт портативная машина для снятия фаски по заводской


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.33 $* 0.23 $*
Aug-18-2025 0.12 $* 0.92 $*
Jul-18-2025 0.11 $* 0.12 $*
Jun-18-2025 0.34 $* 0.6 $*
May-18-2025 0.97 $* 0.84 $*
Apr-18-2025 0.0 $* 0.80 $*
Mar-18-2025 0.66 $* 0.77 $*
Feb-18-2025 0.87 $* 0.58 $*
Jan-18-2025 0.3 $* 0.94 $*

Характеристики


Product Description

Product Application

Small workpieces suitable for batch processing, mold, mold chamfering, sheet metal processing, machine equipment manufacturing, etc. Widely used in steel, steel structure, mold, mold base, metal processing, hardware parts manufacturing and other industries.

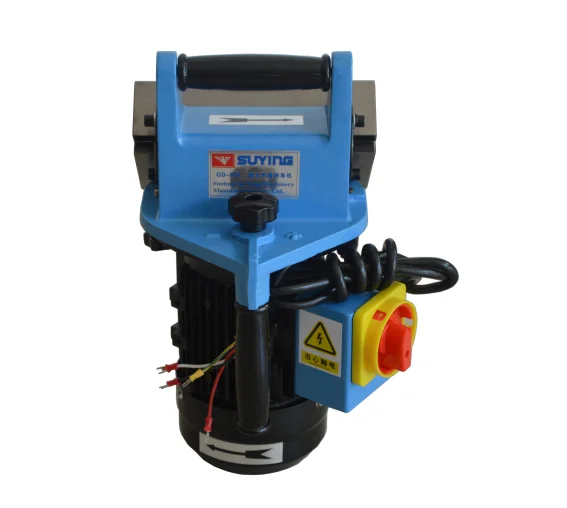

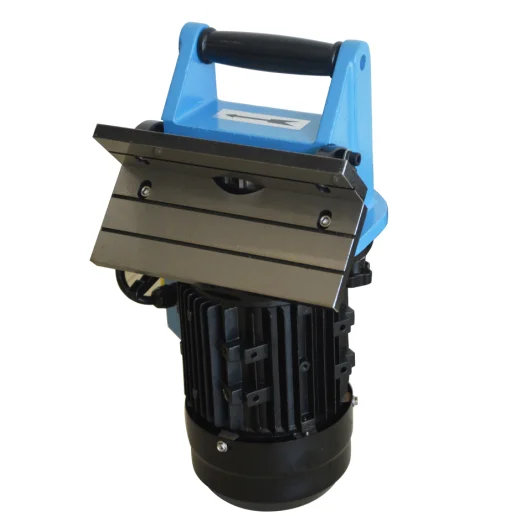

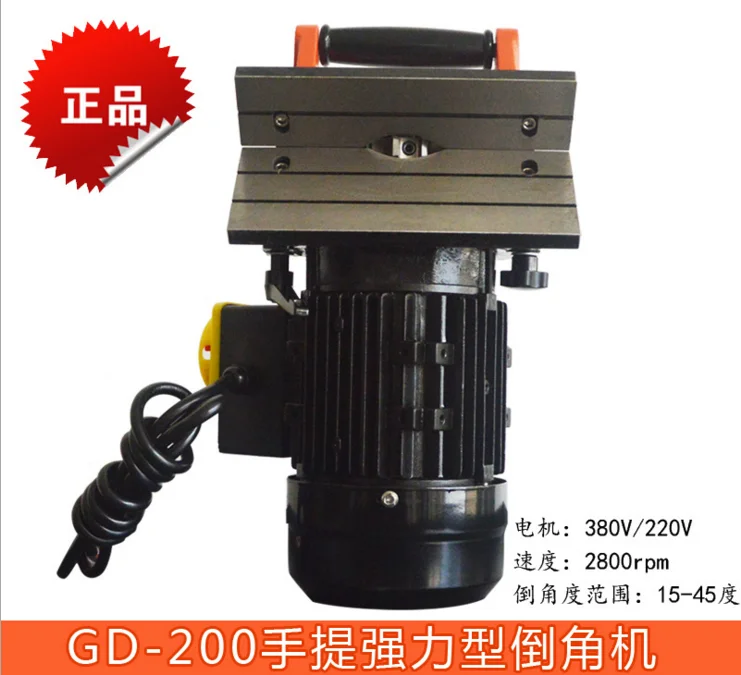

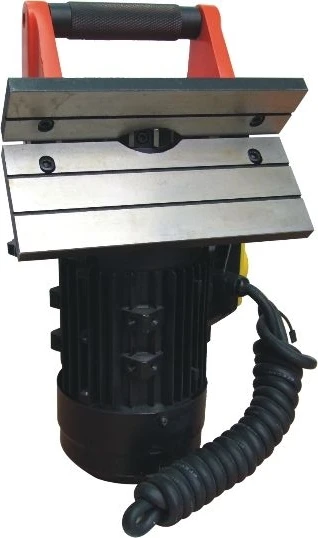

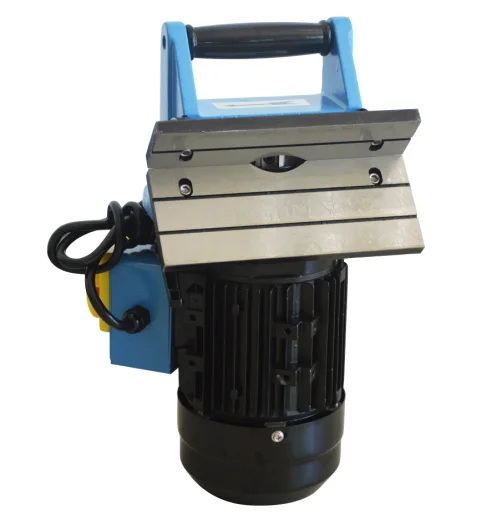

                                                           Automatic   Handheld  powerful chamfering machine
Main performance parameters
Blade specifications
mm
tungsten steel blade 12.7*12.7*3.18MM square blade tungsten steel blade
Chamfer adjustment angle range
°
15°-45°
Chamfer depth
mm
0-6mm

Other Main performance parameters
Slide length
mm
200mm
Coil speed
M/min
5.5 M/min
Rotating speed
RPM
2800RPM

Pressure system
Weight
KG
14KG
Voltage
V
220V/50Hz  380V/50Hz

Main Features

1. This machine is suitable for large workpieces without heat treatment, such as chamfers made of various molds and mechanical parts. The chamfer has a precise finish.
2. Any length of aluminum, iron, metal parts can be easily chamfered.
3. When the operation, the slide rail is pressed against the workpiece and cut in the direction indicated by the arrow.
4. The square blade tungsten steel blade 12.7×3.18 is easy to replace.
5. The slide rails are made of high quality die steel and heat treated for durability.
6. Simple operation, chamfering, easy adjustment, economical and reliable, the efficiency is 10 to 15 times that of traditional equipment. The use of fast machine chamfering is the trend of mechanical industry development.
7. Small workpieces suitable for batch processing, mold, mold chamfering, sheet metal processing, machine equipment manufacturing, etc. Widely used in steel, steel structure, mold, mold base, metal processing, hardware parts manufacturing and other industries.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technical and technical services.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
