Характеристики
Specification

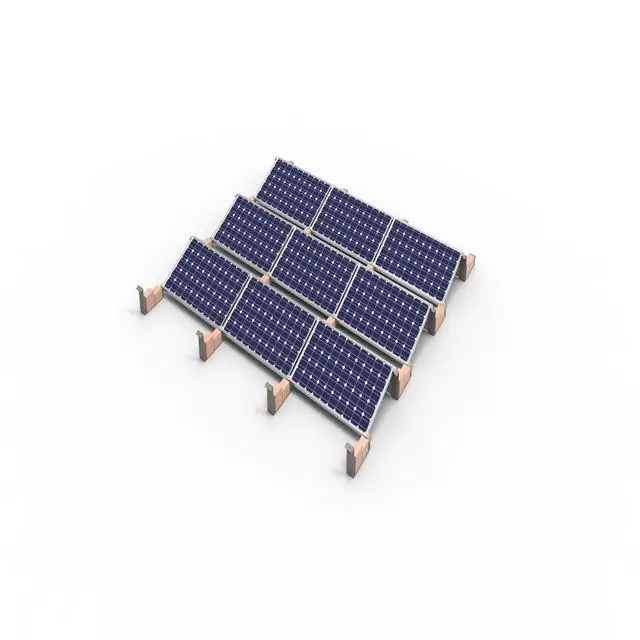

Ballasted Flat Roof Solar Panel Mounting System
Ballasted Flat Roof Solar Panel Mounting System CR06-1 is designed for the flat roof. Its material is galvanized steel with high corrosion, and its Side plate makes the structure have a higher wind load. The module array is preferably in horizontal, and the module inclination based on the latitude of the construction site. A small number of components, making installation fast and simple. In its class, our products are superior in quality and moderate in price. This kind of solar roof mounting system is practical and economical for the needs of your company. Finally, we guarantee our product service life up to 30 years and the warranty for 15 years.
Product name | Solar roof mounting system ( CR06-1 ) | ||||
Applicable roof type | Flat concrete roof (or with inclination less than 10°) | ||||
Material | Galvanized steel | ||||
Arrangement of module | in horizontal | ||||
Wind load | 40m/s | ||||
Snow load | 0.95KN/M2 | ||||
Warranty | 10 years | ||||
Service life | 30 years | ||||
Product Description
Name:Z-shape bracket
Material:Galvanized steel
Name:Mid clamp
Material:Aluminum
Name:End clamp
Material:Aluminum
Name:Back plate
Material:Aluminum
Installation Process
Step 1:

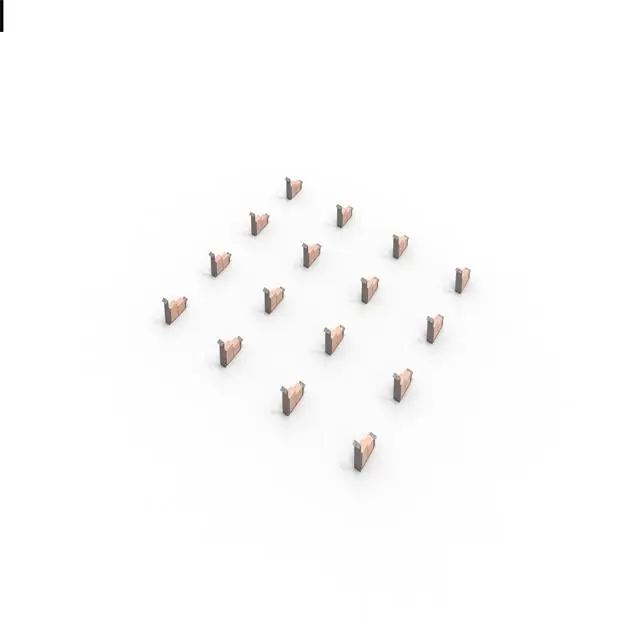

Place the Z Ballast on the marked Chalk line. Then put the blocks on it.
Step 2:
Install the Mid Clamps and End Clamps onto the Z Ballast.
Step 3:

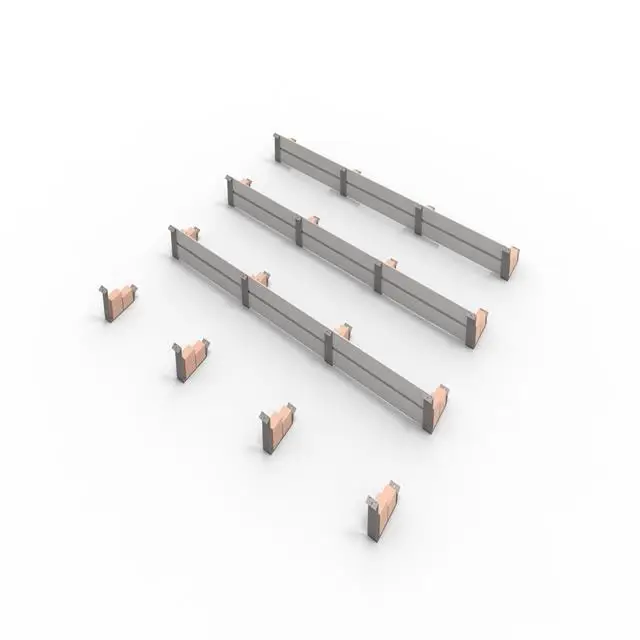

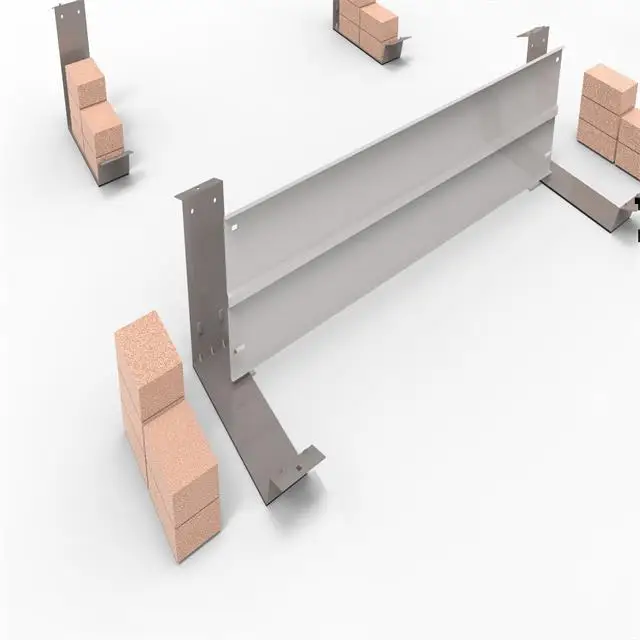

Put wind deflector into the slot on Z Ballast and fix it with screw and nut.
Step 4:

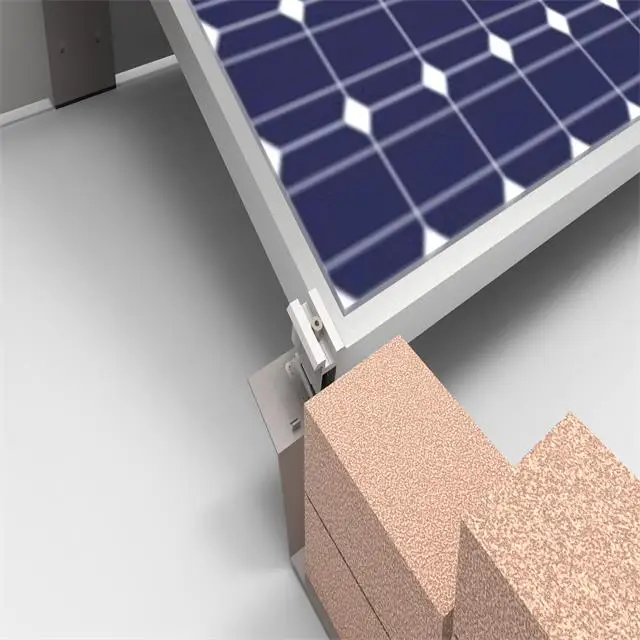

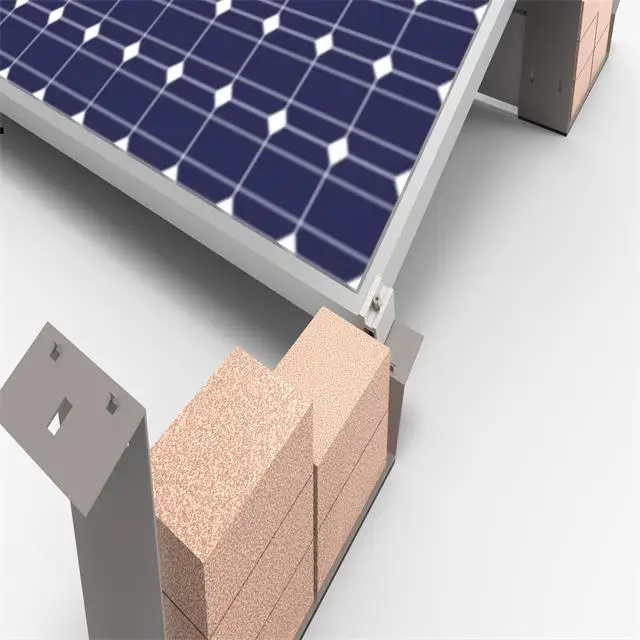

Place the module on the Z Ballast and fix it with clamps.
Related Product
Exhibition
Our company will participate in international exhibitions and exchange products many times every year.
These photos are our company's participation in the exhibition in the US, Europe and Japan.
These photos are our company's participation in the exhibition in the US, Europe and Japan.
Europe
Japan
America
Certifications
Our products (Solar roof mounting system) have been certified by ROHS, SGS, CE and others.
Packing & Delivery
Carton Packing
Carton Packing
Wooden Pallet
Our product's inner packing is carton, and the out packing is wooden pallet or wooden case.
Making sure the goods ( Solar asphalt shingle roof system ) are safely delivered to scheduled place without any damage.
Our project
Our company has provided the solar mounting system for customers in more than 20 countries.
For example, we completed 22.5 megawatts of solar-powered ground projects in Honduras and completed more than 10 commercial projects in Japan; we provide millions of sets of roof hooks and flashing for US residential projects every year.
FAQ
1. Q :You are a trader or a Manufacturer?
A :We are a Manufacturer with 20000 square meters workshop, about 100 workers.
2.Q :Where is your factory located? How can I visit there?
A :Our factory is located in Jiaxing City, Zhejiang Province, China, All our clients, from home or abroad, are warmly welcome to visit us!
3.Q : Can you send samples for testing before placing order?
A :Yes. samples are available for your checking quality;it takes about 3-5 days to send samples in stock or out of stock.
4. Q :Can we make small order?
A :Yes. for you to develop the market easier, we also accept quantities from 1 pieces.
5. Q:What is your delivery time?
A : It depends on your order quantity and requirement. Usually 25 days.
