Белый плоский кабель NTC

Описание и отзывы

Трекер стоимости

Характеристики

NTC 10K sensitive flat cables are commonly used in the electronics industry, the automotive industry, in the manufacture of construction machinery and industrial equipment, as well as in the manufacture of white goods such as washing machines and dryers, refrigerators, and other household appliances.

This white NTC 10K cable simplifies the building of these larger components by integrating the wiring into a single unit, or several units, for [drop-in" installation. By binding the many wires, cables, and sub-assemblies into a harness, the OEM or installer only has one component to install. In addition, a PVC cable allows the completed assembly to be better secured against the effects of abrasion and vibration, and by constricting the wires into a non-flexing bundle, usage of space is optimized.

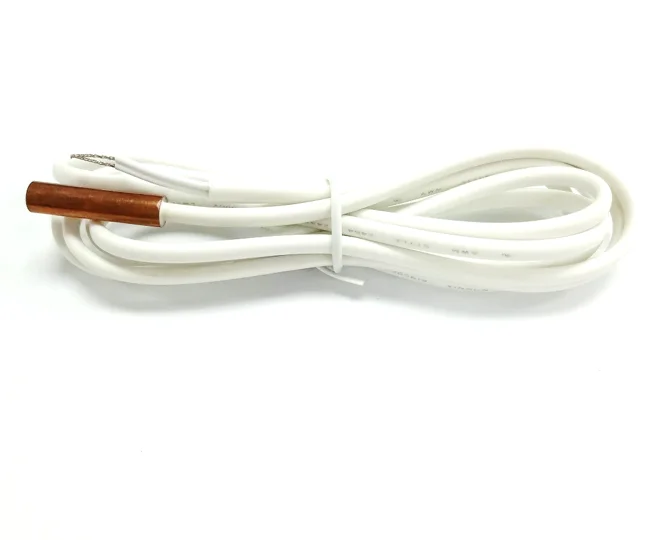

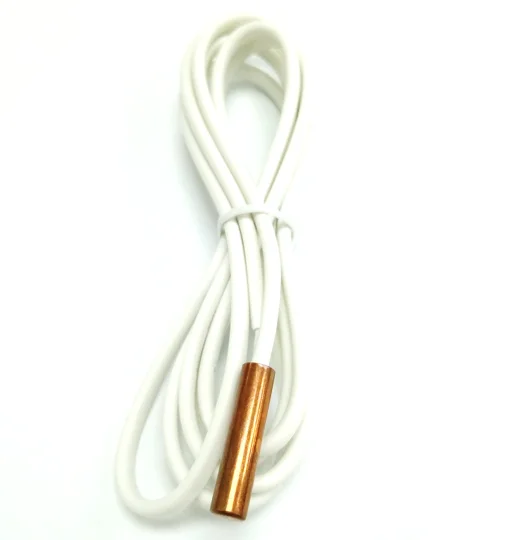

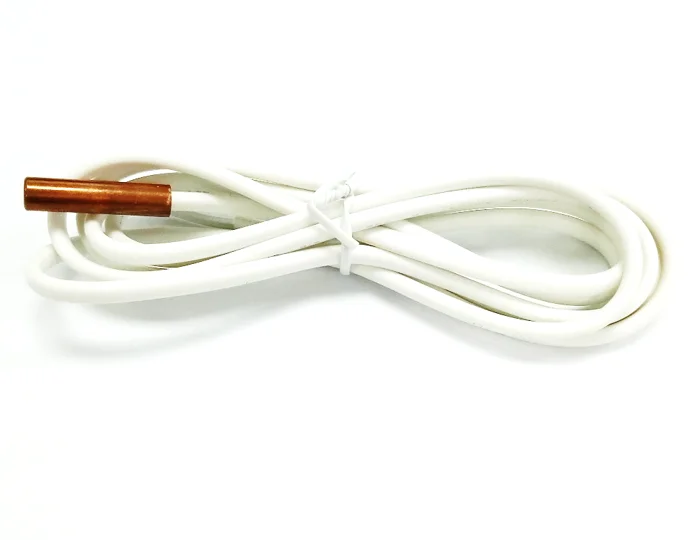

NTC 10K Class A sensitive Cable

Bill of material

---FLAT CABLE 2*0.15mm2

---NTC 10K

---Resin

---PVC heat shrink tube



Length

Respect customer requirement

We accept customized sensor, NTC 10K thermistor wire harness.

Cable material:	silicon,pvc,shield,teflon,telephone wire,braided wire,thermal casing (custom-made)
Probe :	copper (5*25/6*25)            stainless steel (4*20/4*50/6*30/6*50/7*38/6*25)            ABS(balck /white)(7*25/8*30/9*50)            GUNI(7*25/8*30)            epoxy
Connector:	RJ serial(rj11/rj12/rj45) , 2p-xh , stereo plug(3.5mm/2.5mm/90°3.5mm),USB , M12 , 2510-3Y ,E0508 ,VH-2Y ,YH-3Y
Cable length :	can be custom-made
