Устройство отслеживания GPS TK003 32A в реальном времени печатная плата с реле ACC порт SOS поддержка
- Категория: GPS и навигация >>>
- Поставщик: Shenzhen,Jingwei,Xingyun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.6 $* | 0.88 $* |
| Aug-20-2025 | 0.93 $* | 0.85 $* |
| Jul-20-2025 | 0.14 $* | 0.57 $* |
| Jun-20-2025 | 0.3 $* | 0.50 $* |
| May-20-2025 | 0.11 $* | 0.55 $* |
| Apr-20-2025 | 0.28 $* | 0.83 $* |
| Mar-20-2025 | 0.21 $* | 0.6 $* |
| Feb-20-2025 | 0.10 $* | 0.98 $* |
| Jan-20-2025 | 0.64 $* | 0.19 $* |
Характеристики
Product Description
Features
More details refer to https://gpssky.en.alibaba.com/
1, GSM+GPRS System;
2, BeiDou+GPS+LBS Multi Positioning system;
3, Real time positioning track;
4, ACC Detection;
5, Remote lock car;
6, Vibration Alarm/Shift Alarm;
7, Burglar Alarm;
8, Cut off Alarm
9, Blind Area Supplement;
10, Bend compensation;
11, GEO Fence/ Boundary Violation Alarm;
12, Multiple Tracking ways (SMS TEXT,APP,Web server);
13,365 days trajectory history playback (can customize to be 3 years or more.);
14. Remote fuel cut off;
15. ACC detection;
16. Original vehicle battery low power alarm by SMS or Call
17. Optional SOS emergency auto dailing
18. Send SMS to change protocol of JT808, HY or XY, GT06N

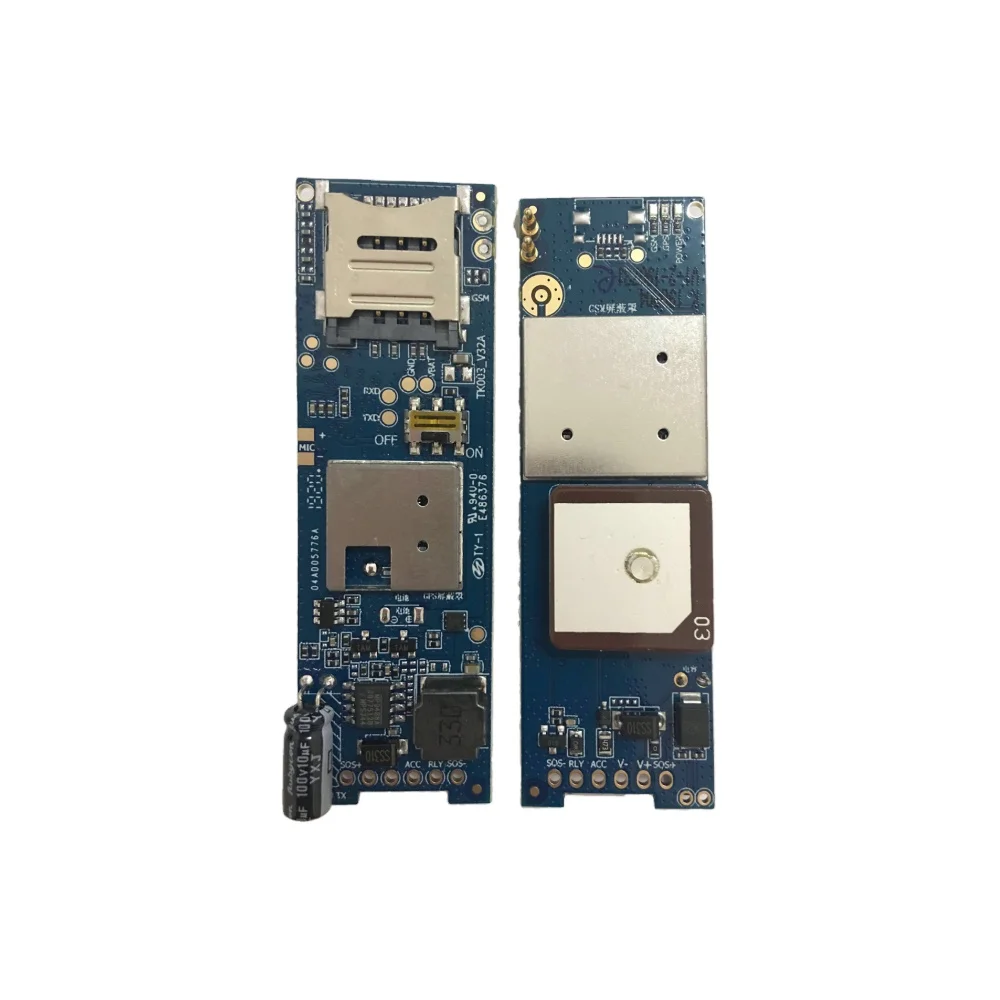

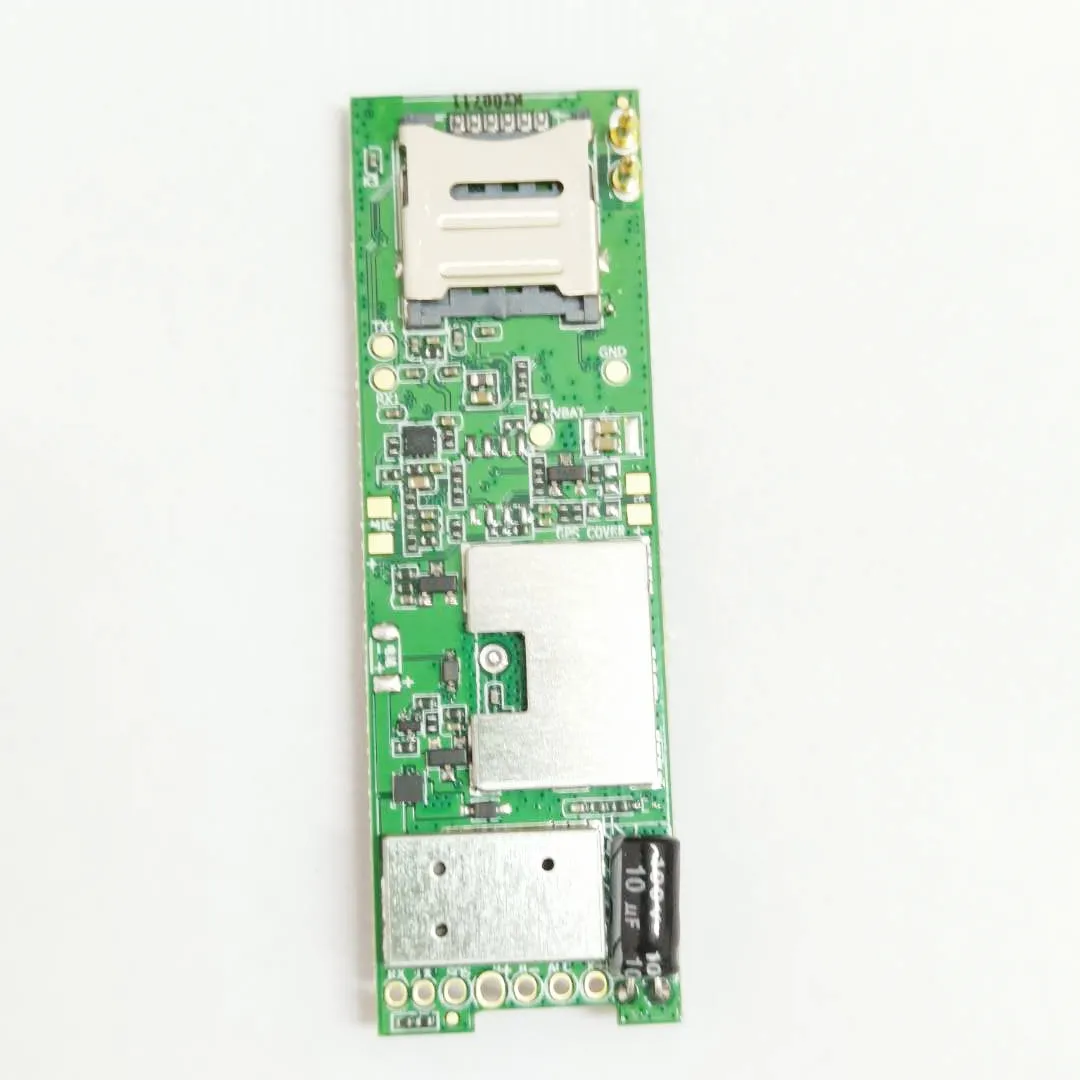

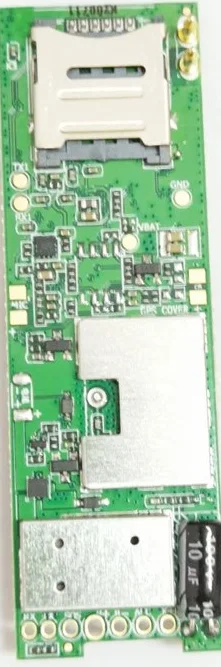

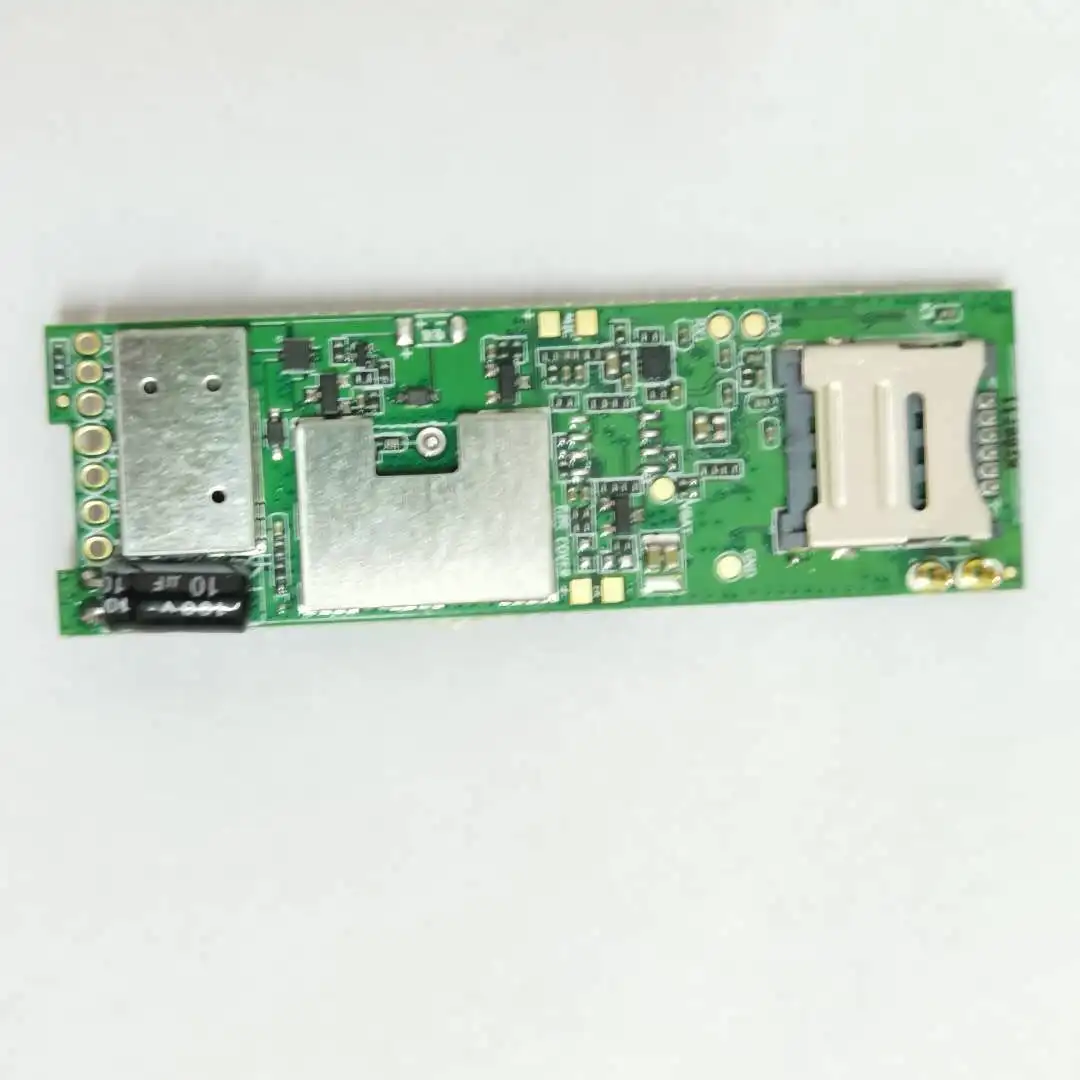

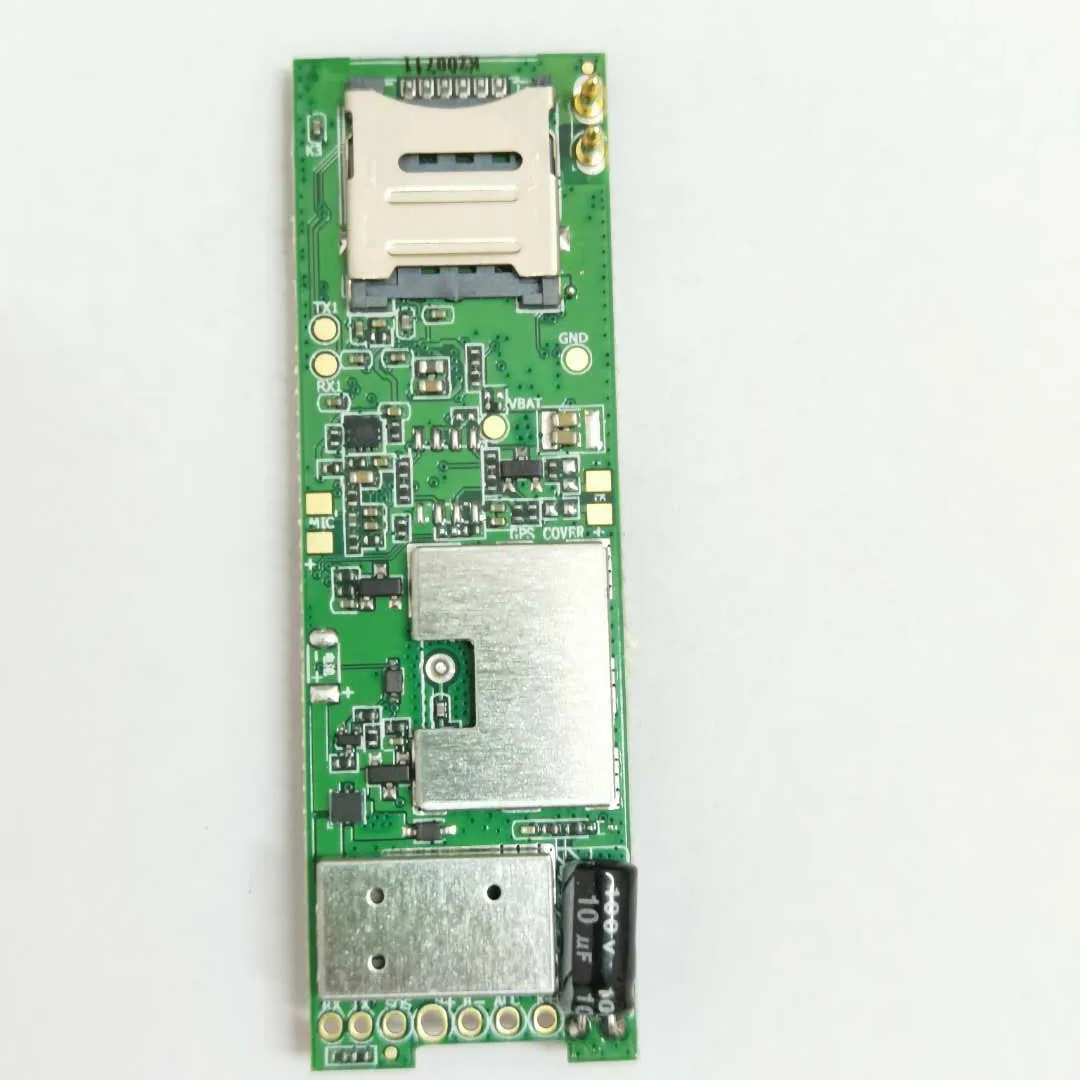

TK003 Vehicle GPS tracking device PCB | ||||||
GPRS frequency | 850MHz/900MHz/1800MHz/1900MHz | |||||
Working voltage | DC9-100V | |||||
working temperature | -20°C-70°C | |||||
Chips module | MT6261D(MTK CPU)+AP5200(AIROHA PA)+ MT3333(MTK GPS)+MP1584 (power control chip) | |||||
storage temperature | -30°C-85°C | |||||
working humidity | -20°C-70°C | |||||
Positioning frequency | sensitivity:-160dbm positioning accuracy:less then 10m | |||||
GPS location time | Support AGPS, cold reboot less than 3s (open sky) | |||||
Tracking platform
The item support GT06N, HY or XY, and JT808 protocol.
platform: http://www.18gps.net
App download link:
http://www.18gps.net/app/yunzhixing/mobiledownload_en.html
Demo account for server and app: gwxy, password: 123456.
Packing & Delivery
Packing
PCB*1
Delivery
FAQ
